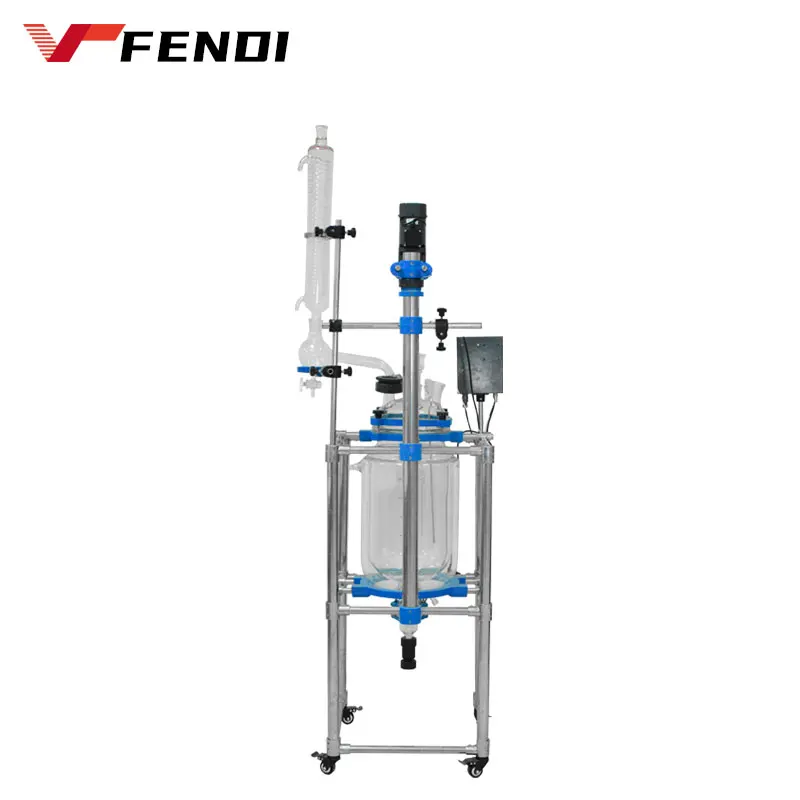

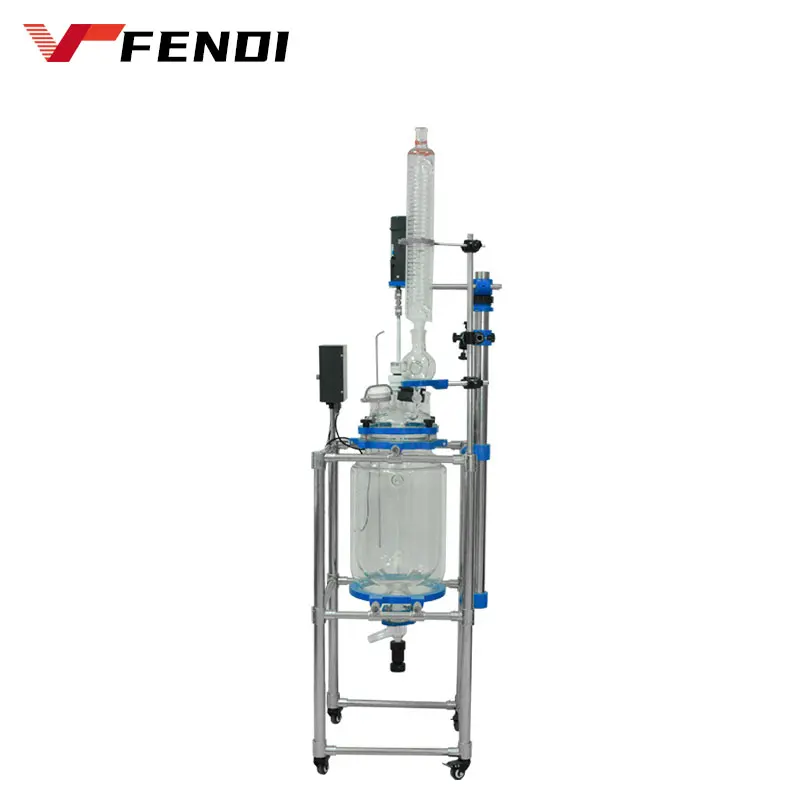

S212-10L Double-Layer Glass Reactor

FEN DI S212-10L double-layer glass reactor’s reaction flask volume is 50L, interlayer volume is 12L, stirring diameter of axle is 12mm, power of stirring is 120W. S212-50L double-layer glass reactor is an audacious product who has combined advantages of domestic and foreign like products, it adopts double-layer glass design, put reaction solvent in internal layer to do stirring reaction, connect different cold and heat sources(refrigerating fluid, hot water or hot oil) to interlayer to do cyclic heating or cooling reaction. Under set constant temperature condition, you can conduct stirring reaction under normal or negative pressure in airtight glass reactor, as well as conducting backflow and distillation of reaction solution. S212-50L double-layer glass reactor is an ideal pilot test and production equipment for modern fine chemical engineering, biological pharmacy and new material synthesis. This glass reactor series mainly contains following parts: double-layer glass reaction kettle, a set of component cover of glass reactor, condenser, constant voltage funnel, frequency conversion controller, rotate stirring and sealing system, stainless steel frame system, etc.

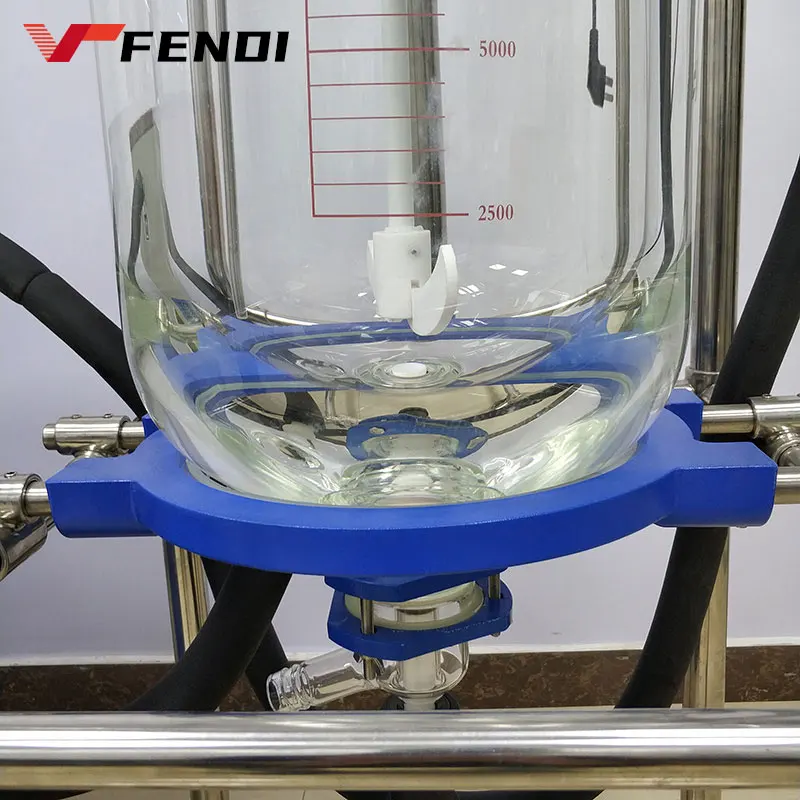

1.Discharge Valve:The special design can discharge concentrated liquid and traces of solid.

2.Sealing Port:The PTFE material possesses a strong sealing performance, corrosion resistance and wear resistance.

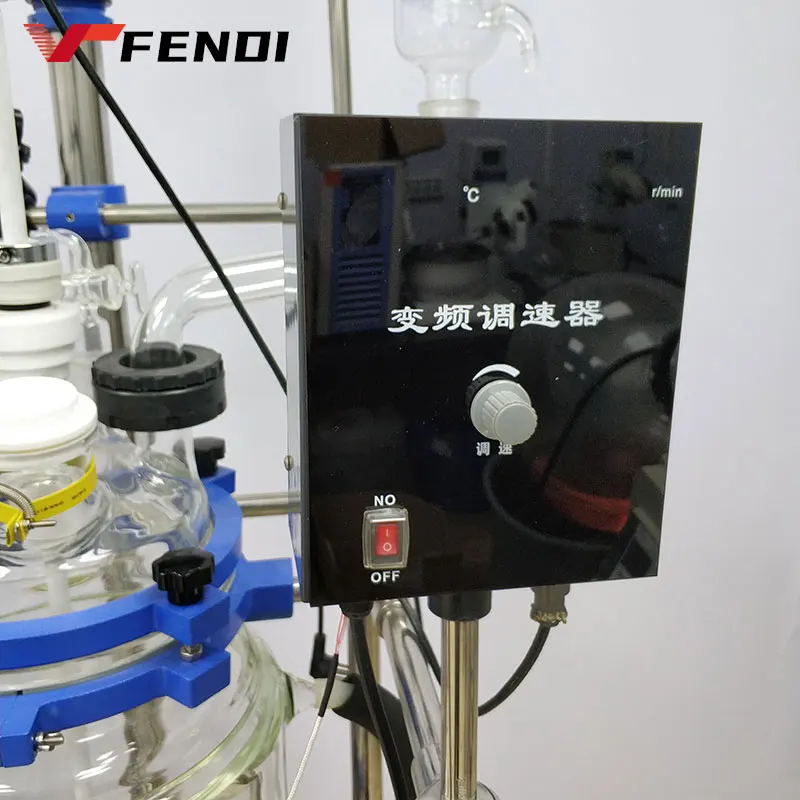

3.Frequeney Converter:The most advanced frequency conversion technology in China is safe and reliable with a high speed.

4.Motor:The variable frequency motor can work continuously with sensitive reaction, good stability and low failure rate.

5.Constant pressure dropping funnel:The constant pressure dropping funnel is made of high borosilicate glass, which is high temperature resistant, strong acid and alkali resistant. It can maintain a stable dropping speed as well as adjust the feeding speed flexibly.

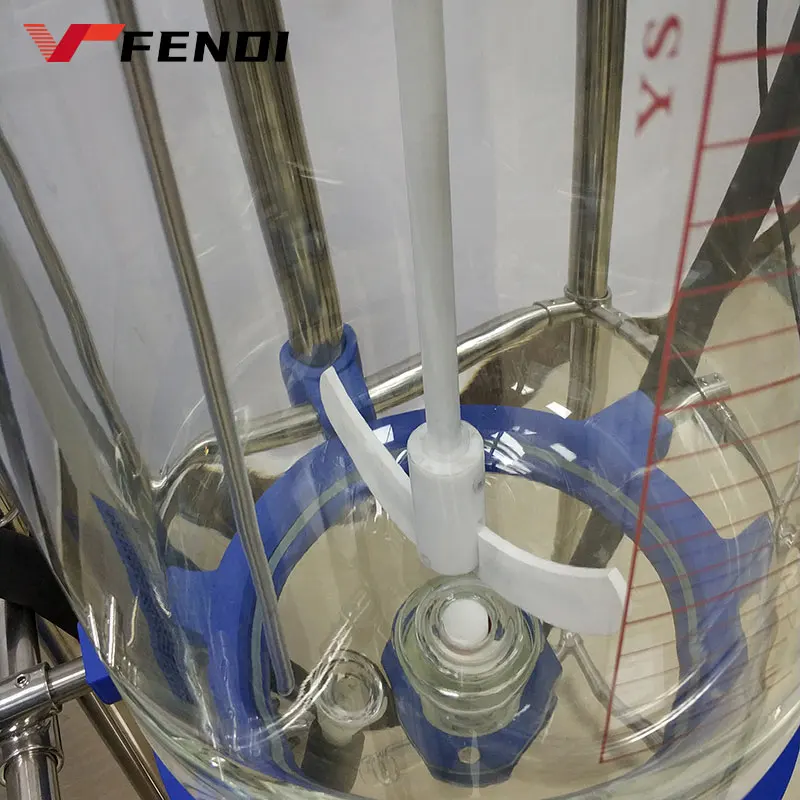

6.Dual-helix agitator:The dual-helix agitator adopts double point stirring, improving the stirring effect and speeding up the dissolution rate.

Model	S212-10L
Reaction Flask Volume	10L
Glass Material	GG-17
Frame Material	Stainless Steel
Move Mode	Brake Type Universal Casters
Interlayer Volume	6L
Noumber of Flask Mouths on the Kettle Lid	Six Mouths
Height of Discharge Port	450mm
Reaction Temperature of Kettle Body	-80-250℃
Vacuum Degree	0.098MPa
Rotating Speed of Stirring	0-450rpm
Diameter of Stirring Shaft	12mm
Stirirng Power	120W1/3
Voltage	220V/50Hz
Overall Dimension	520*520*2000mm
Package Dimension	1720*680*850mm
Package Weight	68kg

S212-10L double-layer glass reactor is an ideal equipment for modern chemistry sample, petrochemical engineering, pilot experiment, biological pharmacy and new material synthetic.
