Вертикальная литиевая аккумуляторная крышка ультразвуковой точечный сварочный аппарат для цилиндрической клеточной алюминиевой

Features

Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).

Input Voltage

AC 110V  or 220V +/-10%, 50/60Hz

Max. Power Consumption

2200W→can be customized

Welding Area

4mm(L) x 4mm(W)→can be customized

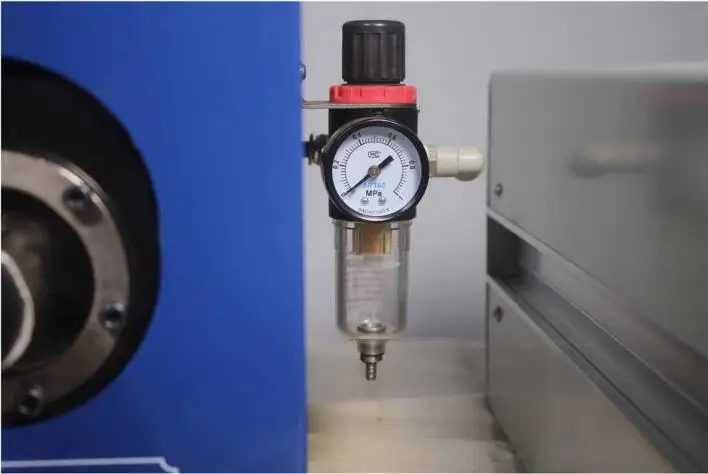

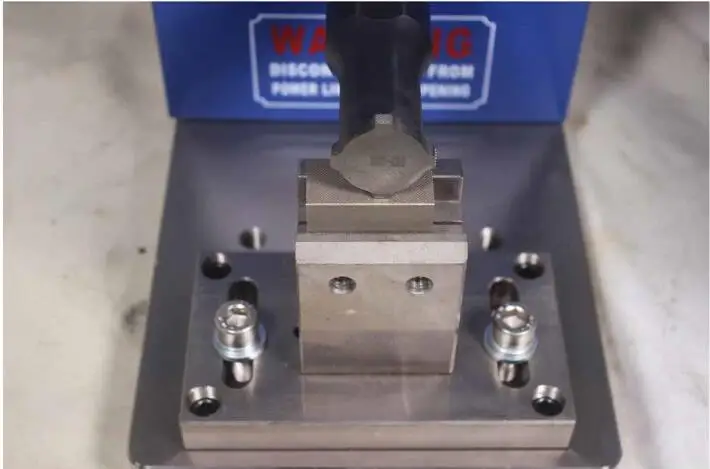

Welding Head

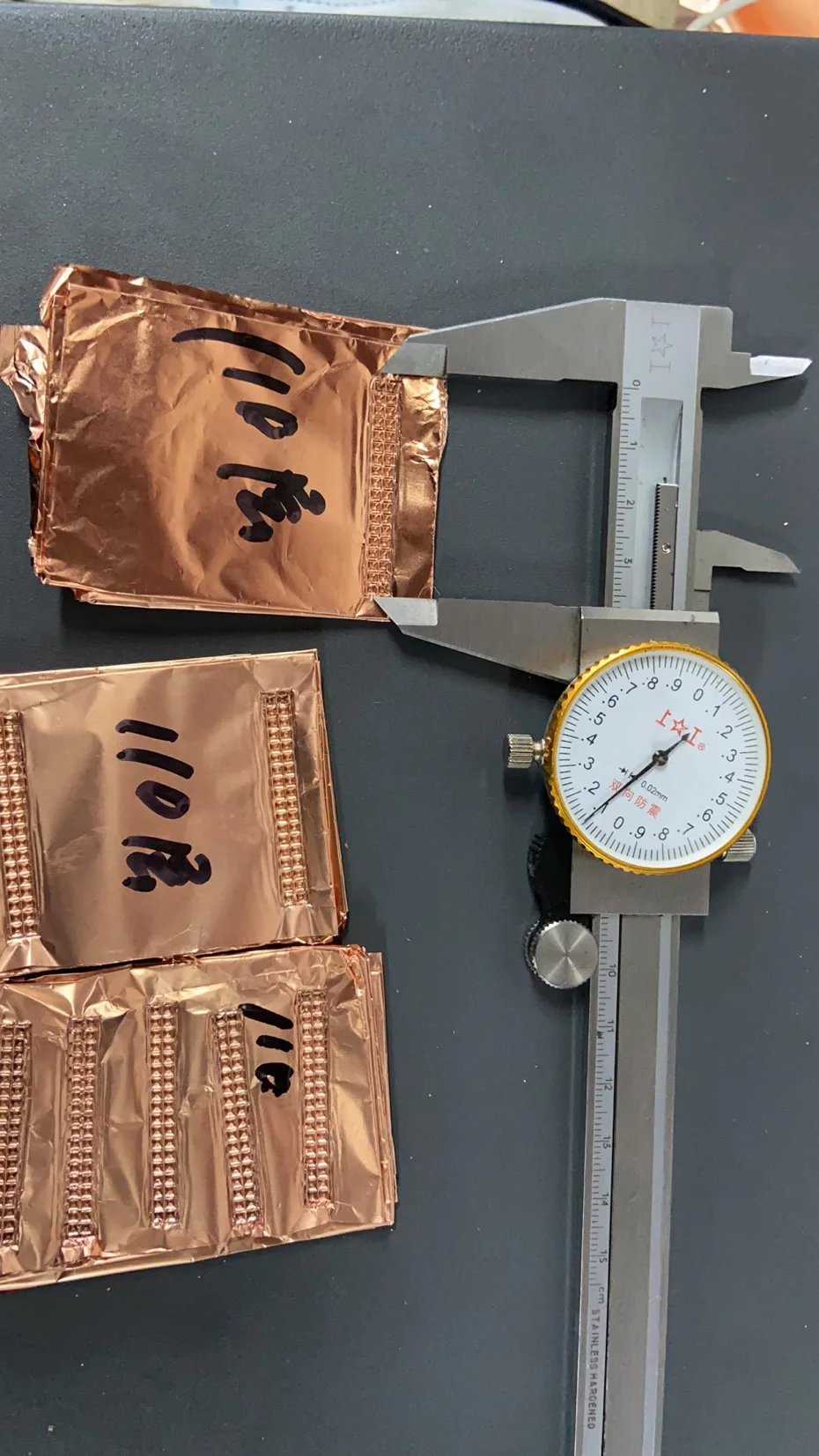

The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 40 layers

Ultrasonic Frequency

40K Hz→can be customized

Product Dimensions

1.     Controller: 360mm(L) x 480mm(W) x 200mm(H)

2.     Welder: 200mm(L) x 460mm(W) x 270mm(H)

Net Weight

70kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Application Notes

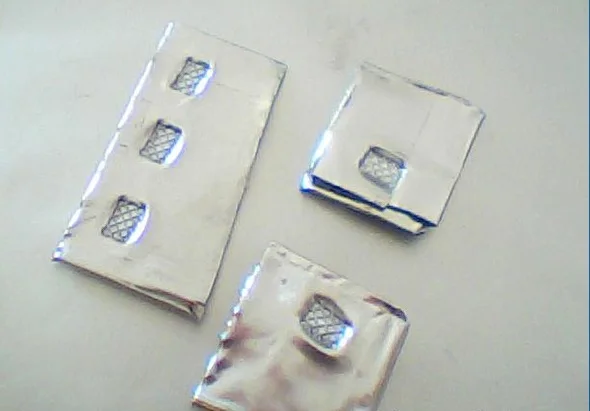

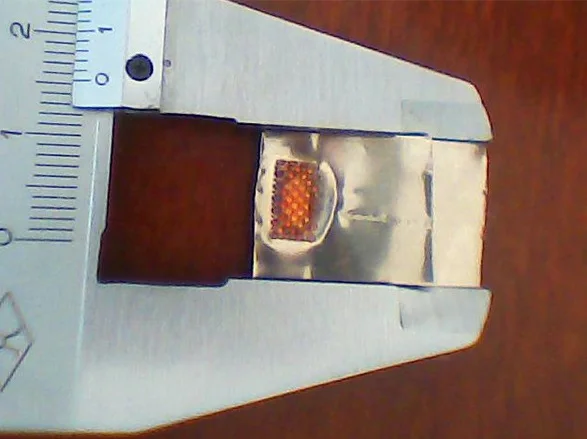

Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes.

Copper: about 0.15~2+0.15~2mm

Aluminum: about 0.2~3+0.2~3mm

Nickel: about 0.1~1.2+0.1~1.2mm
