YTC rotary valve positioner China
- Категория: Vacuum Valves >>>
- Поставщик: Yueqing,Meiya,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 107.77 $* | 112.5 $* |
| Aug-20-2025 | 106.83 $* | 111.0 $* |
| Jul-20-2025 | 89.62 $* | 93.86 $* |
| Jun-20-2025 | 104.43 $* | 109.86 $* |
| May-20-2025 | 91.16 $* | 96.26 $* |
| Apr-20-2025 | 103.29 $* | 108.44 $* |
| Mar-20-2025 | 102.30 $* | 107.88 $* |
| Feb-20-2025 | 101.8 $* | 106.97 $* |
| Jan-20-2025 | 100.34 $* | 105.22 $* |
Характеристики
Our Services
We can supply OEM,ODM
Product Description

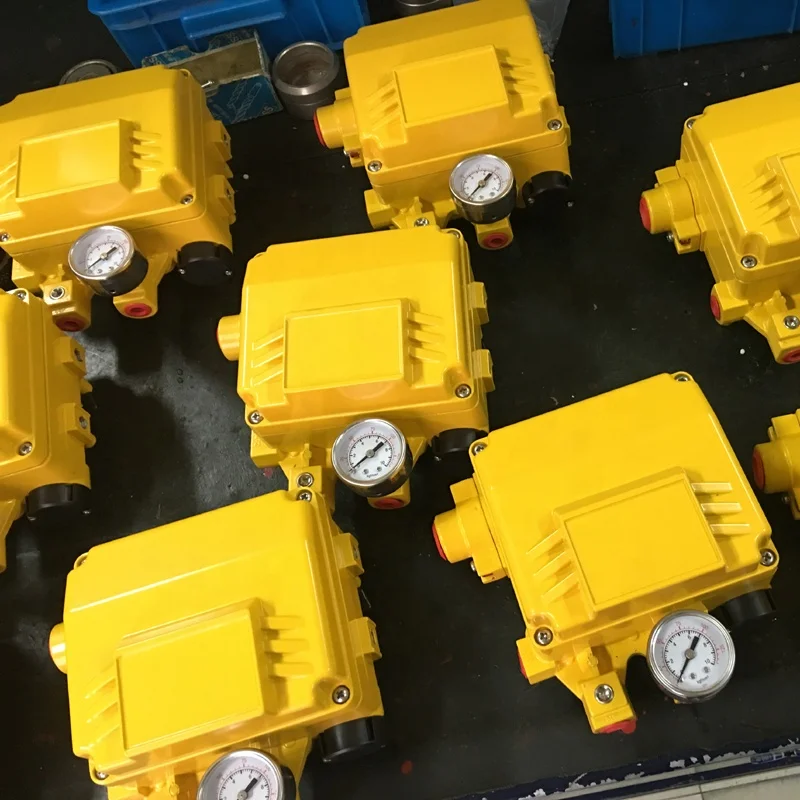

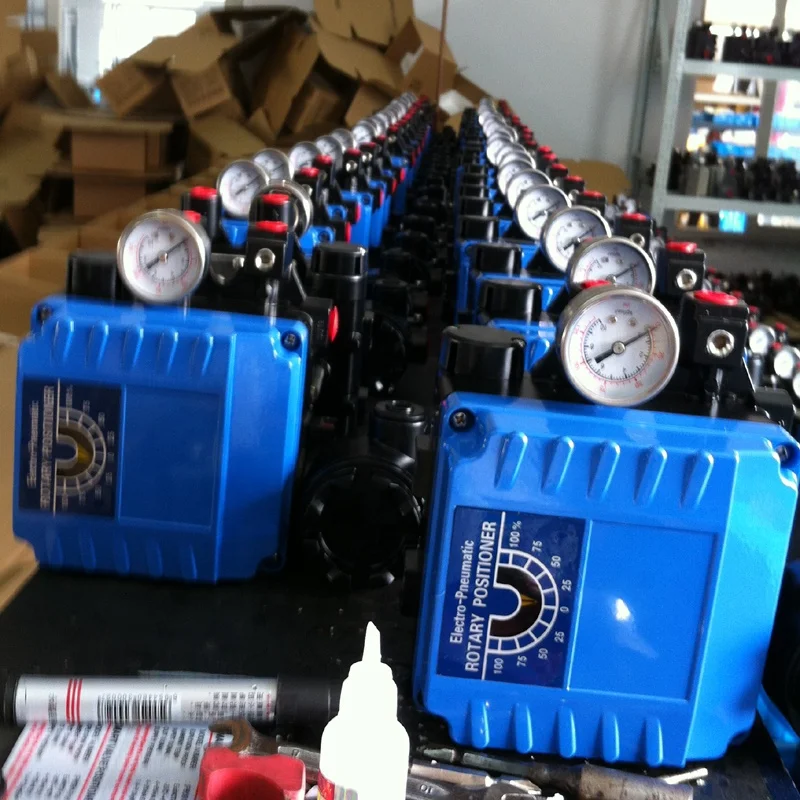

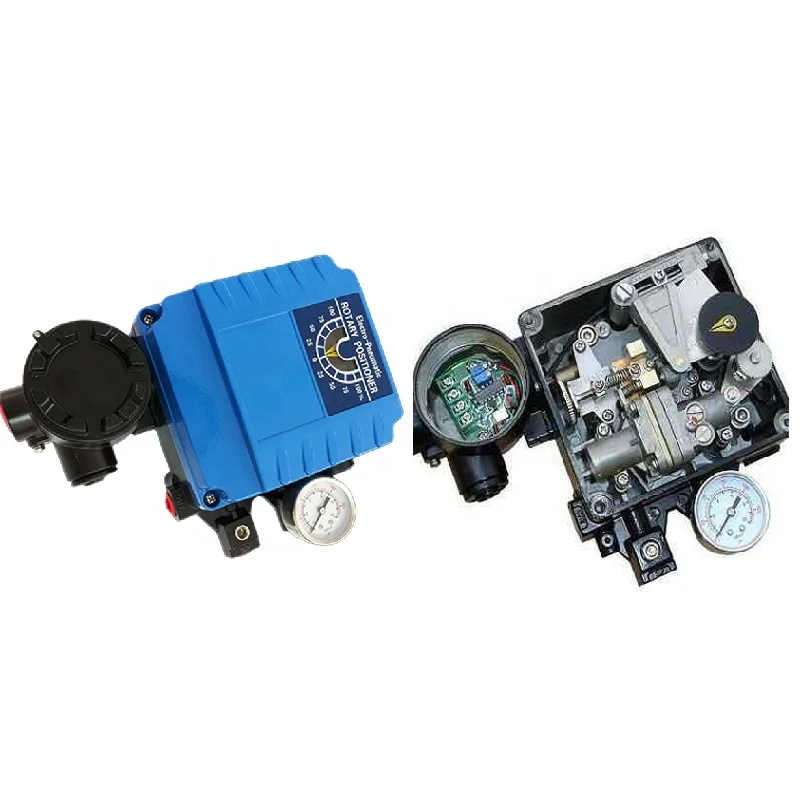

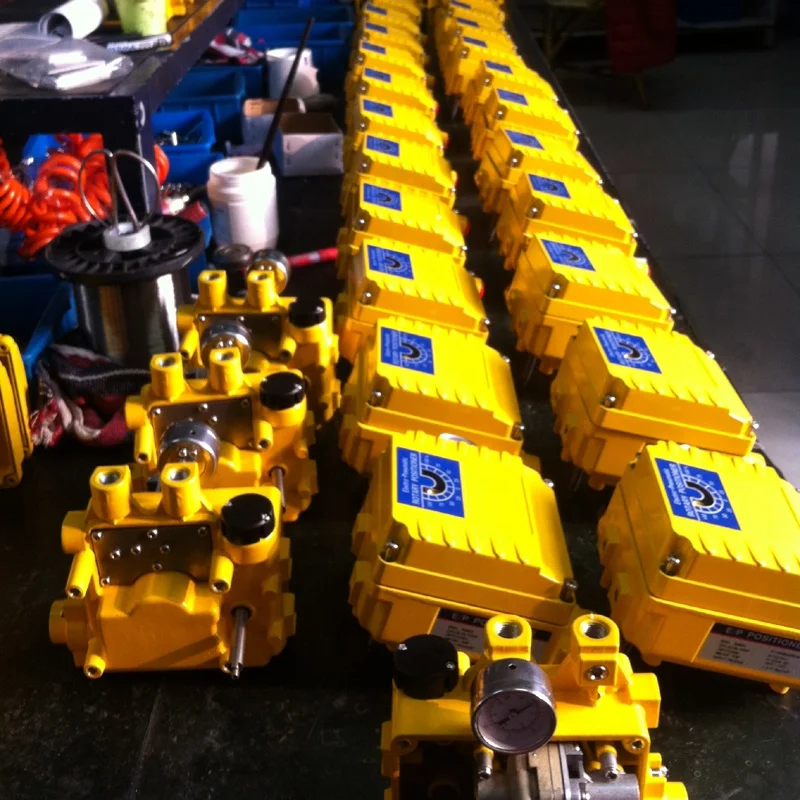

Electro Pneumatic Positioner Model YT-1000L/R
The Electro Pneumatic Positioner YT-1000L/R is used for operation of pneumatic linear valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20 mA or split Ranges.
1) There is no resonance at 5~200Hz.
2) The change of RA/DA Action is convenient, it is able to apply to single or double acting actuator.
3) It is possible to prevent the hunting with orifice to the small size actuator.
4) It is economical due to less air consumption.
5) It is able to control the 1/2 split range with simple operation without replacement of parts.
| Ordering symbols:YT1000L | ||||||
| Model | Acting type | Explosion proof | Lever type | Orifice type | Connection type | Ambient temp. |
| YT1000L | S: Single acting | M:ExdmiiBT5 | 1:10-40mm | 1:Φ1 | 1:PT | S:-20℃-60℃ |
| D: Double acting | C:ExdmiiCT5 | 2:30-70mm | 2:Φ2 | 2:NPT | H:-20℃-120℃ | |
| M:ExiaiiBT6 | 3:60-100mm | 3:None | L:-40℃-70℃ | |||
| N:Non-explosion | 4:100-150mm | |||||
| Ordering symbols:YT1000R | ||||||
| Model | Acting type | Explosion proof | Lever type | Orifice type | Connection type | Ambient temp. |
| YT1000R | S: Single acting | M:ExdmiiBT5 | 1:M6X40L | 1:Φ1 | 1:PT | S:-20℃-60℃ |
| D: Double acting | C:ExdmiiCT5 | 2:M6X63L | 2:Φ2 | 2:NPT | H:-20℃-120℃ | |
| M:ExiaiiBT6 | 3:M8X40L | 3:None | L:-40℃-70℃ | |||
| N:Non-explosion | 4:M8X63L | |||||
| 5:NAMUR | ||||||
| Option 1 | 0:None(St'd) | 1:Dome cover | ||||
| Option 2 | 0:None(St'd) | 1:+PTM (Internal) | 2:+PTM (External) | 3:+L/S (Internal) | 4:+L/S (External) | 5:+PTM+LS (Internal) |
| Model | YT-1000L | YT-1000R | ||||
| Linear | Rotary | |||||
| description | single | double | single | double | ||
| input signal | 4~20mA DC | |||||
| impedance | 250±15Ω | |||||
| supply pressure | 1.4~7kgf/cm2(20~100psi) | |||||
| stroke | 10~150mm 0~90° | |||||
| Air connection | PT(NPT)1/4 | |||||
| Gauge connection | PT(NPT)1/8 | |||||
| conduit | PF1/2(G1/2) | |||||
| Explosion proof | Exia BT6,Exdm BT6,Exdm CT6 | |||||
| protection | IP66 | |||||
| Ambient temperature | Operating:-20~60℃ | |||||
| linearity | ±1%F.S.(Single)/±2%F.S.(Double) | |||||
| hysteresis | ±1%F.S. | |||||
| sensitivity | ±0.2%F.S.(Single)/ ±0.5%F.S.(Double) | |||||
| Repeatability | ±0.5% | |||||
| Air consumption | 3LPM(Sup=1.4kgf/cm2,20psi) | |||||
| Flow | 80LPM(Sup=1.4kgf/cm2,20psi) | |||||
| Material | Aluminum alloy | |||||
| Weight | 2..7kg(6lb),2.8kg(6.2lb) | |||||
