Кабель TV кодировщик SDI IP 16 каналов HD к Кодировщику 3U стойка H.264 HTTP RTSP RTP RTMP UDP
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Catcast,Technology,Co.,Ltd.,(chengdu)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.40 $* | 0.75 $* |
| Aug-17-2025 | 0.86 $* | 0.38 $* |
| Jul-17-2025 | 0.50 $* | 0.10 $* |
| Jun-17-2025 | 0.81 $* | 0.83 $* |
| May-17-2025 | 0.79 $* | 0.90 $* |
| Apr-17-2025 | 0.33 $* | 0.77 $* |
| Mar-17-2025 | 0.23 $* | 0.13 $* |
| Feb-17-2025 | 0.45 $* | 0.12 $* |
| Jan-17-2025 | 0.87 $* | 0.24 $* |
Характеристики

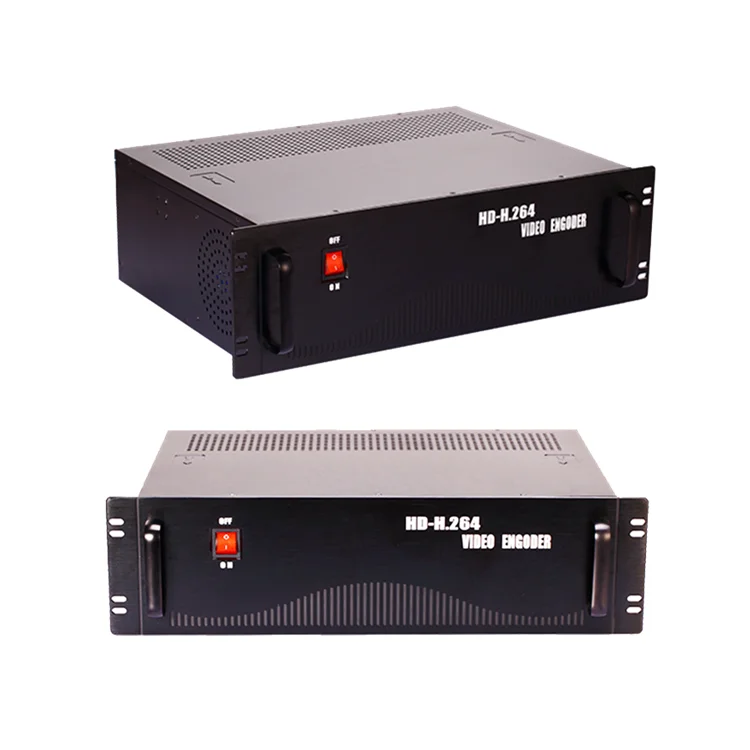

16 Channels HD SDI to IP Encoder 3U Rack H.264 HTTP RTSP RTP RTMP UDP Video Encoder
Product Description
HP6160 16 channel HD SDI encoder is a professional high-definition audio and video encoding products, the product has a 16-channel HD or 16-channel SD, 16-channel 3.5MM independent external audio input, dual streaming H.264 encoded output format, an audio MP3 / AAC format. Adjustable rate coding, the picture quality can be controlled. Support HTTP / RTSP / RTP / RTMP / UDP transport protocols. It is easy to install, plug-play, no need to disassemble the machines, and there is no computer hardware compatibility issues.
Key Features
◆The embedded hardware encoding
◆ The standard 3U rack
◆ Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
◆ Support multiple devices display on a computer at the same time
◆ Support network directly connected, don’t need match HD collection card.
◆ Network interface : 1000M full duplex mode
◆ 16-channel SDI input, 16-channel 3.5MM independent input
◆ Support external independent audio input
◆ Support up to 720P HD video input 1080P
◆ Support RTSP/RTP/RTMP/HTTP/UDP unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP ,ONVIF protocol, support HD Blue ray
◆ Compatible with Wowza/FMS/RED5 streaming media server, work in with streaming media server to push the streaming , to achieve a live streaming
◆ Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
◆ Rate Control :CBR / VBR 16KBIT / S ~ 12MBIT / S
◆ Video packaging: A mode: FFMPEG, B mode: VLC
◆ Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
◆ Support streaming add watermark (OSD), XY axis, the font can be set;
◆ Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
◆ Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
◆ Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
◆ Support build-in or external methods , support left and right sound channel ,
◆ Support no video signal coding;
◆ complete the setting effect immediately, don’t need to restart
◆ Support one-key recovery of the default configuration
◆ Support set-top box decoder
◆ The low power consumption design
◆ The standard 3U rack
◆ Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
◆ Support multiple devices display on a computer at the same time
◆ Support network directly connected, don’t need match HD collection card.
◆ Network interface : 1000M full duplex mode
◆ 16-channel SDI input, 16-channel 3.5MM independent input
◆ Support external independent audio input
◆ Support up to 720P HD video input 1080P
◆ Support RTSP/RTP/RTMP/HTTP/UDP unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP ,ONVIF protocol, support HD Blue ray
◆ Compatible with Wowza/FMS/RED5 streaming media server, work in with streaming media server to push the streaming , to achieve a live streaming
◆ Support Main TS stream and the sub TS stream use in different network protocols for transmission (Multi-rate multi-protocol support)
◆ Rate Control :CBR / VBR 16KBIT / S ~ 12MBIT / S
◆ Video packaging: A mode: FFMPEG, B mode: VLC
◆ Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
◆ Support streaming add watermark (OSD), XY axis, the font can be set;
◆ Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
◆ Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
◆ Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
◆ Support build-in or external methods , support left and right sound channel ,
◆ Support no video signal coding;
◆ complete the setting effect immediately, don’t need to restart
◆ Support one-key recovery of the default configuration
◆ Support set-top box decoder
◆ The low power consumption design
Specification
Product model | HP6160 16 channel SDI HD Encoder | ||
Input | 16 channel SDI signal input, 16 channel 3.5MM independent audio signal input | ||
Output | 16 channel IP signal output | ||
Video | Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/640*480i And other conventional resolution | |
Coding standard | H.264 | ||
Coding level | H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE | ||
Encoded size | 640*360~1920*1080（Can customize） | ||
Video bit rate | Rate control :CBR/VBR 16KBIT/S~12MBIT/S | ||
Video frame rate | 30/60 | ||
OSD | Character | ||
Audio | Input selection | 16 channel embedded audio SDI, 16 channel 3.5MM independent audio Support audio gain | |
Audio coding | AAC/MP3 | ||
Audio bit rate | 64Kb/s~384Kb/s | ||
Sampling rate | 32000、44100,48000 etc | ||
IP Output | 16 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol | ||
System | Network protocol | Supports HTTP, RTSP, RTMP, UDP, multicast , unicast | |
Configuration management | Support IE configuration, remote upgrade | ||
The common use | Power supply | 220V/110V | |
power consumption | <100W | ||
Size | 484mm * 365mm * 148mm(length*width*height) | ||
Operating temperature | -20℃+ 60℃ | ||
Working humidity | <90%，Non-condensing | ||
Weight | 7.5KG | ||
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
Company Introduction
Catcast Technology Co.,Ltd is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
