ELP 960P веб-камера Веб-камера 0 01 лк Низкая освещенность мини ручной зум USB 2 UVC камера ПК для портативных
- Категория: >>>
- Поставщик: Shenzhen,Ailipu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 57.14 $* | 60.32 $* |
| Aug-19-2025 | 57.60 $* | 60.16 $* |
| Jul-19-2025 | 48.74 $* | 50.24 $* |
| Jun-19-2025 | 56.4 $* | 59.26 $* |
| May-19-2025 | 48.29 $* | 50.42 $* |
| Apr-19-2025 | 55.64 $* | 58.35 $* |
| Mar-19-2025 | 54.61 $* | 57.57 $* |
| Feb-19-2025 | 54.94 $* | 57.81 $* |
| Jan-19-2025 | 53.68 $* | 56.82 $* |
Характеристики
Products Description
ELP 960P Webcam Web Cam 0.01 Lux Low illumination Mini Manual Zoom USB 2.0 UVC PC Camera for laptop Computer
Features:
*1.3MP 960P USB Box Camera with 2.8-12mm varifocal lens
* With high advantage sensor AR0130 1/3 CMOS Sensor
* 3.6mm lens,High quality lens, true and undistorted color image.
* Low illumination min 0.01lux USB Camera
* High speed USB 2.0 interface for high resolution PC camera interface.
* High frame rate- 960P MJPEG 30fps
* UVC for use in Linux, Windows, Android, MAC, SP2 or above.
* Camera with UVC.
*1.3MP 960P USB Box Camera with 2.8-12mm varifocal lens
* With high advantage sensor AR0130 1/3 CMOS Sensor
* 3.6mm lens,High quality lens, true and undistorted color image.
* Low illumination min 0.01lux USB Camera
* High speed USB 2.0 interface for high resolution PC camera interface.
* High frame rate- 960P MJPEG 30fps
* UVC for use in Linux, Windows, Android, MAC, SP2 or above.
* Camera with UVC.
Specification
Model | ELP-USB130W01MT-SFV |
Sensor | Aptina AR0130 |
Lens Size | 1/3 inch |
Pixel Size | 3.75um |
Max. Resolution | 1280(H)X960(V) |
Compression format | MJPEG / YUV2（YUYV） |
Resolution & frame | 1280X960 MJPEG@ 15fps YUY2@9fps/ 1280X720MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
S/N Ratio | 44dB |
Dynamic Range | 83.5dB |
Sensitivity | 5.5V/lux-sec@550nm |
Mini illumination | 0. 01lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
OTG protocol | USB2.0 OTG |
Free Drive Protocol | USB Video Class（UVC） |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | 2.8-12mm Varifocal lens |
IR CUT Connector | Support 2P-1.25mm socket |
LED board test connector | Support 2P-1.25mm socket |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Power supply | DC5V |
Operating Voltage | 100mA~160mA |
Working current | 0～70℃ |
Working temperature | -20～75℃ |
Board size /Weight | 41*41mm/ about 250g |
Cable | Standard 3m cable (1m/2m/5m optional) |
Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Details Images
Key Feature:
* 960P HD USB Camera
* 2.8-12mm Varifocal CS lens

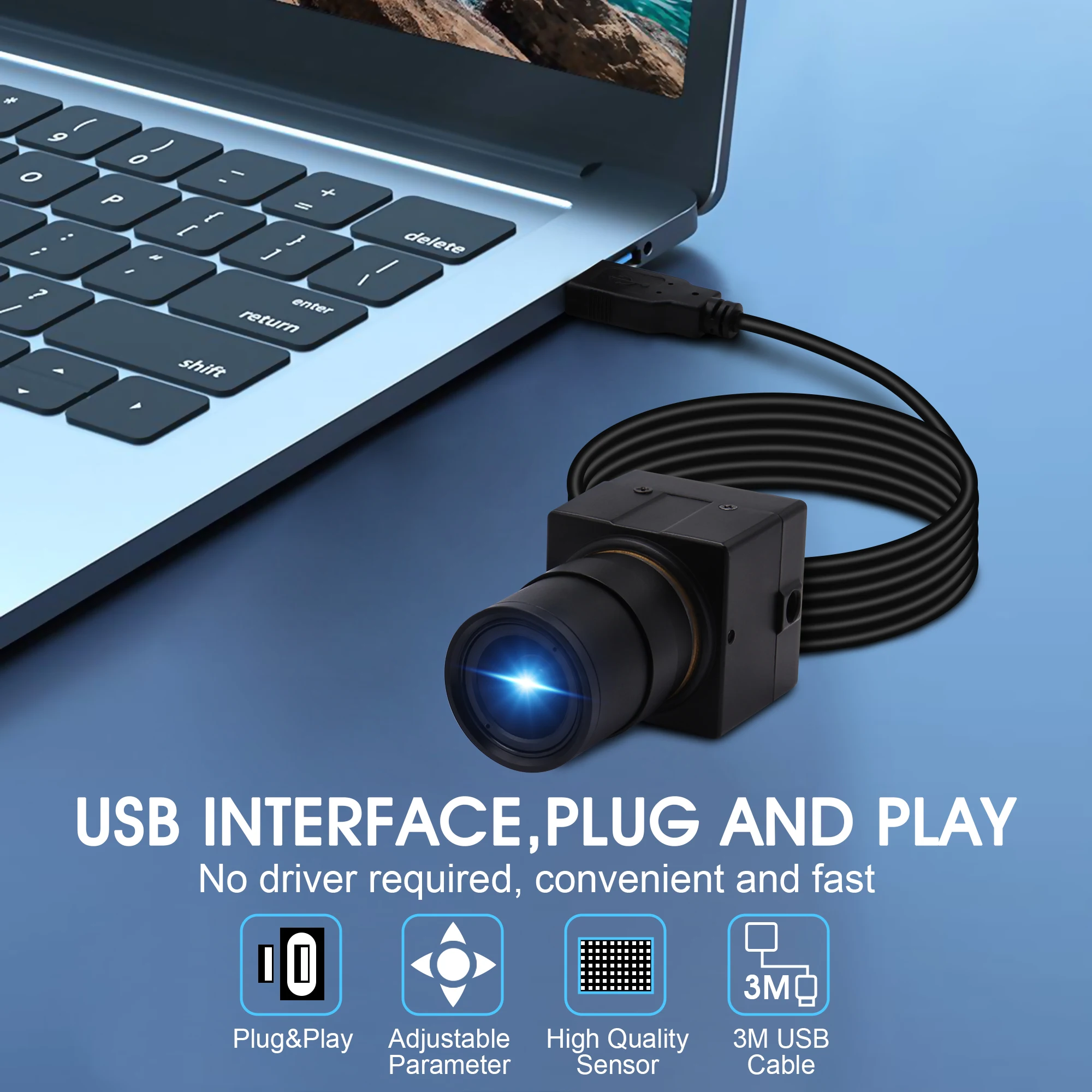

* Plug and Play, Free Driver Camera module
* Low illumination 0.01Lux , can get good low light effect
* Plug and Play, Free Driver Camera module
* Low illumination 0.01Lux , can get good low light effect
*Compression mode: MJPEG/YUY2
* Camera with 3m usb cable

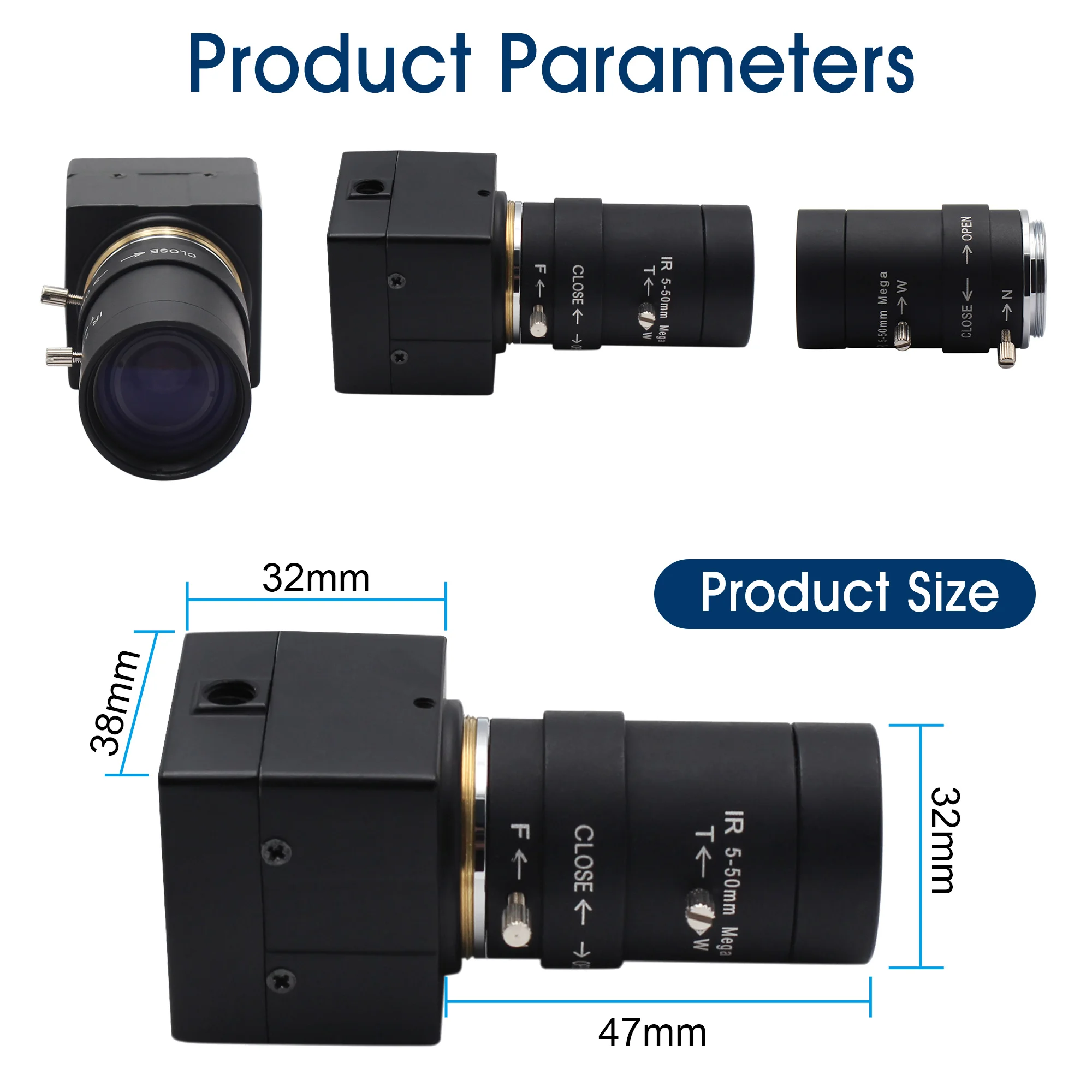

Super mini size: 45*50mm
* OS: Android Linux Windows MAC OS
Wide applications：
virtual fitting mirror, intelligen robot, industrial camera, industrial testing site enforcement recorder, ATM machine, medical
instruments
virtual fitting mirror, intelligen robot, industrial camera, industrial testing site enforcement recorder, ATM machine, medical
instruments
Our Company
Certifications
Product packaging
Package
For camera without case:
2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
For camera with case:
1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm
We can also customize box for quantity order customer
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module with more than 15 years' experience.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module with more than 15 years' experience.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
We can provide windows test software, customer can also use other software for normal webcams as followings:
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
