Mining Underground Hydraulic Tunnel Scoop Loader Mucking for

Mining Underground Hydraulic Tunnel Scoop Loader Mucking for

Категория: >>>
Поставщик: Henan,Huansheng,Mechanical,Equipment,Co.,Ltd.

Цена:8 500,00 $ - 11 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	10115.24 $*	10621.58 $*
Aug-18-2025	10030.76 $*	10532.28 $*
Jul-18-2025	8415.8 $*	8836.63 $*
Jun-18-2025	9860.23 $*	10353.83 $*
May-18-2025	8585.62 $*	9014.78 $*
Apr-18-2025	9690.12 $*	10175.27 $*
Mar-18-2025	9605.41 $*	10085.74 $*
Feb-18-2025	9520.45 $*	9996.30 $*
Jan-18-2025	9435.98 $*	9907.78 $*

Характеристики

Products Description

--Product Application--

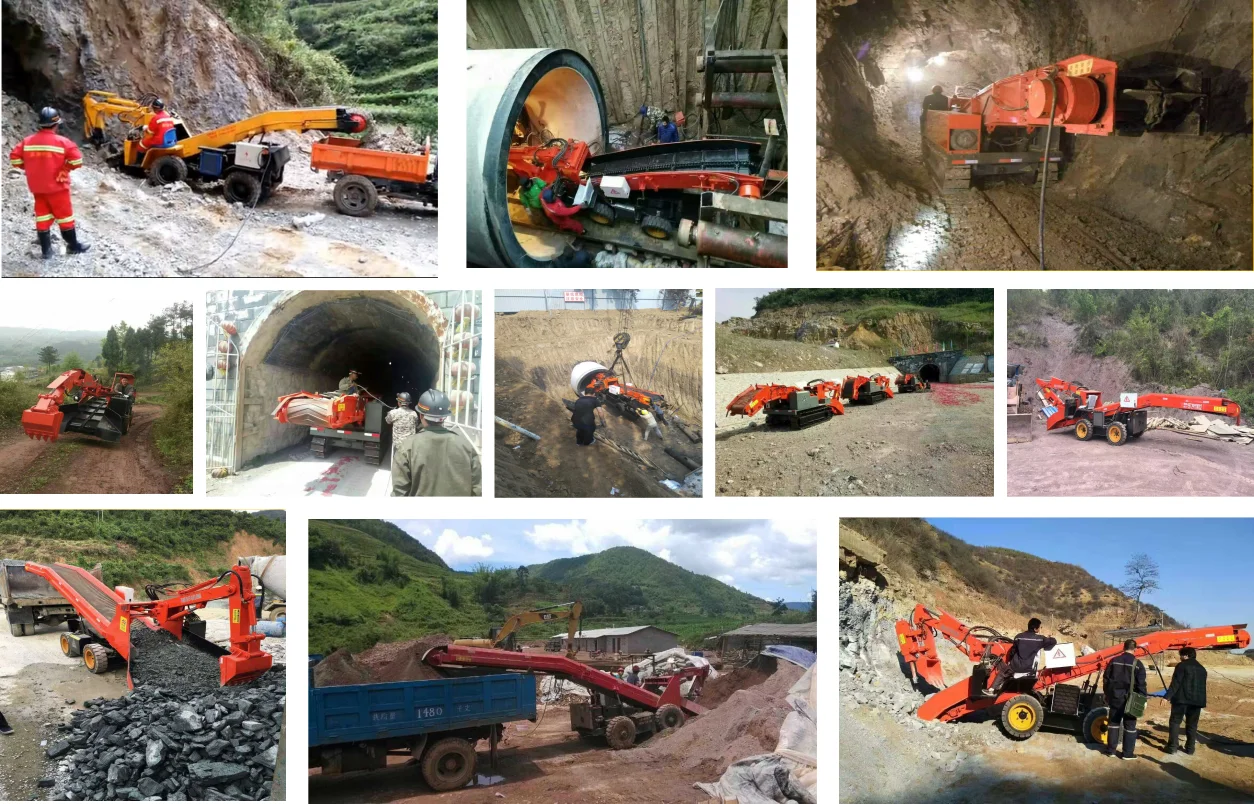

Underground Tunnel Excavator is a kind of continuous production of high efficiency mining equipment, mainly used in excavating of tunnel mining, mine engineering,narrow space mining operation, such as metal mine, water transferred roadway, urban jacking pipe,etc. Mucking loader using electric hydraulic control system, contain five functions are hydraulic walking, mining collection, transportation, loading and bottom clearing.it has the advantage of safe, reliable, efficient ,environmental protection,and save manpower, etc.

Note: A: Excavating width B: Excavating distance C: Excavating height D: Excavating depth

E: Unloading height F: Min. loading height G: Unloading distance H: Max. rotation angle

Item	Parameters	Item	Parameters
Loading Ability	≥60m³/h	Excavational Organization	Standard Arm
Weight	3450±5%kg	Ground Clearance	≥200mm
Wheel Base	1500mm	Belt Width	600mm
Minimum Turning Radius	≥4m	Conveyor Belt Speed	0.63±5%
Digging Width	≥2850mm	General Power of Motor	11/15kW
Loading Distance	≥1300mm (can lengthen)	Rated Working Pressure	13MPa
Digging Distance	≥1450mm	Ground Pressure	0.07MPa
Digging Height	≥1850mm	Gradeability	≤10°
Discharge Height	≥1300mm(can heighten)	Adaptive Tunnel Slope	≤8°
Digging Depth	≥420mm	Travelling Speed	2.5±5%Km/h
Electrical Apparatus Insulation	Three Phase: >1.5MΩ	Transport Form	Electric Roller
Electrical Apparatus Insulation		Transport Form	Interphase:>1.5MΩ		Hydraulic Roller
Overall Dimensions During Operating	Length:5600±50mm	Adaptive tunnel dimension ( Width * Height )	≥1.8*1.8m (standard arm)
				Width:1550±50mm
				Height:1670±50mm

--Features--

when your mine height is more than 1.8M width is more than 1.55M,Our ZWY-60A model machine can go inside your mine work.Normally for the mine,we need to leave space for emergency access, drainage,cable linesm pipeline and ventilating device.With cinsidering that, our model ZWY-60A can be apply to the mine or tunnel which section is more than 1.8*1.8M.

We can customize Explosion-proof, Diesel engine, Solid tire and Lengthen Arm

according to user real requirements.

Details Images

--Crawler Type--

Crawler Mucking loader which uses a hydraulic motor to drive the crawler walking mechanism of the chassis, has relatively strong climbing performance and can work in wet and watery roadways. It is generally used in large and medium-sized projects. It uses a backhoe system to pick up the ore, pick up the rock into the scraper transport trough, and then use a mining cart to pull the ore away. The bucket of the crawler slag scraper can clean the working surface, its walking mechanism, and The technical content of traditional mechanisms is higher than that of wheeled ones.

--Wheel Type--

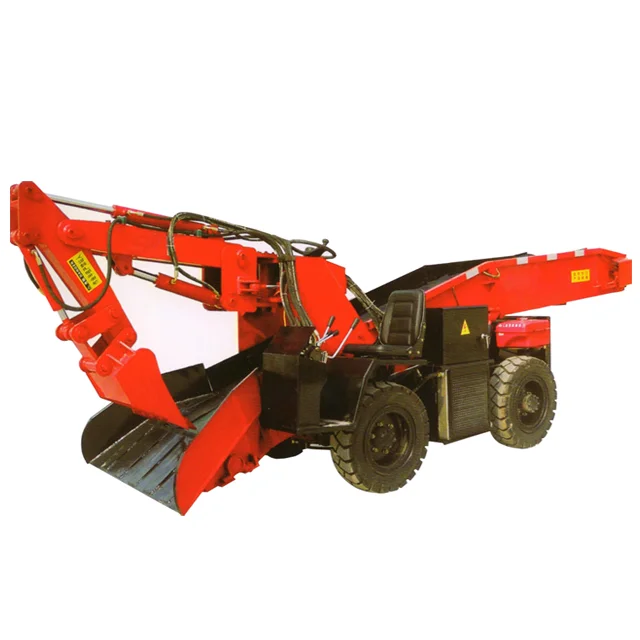

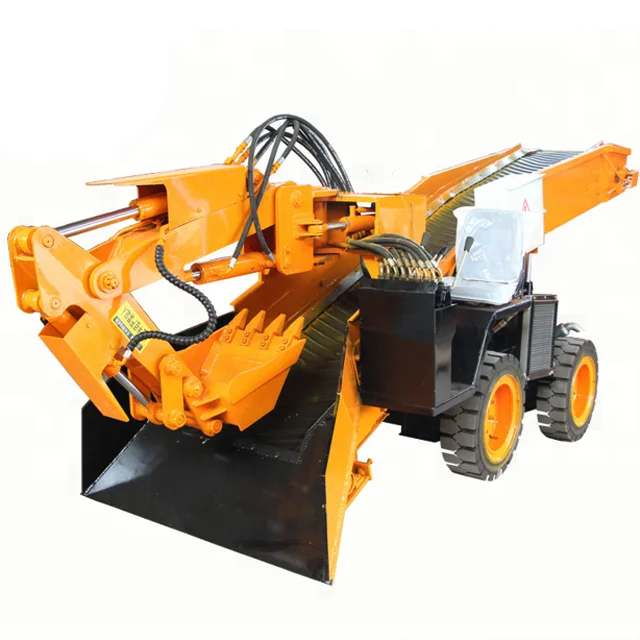

Wheel Mucking loader which relies on the load-bearing of tires, is generally more suitable for flat ground and is cost-effective. It is used in small projects. The wheel slag loader is driven by two electric motors and a diesel engine to drive the entire hydraulic system. It walks on tires, so there is no need to deal with the road, and there is no need to lay tracks, and the requirements on the road are not high.

--Chassis structure--

According to the chassis structure: we divided the mucking loader into the bridge type chassis structure and the sliding stype chassis structure .

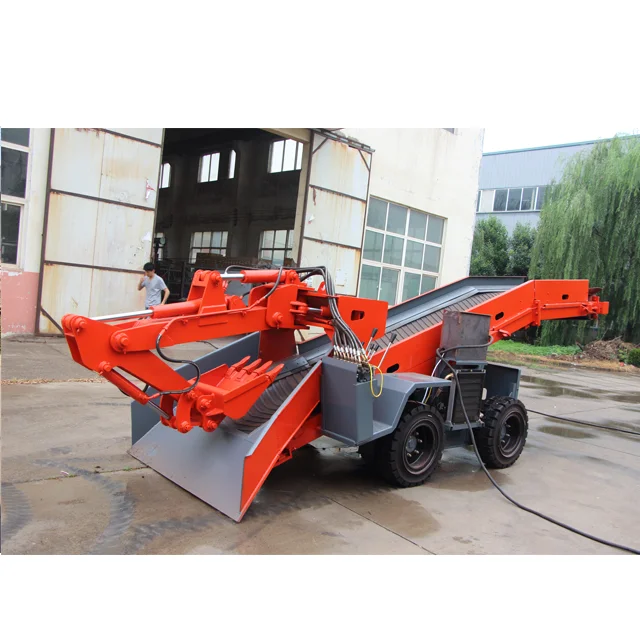

The ZWY-60A Mucking Loader which is bridge type chassis structure, it has only one motor on the side of tire.it has stable quality and easy to maintenance and and suitable for the width of mine hole more than the 1.3m.

We also have ZWY-60L mucking loader which is the sliding stype chassis structure.The narrowest width of mucking ZWY-40 can achieve the 1.2m (excluding diesel engine).It is suitable for the place where narrow tunnels or the cornering is not convenient. such as municipal pipe jacking, small mine holes and sewers.

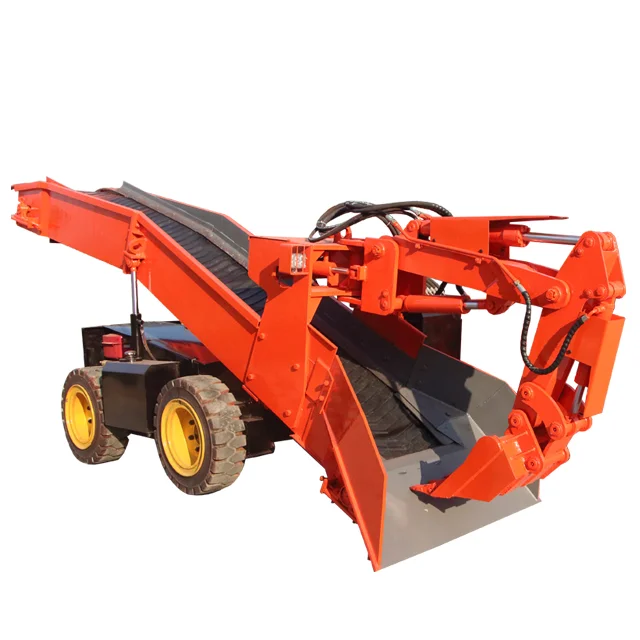

--Conveyor with hydraulic lift cylinder--

Hydraulic lift cylinder control the angle of belt conveyor, that is to say ,the height of the lift of bucket ,the height of the
dumper.The dumping height can be designed according to the requirements of customers.

-- Hydraulic oil tank & Cooling system--

1) The hydraulic oil tank is located in the middle of hollow aluminum mesh and electric fan,the cooling system control the oil temperature of the hydraulic oil below 70 °C, and the suitable temperature is 25 °C to ensure the stable operation of the hydraulic system.

2)New-style no welding hydraulic oil tank for better sealing.

-- Electricity box &Vacuum electromagnetic starter --

In coal mines or inflammable and explosive places, the electrical control box needs to be changed to a special vacuum electromagnetic starter, and the motor should be changed to an explosion-proof motor.
