Турбинный термоусадочный туннель автоматическая туннельная термоусадочная упаковочная
- Категория: Sealing Machines >>>
- Поставщик: Nanjing,Jinhuigu,Industrial,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4665.96 $* | 4898.99 $* |
| Aug-19-2025 | 4626.24 $* | 4857.84 $* |
| Jul-19-2025 | 3881.85 $* | 4075.60 $* |
| Jun-19-2025 | 4547.27 $* | 4774.55 $* |
| May-19-2025 | 3959.39 $* | 4157.57 $* |
| Apr-19-2025 | 4469.46 $* | 4692.20 $* |
| Mar-19-2025 | 4430.4 $* | 4652.82 $* |
| Feb-19-2025 | 4390.77 $* | 4610.42 $* |
| Jan-19-2025 | 4351.17 $* | 4569.1 $* |
Характеристики
Product Description

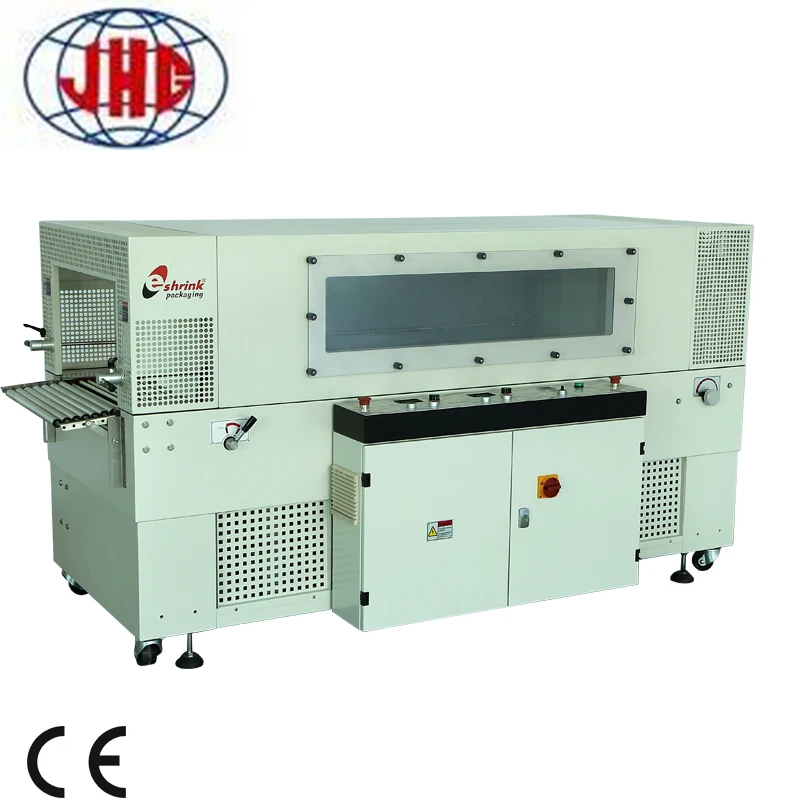

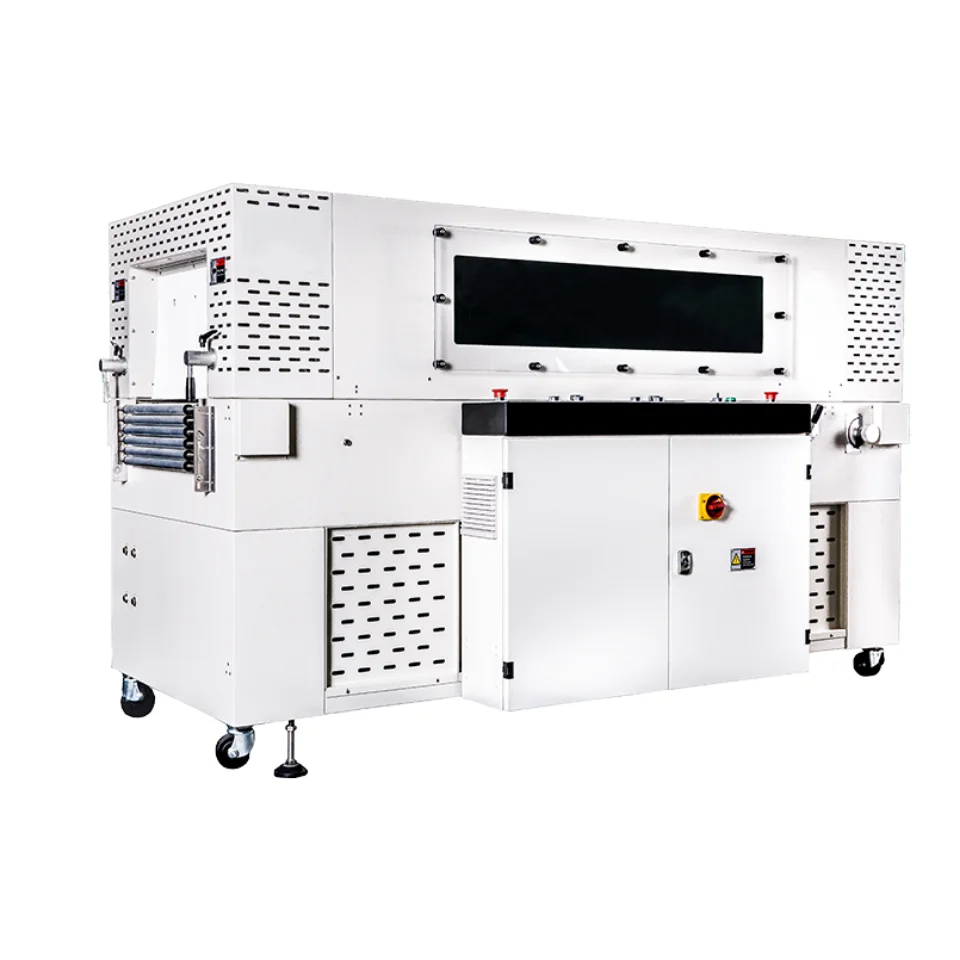

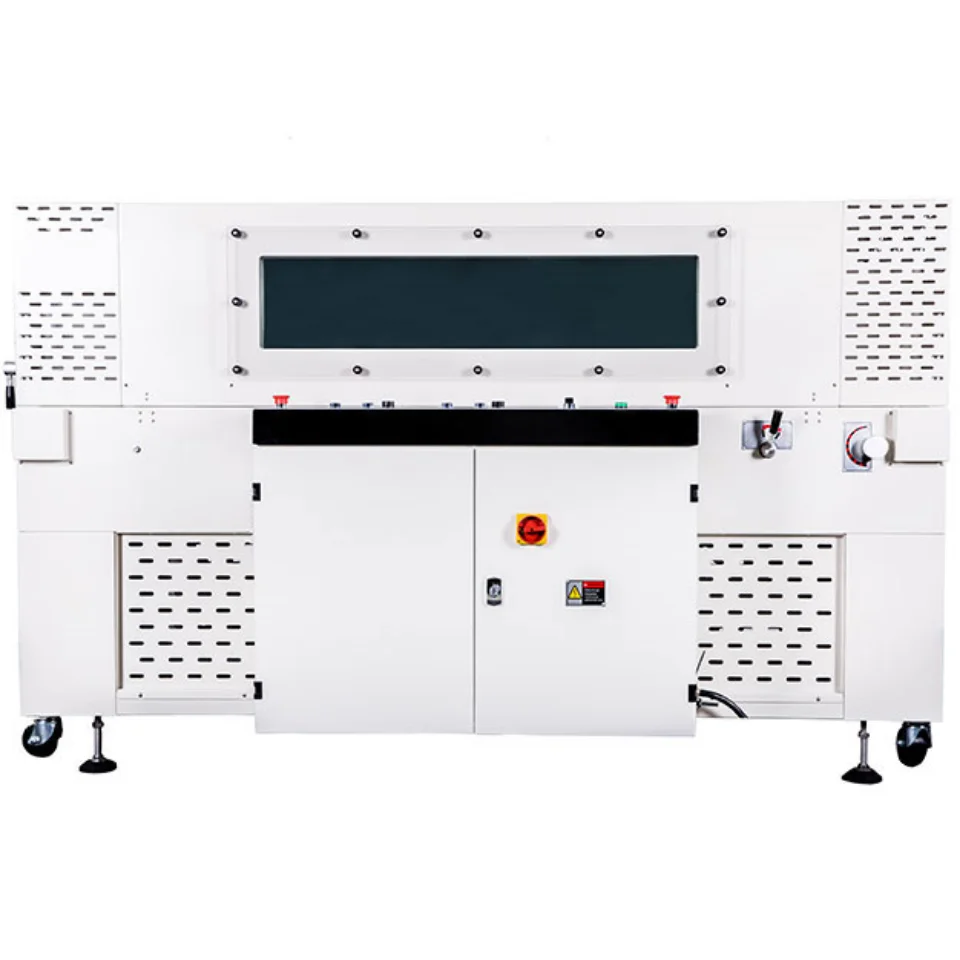

T-Series Turbine Heat Circulation Shrink Tunnel
Cost Saving and Environmental Protection Heat Shrink Tunnel.
Earth Conservation with Spending Less Money.
Earth Conservation with Spending Less Money.
T-Series shrink tunnel produces consistent uniform film shrink using heavy-duty, variable speed blowers and heating elements. This combination creates a recirculating air system that forces air to all package surfaces. Independent control systems regulate
temperature, air velocity and conveyor speeds. The efficient heating system on each machine reduces the amount of electricity and the cost of operation.
temperature, air velocity and conveyor speeds. The efficient heating system on each machine reduces the amount of electricity and the cost of operation.
Features
• Turbine heat circulation system design with great reduce heating time.
• Lower heat lost than traditional shrink tunnel.
• Diminish the use of electricity.
• Independent control systems regulate temperature, air velocity, flow directions and conveyor speeds.
• The lateral air flow and bottom air flow strength can be manipulated.
• Different conveyor systems are available (live roller, stainless steel, modular plastic or Teflon mesh).
• Lower heat lost than traditional shrink tunnel.
• Diminish the use of electricity.
• Independent control systems regulate temperature, air velocity, flow directions and conveyor speeds.
• The lateral air flow and bottom air flow strength can be manipulated.
• Different conveyor systems are available (live roller, stainless steel, modular plastic or Teflon mesh).
Specification
Model | T-61 | T-62 | T-63 | ||
Machine Szie LxWxH(mm) | 1450×895×1080 | 1700×940×1160 | 2200×1100×1230 | ||
Chamber Size LxWxH(mm) | 1100×300×200 | 1200×350×280 | 1700×440×350 | ||
Maximum Packing Size WxH(mm) | 280×150（W×H） | 300×230（W×H） | 400×300（W×H） | ||
Power | 380V, 3P, 10.5Kw | 380V, 3P, 14.5Kw | 380V, 3P, 19Kw | ||
Operating Power Consumption(V) | 5 | ||||
Conveyor Speed (m/min) | 0~30 | 80 (8bar) | 80 (8bar) | ||
Model | T-64 | T-65 | T-66 | ||
Machine Szie LxWxH(mm) | 2200×1142×1230 | 2200×1300×1230 | 2400×1660×1160 | ||
Chamber Size LxWxH(mm) | 1700×540×350 | 1700×700×350 | 1900×1200×280 | ||
Maximum Packing Size WxH(mm) | 500×300（W×H） | 650×300（W×H） | 1050×230（W×H） | ||
Power | 380V, 3P, 21Kw | 380V, 3P, 24Kw | 380V, 3P, 28Kw | ||
Operating Power Consumption(V) | 5 | ||||
Conveyor Speed (m/min) | 0~30 | 80 (8bar) | 80 (8bar) | ||
Video
LB802 with T-62 Heat Shrink Tunnel
Optional Value
We also provide a range of optional upgrades for the machines. Let's find out what extra value you may need.
The window is for operator to check the product shrinking process. Operator can perform instant control and easier to adjust the tunnel.

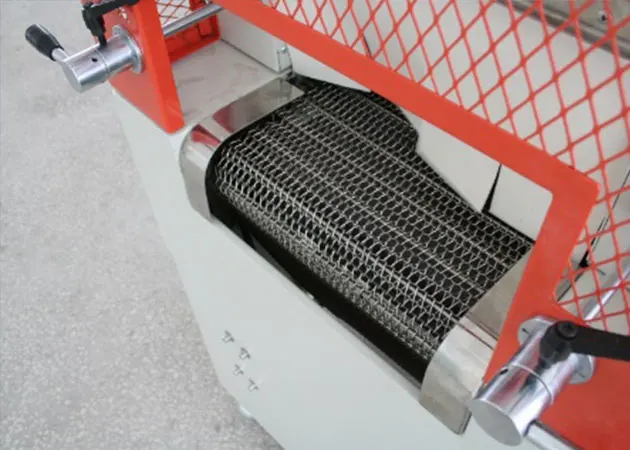

Stainless steel or Teflon make mesh conveyor is available.
Avoid small and thin product drop down into the gap of conveyor roller.
Stainless steel version
Stainless steel machine are available allow the machine to be working stably under high moisture and low temperature working condition.
Prevent thin and soft paper products distortion after shrink.

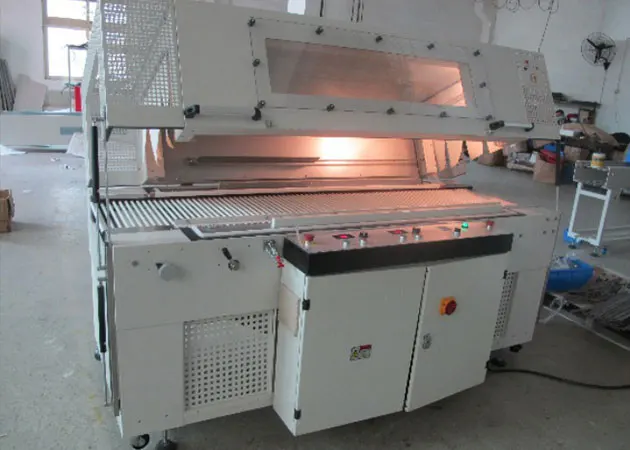

Chamber is able to open for inspection and maintenance.
