Электростанция газа более 41% электроэнергии эффективность 1000kw - 2000kva генератор
- Категория: >>>
- Поставщик: Jinan,Ronghuan,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.44 $* |
| Aug-16-2025 | 0.74 $* | 0.88 $* |
| Jul-16-2025 | 0.93 $* | 0.77 $* |
| Jun-16-2025 | 0.25 $* | 0.99 $* |
| May-16-2025 | 0.66 $* | 0.71 $* |
| Apr-16-2025 | 0.45 $* | 0.66 $* |
| Mar-16-2025 | 0.0 $* | 0.79 $* |
| Feb-16-2025 | 0.7 $* | 0.49 $* |
| Jan-16-2025 | 0.71 $* | 0.81 $* |
Характеристики
Application field
Gas type:
Natural gas, biogas, biomass gas, coal-bed methane gas, coal gas, oilfield associated gas, etc.
Apply:Gas power plant over 41% electricity efficiency 2000kva natural gas generator
Specifications
Generator Model | RH1200 | RH1600 | RH2000 |
Prime Power | 1100kw | 1500kw | 2000kw |
Alternator brand | Leroy Somer | Leroy Somer | Leroy Somer |
Voltage and frequency | 110v- 11000v 50/60HZ | 110v- 11000v 50/60HZ | 110v- 11000v 50/60HZ |
Generator efficiency | 41% | 41.3% | 41.5% |
KW.H/M3 natural gas | 4.09-4.58kw | 4.12-4.61kw | 4.14-4.63kw |

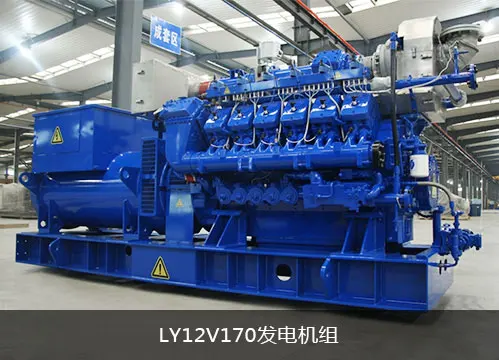

Engine model | 12V170 | 16V170 | 20V170 |
Rotating Speed | 1500rpm | 1500rpm | 1500rpm |
Bore/Stroke | 170/195mm | 170/195mm | 170/195mm |
Displacement | 53.1L | 70.8L | 88.5L |
Average piston speed | 9.75 m/S | 9.75 m/S | 9.75 m/S |
Generator Dimension | 5300*1700*2300mm | 6820*1700*2615mm | 7320*1700*2615mm |
Generator Net weight | 13000kg | 15000kg | 17000kg |
Lubricant oil average consumption | 0.3g/kwh | 0.3g/kwh | 0.3g/kwh |
Why choose us
1.High Efficiency:The power generation efficiency is more than 41%, and the comprehensive utilization efficiency is more than 86%.
2.Low Emission: Nox ≤500mg/ Nm³（2g/kWh） Nox ≤ 500mg / Nm³ (2g / kWh).
3.High Reliability: The overhaul period of the unit is 48000 hours, and the annual operation hours are as high as 8000 hours.
4.Low Lubricating Oil Consumption: ≤0.3g/kWh Lubricating oil consumption ≤0.3g/kWh.
5.Easy Maintenance: Professional maintenance personnel, sufficient spare parts warehouse, and complete service system.
6.High Safety: The multi-level fire-retardant and explosion-proof design and advanced detonation control technology are employed.
7.Compact Structure: Small size, light weight and power per liter ranked No. 1 in China for the same type of units.
8.Wide Range Of Applications: It is used in natural gas, biogas, gas, biomass gas, landfill gas, industrial gas and other gas power generation fields.
3.High Reliability: The overhaul period of the unit is 48000 hours, and the annual operation hours are as high as 8000 hours.
4.Low Lubricating Oil Consumption: ≤0.3g/kWh Lubricating oil consumption ≤0.3g/kWh.
5.Easy Maintenance: Professional maintenance personnel, sufficient spare parts warehouse, and complete service system.
6.High Safety: The multi-level fire-retardant and explosion-proof design and advanced detonation control technology are employed.
7.Compact Structure: Small size, light weight and power per liter ranked No. 1 in China for the same type of units.
8.Wide Range Of Applications: It is used in natural gas, biogas, gas, biomass gas, landfill gas, industrial gas and other gas power generation fields.

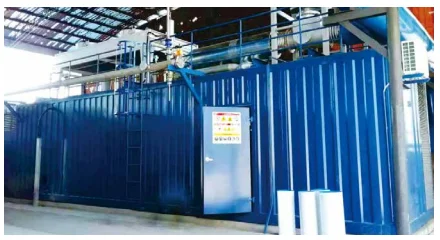

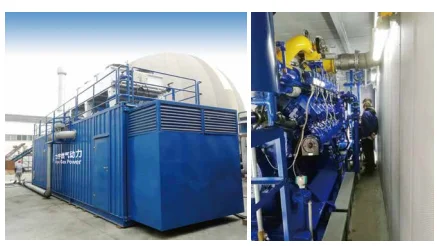

Successful case
1. Rongcheng Garden Hotel Distributed Energy Station Project
The project is located in the basement of Rongcheng Garden Hotel,
Xiangfu Road,Changsha.using 3 sets1.1MW natural gas-fired internal combustion generator sets.
After the project is put into operation, the annual power generation capacity is
4.224 million kW, and the annual standard coal can be saved by 1348.6 tons.
The comprehensive utilization rate can reach 70%-85%.
Xiangfu Road,Changsha.using 3 sets1.1MW natural gas-fired internal combustion generator sets.
After the project is put into operation, the annual power generation capacity is
4.224 million kW, and the annual standard coal can be saved by 1348.6 tons.
The comprehensive utilization rate can reach 70%-85%.
2.Changsha Huanghua International Airport T2 Terminal Project
This project is located in Changsha City, Hunan Province, using 1.1mw
natural gas generator.
3.Chengdu Biomass Gas Generation Project
The project is located in Chengdu, with a installed capacity of LY800GH-S biomass gas
generator set. It uses tar-free biomass gas fuel. When the low heat value is
1200kcal/m3, the unit power is 800 kW.
generator set. It uses tar-free biomass gas fuel. When the low heat value is
1200kcal/m3, the unit power is 800 kW.
4.Changde Jinshi biogas project
Provided 2 x 1.1MW biogas generator sets forChangde Jinshi Biogas Project, and the
project is under construction.
project is under construction.
Xiaohuigou Coal Mine Low Concentration Gas Power Generation Project
The project is located in Xiaohuigou Coal Mine, Mayutown, Qingxu County, Shanxi Province.
The construction scale is 10MW, and the annual power generation is expected to be
7200×104kW•h. Provides 10×1MW low-concentration gas engine.
The construction scale is 10MW, and the annual power generation is expected to be
7200×104kW•h. Provides 10×1MW low-concentration gas engine.
Certificate ,visitors & shipment
Spare parts
Ship out within 5 working days after receiving request.
Recommend Products
FAQ
Q1. How to find suitable generator?
A:Tell me how many kw you need, and gas type, voltage and frequency, then right model will be recommend.
Q2. What is your transport?
A: Generator set recommend ship by sea or by cargo on land.
Q3. What is your terms of payment?
A: 30% TT in advance as deposit, and 70% balance paid before delivery.
Q4. What is your terms of price?
A: EXW, FOB, CIF, CFR.
Q5. How about your delivery time?
A: Normally 25 days - 50 days after we receive advance payment. Depends on order size and generator model.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. Inspect by third party also acceptable.
A:Tell me how many kw you need, and gas type, voltage and frequency, then right model will be recommend.
Q2. What is your transport?
A: Generator set recommend ship by sea or by cargo on land.
Q3. What is your terms of payment?
A: 30% TT in advance as deposit, and 70% balance paid before delivery.
Q4. What is your terms of price?
A: EXW, FOB, CIF, CFR.
Q5. How about your delivery time?
A: Normally 25 days - 50 days after we receive advance payment. Depends on order size and generator model.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. Inspect by third party also acceptable.
You are highly welcomed to ask questions and leave message.
Tel:/Wechat:/What's up：0086 15966309493
