Характеристики

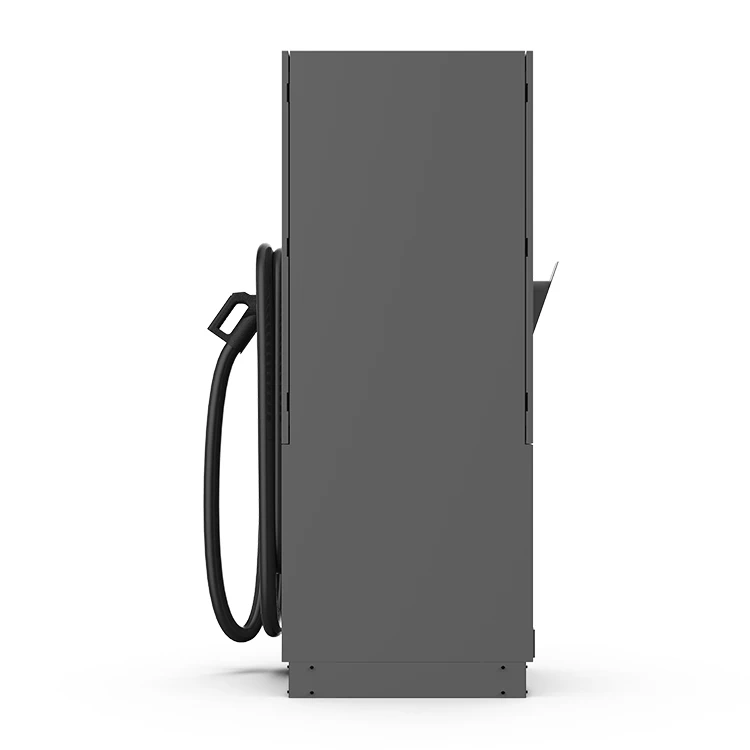

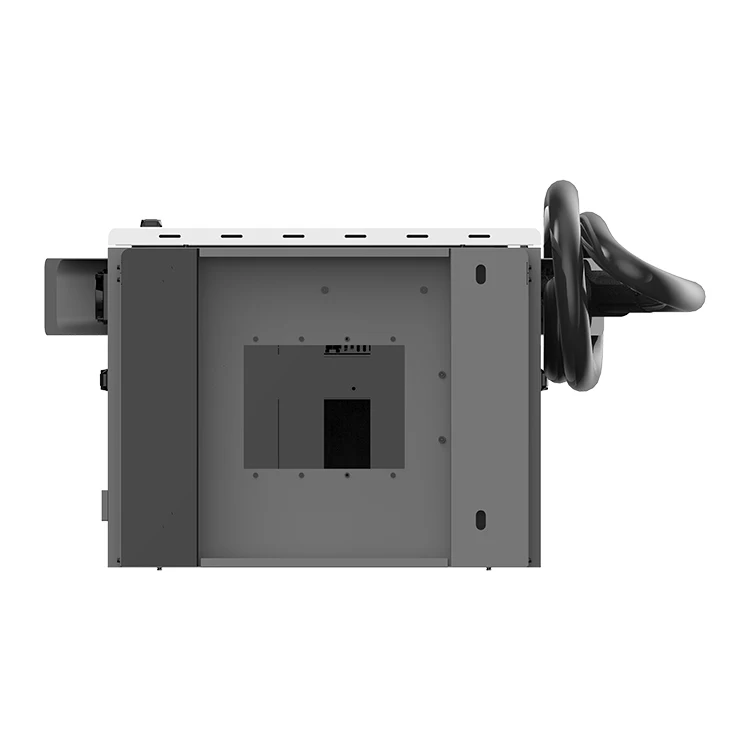

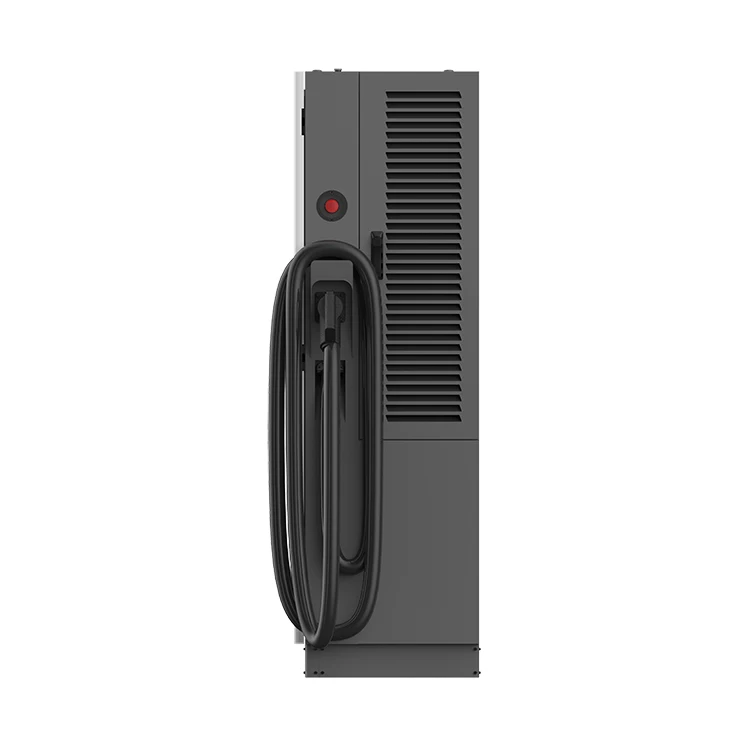

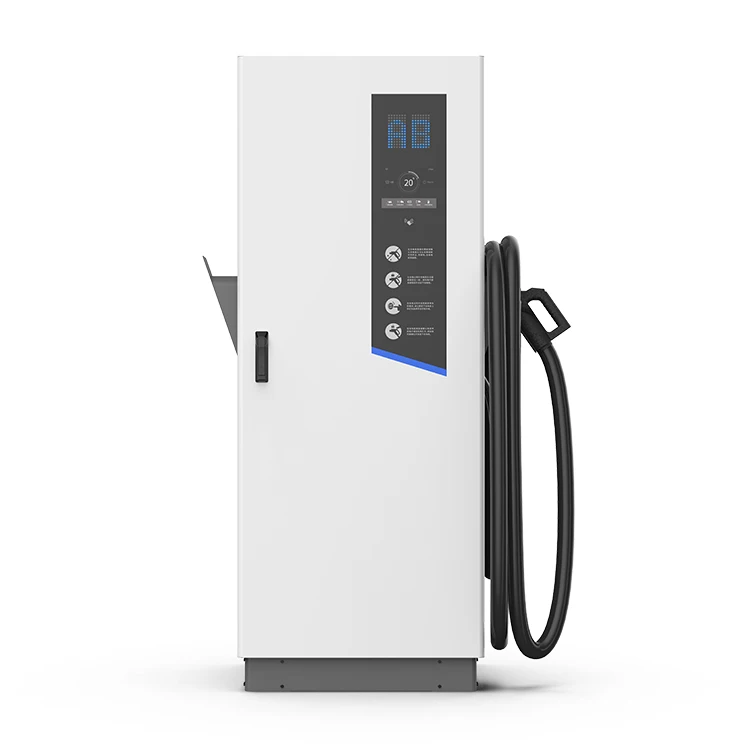

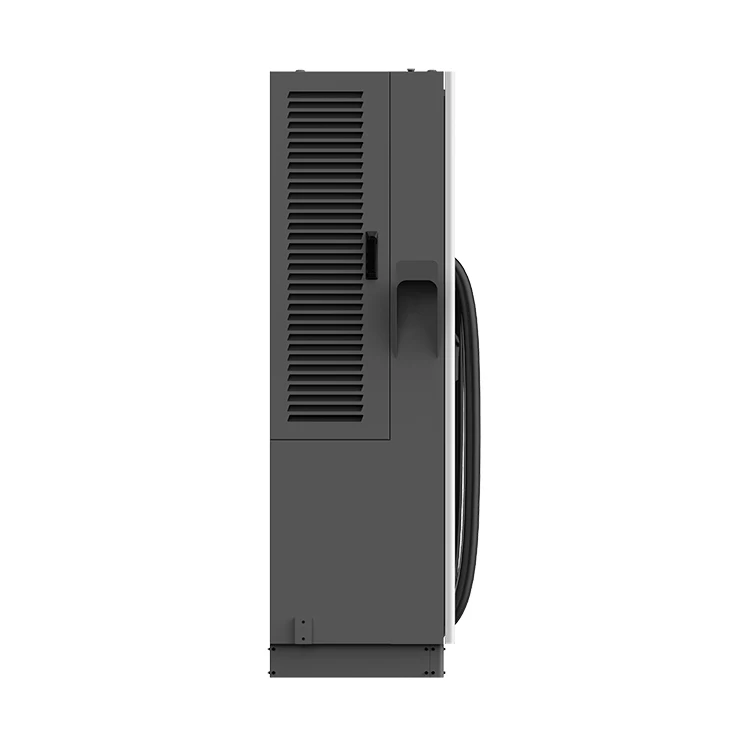

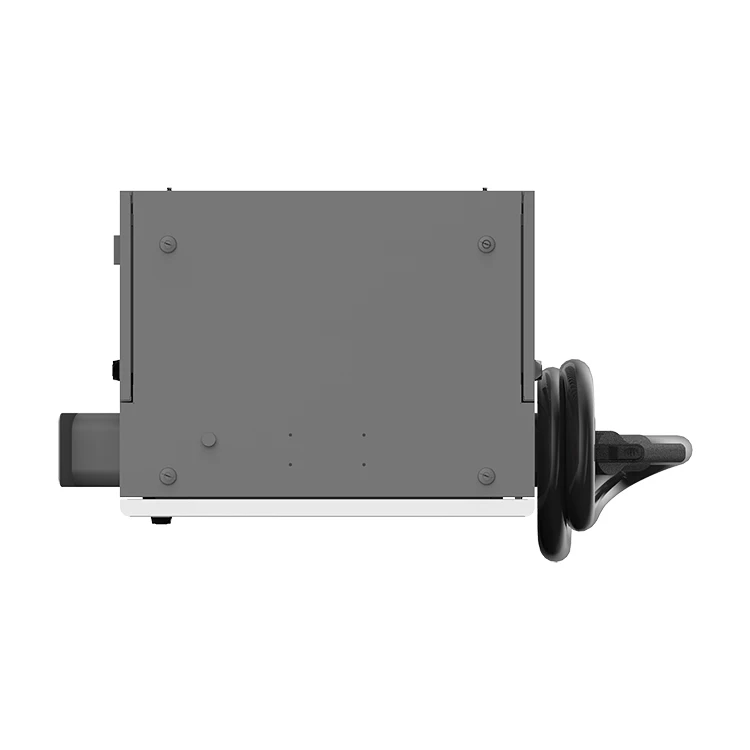

Fast DC EV Car Charger 120KW EV Charging Station
Main features:
Modular design
Parallel modular layout, support hot swap of module components, flexible power combination and convenient maintenance
Extreme heat dissipation
Application of isolation air duct technology to improve the internal heat dissipation efficiency and ensure the stability of operation
Security
With SOC overcharge protection, battery overcharge protection, BMS data abnormal diagnosis, vehicle battery voltage abnormality detection, leakage, lightning protection and other active protection functions
Products Description
Model PEVC3107 | 120K750 N1 120K 1000N1 | 120K 750D2 120K 1000D2 | 160K 750N1 160K 1000N1 | 160K 750D2 160K 1000D2 | 180K 750N1 180K 1000N1 | 180K 750D2 180K 1000D2 | 240K 750N1 240K 1000N1 | 240K 750D2 240K 1000D2 | |||||||
Input | 380VAC±20%/50Hz±5Hz | ||||||||||||||
Installation | Wall-mounted/floor-standing | ||||||||||||||
Total harmonic distortion rate | ≤5% | ||||||||||||||
Power factor | ≥0.99（More than half a load） | ||||||||||||||
Overall efficiency | ≥94%（More than half a load） | ||||||||||||||
Number of output ports | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | |||||||
Output voltage range | 200VDC-750VDC / 200VDC-1000VDC | ||||||||||||||
Rated current | 200VDC-750VDC：160A 200VDC-1000VDC：120A | 200VDC-750VDC：213A 200VDC-1000VDC：160A | 200VDC-750VDC：240A 200VDC-1000VDC：180A | 200VDC-750VDC：320A 200VDC-1000VDC：240A | |||||||||||
Output Power | 120KW | 160KW | 180KW | 240KW | |||||||||||
Double gun distribution method | / | Dynamic allocation | / | Dynamic allocation | / | Dynamic allocation | / | Dynamic allocation | |||||||
Lightning protection level | Class C | ||||||||||||||
Shell material | Aluminum-zinc clad sheet | ||||||||||||||
Installation method | Integrated floor type | ||||||||||||||
Mechanical strength | 20J | ||||||||||||||
Dimensions (WxDxH) | 700x550x1 800mm | ||||||||||||||
Human-computer interaction | 7 inch touch color LCD screen | ||||||||||||||
BMS auxiliary power source | DC12V and DC24V | ||||||||||||||
Cable length | 5 meters | ||||||||||||||
Background communication interface | Ethernet | ||||||||||||||
Communication interface (reserved) | CAN, RS485 | ||||||||||||||
Optional | 4G communication/color customization/background protocol customization | ||||||||||||||
Protection level | IP54 | ||||||||||||||
Altitude | ≤2000 meters | ||||||||||||||
Relative humidity | ≤95%, no condensation | ||||||||||||||
