Кабель питания промышленной камеры Basler, PoCL, SDR/MDR, P, 10 м, 3 м, 5 м
US $100.00-$340.00
Seismic Cable 24 Channels with Male Kooter Take-out
- Категория: Other Wires, Cables & Cable Assemblies >>>
- Поставщик: Tcherb,Inc
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.25 $* | 0.2 $* |
| Aug-17-2025 | 0.38 $* | 0.6 $* |
| Jul-17-2025 | 0.23 $* | 0.49 $* |
| Jun-17-2025 | 0.69 $* | 0.21 $* |
| May-17-2025 | 0.83 $* | 0.50 $* |
| Apr-17-2025 | 0.26 $* | 0.16 $* |
| Mar-17-2025 | 0.33 $* | 0.95 $* |
| Feb-17-2025 | 0.54 $* | 0.38 $* |
| Jan-17-2025 | 0.13 $* | 0.59 $* |
Характеристики
Product Description

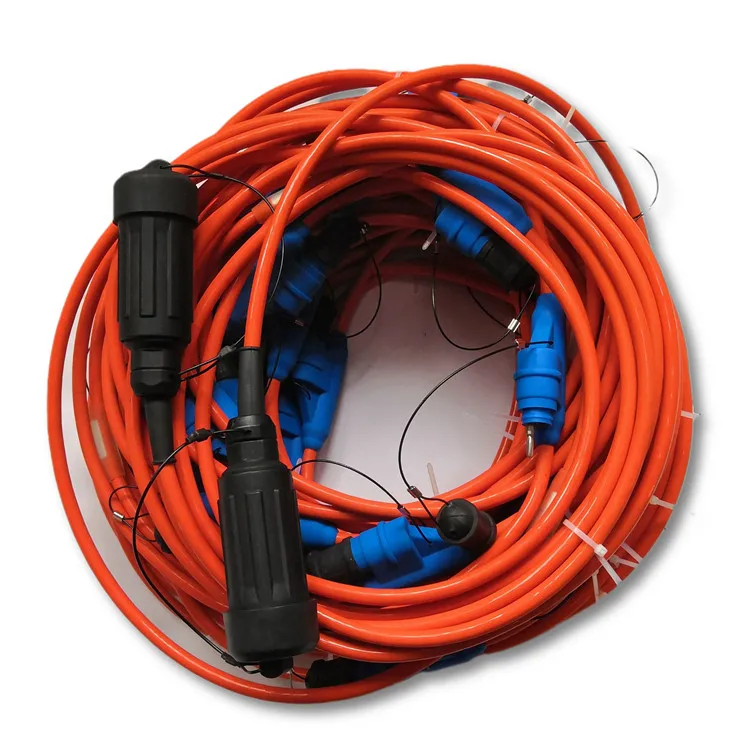

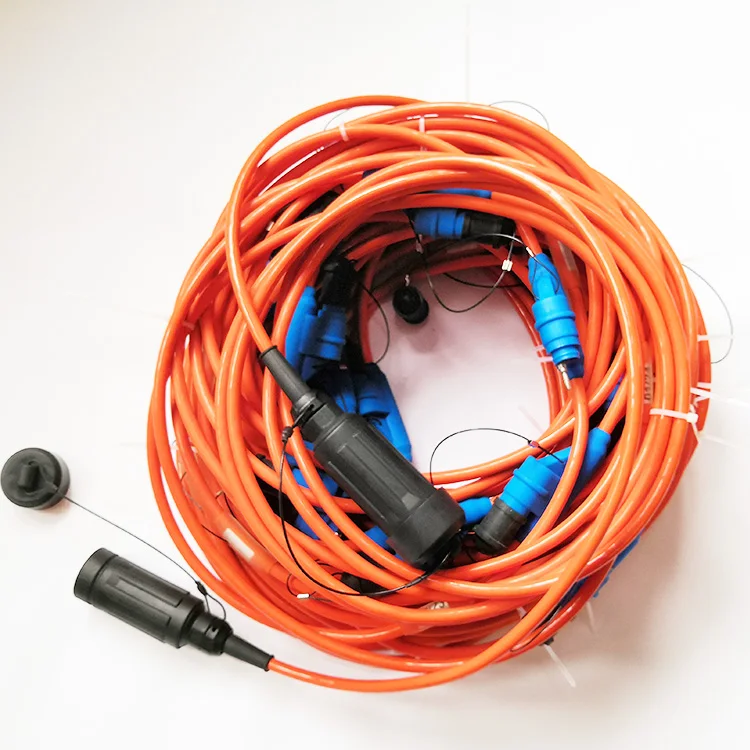

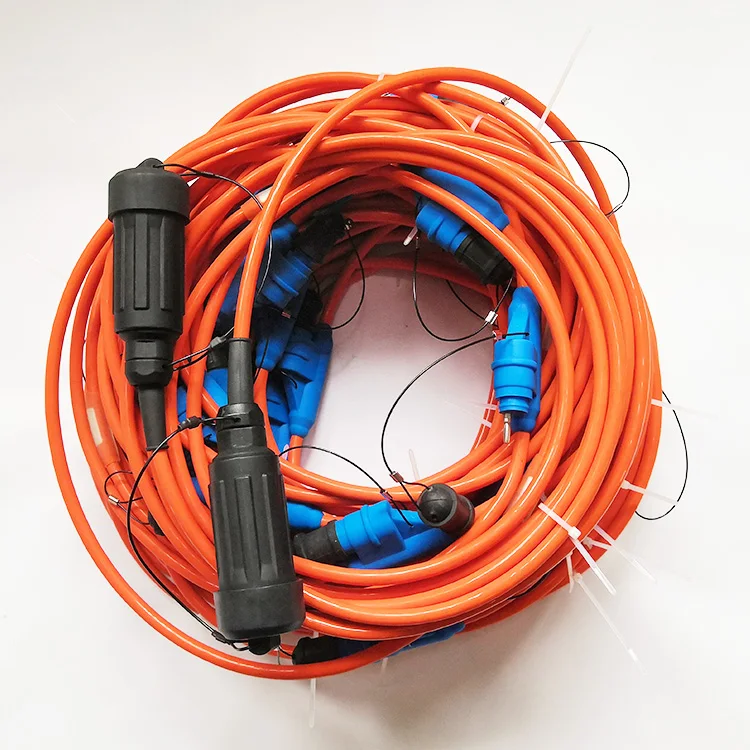

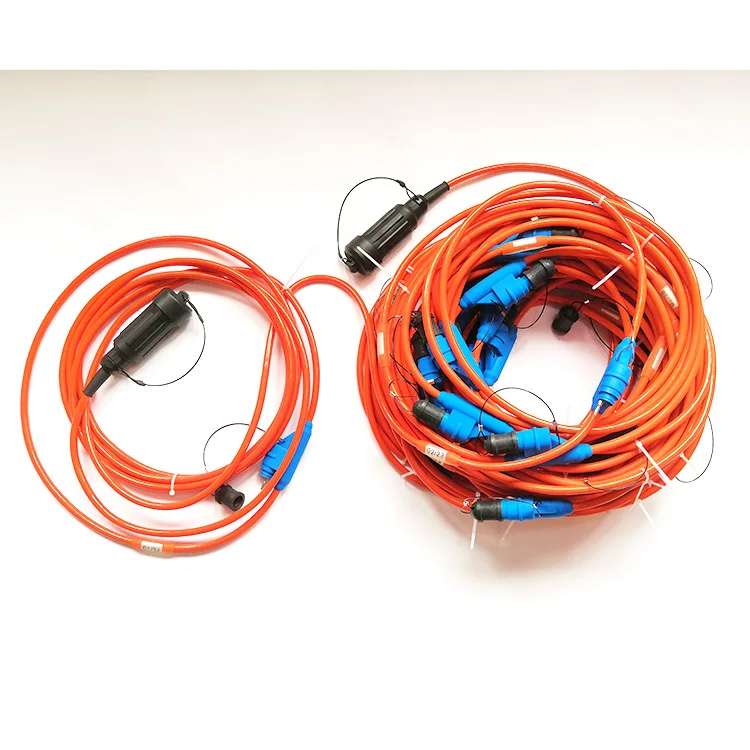

Seismic Cable 24 Channels with male kooter take-out (KCL)
Used for Geode, Summit, PASI, DAQ Seismic Data Acquisition System;
Standard Configuration:

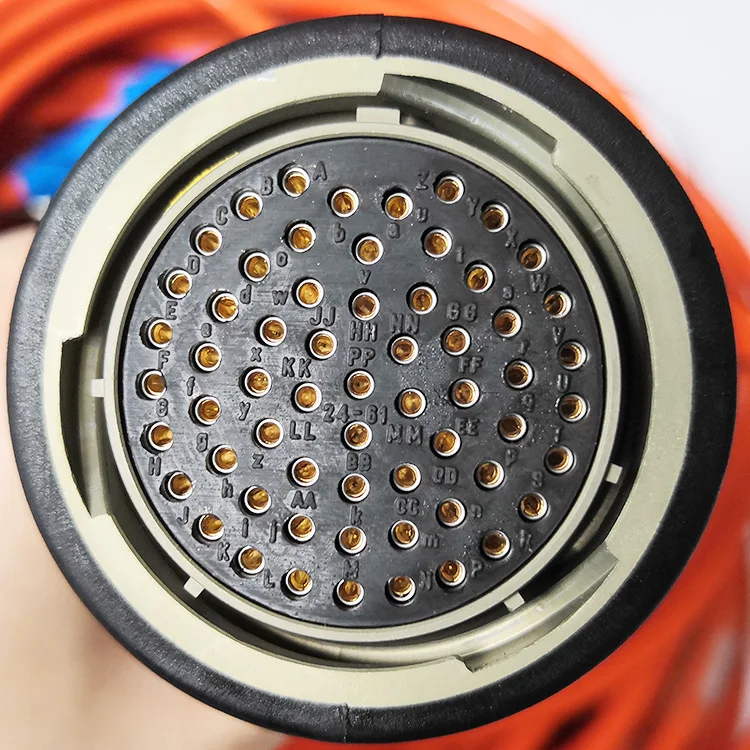

24 Channels Seismic Refrection Cable, with 24 pcs Male Kooter Take-out (KCL), Interval 5 meters , Lead in cable 10 meters at both end and terminated with 61 pin (24-61S) female connecter. Total cable length 135 Meters .
If you need other configuration, Cable Length, Interval, Connector, Take-out, please contact us.
Standard Configuration:
24 Channels Seismic Refrection Cable, with 24 pcs Male Kooter Take-out (KCL), Interval 5 meters , Lead in cable 10 meters at both end and terminated with 61 pin (24-61S) female connecter. Total cable length 135 Meters .
If you need other configuration, Cable Length, Interval, Connector, Take-out, please contact us.
Specification
All parameters specified here in are rated at a temperature 20℃±2℃ .
Type | Seismic Cable |
Number of Channel | 12-channels /24-channels Optional |
Connector Type | 27-pin connector/ 50-pin connector/ 55-pin connector/ 61-pin connector/ Optional |
Cable O.D | 7.2mm(27cores)/9.2mm(51cores) |
Take-out | Split Spring Clip Take-out Molded Type/ Split Spring Take-out Ordinary Type/ Mueller Take-out/ Kooter Take-out/ KCK Take-out/ Optional |
Lead-in | Custom Lead-in Length |
Interval | Custom Interval Distance |
Working Temperature | -40℃~+70℃ |
Company Profile
Tcherb Inc ( EGL) is a professional geophone supplier which located in China, with the aim to integrate separated resources and supply our clients with all around Geophone / Geophysical Products and related services. All the founding partners of EGL have experiences of over 20 years' in the field of Geophone production / Geophysical services with education background of PHD, Master or Geophysics Undergraduate Degree.
We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs.
All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.
We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs.
All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.
Packing & Delivery
Shipment | DHL ,UPS , FedEx , By Air , By Sea |
MOQ | 1 set |
Advantage | Fast shipping |
Package | Packed by carton |
Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay |
