Вибрационная флюидизированная сушилка для всех видов хлопьев

Вибрационная флюидизированная сушилка для всех видов хлопьев

Категория: Fluid Bed Drying Equipment >>>
Поставщик: Liaoyang,Wintech,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.19 $*	0.42 $*
Aug-17-2025	0.5 $*	0.21 $*
Jul-17-2025	0.57 $*	0.81 $*
Jun-17-2025	0.69 $*	0.65 $*
May-17-2025	0.38 $*	0.80 $*
Apr-17-2025	0.93 $*	0.28 $*
Mar-17-2025	0.36 $*	0.38 $*
Feb-17-2025	0.33 $*	0.25 $*
Jan-17-2025	0.46 $*	0.88 $*

Характеристики

Product Overview

Vibrating Fluidized Bed Dryer for All Kinds of Frumentum Cereal Plants

Outstanding Advantages:

1. Uniform fluidization can be obtained at very low air velocity, which greatly reduces energy consumption, wear between particles and dust entrainment;
2. The residence time distribution of the material is uniform, which can almost be regarded as "piston flow", and the residence time is easy to adjust and control, so the ideal moisture content of the product can be obtained.

Product Introduction:

Vibrating fluidized bed dryer is a kind of intensified drying device with special purpose, which is usually used for the final drying of materials. In the drying process, mechanical vibration helps the fluidization of materials, which is not only conducive to the turbulent boundary layer and the enhancement of heat and mass transfer, but also ensures that the drying equipment works under relatively stable flow mechanics conditions. This equipment not only has good drying function, but also has the process of granulation, cooling, screening and conveying according to the process needs. At present, it has been widely used in sugar making, medicine, chemical fertilizer, chemical industry, plastics, dairy products, salt industry, mining and metallurgy. This technology is basically mature, and has formed a complete system.

Characteristics:

1. The raw material is heated evenly, the heat exchange is sufficient, the drying intensity is high, and the energy saving is 30% - 50% compared with the ordinary dryer;
2. The vibration source is driven by vibration motor, which has the advantages of balanced operation, convenient maintenance, low noise and long service life;
3. Uniform fluidization, no dead space and blow through phenomenon, can obtain uniform drying, cooling and humidifying products;
4. Good adjustability, wide adaptability, stepless adjustment of material layer thickness, moving speed in the machine and full amplitude change;
5. It can be used for drying fragile materials;
6. The fully enclosed structure can effectively prevent the cross infection between materials and the outside air, and the working environment is clean;
7. The production process is simplified and the operation control is convenient. For the liquid with moisture content of 40-60% (up to 90% for special materials), it can be dried into powder products at one time without crushing and screening after drying, so as to reduce the production process and improve the purity of products. The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, which is very convenient for control and management

Application Filed:

1. Pharmaceutical Industry: Various tablets, boric acid, borax, hydroquinone and other additives;
2. Food Industry: Distiller's grains, monosodium glutamate, sugar, salt, amino acids, vitamins, condiments, protein, milk powder, pig blood powder, soy sauce powder, coffee, tea, glucose, potassium sorbate, pectin, flavors and fragrances, vegetable juice, yeast, starch and so on;
3. Chemical Industry: Polyaluminum chloride, dye, organic catalyst, silica, washing powder, zinc sulfate, silicon dioxide, potassium fluoride, calcium carbonate, potassium sulfate, etc;
4. Ceramics: Alumina, zirconia, magnesia, pottery clay, porcelain clay, various ferrites and metal oxides;

5. Others: Mineral powder, metal powder, steel sand, bait, furfural, silica sand, toner, glutamic acid, quartz, abrasives, mica, asbestos, etc. Suitable for chemical, pharmaceutical, food, beverage, seed, slag and other industries a variety of granular materials crystal, powder mixture drying, cooling, humidification operations.

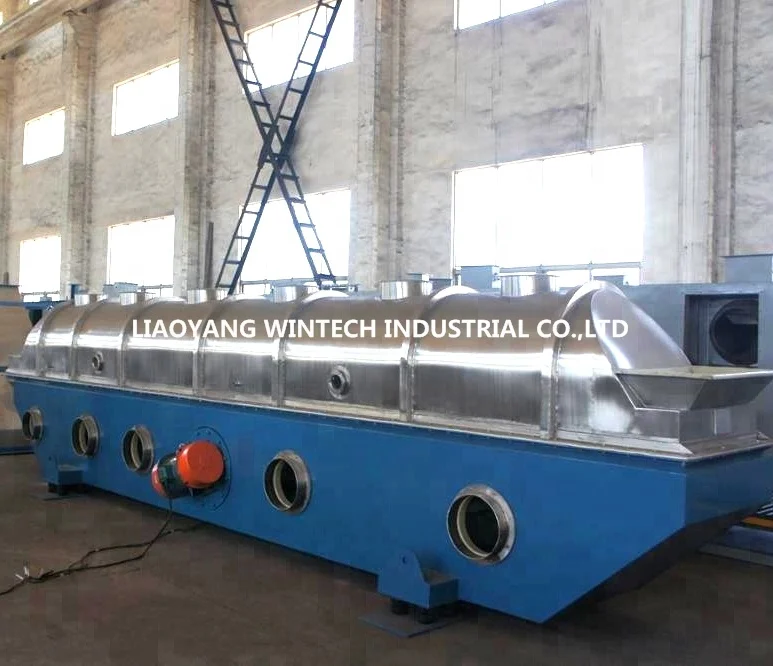

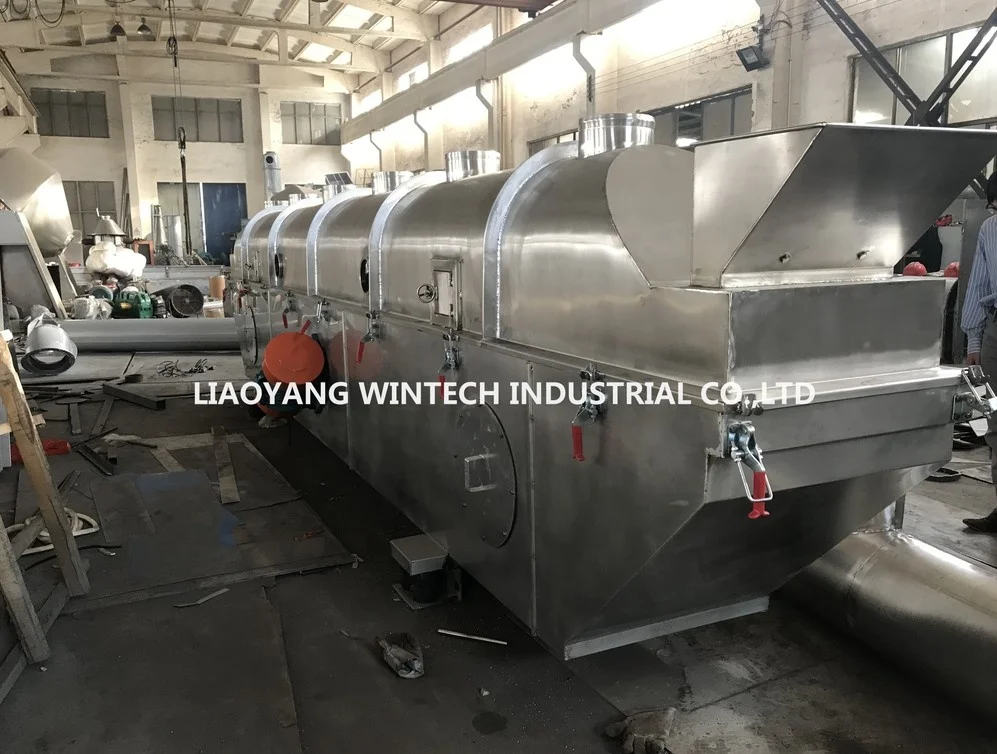

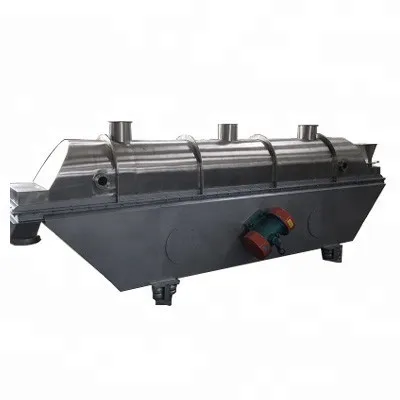

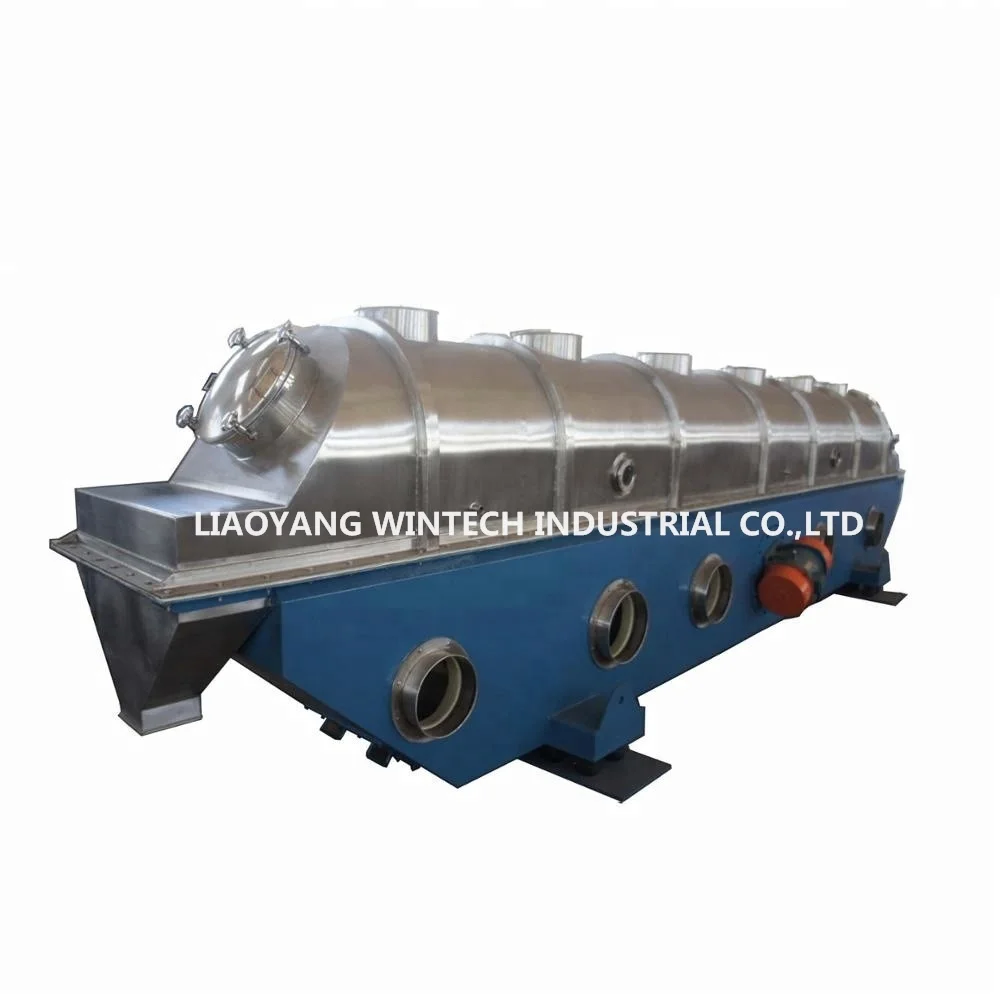

Product More Pictures

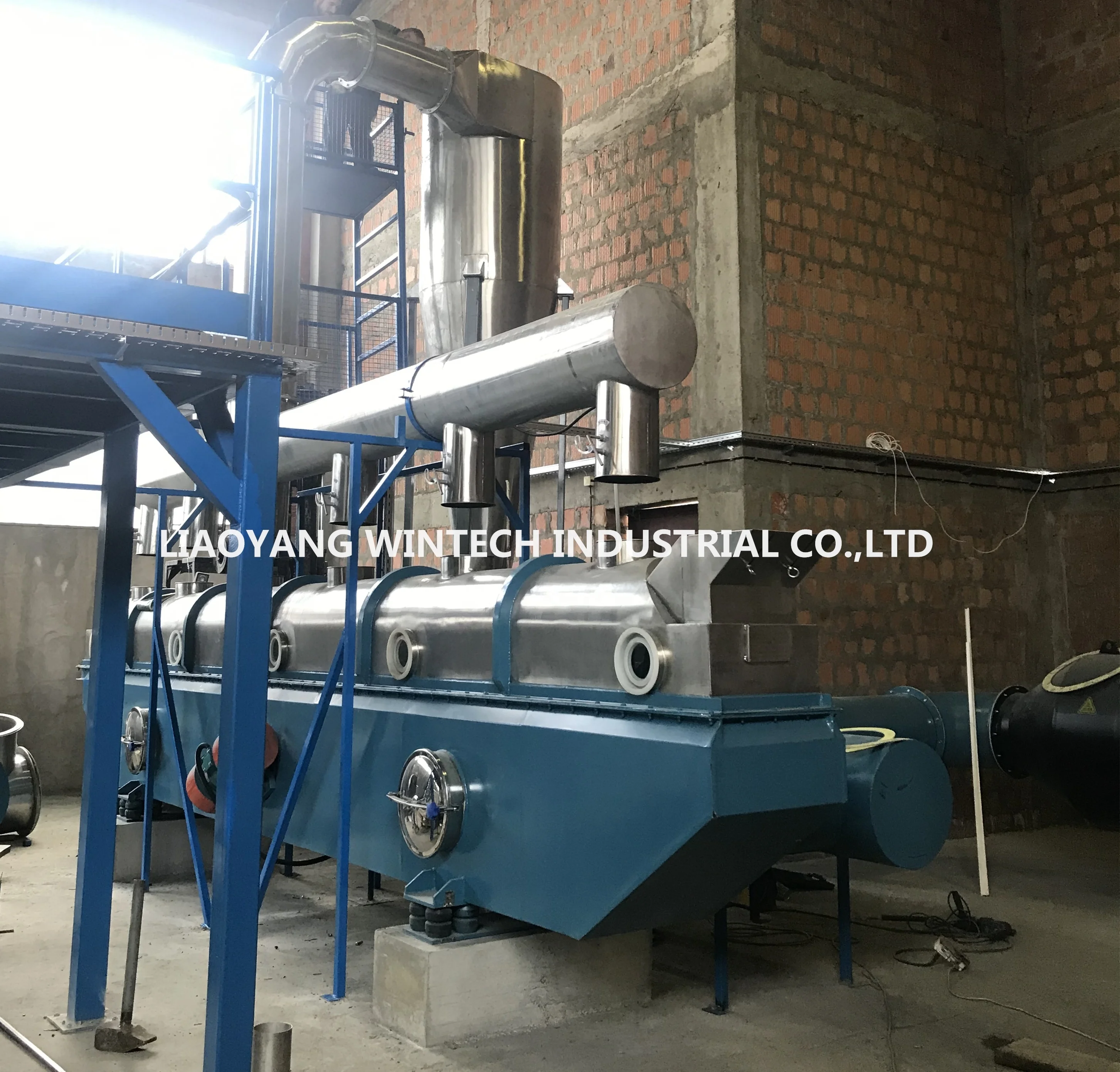

Our Equipments on Customers' Site:

Details Display:

Working Principle

The exciting force is produced by the throwing of the vibrating motor, and the material jumps forward under the action of the exciting force in the given direction. At the same time, the hot air input under the bed makes the material in the fluidization state, and the material particles fully contact with the hot air, so as to achieve the ideal effect. The material enters the machine from the feed port, and under the action of vibration force, the material is thrown forward continuously along the horizontal direction. The hot air flows upward through the fluidized bed and exchanges heat with the wet material. The wet air is discharged from the outlet after dust removal by the cyclone separator, and the dry material is discharged from the outlet.

Product Parameters

Our Vibrating Fluidized Bed Dryer can be customized. If you need a customized or larger model, please feel free to contact us.

Model	Area of fluidized bed	Temperature of inlet air	Temperature of outlet air	Capacity of evaporation	Vibration motor
Model	Area of fluidized bed	Temperature of inlet air	Temperature of outlet air	Capacity of evaporation					Model	Power
ZLG3x0.30	0.9m2	70~140℃	40~70℃	20~35kg/h	ZDS31-6	0.75x2kw
ZLG4.5x0.30	1.35m2					35~50kg/h	ZDS31-6	0.75x2kw
ZLG4.5x0.45	2.025m2					50~70kg/h	ZDS32-6	1.1x2kw
ZLG4.5x0.60	2.7m2					70~90kg/h	ZDS32-6	1.1x2kw
ZLG6x0.45	2.7m2					80~100kg/h	ZDS41-6	1.1x2kw
ZLG6x0.60	3.6m2					100~130kg/h	ZDS41-6	1.5x2kw
ZLG6x0.75	4.5m2					120~140kg/h	ZDS42-6	2.2x2kw
ZLG6x0.90	5.4m2					140~170kg/h	ZDS42-6	2.2x2kw
ZLG7.5x0.60	4.5m2					130~150kg/h	ZDS42-6	2.2x2kw
ZLG7.5x0.75	5.625m2					150~180kg/h	ZDS51-6	3.0x2kw
ZLG7.5x0.90	6.75m2					160~210kg/h	ZDS51-6	3.0x2kw
ZLG7.5x1.20	9.0m2					200~280kg/h	ZDS51-6	3.7x2kw
