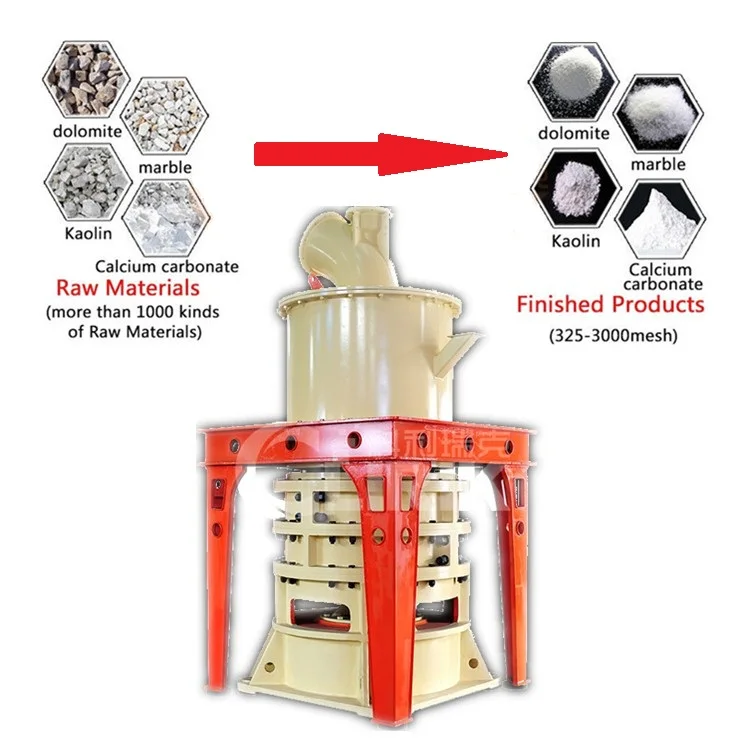

HGM100 мощностью 1 2-15 т/ч Рудный порошок измельчитель известняка карбонат кальция роликовый завод Сверхтонкая мельница

Model: HGM series
Brand: Clirik
Powder Fineness Process Ability: 325-3000 mesh
Capacity: according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-45 t/h
Use Range: can be used in more than 150 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite, gypsum, carbon black, gypsum, kaolin, marble and so on
Application: mining, chemiscal, transport and many other different areas

Main Shaft Speed

(r.p.m)

Finished Size

(um/mesh)

 74-5

(200-2500)

(200-2500)

(200-2500)

 100-6

(150-2000)

 100-9

(150-1500)

 Overall Dimension

(L*W*H,m)

Note: the capacity is based on the domestic Caco3 powder factory's feedback.

Use Range: can be used in more than 150 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite, gypsum, carbon black, gypsum, kaolin, marble and so on

Application: mining, chemiscal, transport and many other different areas

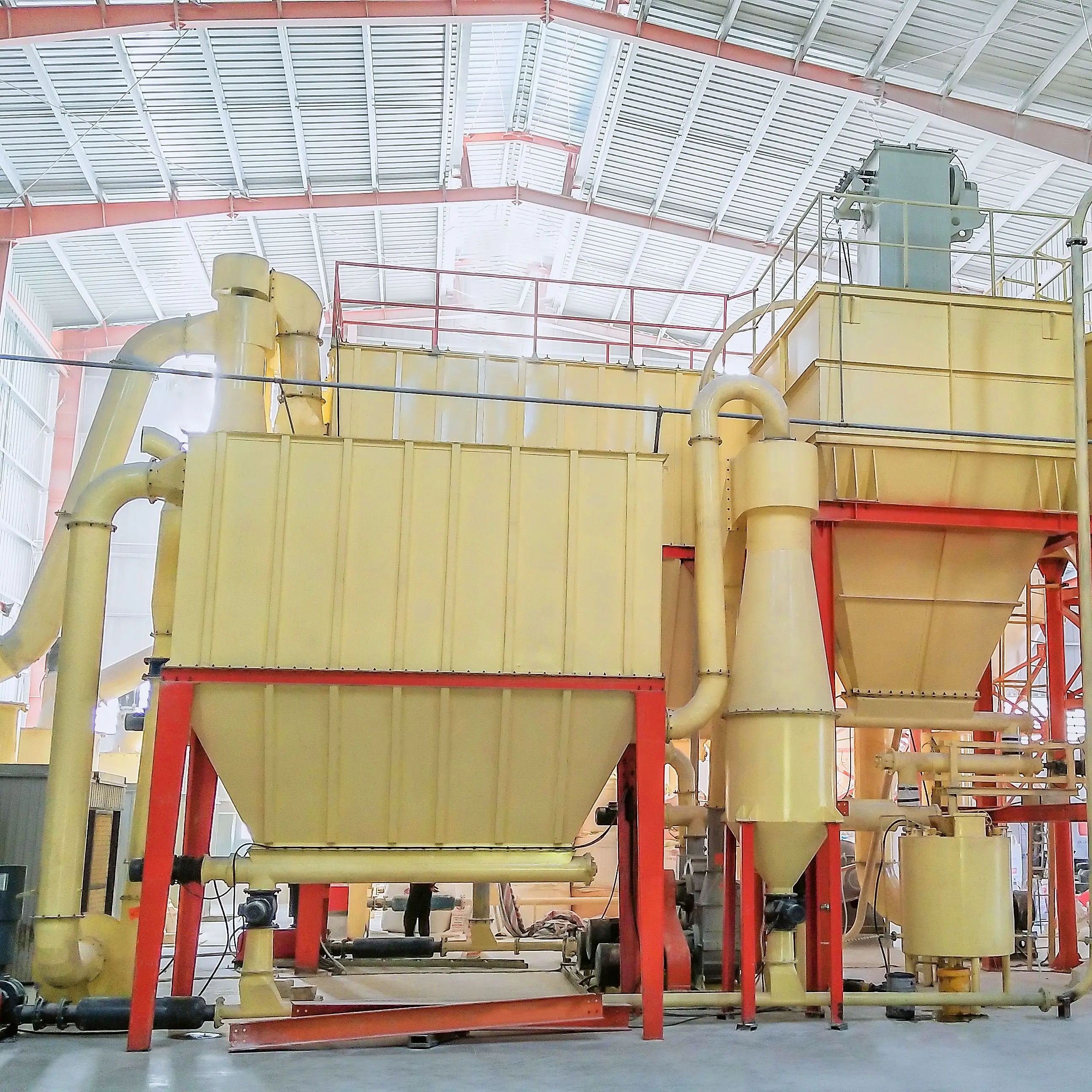

Ultra Fine Grinding Mill stone powder production line project is mainly formed by mill body, blower fan, ultra-fine analyzer, finished product cyclone container, bag de-duster and air pipe. The elevator, storage bin, electric control cabinet, powder feeder and crusher are optional for the demands of customers.

When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.

New Technology

CLUM Vertical roller mill

150-1250 mesh powder

1-20 t/h

D50 2 micron meter

Tradictional

YGM Raymond Mill

50-450 mesh

1-30 t/h

D90 50 micron meter

Crushing Equipment

PCC

10-200 input size

1-8 output size

1-150 t/h

Star Product

HGM ultra fine mill

200-3000 mesh

1-45 t/h

D97 5 micron meter

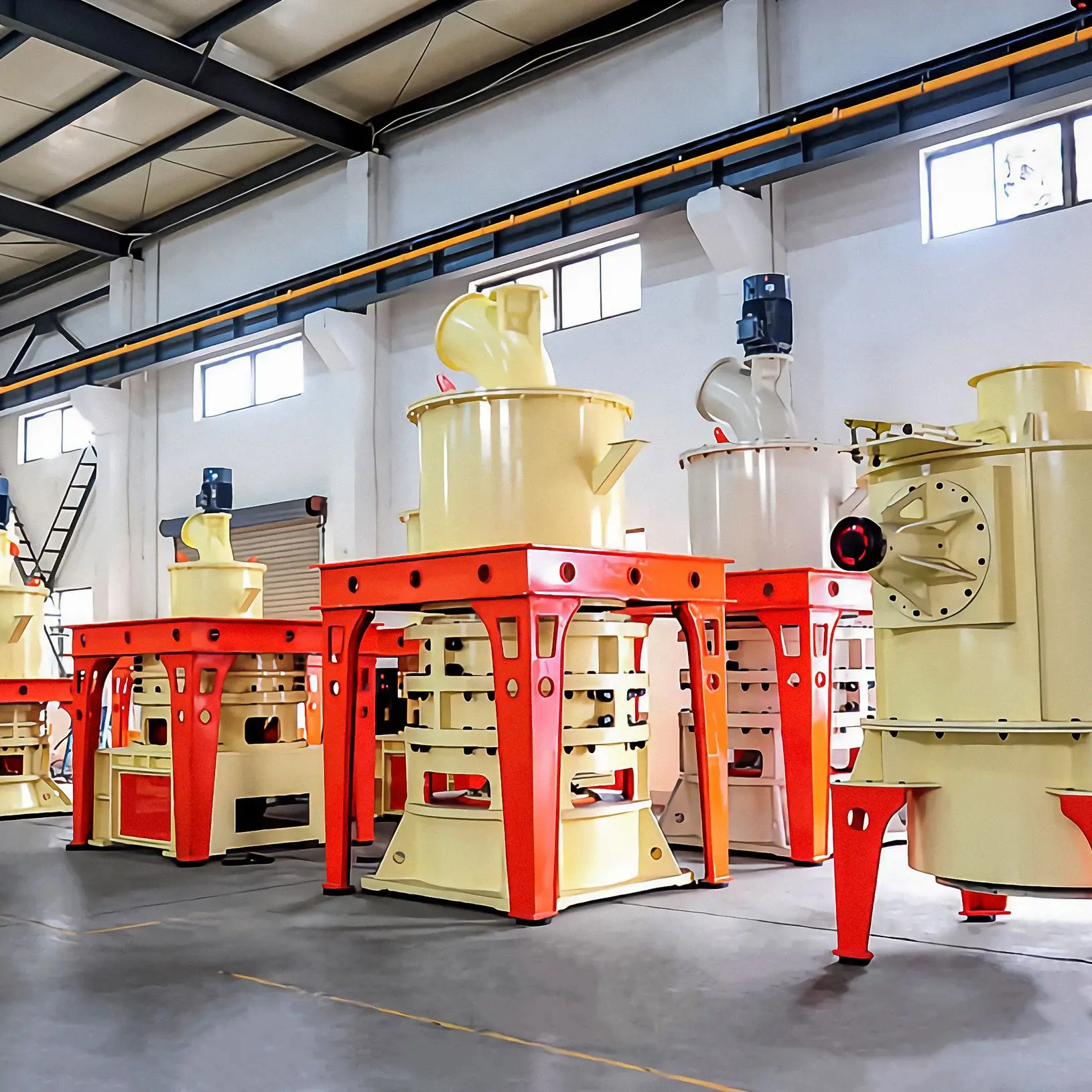

Shanghai Clirik Machinery CO., LTD located in PUDONG New district of Shanghai china as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, European version coarse grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on.

Specially we independently developed HGM ultra fine grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc. We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front.

Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.

Pre-Sales Service

♥Online interactive service

♥Offline interactive service

♥Solution design service

♥Visit reception service

After-Sales Service

♥Installation and debugging service

♥Training service

♥Other more service(Clients have any needs or problems; our engineer can take plane and get the worksite to provide service in 48 hours.)

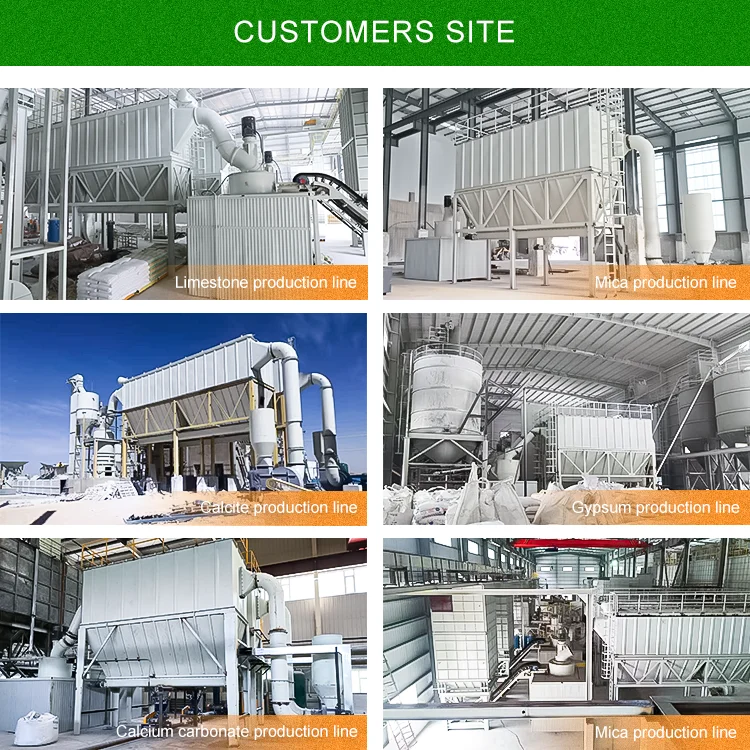

1. Calcium Carbonate Powder Production Project

in NanYang, China

grinding unit: HGM80 ultra fine grinding mill

finished powder fineness: 800-1250 mesh

capacity: 5 T/H

customer feedback:

      We have using Clirik grinding mill for 5 years, their machines quality is pretty good, and the after sales service is good too, every two or three months, I will pick the phone from their engineers, they will ask me, if there are some qustion I met during the using, and help me resolve that proble.

2. Limestone Powder Production Project

in India

grinding unit: HGM125 ultra fine grinding mill

finished powder fineness: 325-800 mesh

capacity: 20 T/H

customer feedback:

     This is the third grinding mill I purchased from Clirik, I had bought HGM80 and HGM100L before, and this time, I want to expand the production scale of our limestone powder making business.

3. Carbon Black Powder Production Project

in Thailand

grinding unit: YGM7815 Raymond mill

finished powder fineness: 50-250 mesh

capacity: 10 T/H

customer feedback:

     Before, I decided to start my carbon black powder business, I asked many grinding mill manufacturers, Clirik is the one who can give me the project paln back very soon, I am sure Clirik must service so many powder making factories just like me, they must very professional, and after we cooperation, I know I was right.

4. Caco3 Powder Production Project

in Hezhou, Guangxi, China

grinding unit: CLUM vertical roller mill

finished powder fineness: 600-1000 mesh

capacity: 12 T/H

customer feedback:

     CLUM vertical roller mill is good, it bring us more benefits every year.
