Biscuit making machine
Автоматическая линия по производству твердого и мягкого печенья оборудование для производства

Автоматическая линия по производству твердого и мягкого печенья оборудование для производства

Категория: Biscuit making machine >>>
Поставщик: Shanghai,Target,Industry,Co.,Ltd.

Цена:28 000,00 $ - 33 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	33320.13 $*	34986.60 $*
Aug-20-2025	33040.21 $*	34692.74 $*
Jul-20-2025	27720.39 $*	29106.27 $*
Jun-20-2025	32480.88 $*	34104.13 $*
May-20-2025	28280.69 $*	29694.77 $*
Apr-20-2025	31920.63 $*	33516.76 $*
Mar-20-2025	31640.96 $*	33222.82 $*
Feb-20-2025	31360.77 $*	32928.91 $*
Jan-20-2025	31080.71 $*	32634.24 $*

Характеристики

\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

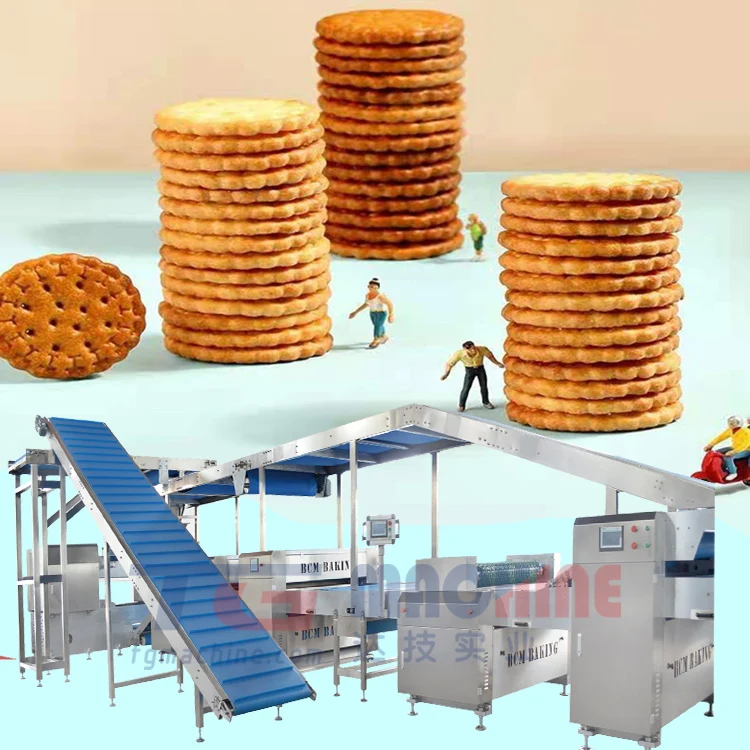

Biscuit Production Line technical parameters

Model	BCQ-250	BCQ-480	BCQ-600	BCQ-800	BCQ-1000	BCQ-1200	BCQ-1500	remark
Production capacity(kg/h)	250	480	600	750	1000	1250	1500	Up to (Max)
Total length(mm)	29600	64500	85500	92500	125000	125000	150000	If No U Turn Conveyor
Baking temperature(℃）	190-240	190-240	190-240	190-240	190-240	190-240	190-240	Depend
Whole line power(kW)	105	190	300	400	500	600	750	If UseElectric Oven
Whole line weight(kg)	6000	12000	20000	28000	35000	45000	55000	Approx

One important composition of the biscuit production line

Oven is one important part of the biscuit production line. You can choose one kind of the oven below, it usually depends on your budget.

Electric Heating Oven

Electric heating oven is so called far infrared heating oven, mainly depends on electrical heated pipe. Main features including:clean and sanitary, accurate controlled temperature, easy to operate, easily maintain and wide range of application.

Gas Oven

Fuels of natural gas, liquefied gas electric and diesel can be chosed as baking energy. Those can be light up immediately, but for diesel based hot air circulation oven is necessary. Main features including: large capacity, fast production speed, high quality, accurate controlled and neat.

Oven technical parameters

Type\\Specification	Capacity	Oven length	Temperature Zones	Natural gas consumption	Liquid gas consumption	Diesel consumption	Power consumption
600	600kg	50m	4	25-40m3/h	12-20kg/h	20-45kg/h	300kW/h
800	800kg	60m	4	30-40m3/h	15-25kg/h	30-55kg/h	400kW/h
1000	1000kg	60m	4	40-60m3/h	20-35kg/h	30-60kg/h	500kW/h
1200	1200kg	60m	4	50-70m3/h	25-40kg/h	40-70kg/h	600kW/h
1500	1500kg	70m	5	70-90m3/h	30-50kg/h	50-80kg/h	750kW/h

Hybrid Oven (Gas/ Diesel/Electric Oven)

Begining with flame heating, then use directly or indirect hot air convection oven. Apply to the soda biscuits, crackers, hard biscuits, fermentation biscuits. Advantages: baking fast, uniform, heating and recovery time short, low energy consumption, simple operation, the fully humidity control, baking color more even, higher capacity.

Swerve Conveyor(L Or Turn)

The swerve conveyor is optional equipment in biscuit production line. When the space (workshop) is not long enough to place the production line straight, then L swerve or U turn conveyor need to be adopted.

Type/Specification	Voltage	kW Power	Weight	Measurement LWH(mm)
PW480	380V	2.2	320kg	35001700800
PW600	380V	3	420kg	42002100800
PW800	380V	5	490kg	48002400800
PW1000	380V	5	580kg	52002600800
PW1200	380V	5	660kg	60003000800
PW1500	380V	5	769kg	72004200800

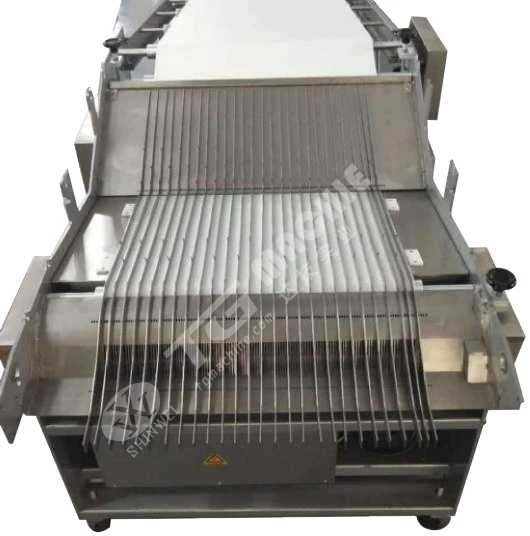

Biscuit stacking Machine

This biscuit stacking machine accpects the biscuits from the cooling conveyor, forms them into lanes, stacks them on edge through the star wheel device, and conveys them to the packing conveyor.

Type/Specification	Capacity 1hour	Voltage	KW Power	Weight	Measurement LWH(mm)
LB480	250kg	380V	2.2	360kg	29808001350
LB600	500kg	380V	4	480kg	29809001350
LB800	750kg	380V	4	600kg	298012001350
LB1000	1000kg	380V	5.5	720kg	298013001350
LB1200	1250kg	380V	5.5	840kg	298015001350
LB1500	1500kg	380V	6.5	960kg	340021601180

Cooling Conveyor

The cooling conveyor is used for normal cooling. Made of stainless steel square pipes of proper strength, the cooling conveyor is structurally simple and compact. The whole machine looks light and stable, and is easy to install and remove.

Features

1.With the diamond shape supporting arm, the supporting frame has little dust accumulation, and easy to clean.
2.Conveyor belt Air cylinder tension, gear synchronization action at both sides and left and right, auto deflection at front and behind.

3.Equipped with an anti-biscuit-reversing device.

Packing Table

After the biscuits delivery by the cooling conveyor. The biscuits will be delivery to the paking table and workers can observe if there is something wrong or if it can be function well.
