Автоматическая промышленная швейная машина с компьютерным рисунком для футболок чехлов сидений


Поделиться:


Цена:638,00 $ - 6 138,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 759.8 $* 797.62 $*
Aug-15-2025 753.78 $* 791.91 $*
Jul-15-2025 632.39 $* 664.61 $*
Jun-15-2025 740.77 $* 777.88 $*
May-15-2025 644.68 $* 676.63 $*
Apr-15-2025 727.84 $* 763.82 $*
Mar-15-2025 721.52 $* 757.66 $*
Feb-15-2025 715.2 $* 751.48 $*
Jan-15-2025 708.70 $* 743.36 $*

Характеристики


Automatic computer pattern industrial sewing machine for t shirt seat cover furniture.






Product Character





1.    The precise automatic control unit can perfectly sew the straight line, right angle, circle, arc and other sewing stitching lines in the garment process.





2.    Light and convenient, easy to move, suitable for intelligent sewing of related parts in garment production. It is especially suitable for production line of sewing workshop and automatic sewing unit of hanging line.





3.    After the template file is written according to the sewing process, just press a start button, and the automatic template machine will automatically and quickly complete a whole set of sewing process according to the program. There is no need for workers to adjust the cloth feeding direction like the traditional sewing equipment, and there is no need to repeatedly draw complex lines on the fabric.





4.    And sewing different clothing styles, just click the screen, you can quickly switch different production processes, an automatic template machine can meet almost all the flat sewing process of a factory.





5.    In the automatic sewing process of the template machine, the operator can also simultaneously clamp the fabric in the template to realize continuous automatic sewing, which greatly improves the production efficiency.














Technical data





















































































Item No:



K8T-F8045AJ



Sewing rang :



800mm X 450mm



Sewing speed:



2800-3500rpm/min



Work holder lift:



25mm (max:30mm)



Stepping foot lift:



20mm



Stepping foot stoke:



4-10mm (Optional)



Hook :



Double capacity hook



Stitch Formation:



Single needle Lock Stitch



Motor :



750W direct drive servo motor



Memory device:



USB



Stitch Length:



0.1-12.7mm



Needle :



DP*17(#16-#23)



Operation screen:



7 inch LCD touch control panel



Voltage :



Single phase 220-240V



Air pressure :



0.5Mpa 1.8L/min



Memory Card:



999 patterns



Max. needle number:



Each pattern 20,000 needles.



Packing size :



195x125x135cm



G.W/N.G:



400kgs/350kgs.












Detail Image

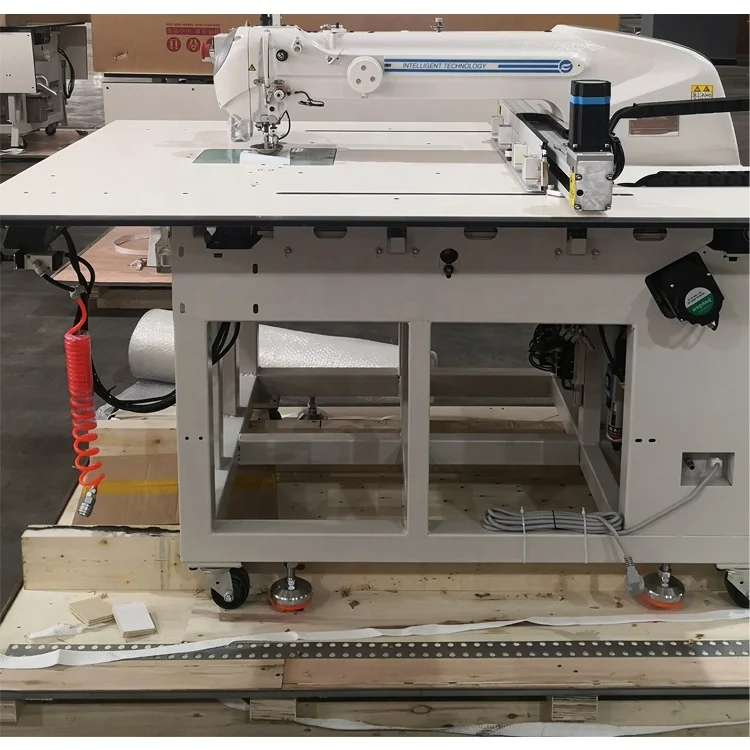

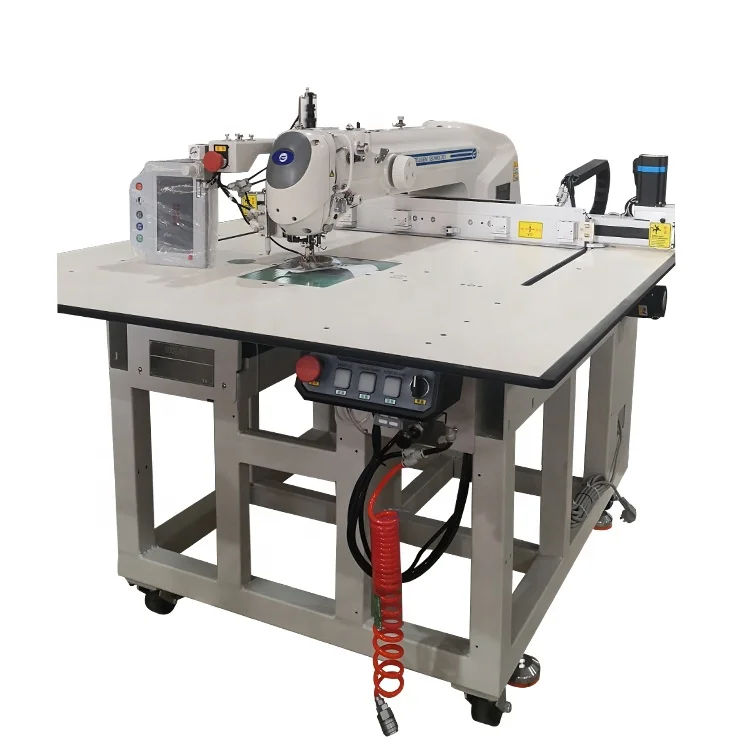

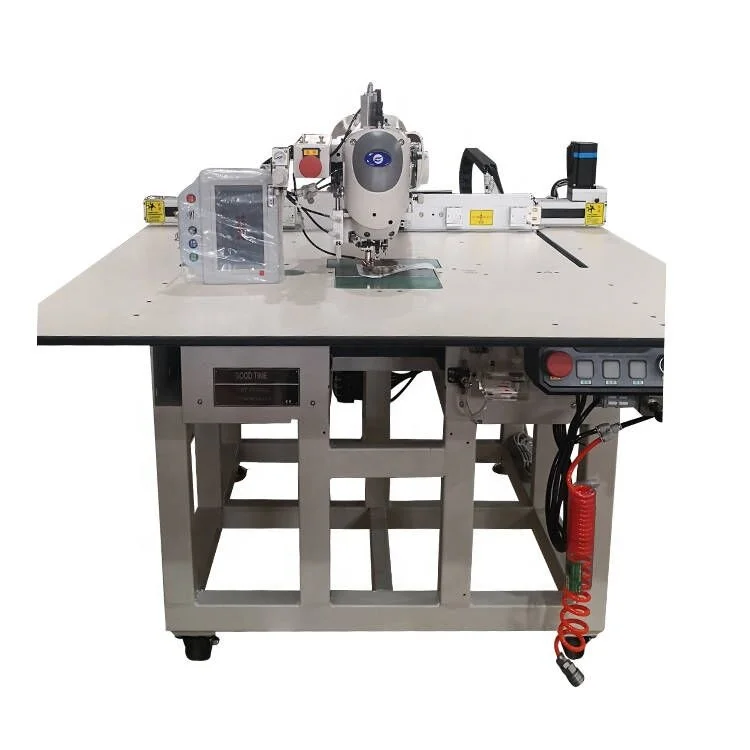

8045 sewing machine 1





Scientific transmission structure, accurate, fast easy operation, low noise.

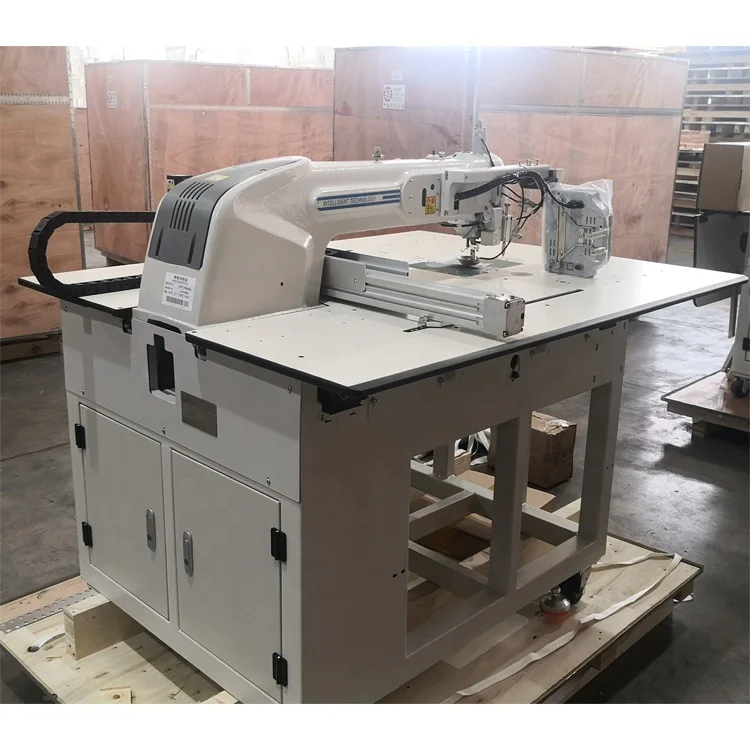

template sewing machine





With 7 inch LED touch screen, clear & good using.








template sewing machine 4





Great wisdom, multi-purpose, small footprint, multi-function.





template sewing machine 6





According to the sewing process to prepare a good template file, just press a start button, the automatic template machine will follow the program automatically and quickly complete a set of sewing process, do not need to be like traditional sewing equipment to adjust the feed.





template sewing machine 3





The precise automatic control unit can perfectly sew the straight line, right angle, circle, arc and other sewing stitching lines in the garment process.





8045 hook





Shuttle/hook: double shuttle/hook, reduce the number of bottom thread replacement, good hardness and wear resistance.





template sewing machine 8








Guide rail components: high quality linear guide rail, stable and smooth operation, wear-resistant and durable, no displacement.





template sewing machine 5


After the template file is written according to the sewing process, just press a start button, and the automatic template machine will automatically and quickly complete a whole set of sewing process according to the program.





8045 template machine





Powerful CNC system, toothed belt guide module tranmission.

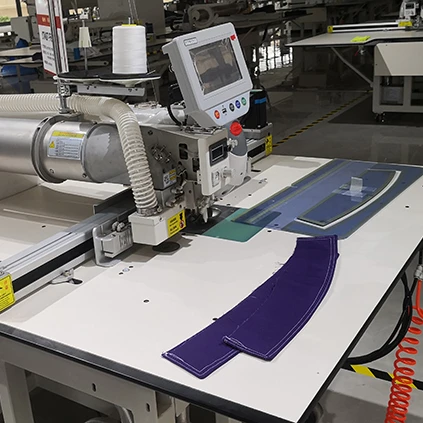

cuff





T-shirt collar, cuff, epaulette stitching sample.





8045 template mould 2





Template mould sample.











Recommended Products














































Application display





Especially suitable for lean production of clothing assembly line intelligent sewing unit. Such as collar, cuff, epaulette and zipper. T-shirt, uniform, down jacket, coat etc.


It is also good for sewing shoes, bags, suitcase, clothes, textiles, leather bags, footwear, belts, car decoration, sofa & furniture, etc. With big sewing area and extensive usage. It is competitive in productivity and cost effectiveness, which improves productivity by 100% - 300%





big area applicationpattern sewing mahcine 1











Company Information


-1_02


1_07 2Production--Line-4





FAQ




-1_03




Q1. Are you a factory?
  Re. Yes.  we are both a trading company an
d a factory, and we only focus on excellence sewing machine.


Q2.How about your machine quality?


  Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.


Q3. How about your price?


  Re. Our price not expensive, but also not very cheap, in general, quality is better than price


Q4. How long could your sewing machine be used?
  Re. Generally, more than 6 years.


Q5. What is the shipping port?
  Re. We ship the goods via Guangzhou port or as you like


Q6. How about payment ?


  Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment


Q7. Can you do OEM or ODM for us?


  Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.


Q8. Can you supply spare parts?


  Re. Yes, of course we can.


Q9.  What guarantee you can supply ?


Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.














Packaging & Shipping
