Различные пластиковые и резиновые изделия измельчитель древесной
- Категория: Wood Crusher >>>
- Поставщик: Wobide,Machinery,(zhejiang),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 30345.59 $* | 31862.49 $* |
| Aug-17-2025 | 30090.63 $* | 31595.5 $* |
| Jul-17-2025 | 25245.85 $* | 26507.81 $* |
| Jun-17-2025 | 29580.29 $* | 31059.55 $* |
| May-17-2025 | 25755.76 $* | 27043.89 $* |
| Apr-17-2025 | 29070.67 $* | 30524.85 $* |
| Mar-17-2025 | 28815.87 $* | 30256.69 $* |
| Feb-17-2025 | 28560.36 $* | 29988.2 $* |
| Jan-17-2025 | 28305.66 $* | 29720.40 $* |
Характеристики
Single-shaft shredders are equipped with a built-in pusher, which makes it a small floor space and a large internal space, is an ideal shredder designed for large-volume materials.
It is suitable for shredding the lefe-over material of injection molding machine, chemical blue barrel, garbage bin, pallet and other large-capacity barrel containers, packaged bundle film, blow molding industry waste, carpet, wood, kitchen and household garbage. Special models can also be designed to customers need.
With Siemens PLC, it can automatically control, stop, reverse and overload automatic reversal. With the advantages of low speed, high torque, low noise and so on.
It is suitable for shredding the lefe-over material of injection molding machine, chemical blue barrel, garbage bin, pallet and other large-capacity barrel containers, packaged bundle film, blow molding industry waste, carpet, wood, kitchen and household garbage. Special models can also be designed to customers need.
With Siemens PLC, it can automatically control, stop, reverse and overload automatic reversal. With the advantages of low speed, high torque, low noise and so on.

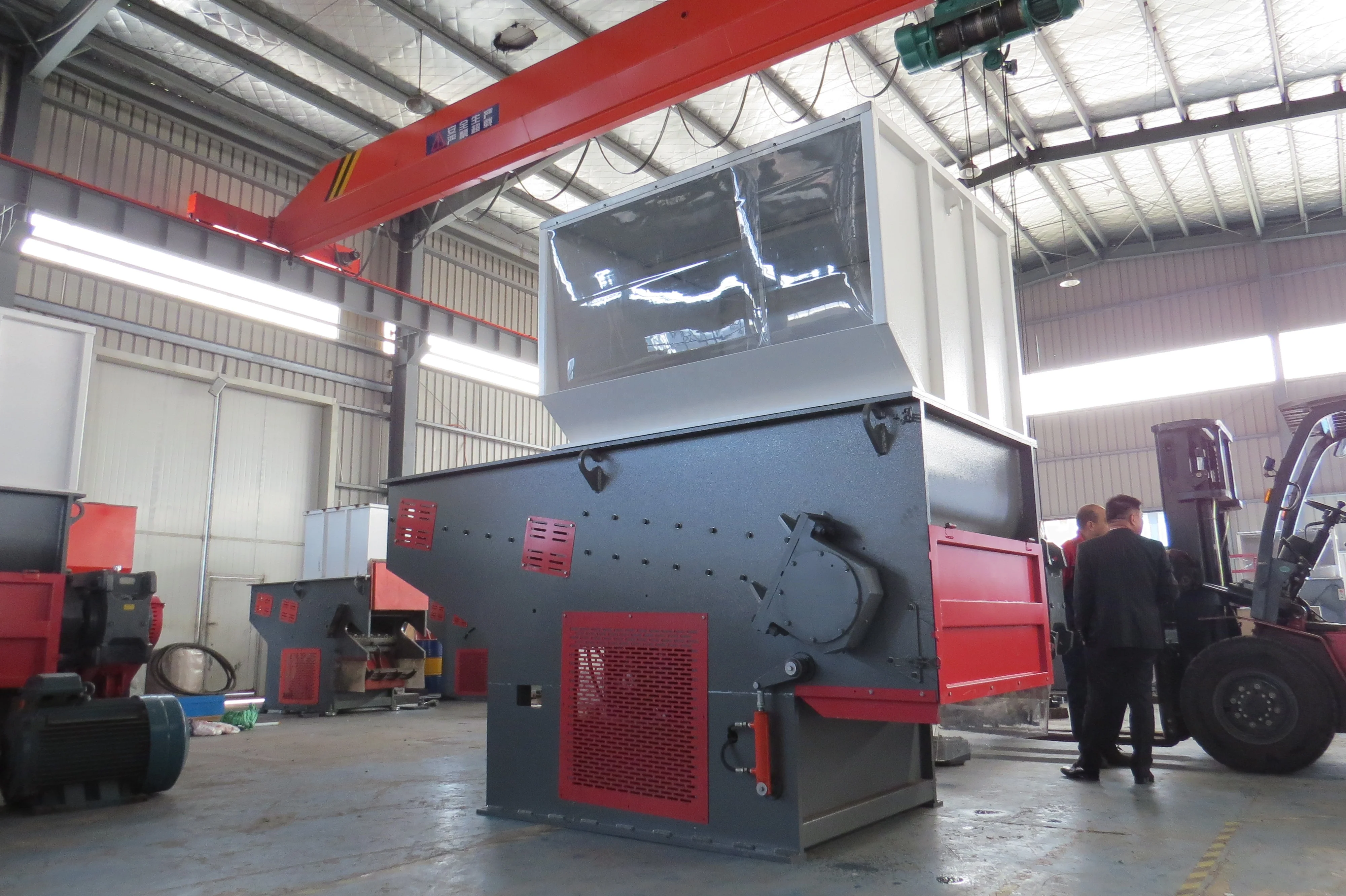

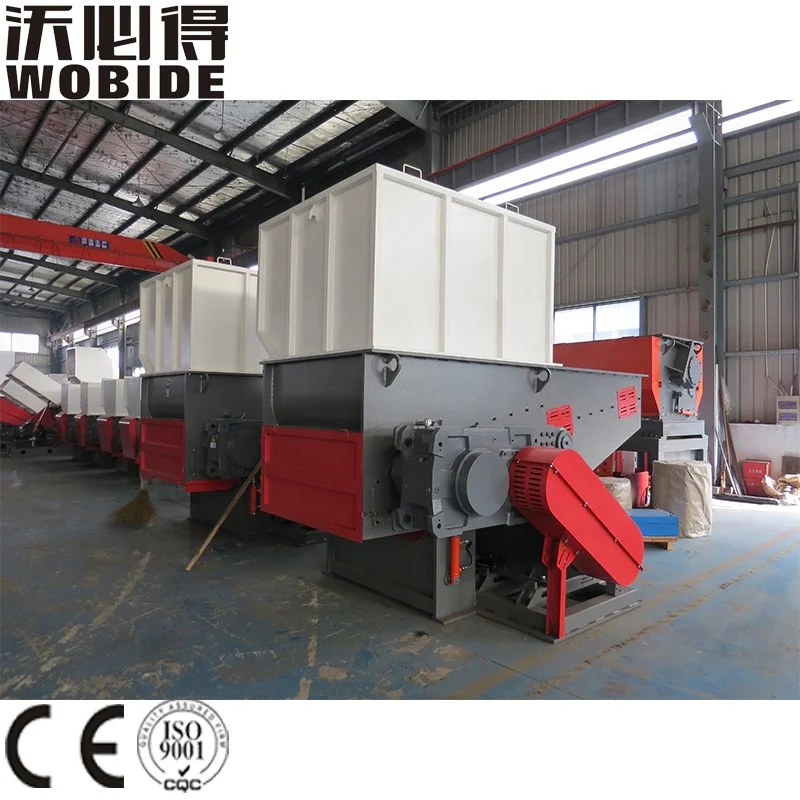

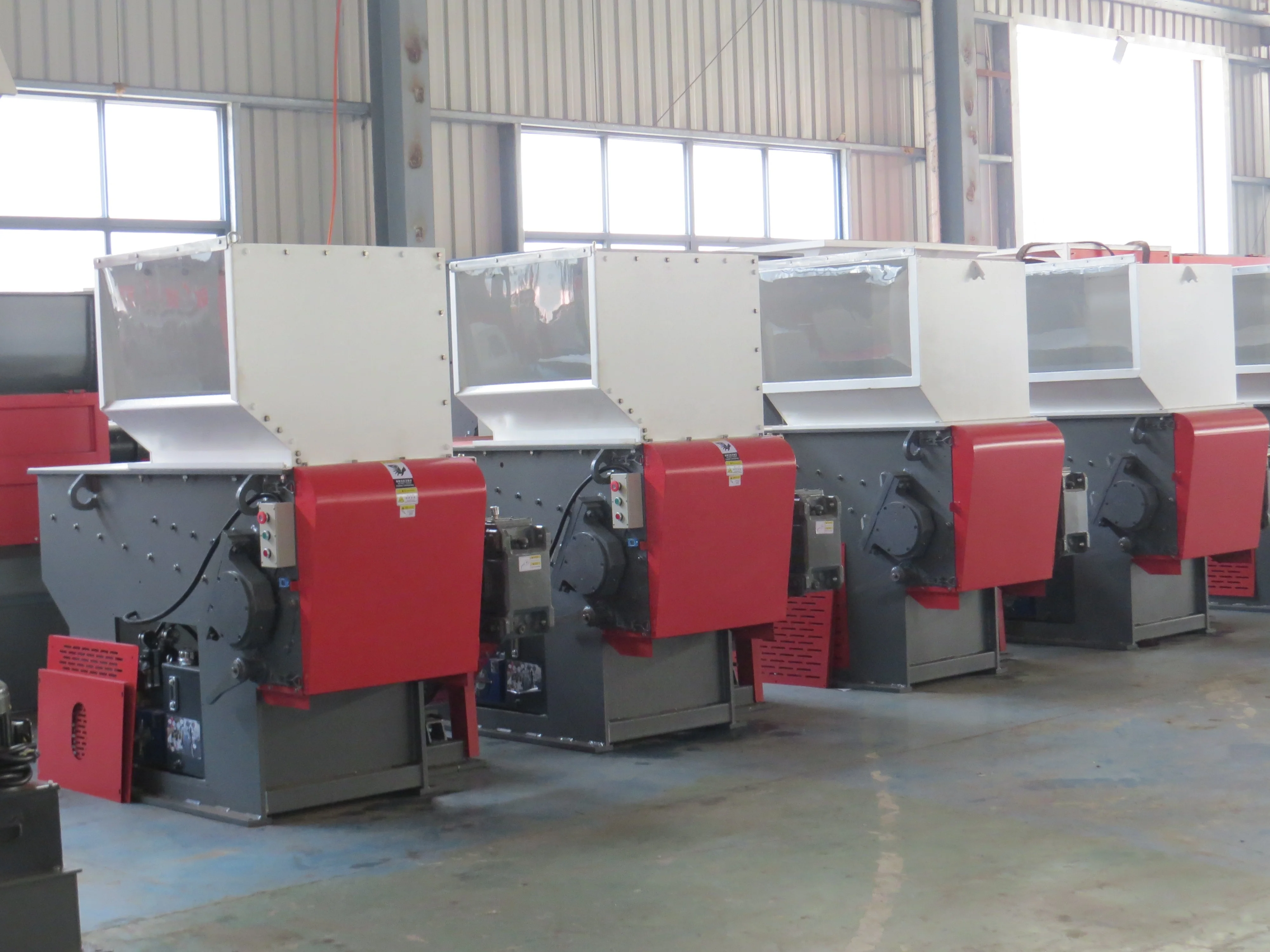

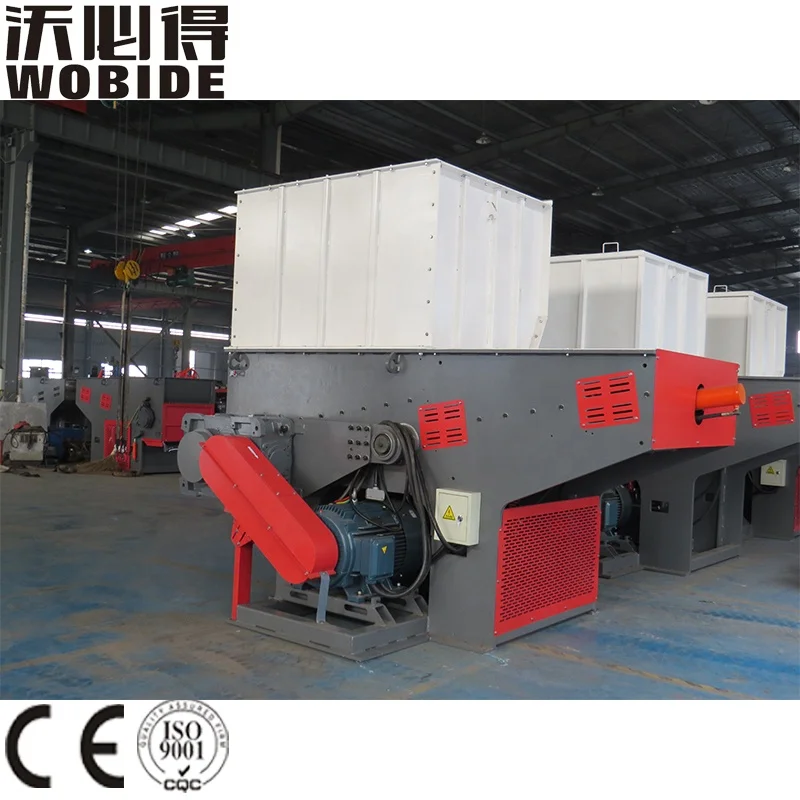

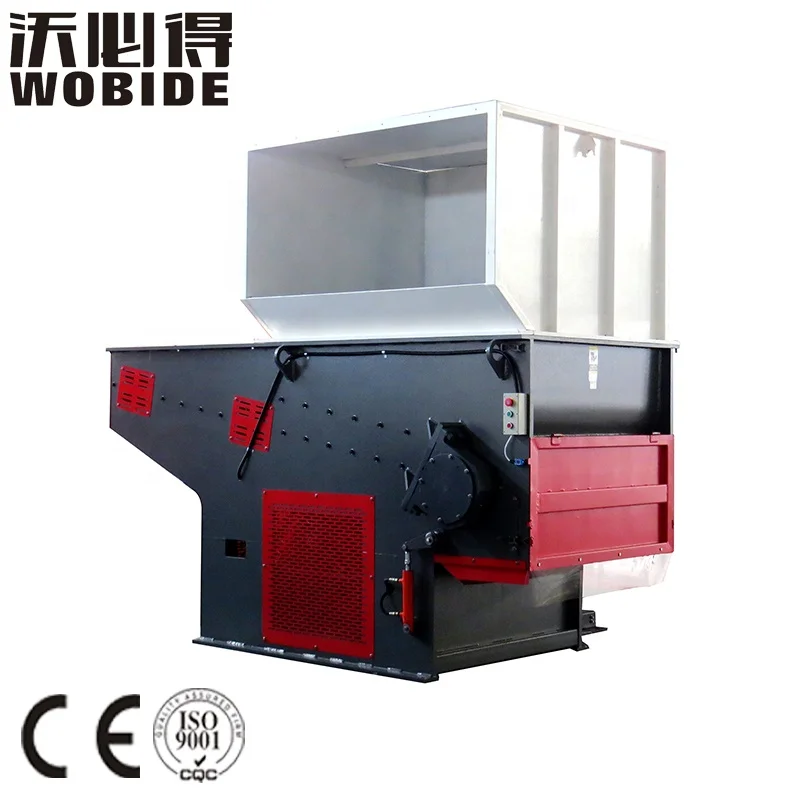

Details Images
Main Features Of Single Shaft Shredder
Spindle Rotor
According to different materials, the spindle rotor use rotor arrangement to form a different rotor. The knife can be used symmetrically.
External bearing housings
Housing installed outside of main body, adopt wool felt seal between the spindle and the
box. Effectively prevent the crushed material into the bearing box, improve bearing life.
box. Effectively prevent the crushed material into the bearing box, improve bearing life.
Exchanging screen by hydraulic press
Automatic opening and closing by hydraulic, to provide fast for exchanging net and save the maintenance time.
Application
Application:
⇨Pieces from injection molding machine
⇨Pieces from injection molding machine
⇨Thick wall plastic sheet
⇨Pipe
⇨Hollow plastic products
⇨Chemical blue barrel
⇨Plastic pallet
⇨Film
⇨Wood
⇨Kitchen and household waste
Product Series
Model | WPS600 | WPS800 | WPS1000 | WPS1200 | WPS1600 |
Main Shaft Length(mm) | 600 | 800 | 1000 | 1200 | 1600 |
Tactical Diameter(mm) | 280 | 400 | 450 | 450 | 645 |
Main Shaft Speed(rpm) | 78 | 78 | 78 | 78 | 78 |
Ram Travel（mm） | 600 | 800 | 1000 | 1200 | 1600 |
Rotor Blades（pcs） | 39 | 51/57 | 63/92 | 81/116 | 140/156 |
Fixed Blades（pcs） | 2 | 2 | 3 | 4 | 5 |
Motor Power(kw) | 22 | 37 | 55/75 | 75/90 | 75*2 |
Hydraulic Power（kw） | 2 | 3 | 4 | 4 | 5 |
Screen Mesh Diameter (mm) | 30-80 | 30-80 | 30-120 | 30-120 | 30-120 |
Cutting Chamber Dimension (mm) | 600*600 | 800*800 | 1000*1000 | 1200*1250 | 1600*1400 |
Overall Dimension (mm) | 1750*1400*1780 | 2430*1720*2480 | 2880*2180*2570 | 3350*2300*2660 | 3800*3300*3250 |
Weight(kg) | 2800 | 5000 | 7000 | 8000 | 11500 |
Recommend Products
More Products
Company Profile
Wobide machinery has passed ISO9001 quality management system certification and all of our products compliance with CE standard.
Due to the excellent R&D capability, we have obtained 15 national patents as well.
We mainly have 4 series of products：shredder,plastic crusher,plastic recycling and washing line,plastic granulator and auxiliary equipment.
We provide customized service. OEM&ODM
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, waste paper, straw, wood, urban household garbage, medical waste, electronic waste, and waste metal, etc.
The products are exported to more than 40 countries and regions including Europe, America, Japan and South Korea.
More information and details please contact us now！！！
Due to the excellent R&D capability, we have obtained 15 national patents as well.
We mainly have 4 series of products：shredder,plastic crusher,plastic recycling and washing line,plastic granulator and auxiliary equipment.
We provide customized service. OEM&ODM
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, waste paper, straw, wood, urban household garbage, medical waste, electronic waste, and waste metal, etc.
The products are exported to more than 40 countries and regions including Europe, America, Japan and South Korea.
More information and details please contact us now！！！
Certifications
Our Services
1. Pre-Sale Services.
Wobide provides specialized integrated solutions for customers to ensure it meets the customer’s requirement.
2. Installation Services.
We provide complete installation and commissioning services for customers to ensure smooth operation of production lines. In addition, we provide appropriate trainings for customers to achieve their satisfaction.
3. Spare Parts Supply.
Wobide has a complete warehouse of spare parts. High-quality spare parts ensure the safe and stable operation of equipment. We also provide accurate assessment of spare parts' consumption to ensure successful implementation of production plan.
4. Reconstruction Project.
Based on our many years' experience on market development and project management, we provide specialized reconstruction services of production line for customers. Replacing old equipment with high-quality equipment greatly increases the output of production lines so that the customers can obtain huge return from relatively limited investment.
Wobide provides specialized integrated solutions for customers to ensure it meets the customer’s requirement.
2. Installation Services.
We provide complete installation and commissioning services for customers to ensure smooth operation of production lines. In addition, we provide appropriate trainings for customers to achieve their satisfaction.
3. Spare Parts Supply.
Wobide has a complete warehouse of spare parts. High-quality spare parts ensure the safe and stable operation of equipment. We also provide accurate assessment of spare parts' consumption to ensure successful implementation of production plan.
4. Reconstruction Project.
Based on our many years' experience on market development and project management, we provide specialized reconstruction services of production line for customers. Replacing old equipment with high-quality equipment greatly increases the output of production lines so that the customers can obtain huge return from relatively limited investment.
FAQ
1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
