Factory Price Small Mobile Diesel Portable Concrete Mixer JZC750 for hot sale

WECHAT/WHATSAPP 86-15866001919

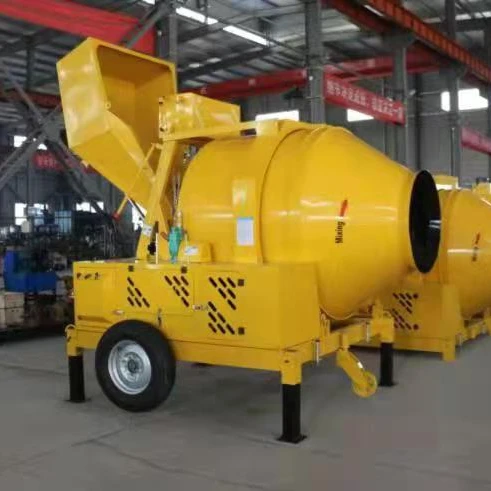

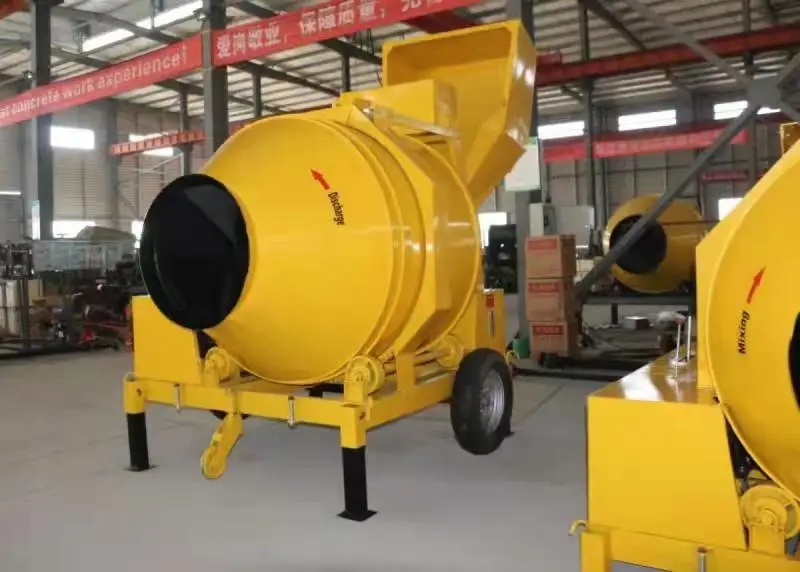

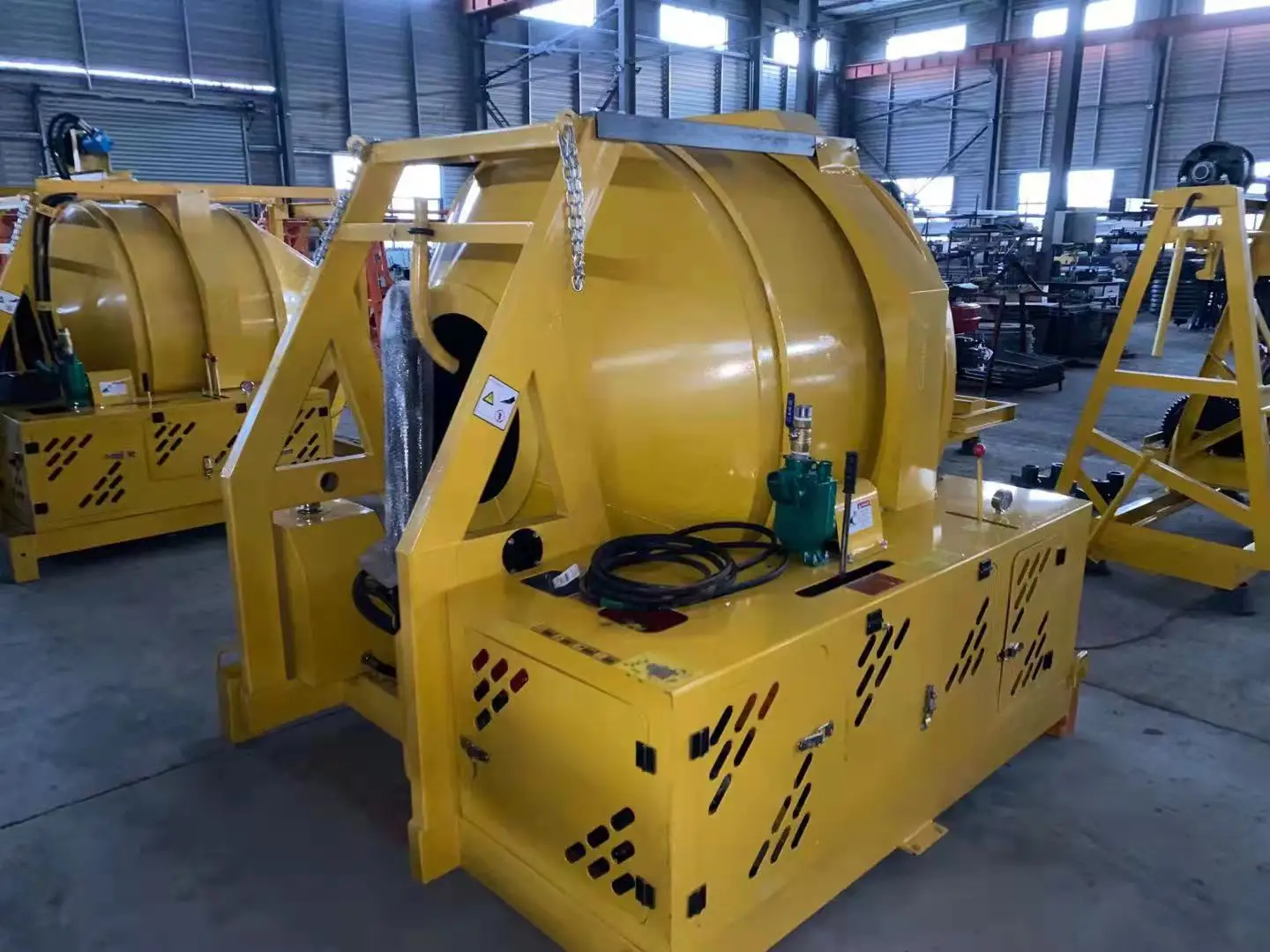

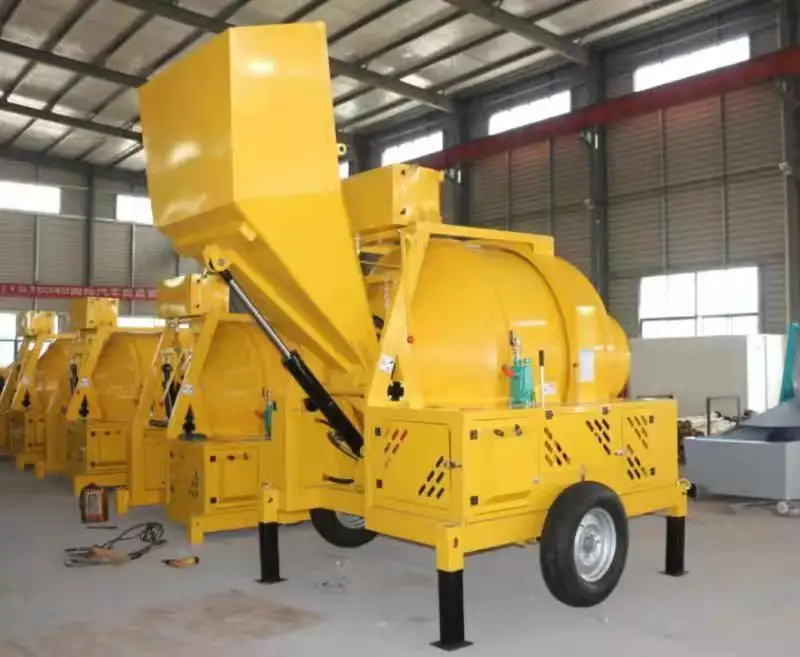

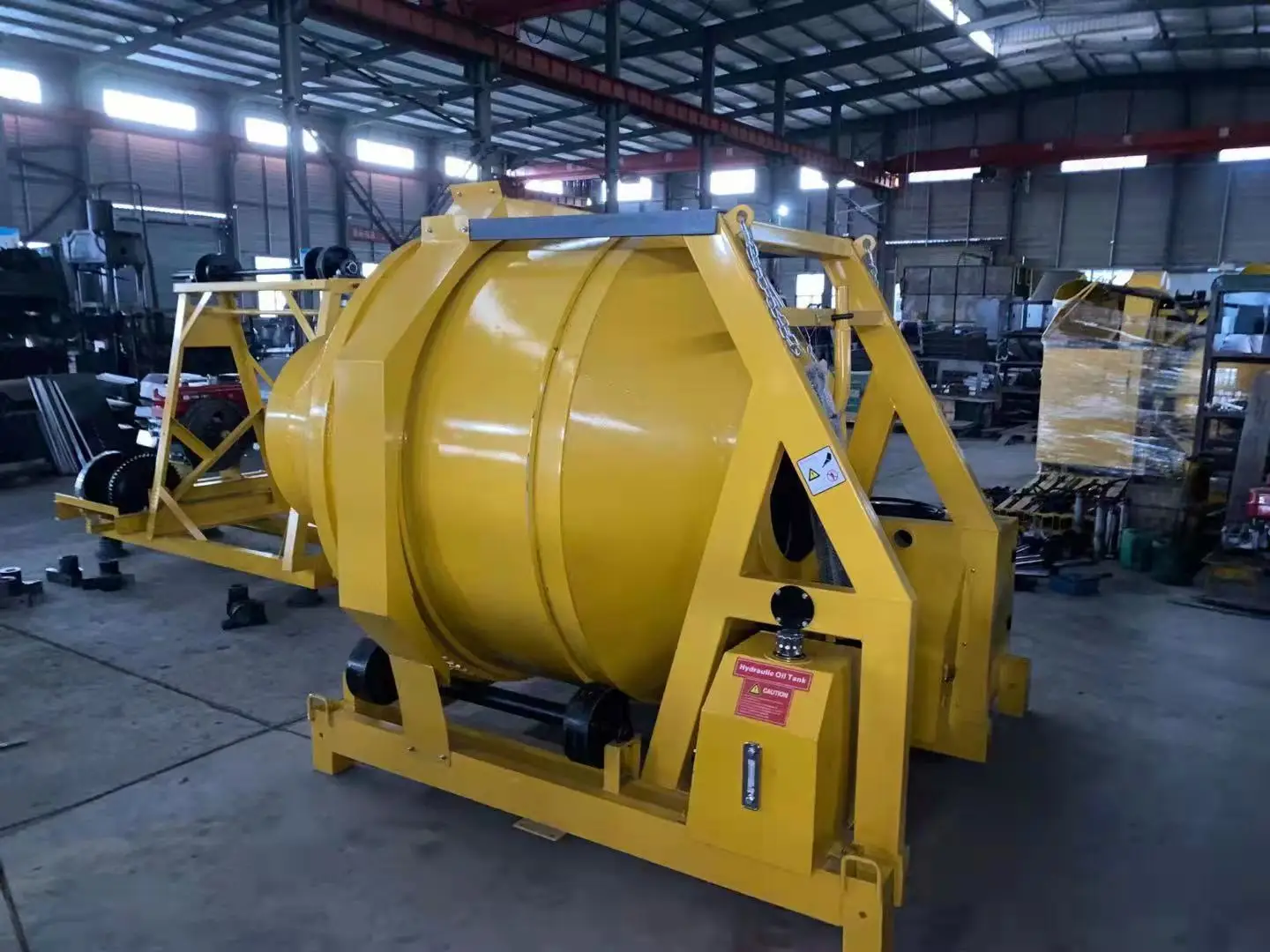

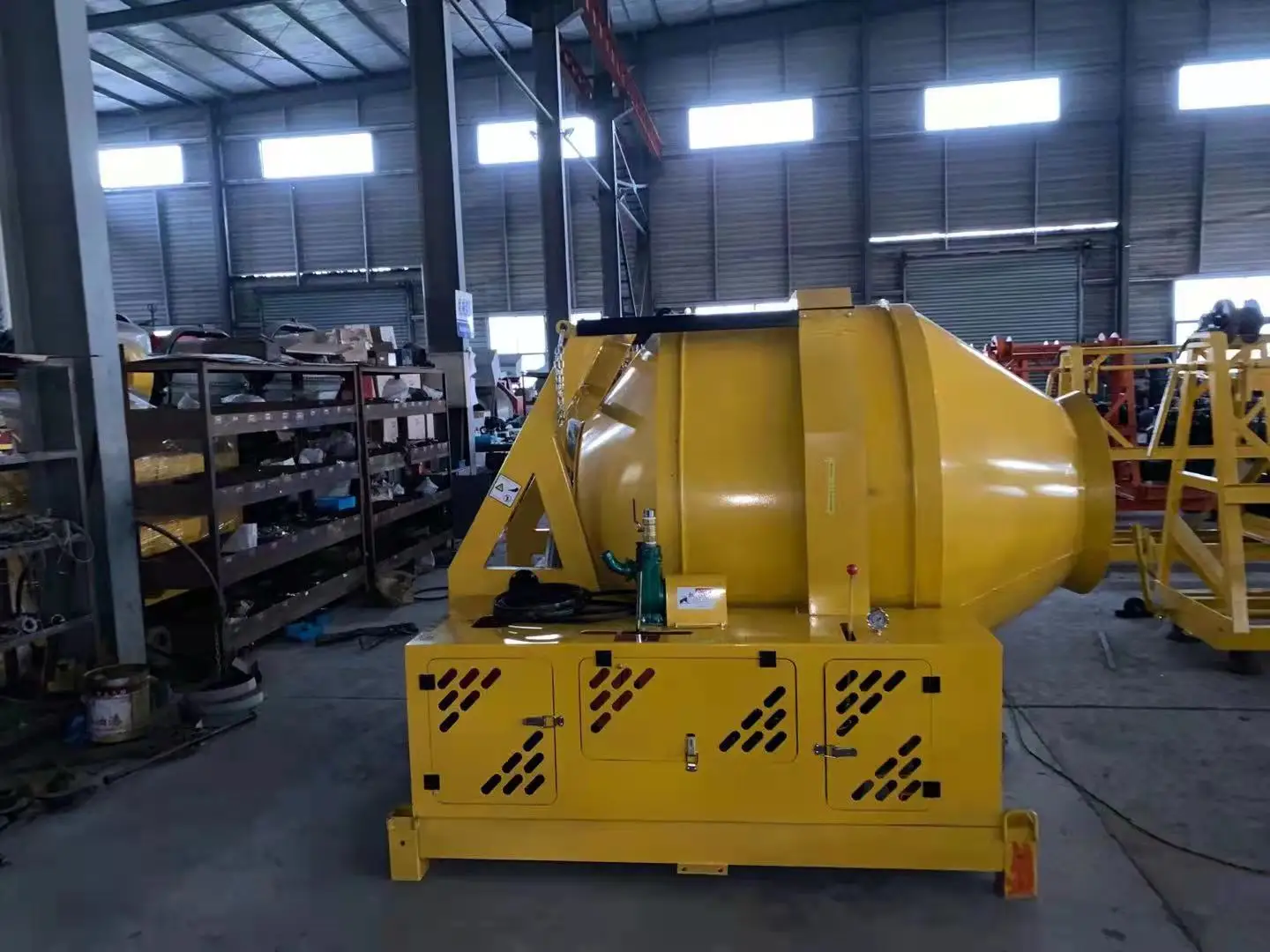

Introduction of portable concrete mixer



Conical drum reversing concrete mixer
(with diesel engine power and hydraulic tipping hopper)
As a professional manufacturer of construction machinery, we can make many kinds of

concrete mixer, such as diesel, electric, hydraulic, wire rope and so on.



Main Technical Parameters of portable concrete mixer

SPECIFICATIONS
Main performance parameters	Discharging Capacity	Liter	750
	Loading Capacity	Liter	1200
	Productivity	m³/h	22-30
	Bags of Cement per Batch	bag	5
	Max.Size of Aggregate	mm	80
	Drum Thickness	mm	8
	Tyre Size		7.50-16
Engine	Engine brand		CHANGCHAI
	Type		Horizontal, Single Cylinder, Four-stroked and Water Cooled
	Rated Rotating Speed	RPM	2200
	Power	Hp	25
Hydraulic System	Cylinder diameter	mm	90
	Displacement of Main pump	mL/r	25
	Rater Flow of multitandem Valve	L/Min.	100
