commercial floating fish feed making machine
Product Description

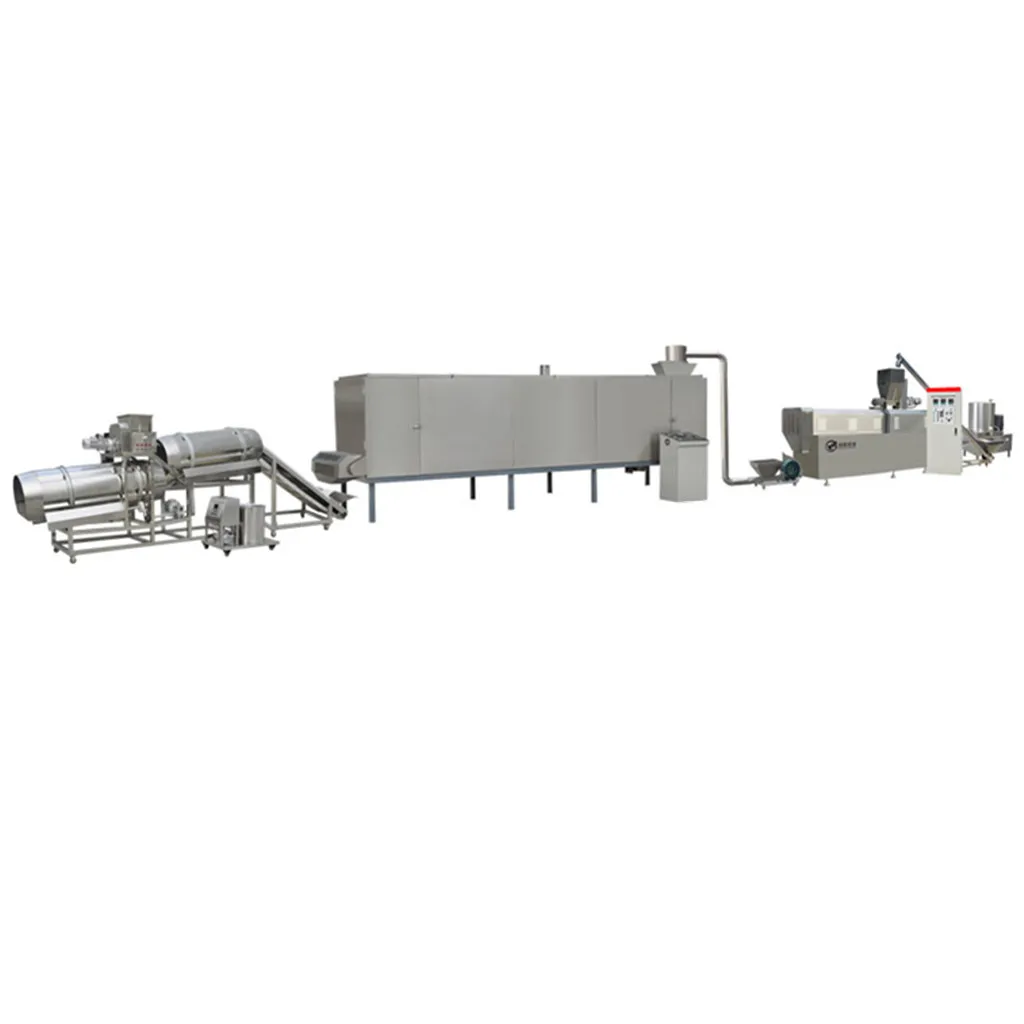

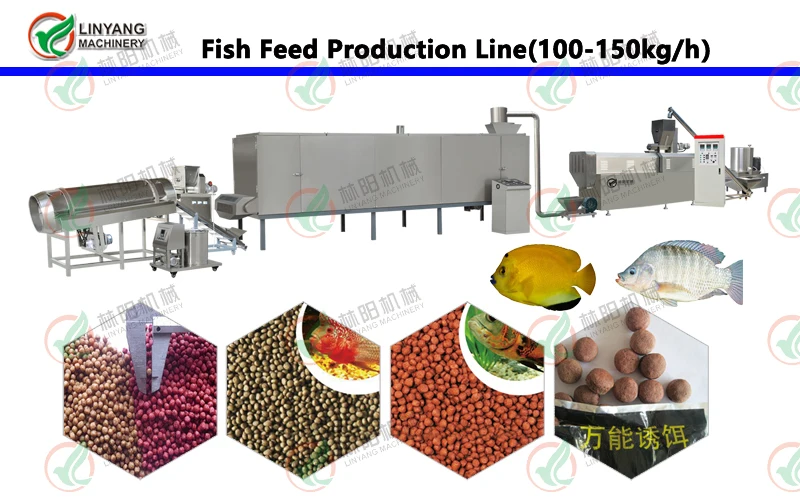

commercial floating fish feed making machine
commercial floating fish feed making machine is a newly-designed line for improving market of pet food, which is developed successfully with our many years research experiences on food machinery. commercial floating fish feed making machine endues pet food with novel shape, unique taste and color. It can meet with other needs of modern market by many superior characteristics, such as scientific nutrition formular and easy assimilation. And commercial floating fish feed making machine can also make the pet food cored filling, it will be more popular with modern pets.Also can change the shape by mould.
commercial floating fish feed making machine process flow: Raw material preparation→Mixing raw material→Conveying→Extrusion→Conveying→Drying→Screening→Oil spraying→Flavoring→Packing
commercial floating fish feed making machine setting:
Mixer→Conveyor→Extruder→Wind conveyor/hoister→Multi-layer dryer→Sifter→Hoister→Oil sprayer→Single/double roller→Packing machine
In some cases,the production need to mill, and can adopt:Mixer→Conveyor→Extruder→Crusher→Packing machine
commercial floating fish feed making machine setting:
Mixer→Conveyor→Extruder→Wind conveyor/hoister→Multi-layer dryer→Sifter→Hoister→Oil sprayer→Single/double roller→Packing machine
In some cases,the production need to mill, and can adopt:Mixer→Conveyor→Extruder→Crusher→Packing machine
Model | installed power | power consumption | production capacity | size |
LY65 | 130KW | 90KW | 100-150KG/H | 39000*1300*2500MM |
LY70/75 | 160KW | 120KW | 200-260KG/H | 41000*1500*2500MM |
LY85 | 190KW | 140KW | 300-500KG/H | 43000*3500*4300MM |
Product Details

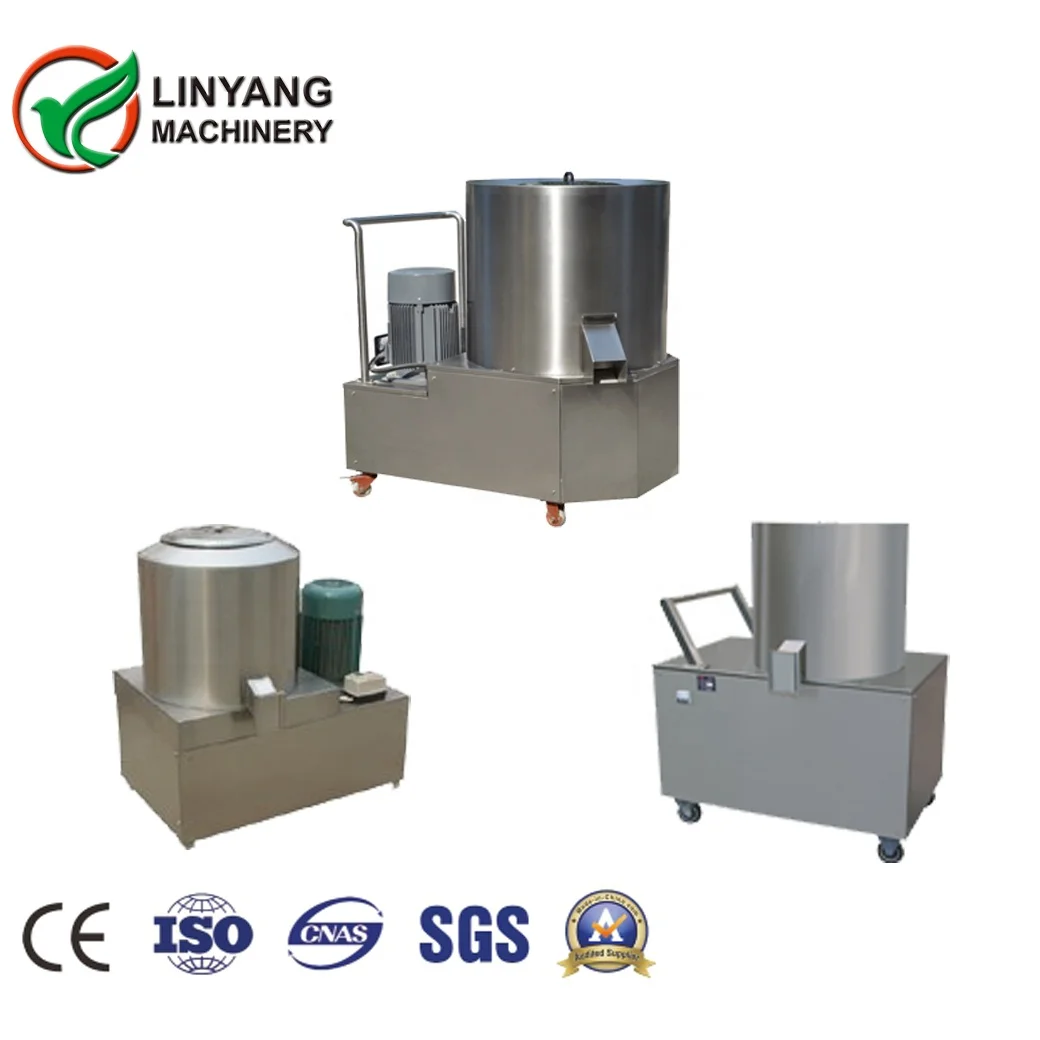

mixer flour
Output:30-40kg 70-80kg 170-180kg
Main Power:4.0kw 7.5kw 15kw
Tank Size: φ600 x500mm
Dimention:1000*800*1200mm
Flour Mixer is used to mix the raw
Material, like corn flour , rice flour, fish bone flour with liquid and other additives.
Main Power:4.0kw 7.5kw 15kw
Tank Size: φ600 x500mm
Dimention:1000*800*1200mm
Flour Mixer is used to mix the raw
Material, like corn flour , rice flour, fish bone flour with liquid and other additives.

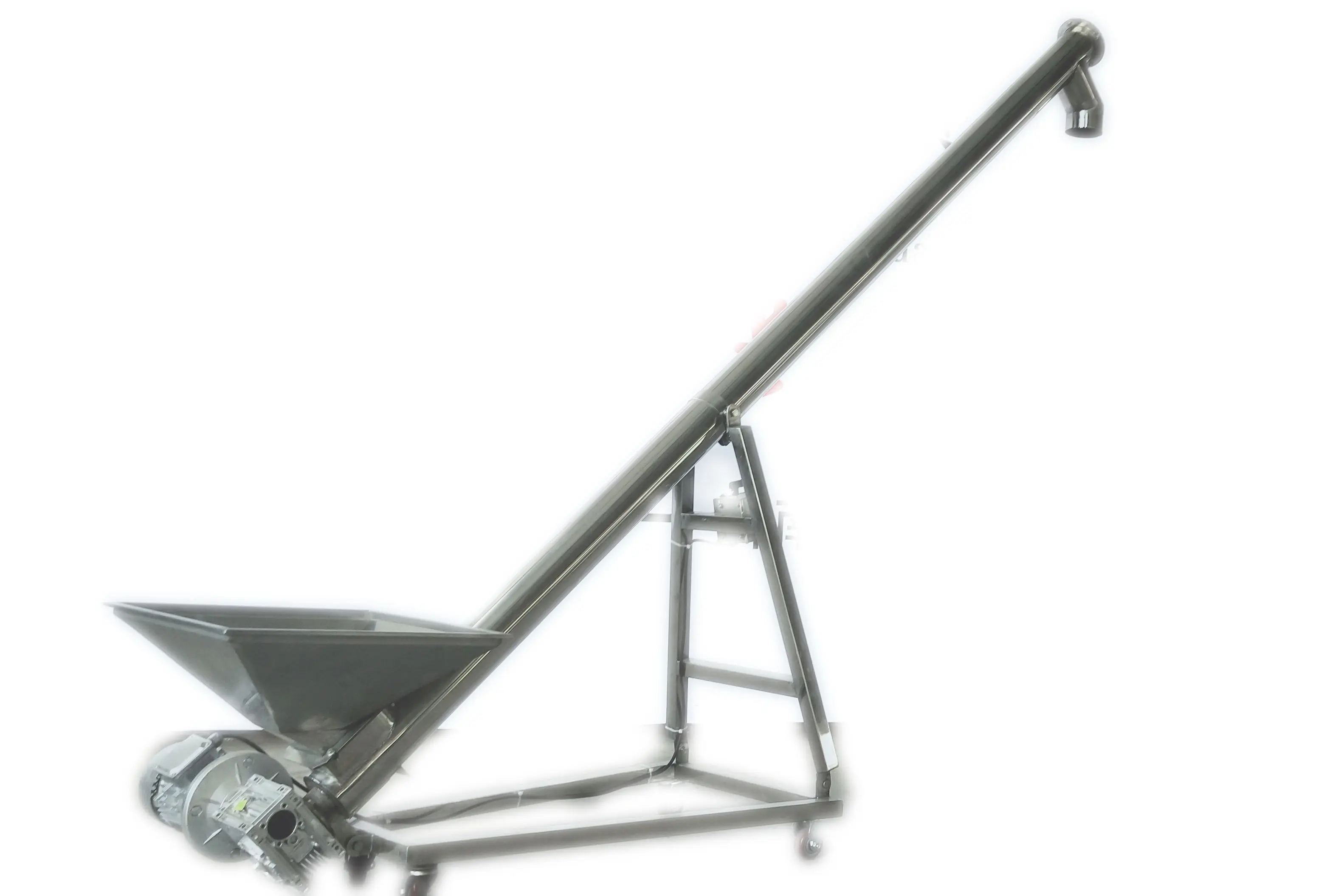

Screw conveyor
Driving Power: 0.75kw Dimension: 2700×500×2400mm
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a
sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to
feed the materials stably and evenly; Easy cleaning and operation; run stably.
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a
sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to
feed the materials stably and evenly; Easy cleaning and operation; run stably.

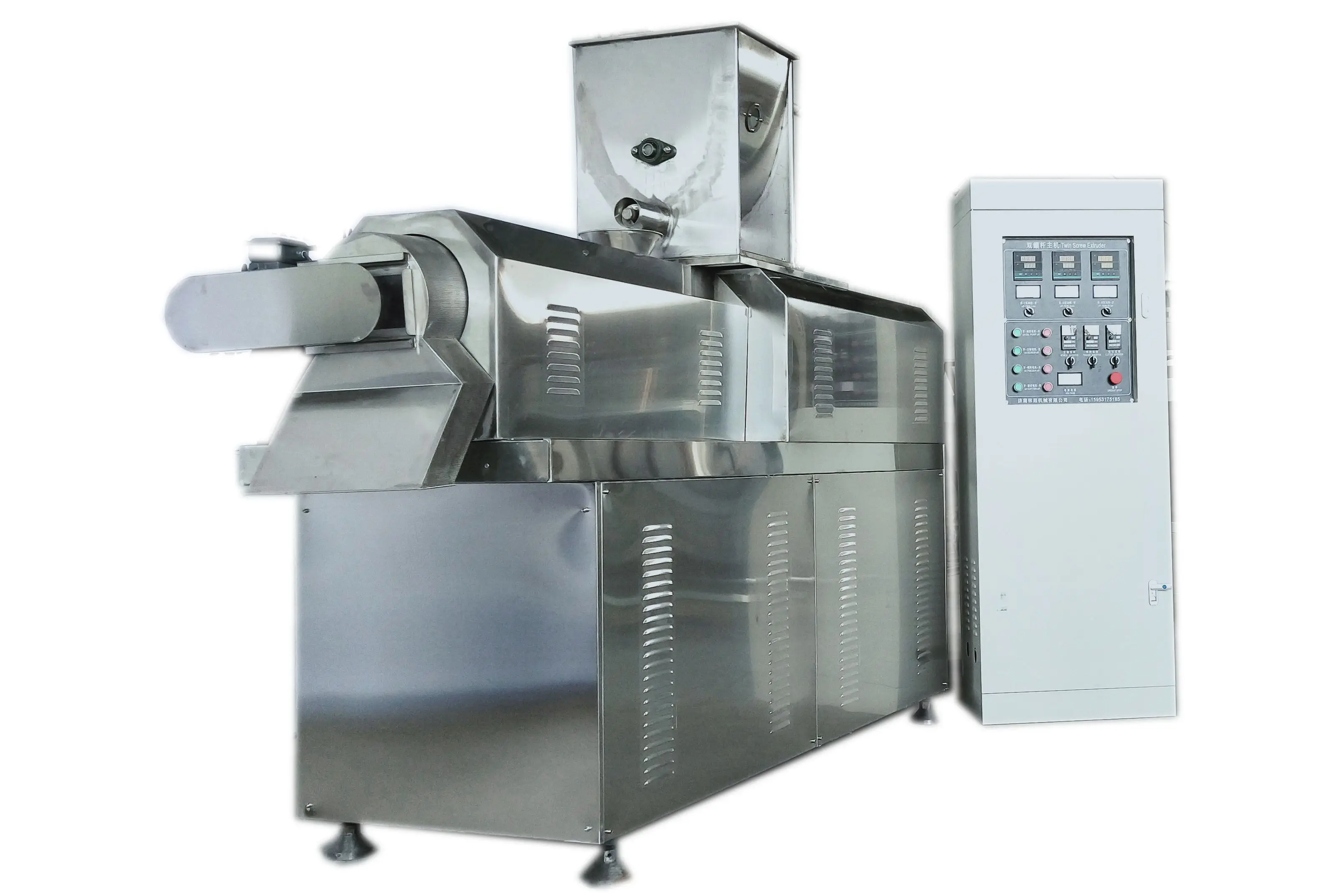

Double screw extruder machine
Feeding System: Feeding power: 0.75kw
Feeding screw diameter:55mm
Driving& Extruding System:
Main Motor Power: 22kw
Main Screw Length:1050mm
Main Screw Diameter:65mm
Main Screw Speed:0-250rpm
Heating Zone: 3 zone
Heating Power: 2kw x 5 =10kw (5 heating rings)
Feeding screw diameter:55mm
Driving& Extruding System:
Main Motor Power: 22kw
Main Screw Length:1050mm
Main Screw Diameter:65mm
Main Screw Speed:0-250rpm
Heating Zone: 3 zone
Heating Power: 2kw x 5 =10kw (5 heating rings)

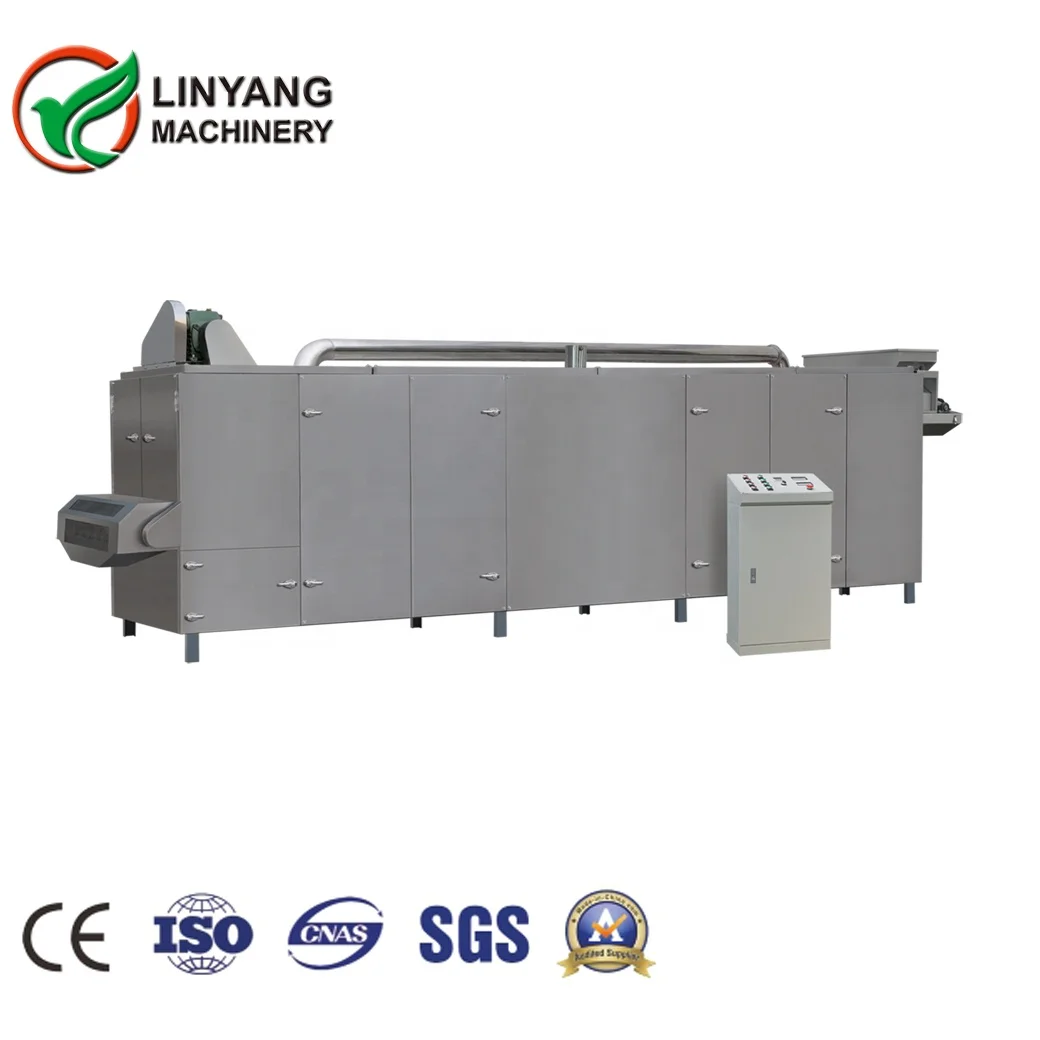

dryer machine
Three-Layer Roaster is used to dry a wide range of products, such as dog snacks, corn flakes, core filling
food, etc.
Five layer structure can prolong the drying time and reduce the coverage area;Each layer is made of mesh belt withstainless steel;Side guard to prevent products falling from the belt;Various speed inverter drives for five layers;
food, etc.
Five layer structure can prolong the drying time and reduce the coverage area;Each layer is made of mesh belt withstainless steel;Side guard to prevent products falling from the belt;Various speed inverter drives for five layers;
flavoring line
To spray oil and phagostimulant, the equipment are: single roller, double roller, round roller, eight-angle roller. Varies depends
on the different production line setting, to spray oil to the surface of the product and make it even.
on the different production line setting, to spray oil to the surface of the product and make it even.
