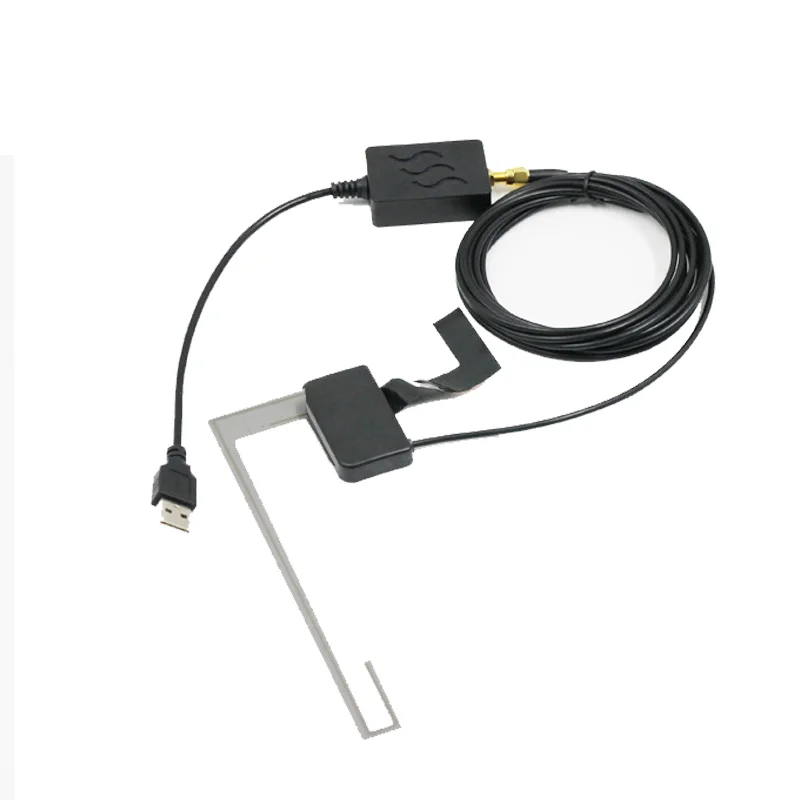

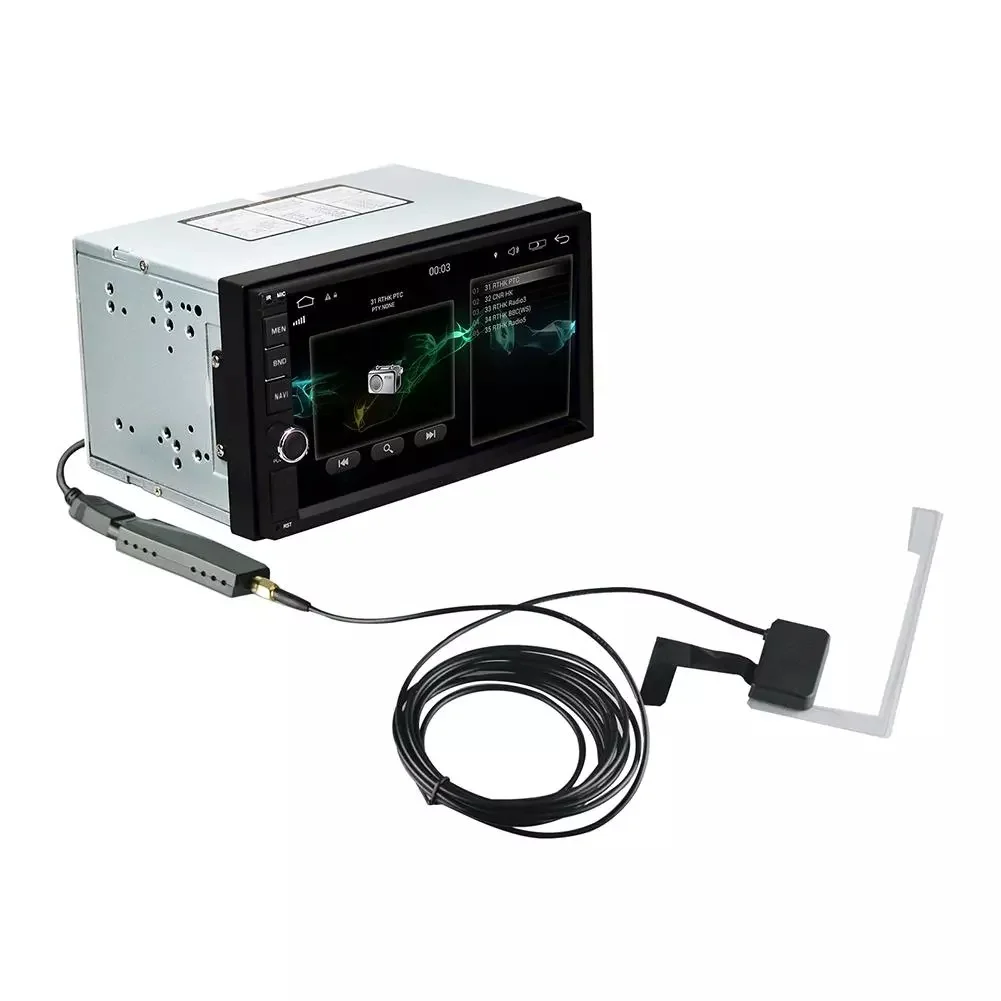

H USB адаптер приемник SMA DAB + антенна Приемник коробка для автомобиля Android Радио стерео аудио MP5 плеер Европейский цифровой
- Категория: Portable Audio, Video & Accessories >>>
- Поставщик: Shenzhen,Hengmao,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 24.60 $* | 25.11 $* |
| Aug-18-2025 | 24.44 $* | 25.74 $* |
| Jul-18-2025 | 20.23 $* | 21.95 $* |
| Jun-18-2025 | 23.83 $* | 24.98 $* |
| May-18-2025 | 20.44 $* | 21.86 $* |
| Apr-18-2025 | 23.62 $* | 24.98 $* |
| Mar-18-2025 | 23.63 $* | 24.10 $* |
| Feb-18-2025 | 22.31 $* | 23.10 $* |
| Jan-18-2025 | 22.40 $* | 23.79 $* |
Характеристики
Specification

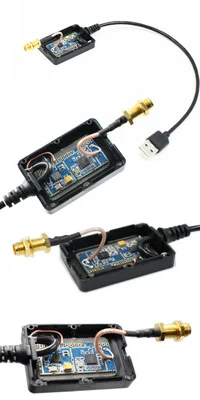

The DAB+USB module is a digital radio DAB and DAB+ receiving module. It is very convenient for the hardware design of the whole machine to use the USB interface without peripheral originals. It can be applied to built-in car navigation, car receiving box, and portable products. For Android system car, just download APK and you can use it directly
Functions | value | |
1. DAB Band III Receiver | China | |
2. USB Connector | Guangdong | |
3. Support Android System | Hengmao | |
4. Support Slideshow | dab+ | |
5. Support DLS | all | |
Product Description
Power Supply and Consumption | ||||||||||
Parameter | Condition | Min | Typical | Max | Unit | |||||
Voltage Regulation | Power 5V external Supply | 4.5 | 5 | 5.5 | V | |||||
Supply Current | Power 5V external Supply | 30 | 40 | 60 | mA | |||||
Power Consumption | Power 5V external Supply | 0.2 | 0.3 | W | ||||||
Environmental and Physical | ||||||||
Parameter | Min | Typical | Max | Unit | ||||
Operating Temperature Range | -20 | 75 | °C | |||||
Storage Temperature Range | -40 | 80 | °C | |||||
Electric Performance | ||||||||||
Parameter | Condition | Min | Typical | Max | Unit | |||||
Band III RF frequency range | 174 | 240 | MHZ | |||||||
Sensitivity Band III | EN50248 | -100 | -103 | dBM | ||||||
Signal to Noise RF=72dBM | 50 | 60 | dB | |||||||
Distortion at Ref out RF-72dBM | 1 | 0.5 | % | |||||||
Channel Separation RF=72dBM at 1 KHZ | 50 | 55 | dB | |||||||
Channel Different RF=72dBM | ±3 | dB | ||||||||
Input Impedance | 50 | Ohm | ||||||||
DAB frequency table | ||||||||||||||
Band III | ||||||||||||||
5A | 174.928 MHz | 7D | 194.064MHz | 10C | 213.360MHz | 13B | 232.496MHz | |||||||
5B | 176.640MHz | 8A | 195.936MHz | 10D | 215.072MHz | 13C | 234.208MHz | |||||||
5C | 178.352MHz | 8B | 197.648MHz | 11A | 216.928MHz | 13D | 235.776MHz | |||||||
5D | 180.064MHz | 8C | 199.360MHz | 11B | 218.640MHz | 13E | 237.488MHz | |||||||
6A | 181.936MHz | 8D | 201.072MHz | 11C | 220.352MHz | 13F | 239.200MHz | |||||||
6B | 183.648MHz | 9A | 202.072MHz | 11D | 222.064MHz | |||||||||
6C | 185.360MHz | 9B | 204.640MHz | 12A | 223.936MHz | |||||||||
6D | 187.072MHz | 9C | 206.352MHz | 12B | 225.648MHz | |||||||||
7A | 188.928MHz | 9D | 208.064MHz | 12C | 227.360MHz | |||||||||
7B | 190.640MHz | 10A | 209.936MHz | 12D | 229.072MHz | |||||||||
7C | 192.352MHz | 10B | 211.648MHz | 13A | 230.784MHz | |||||||||
