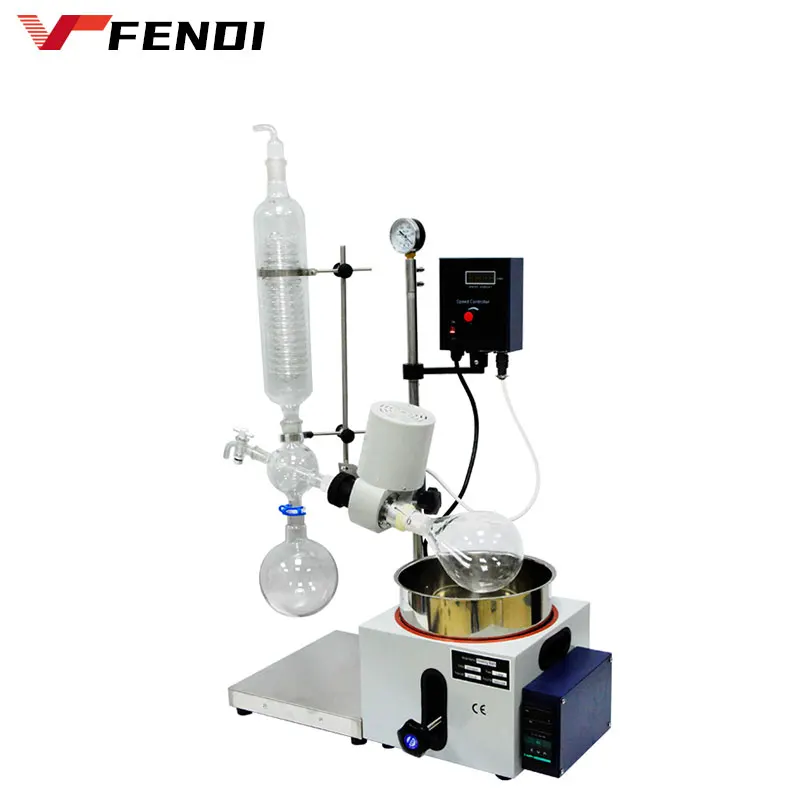

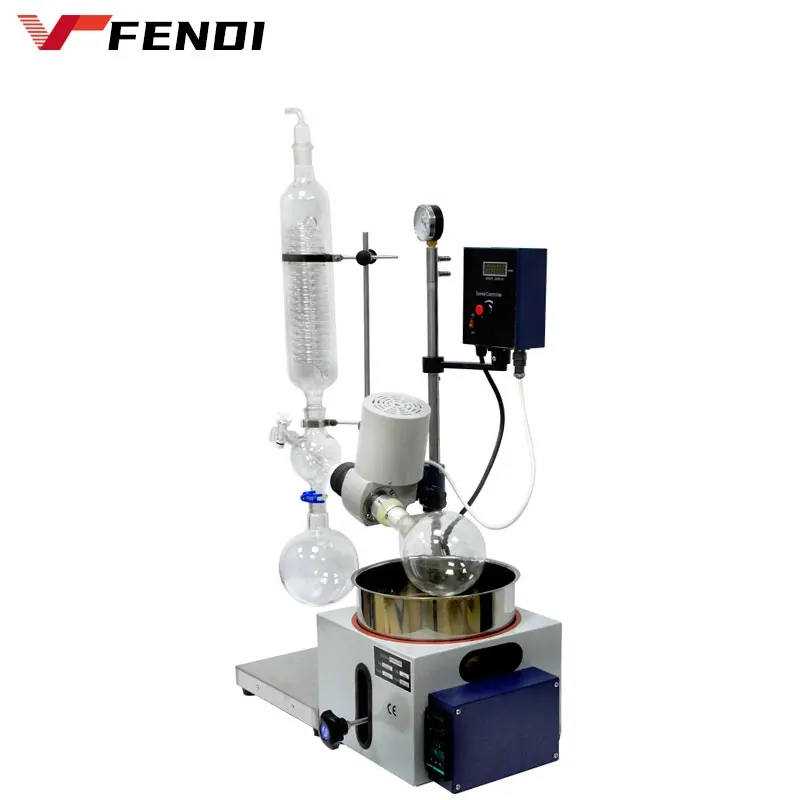

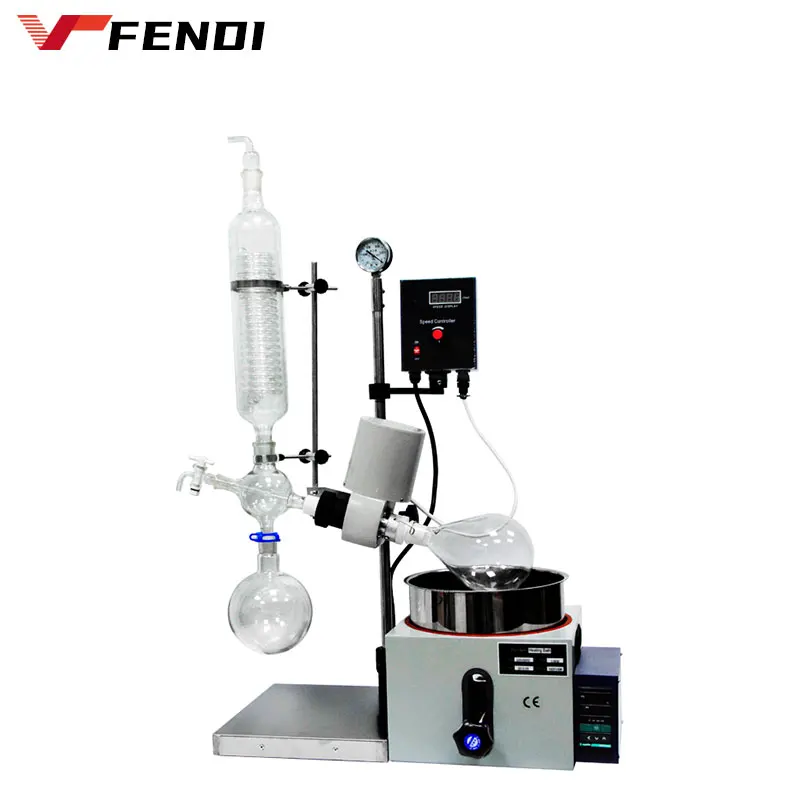

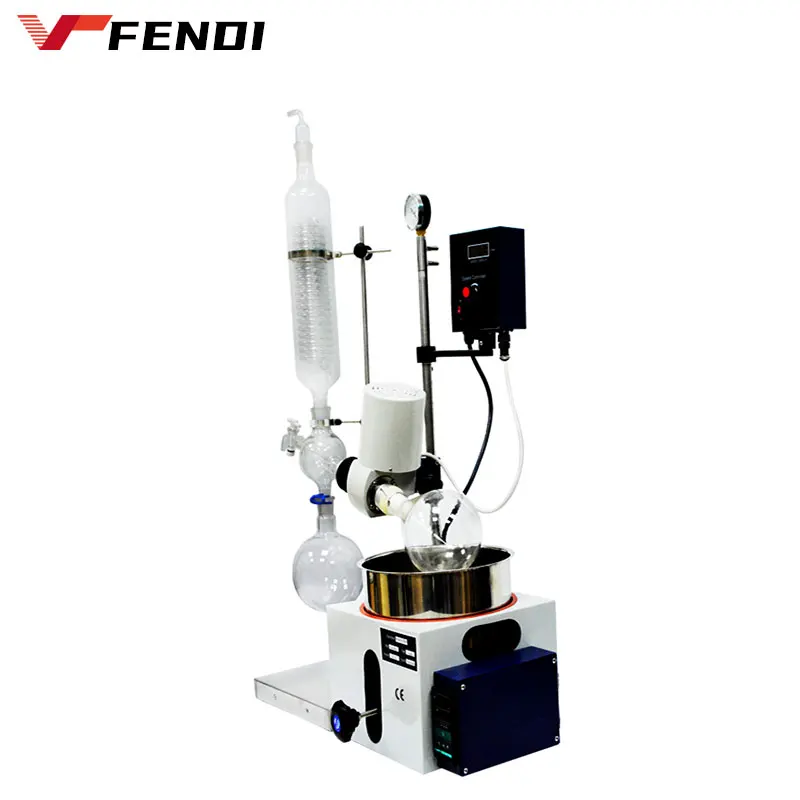

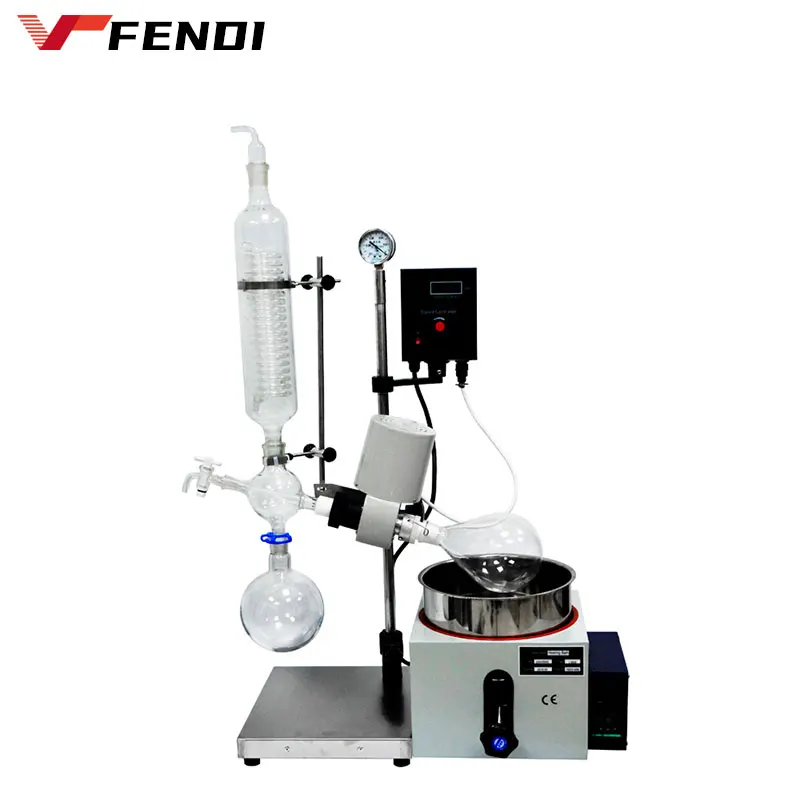

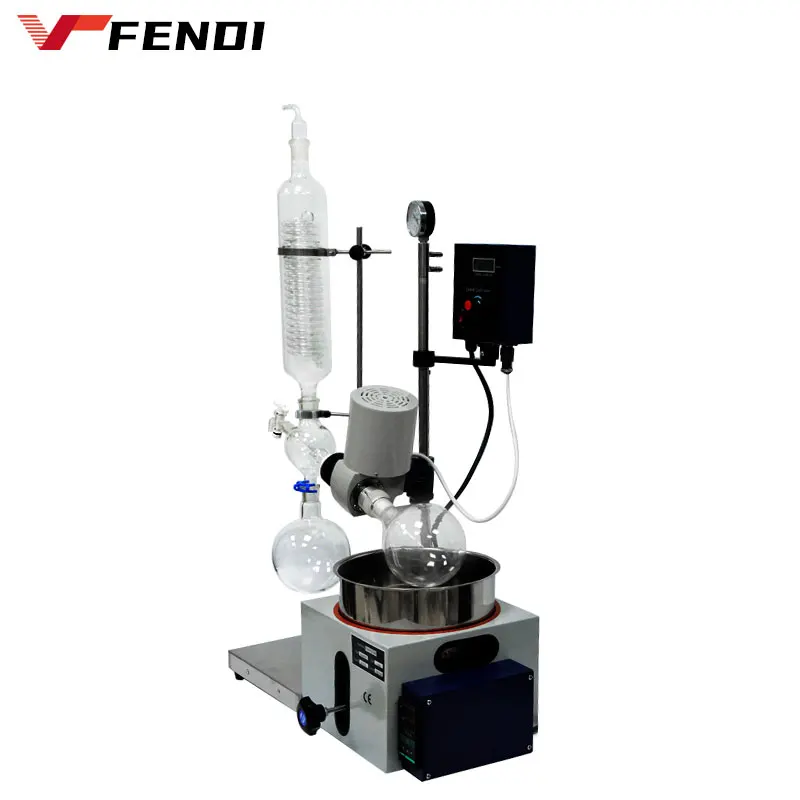

RE-201D rotary evaporator’s maximum capacity is 2000ml, rotate speed is 5-120r.p.m, motor power is 40W. RE-201D rotary evaporator is the basic rotary evaporator series product of Henan Lanphan at present, it has manual up and down handle. The independent developed and elaborate designed machinery and glass components can accurately set the location of glass component. The digital display rotate speed and heating kettle’s temperature helps you optimally control all distillation process. New type fixation system greatly simplified the operation process of changing evaporating flask.

1.Compound sealed by PTFE and rubber ring to keep high vacuum degree.

2.Efficient condenser to ensure high recovery rate.

3.Equipped vacuum meter to vacuum system, select best vacuum degree for low boiling point material.

4.Digital thermostatic controlled water bath kettle, can go up and down.

Technical Parameters

Basic Parameter	Type	RE-201D
	Glass Material	GG-17
	Support Material	Stainless Steel
	Shell Material	Antisepsis Plastic Spraying 270*270*195mm
	Inner Container Material	Stainless Steel 250*140mm
	Baseboard Size	280*330mm
	Volume of Rotary Bottle	0.25-2L 24#Standard Aperture
	Volume of Recycling Bottle	1L 24#Standard Aperture
	Vacuum Degree	0.098Mpa
	Rotating Power	40W
	Rotating Speed	0-120rpm
	Heating Power	1.5KW
	Temperature Control Range of Bath Kettle	300℃
	Temperature Accuracy	±2℃
	Voltage/Frequency (V/Hz)	220V/50Hz
	Up and Down Distance	120mm
	Shape Size(mm*mm*mm)	700*440*885
	Package Size(mm*mm*mm)	590*460*460 0.12 m³
	Package Weight (KG)	21
Function Allocation	Speed Adjustment Mode	Electrodeless Speed Regulation
	Rotate Speed Display Mode	Digital Display
	Temperature Display Mode	Digital Display K Type Sensor
	Temperature Control Mode	Smart Temperature Control
	Sealing Mode	PTFE Sealing
	Condenser	Vertical Condenser 85*460mm 29#Standard Aperture
	Up and Down Mode	Manual Up and Down of Bath Kettle
	Continuous Charging	19#Standard Aperture Feeding Valve
	Vacuum Display Mode	Vacuum Meter
Optional Equipping	Anti-splash Device	Equipping Transparent Cover of Bath Kettle
	Anti-explosion	Anti-explosion Frequency Changer, Anti-explosion Dynamo EX40W
	Frame Part	Plastic Spraying or PTFE Spraying
Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

Packing List of Rotary Evaporator

Host	1	Rotary Bottle	1
Electric Cabinet	1	Recycling Bottle	1
Special Sealing Ring	1	Condenser Pipe	1
Sealing Gasket	1	Suction Pipe	1
Bottle Clamp	2	Charge Pipe	1
Protective Pipe 3A	1	Protective Pipe	1
Thermostat Water Bath Kettle	1	Special Components (additional Purchase)	1



Rotary evaporator is mainly used for the concentration, crystallization, drying, separation and solvent recovery in medicine, chemical engineering and biopharmacy industry. Under vacuum condition, thermostat heating and make rotate bottle rotate in constant speed, material formed a large area thin film in bottle wall and evaporate efficiently. Solvent steam cooling by efficient glass condenser and collect to bottle, greatly enhanced the evaporation efficiency. Especially suitable for the concentration and purification of easily decomposed biological products. RE-201D is an essential basic instrument for analysis experiment in higher education units, beneficial for its small volume, simple structure and cheap price.

1.Rotary evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..

2.Rotary evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.

3.Rotary evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.
