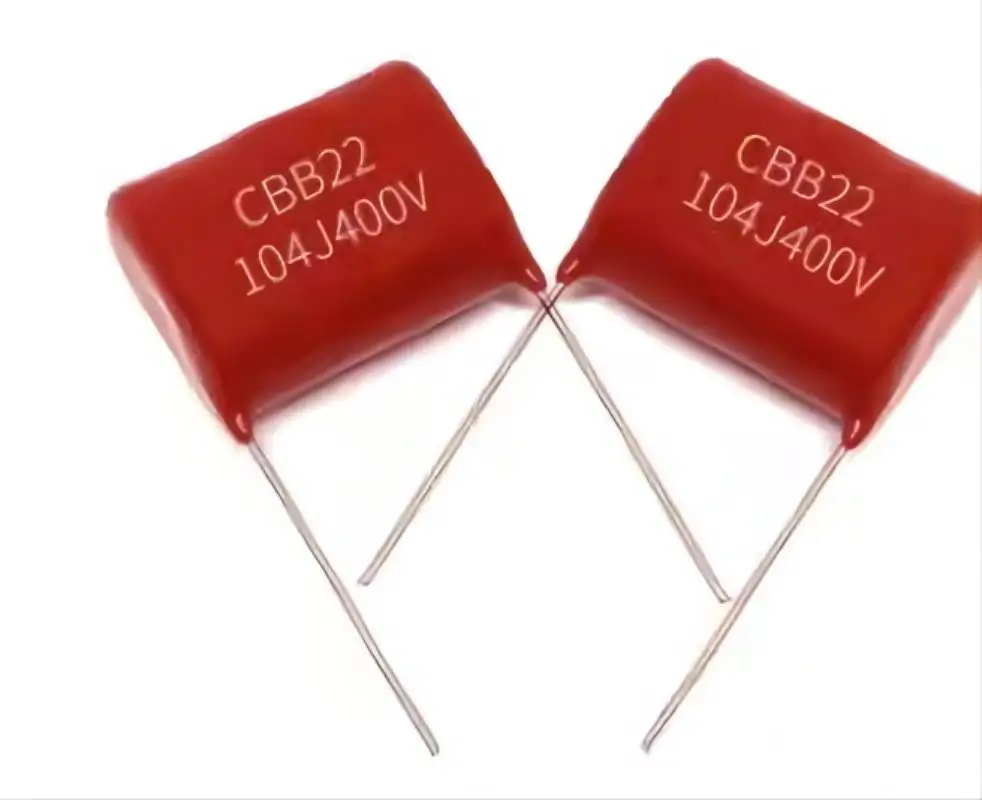

Конденсатор CBB22 0 1 мкФ 100nf 400V 104J400V шаг P = 10 мм полипропиленовая пленка прямые продажи с

Описание и отзывы

Трекер стоимости

Характеристики

CBB22 capacitor 0.1UF 100nf 400V 104J400V pitch P=10mm polypropylene film Factory direct sales

Operating Temperature:-40℃~+110℃

Application:Power

Capacitance:100nf

Dielectric:Polypropylene film

Electrode:Vacuum evaporated metal

Leads:Radial leads of tinned wire

Features1:Provides interference suppression, all safety approval

Features2:Overvoltage stress withstanding

Features3:Self-healing properties

Features4:Active and passive flame retardant

Features5:High voltage, applicable to the lighting and lamp

Certificate:ROHS

METALLIZED POLYPROPYLENE FILM CAPACITOR

TYPE: X1/X2 CLASS (330/350/380VAC)

FEATURES

APPLICATIONS



METALLIZED POLYPROPYLENE FILM CAPACITOR

TYPE: X1/X2 CLASS (330/350/380VAC)
FEATURES	APPLICATIONS
Provides interference suppression, all safety approval Overvoltage stress withstanding Self-healing properties Active and passive flame retardant High voltage, applicable to the lighting and lamp	Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits. Available for EMI filter. Switching power supply applications. Business machines appliances, such as: typewriters,  adding machines, computer displays and monitors. Household appliances, such as: mixers, fans, coffee grinders,audio and TV circuits. Thyristor and triac appliances, such as: dimmers.
SPECIFICATIONS
Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in flame retardant     (UL94V-0) plastic case and epoxy resin end seal.
Leads	Radial leads of tinned wire
Climatic Catalogue	40 / 110 / 21
Capacitance and Class	0.0047uF ~ 1.0uF (X1 class)  0.0047uF ~ 10uF (X2 class)
Capacitance Tolerance	J = ± 5%  K = ±10%  M = ± 20%
Dissipation Factor (Tangent of Loss)	<=0.1% at 1KHz and 20℃ <=0.3% at 10KHz and 20℃
Voltage Proof	T-T 1634V.DC 60 Sec. or 2100V.DC 1 Sec.  T-C 2260V.AC 50/60Hz 60 Sec.
Insulation Resistance	C<=0.33uF  IR>=30,000MΩ  C>0.33uF  IR>=10,000MΩ / uF
