High Quality adjustable roof hook,PV Panel Solar Tile Roof Hook for Solar Mounting

Product Fearures:
   1.Fewer components.Modular design, all the parts are prefabricated in factory. So only 6 components needed
      to be  assembled in the field;
   2.Fewer tools needed.Highly standardized.Only 4 simple tools needed;
   3.Adapted to variuos rooftop with different hooks;

Product Fearures:

Roof Type	Tile & Asphalt shingle roof
Material	AL6005 & SUS304
PV Type	With or without frame
Module Orientation	Horizontal or vertical
Surface Roughness	B,C
Wind Speed	≤45m/s
Snow Load	≤1.4KN/M²
Warranty	20 years

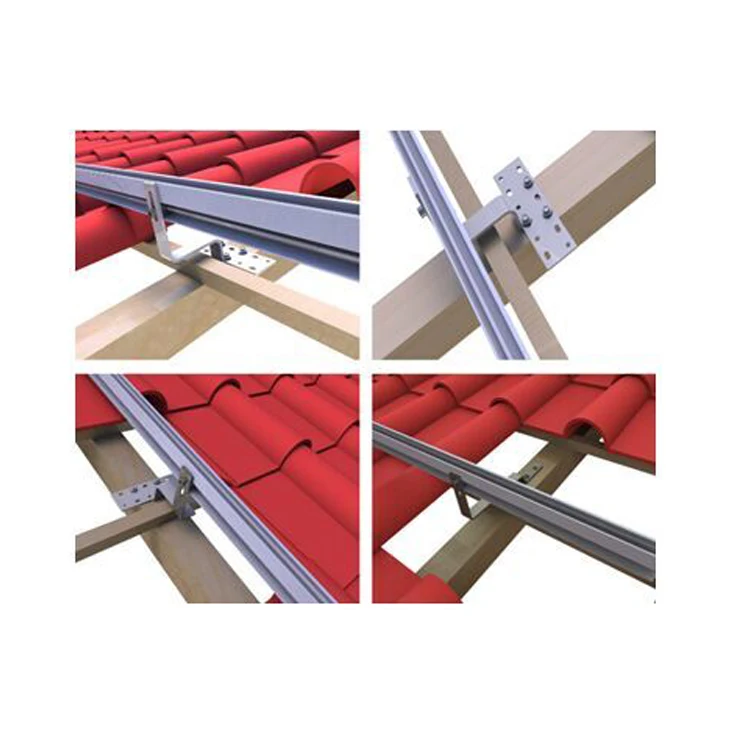

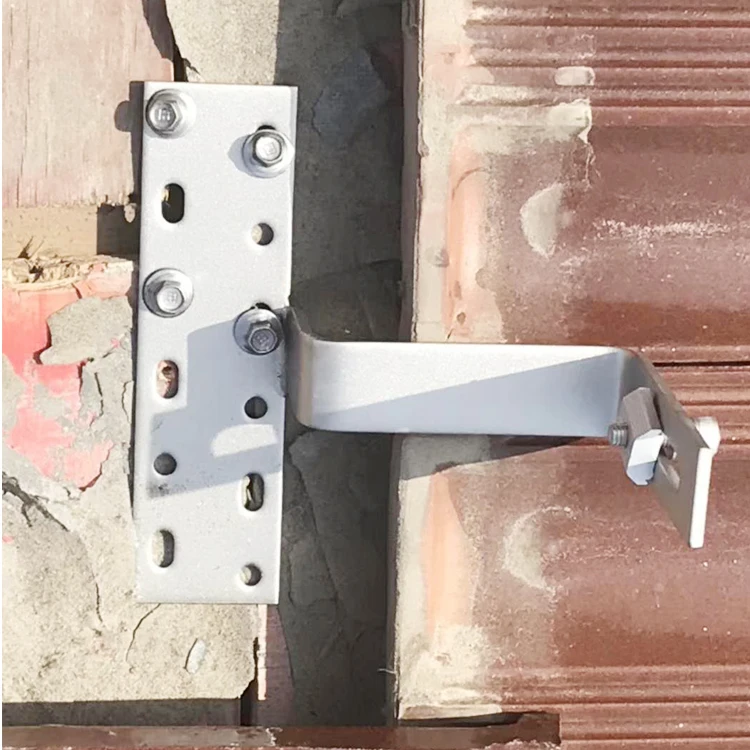

Roof Hook
As we known, the angle of pitched tile is more than 0 degree, and PV panels will be paralleled to pitched roof, but not horizontal. So the angle between of horizontal and pitched roof will affect the final maximum pressure and maximum tension of solar mounting system. Considering above-mentioned angle and force situation, engineer team provide us a simple datasheet, use for getting an exact maximum pressure and maximum tension by the angle.

Hook (T:5mm) Technical Datasheet
Angle α°	0	10	20	30	40	50	60
Max Pressure (KN)	0.8	0.69	0.62	0.58	0.54	0.53	0.54
Max Tension (KN)	0.75	0.65	0.58	0.55	0.53	0.52	0.53



Angle α°: Oblique angle of pitched roof

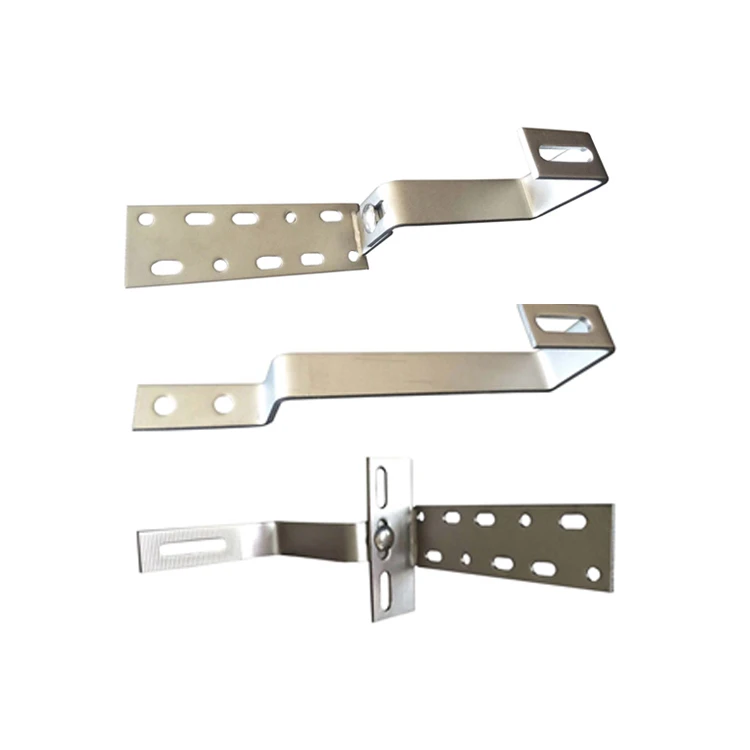

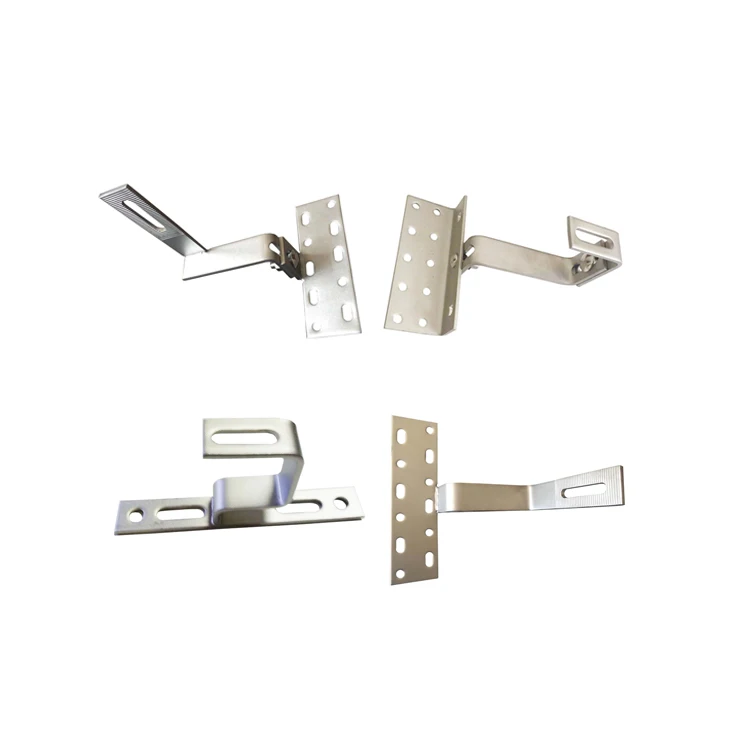

Roof Hook A

Part No.	Material	a	c	h	Tile Type
SMT-01	Q235/SUS304	45	120	5	Roma Tile, universal Tile, etc.
SMT-02	Q235/SUS304	25	80	5
SMT-03	Q235/SUS304	45	120	6

Unit: mm
Description: Different material or thickness will affect final max pressure and tension.
Roof Hook B

Part No.	Material	a	c	h	Tile Type
SMT-04	Q235/SUS304	45	120	5	Roma Tile, universal Tile, etc.

Unit: mm
Description: Different material or thickness will affect final max pressure and tension.
Roof Hook C

Part No.	Material	a	c	h	Tile Type
SMT-05	Q235/SUS304	45	120	5	Flat Tile

Unit: mm
Description: Different material or thickness will affect final max pressure and tension.

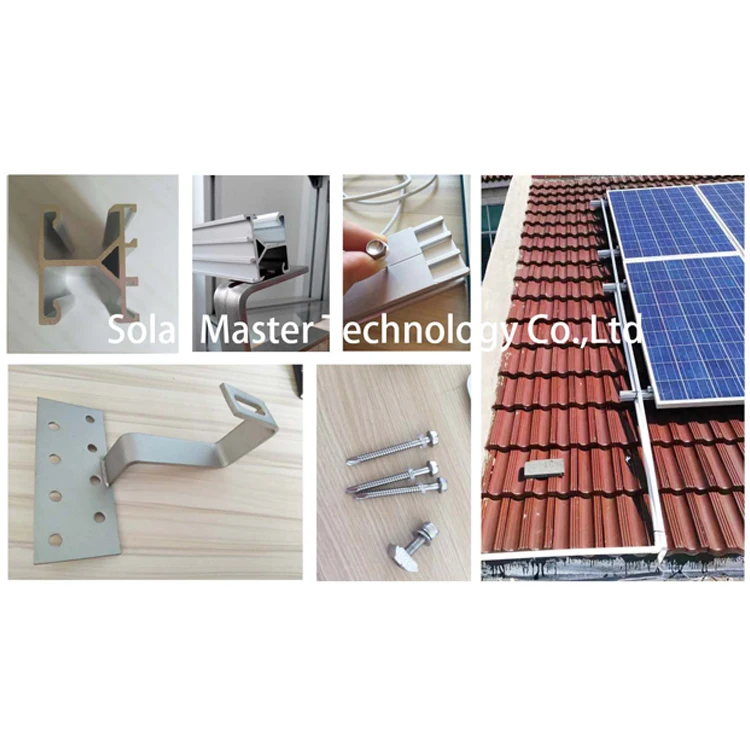

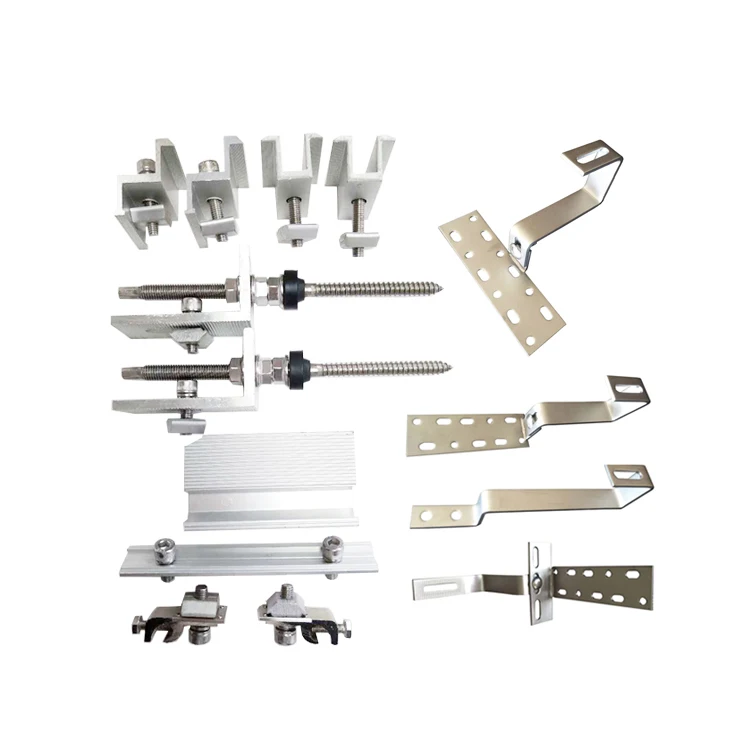

---All solar mount type solution component:

Roof Mount		Common Components
Seam Roof	Roof Clamp	Aluminum Rail	Mid Clamp	End Clamp	Earthing Washer	Earthing Lug Core	Rail Splice Kit	Roof Screw
Tile Roof	Roof Hook	Aluminum Rail	Mid Clamp	End Clamp	Earthing Washer	Earthing Lug Core	Rail Splice Kit	Roof Concrete
Flat Roof	Foot	Aluminum Rail	Mid Clamp	End Clamp	Earthing Washer	Earthing Lug Core	Rail Splice Kit	Roof Concrete
Carport	Post	Purlin Rail	Mid Clamp	End Clamp	Earthing Washer	Earthing Lug Core	Rail Splice Kit	Steel







Company Information

Solar Master Tehcnology Co.,Ltd is a company specializes in PV system design and consulting service, and provide solar mounting system solutions. The company has the experienced system and structural engineers, combining domestic and overseas advanced design ideas and project management experience, to optimize the solar systems and to generate the most competitive quotation and solutions. The products of SMT are all in accordance with the national & international quality stand design, test, production. Fullfilling and Satisfying the customers' needs are always we seek for. The engineering team of SMT can provide PV system design and construction consulting, project technicial proposal, on-site supervision service.
The SMT is dedicated to the research and development for the solar ground & roof mounting systems and solar carports. We have launched a series of innovative solar mounting solutions. The goal of the structures is safety and reliable, easy installation, convenient and cost-saving.
