Производитель 2P 220/230V 1-63A din-рейка автоматический переподключение Регулируемый Защита от перенапряжения по


Поделиться:


Цена:5,20 $ - 6,80 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 6.56 $* 6.85 $*
Jul-16-2025 5.32 $* 5.24 $*
Jun-16-2025 6.2 $* 6.72 $*
May-16-2025 6.10 $* 6.53 $*
Apr-16-2025 5.38 $* 5.63 $*
Mar-16-2025 6.18 $* 6.20 $*
Feb-16-2025 6.72 $* 6.84 $*
Jan-16-2025 6.83 $* 6.10 $*

Характеристики


SP1-63VA---_01

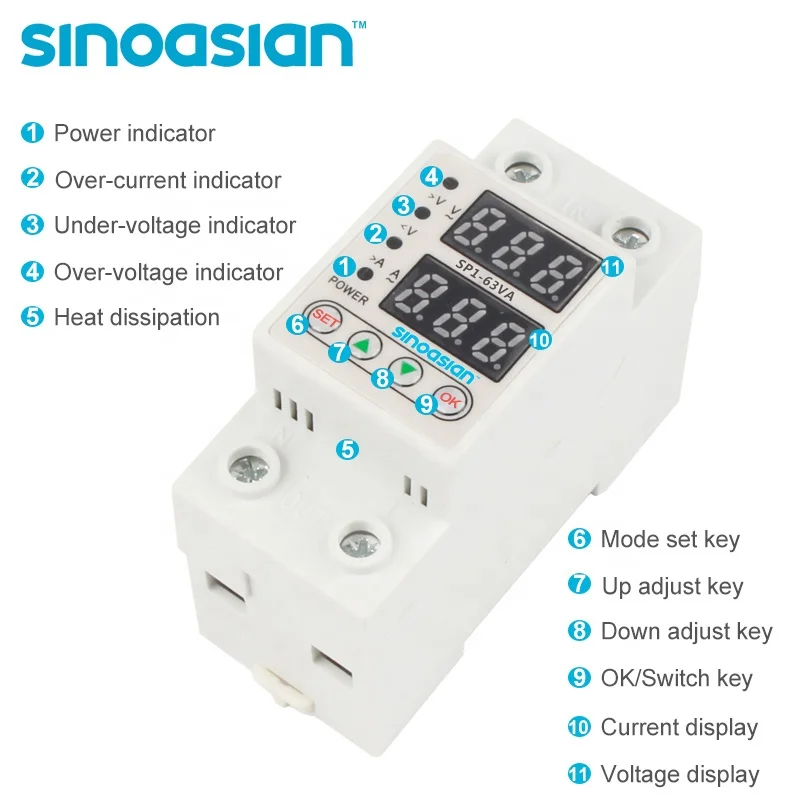

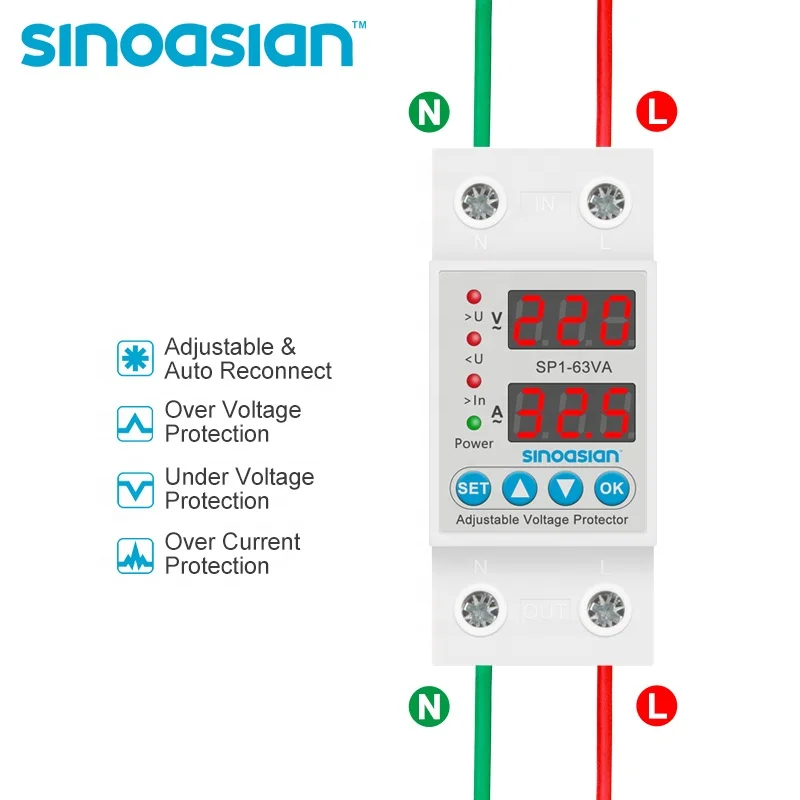

Functions


1. Over-voltage protection
2. Under-voltage protection
3. Automatic recovery









4. Working voltage display
5. Adjustable voltage/time


6. Long use life






Technical Parameters


1. Pole No.: 1P+N
2. Model code: SP1-63V
3. Rated voltage: 220/230/240V AC
4. Frame current: 40A, 63A
5. Adjustable setting ranges:
 a. Over-volt: 230~300V (Default 270V)
 b. Under-volt: 110~210V (Default 170V)
 c. Trip time: 1~30S (Default 0.5S)
 d. Recovery time: 1~500S (Default 5S)
6. Power consumption: <2W
7. Life: 100,000 times

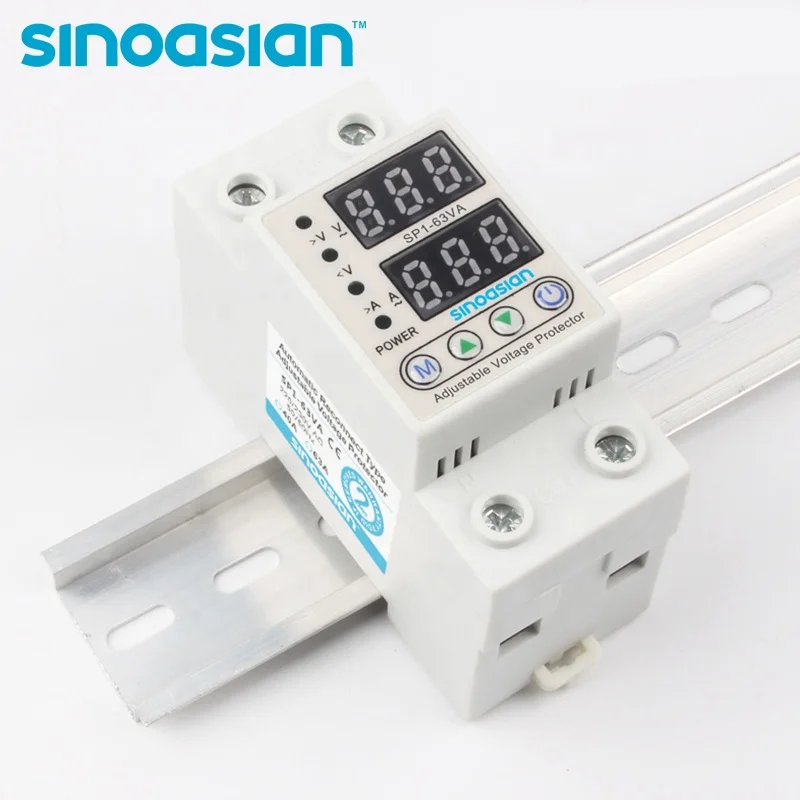

8. Installation: 35mm DIN rail






1. Pole No.: 1P+N
2. Model codea: SP1-63VS
3. Rated voltage: 110/120V AC
4. Frame current: 40A, 63A
5. Adjustable setting ranges:
 a. Over-volt: 120~170V (Default 135V)
 b. Under-volt: 60~110V (Default 90V)
 c. Trip time: 1~30S (Default 0.5S)
 d. Recovery time: 1~500S (Default 5S)
6. Power consumption: <2W
7. Life: 100,000 times
8. Installation: 35mm DIN rail



SP1-63VA---_02


SP1-63VA---_03If the real voltage is over or under the setting voltage, or the real current is over the setting current, the protector will shut off the output in the setting time.


If the real voltage and current are back to normal, the protector will auto-reconnect in the setting time.


SP1-63VA---_05SP1-63VA---_06SP1-63VA---_07SP1-63VA---_08SP1-63VA---_09


Q1: Are you manufacturer or trading company?


A1: Our factory was established in 2012 in Liushi Town, Wenzhou City, China.





Q2: What's your sample policy?


A2: The cost of samples and freight should be paid, but will be refunded in the first official order.





Q3: Can you make OEM/ODM?


A3: OEM/ODM will be available. We can put your logo on the products and packages and develop the design according to your requirements.





Q4: What's your period of warranty and certification?


A4: The products from Sinoasian which have CE, ISO9001, RoHs and related certifications aprroval will be given with the service of 2-year warranty except the factors of human or force majeure.





Q5: What's your MOQ and agent/sole-distributor policy?


A5: MOQ of Sinoasian products is 1 pc and the standard MOQ of the customzied products is 3000pcs. If you want to be our agent/sole-distributor, please contact our manager for details +8613736765717.





Q6: What's the payment terms?


A6: 30% T/T as deposit, and the balance against delivery.
