Product Description

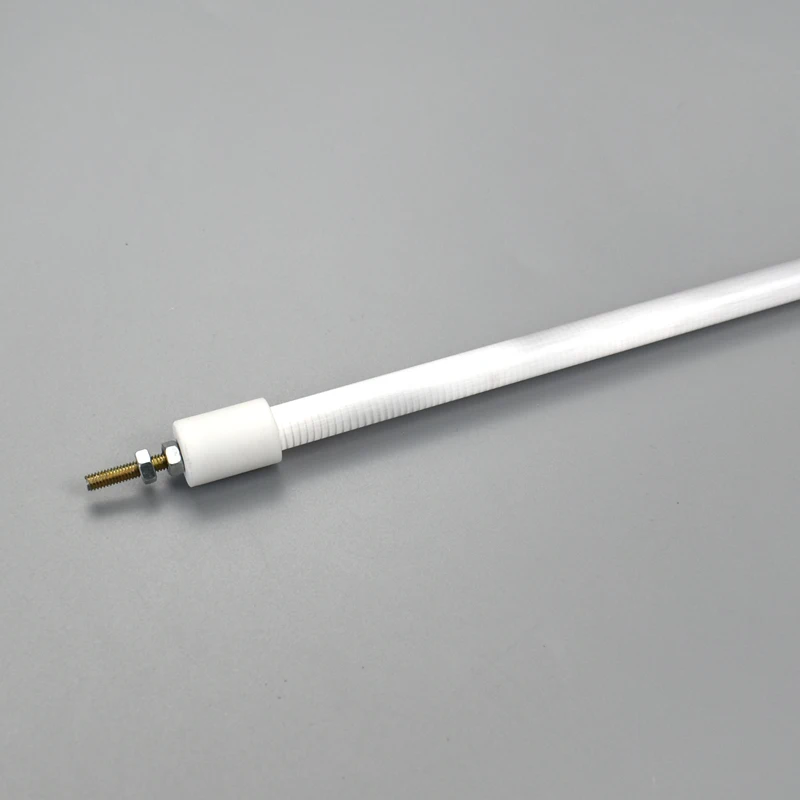

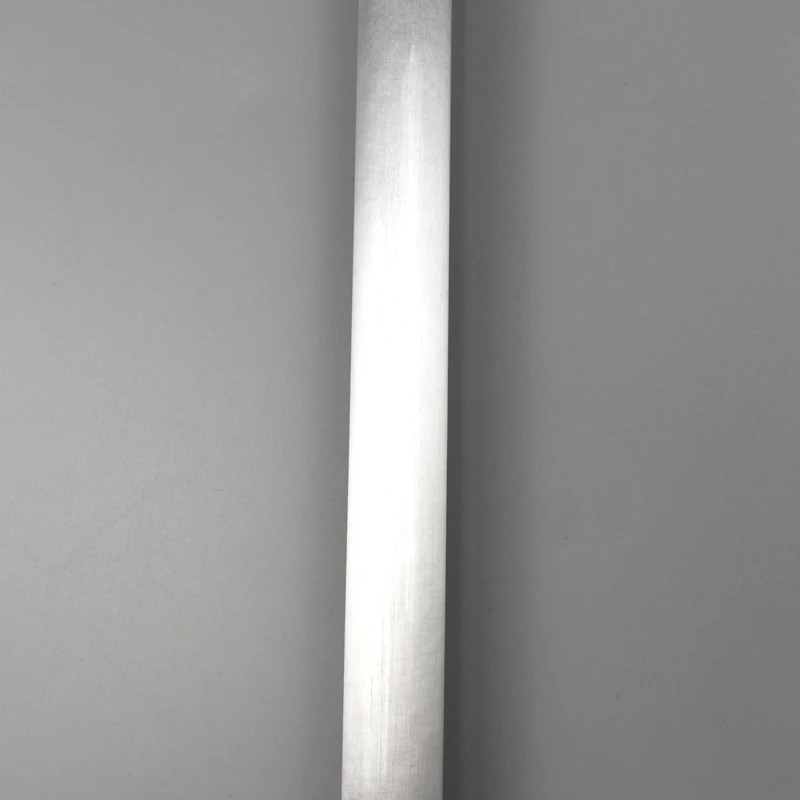

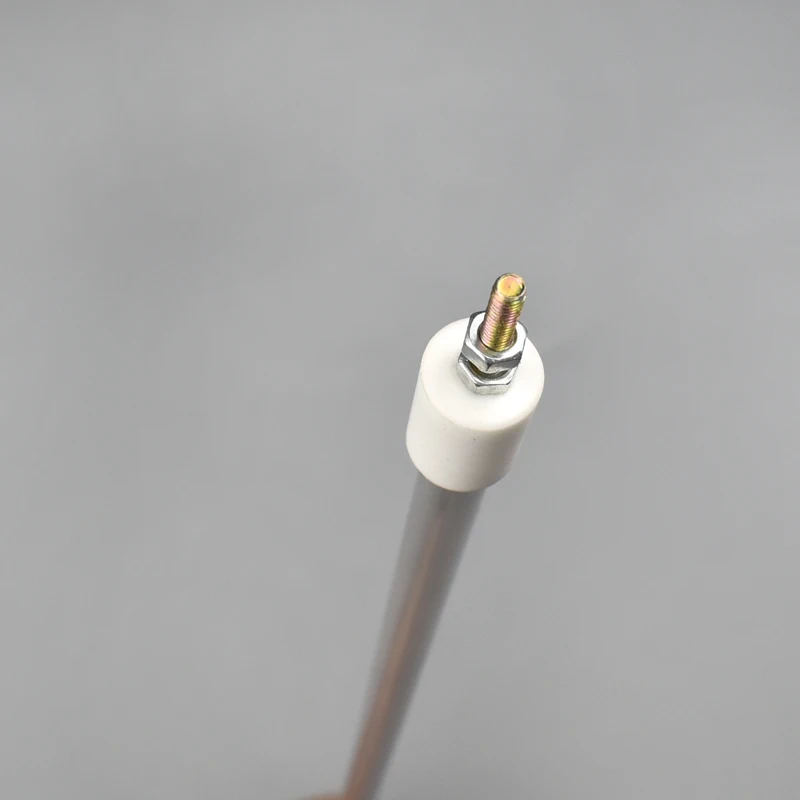

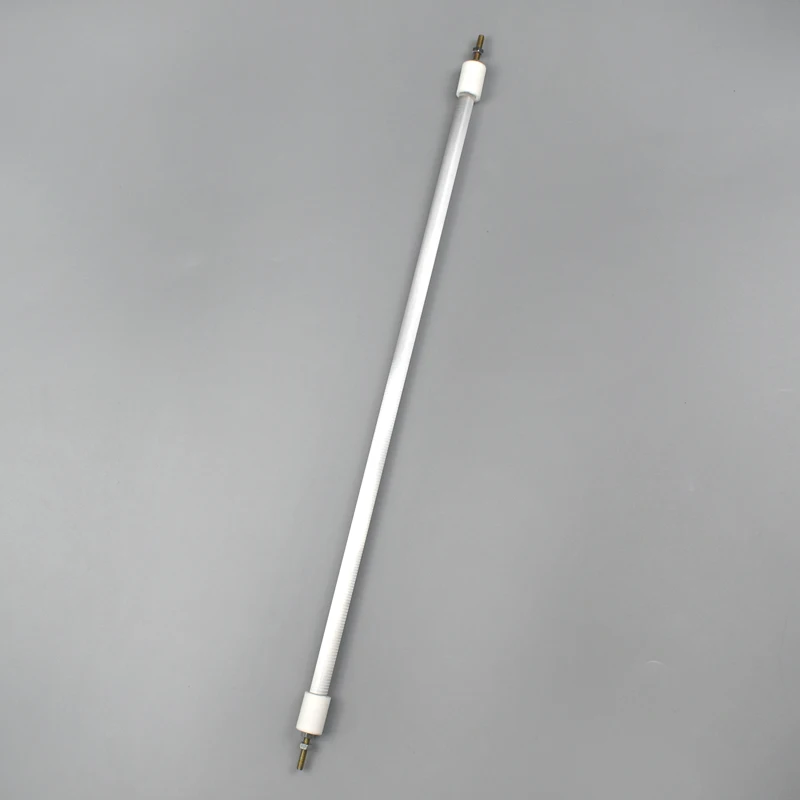

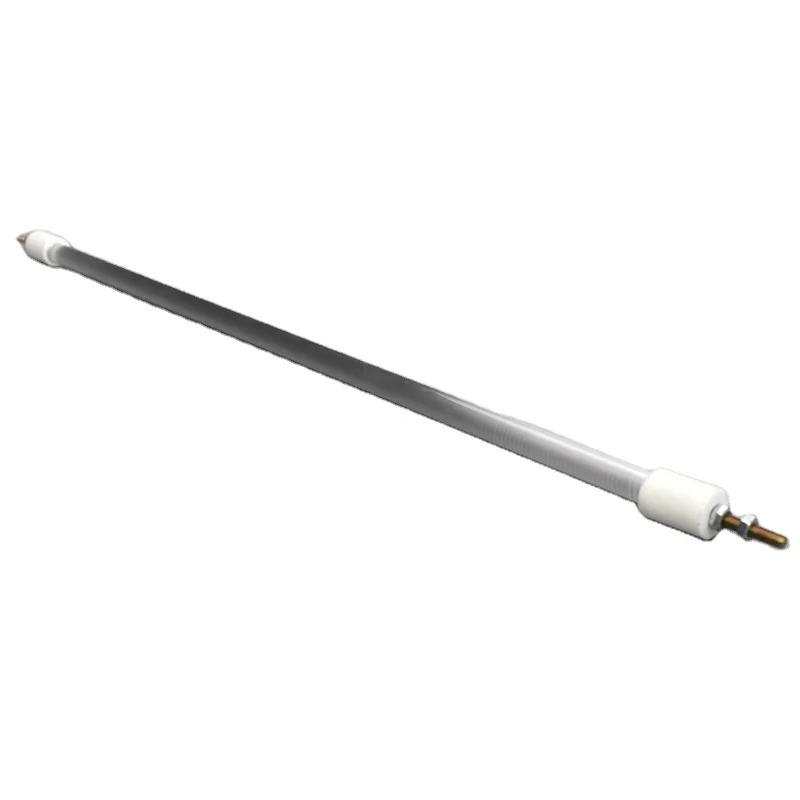

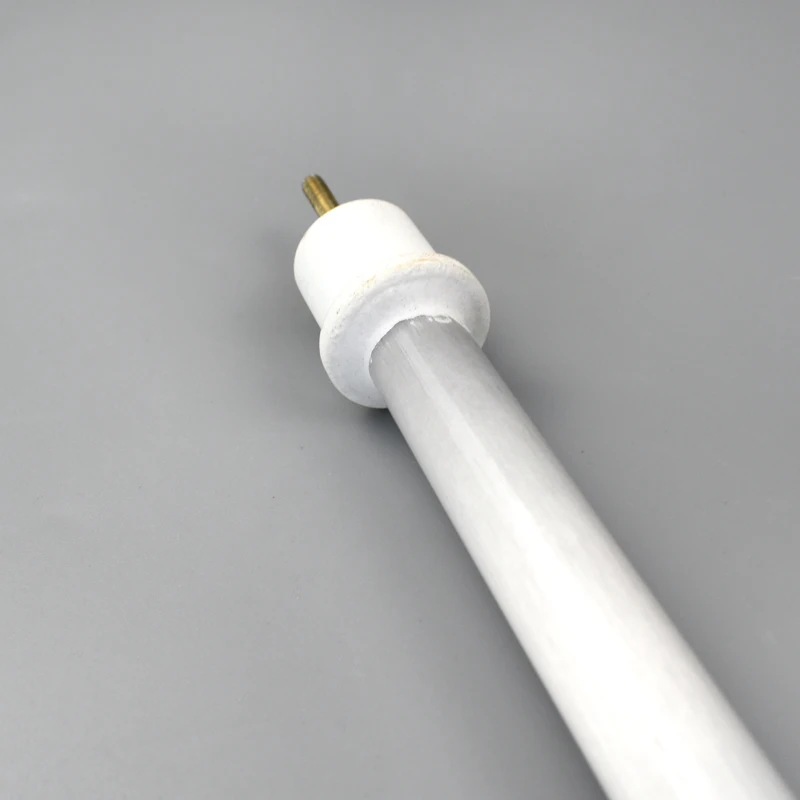

Laiyuan Metal Tubular Heater Electric Quartz Banger Coil Heater Chemical Immersion Heater
The pipe heater is a kind of the most advanced fast heating element for heating and drying. our company has produced heaters with the tube diameters of 10mm,12mm, 14mm, 17mm and 20mm, whose total length and power can meet the requirements of customers.
Insulation Material | Ceramic | ||||
Conductor Material | Nichrome Wire | ||||
Voltage | 220 volts, 380 volts, 110 volts | ||||
Wattage | 100 watts - 1000 watts | ||||
Lead Connection | Threaded Stud | ||||
Wave Length | 3 - 50 um | ||||
Recommended Radiation Distance | 100mm - 200mm | ||||
Size (mm) | Voltage (customized) | ||||||||
Diameter | 12(φ) | 14(φ) | 17(φ) | 20(φ) | |||||
316 | 200 | 200 (W) | 300 (W) | 400 (W) | 450 (W) | ||||
416 | 300 | 300 (W) | 450 (W) | 550 (W) | 600 (W) | ||||
516 | 400 | 400 (W) | 600 (W) | 700 (W) | 800 (W) | ||||
616 | 500 | 750 (W) | 850 (W) | 1000 (W) | |||||
716 | 600 | 850 (W) | 1000 (W) | 1200 (W) | |||||
916 | 800 | 1100 (W) | 1300 (W) | 1500 (W) | |||||
1116 | 1000 | 1700 (W) | 1900 (W) | ||||||
1316 | 1200 | 2000 (W) | 2300 (W) | ||||||
1616 | 1500 | 2800 (W) | |||||||
1916 | 1800 | 3300(W) | |||||||
Advantages
1. Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.
2. Thermal response time: Less than 20 minutes from the room temperature to the set temperature
3. Durability: The surface keeps smooth after five times heating and cooling exchanges.
4. The radiation surface temperature uniformity: ≤15%
5. Power error: ≤5%
6. Cold insulation resistance: 500V mega meter >2m
7. Thermal insulation resistance: 500V mega meter >0.5m
8. The service life of >3000 hour
2. Thermal response time: Less than 20 minutes from the room temperature to the set temperature
3. Durability: The surface keeps smooth after five times heating and cooling exchanges.
4. The radiation surface temperature uniformity: ≤15%
5. Power error: ≤5%
6. Cold insulation resistance: 500V mega meter >2m
7. Thermal insulation resistance: 500V mega meter >0.5m
8. The service life of >3000 hour
Features
Applications
Drying: leather, wood, metal, plywood, fiber, printing and dyeing, coating film, painting, low temperature drying.
Paint: paint for automobile body, locomotive, bicycle, metal furniture, sewing machine, refrigerator, etc.
Heating: plastic,PS,ABS machine dimension molding and hardening processing preheating.
Sterilization: disinfection of drugs, food, packaging containers, medical devices.
Heat preservation/dehumidification: heat preservation/dehumidification for homes, offices, shopping malls, etc.
Conditioning: wine, soy sauce brewing, bread fermentation, biscuit frying, candy processing.
Other: such as capacitors, glue on the sole of the dry are the specific scope of application.
Heat preservation/dehumidification: heat preservation/dehumidification for homes, offices, shopping malls, etc.
Conditioning: wine, soy sauce brewing, bread fermentation, biscuit frying, candy processing.
Other: such as capacitors, glue on the sole of the dry are the specific scope of application.
