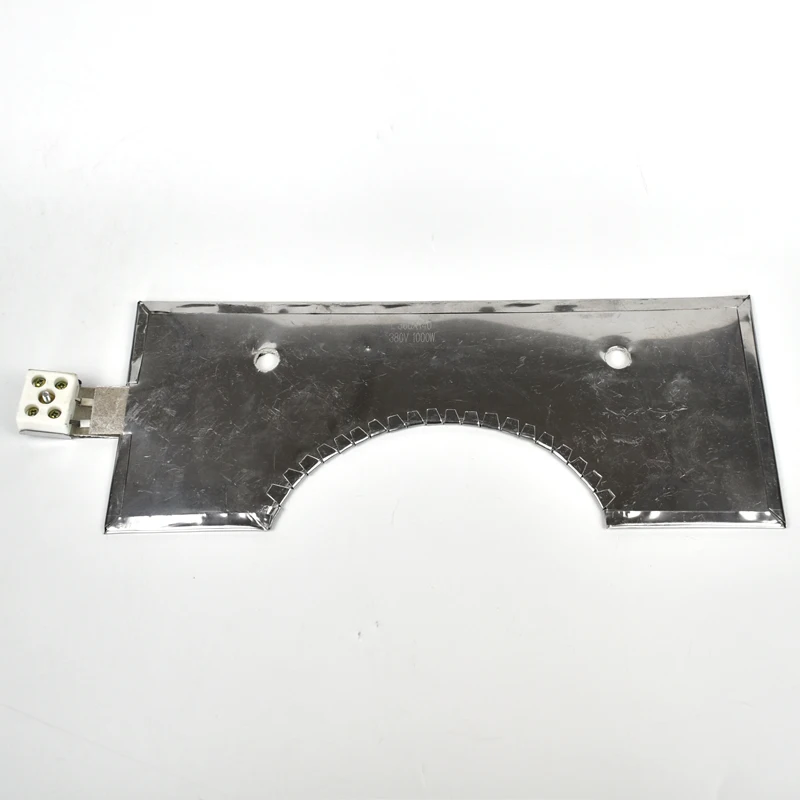

Laiyuan электрические подогреватели слюдяной панели для обработки промышленного пластика 140*360 мм 380 В 1000
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Laiyuan,Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 11.47 $* | 11.25 $* |
| Jul-19-2025 | 9.89 $* | 9.87 $* |
| Jun-19-2025 | 11.26 $* | 11.38 $* |
| May-19-2025 | 11.71 $* | 11.74 $* |
| Apr-19-2025 | 9.94 $* | 9.68 $* |
| Mar-19-2025 | 11.21 $* | 11.65 $* |
| Feb-19-2025 | 11.56 $* | 11.85 $* |
| Jan-19-2025 | 11.4 $* | 11.19 $* |
Характеристики
Product Pramameters
Gap Between the Clamping Edge | 5 - 10mm |
Power Tolerance | +5% to -10% |
Resistance | -5% to +10% |
Insulation Resistance (Cold) | ≥20 MΩ |
Sheath Material | Stainless Steel cover ,High Temperature Plate |
Metal box Screw post terminals High Temperature Plug High temperature cable Ceramic block | |
Nominal Wall Thickness | Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation) |
Heating Elements (coil) | NiCr 80:20 |
1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire |
Features
Performance metrics
1 Insulation resistance: ≥100 MΩ.
2 Pressure resistance: 1500V/1min.
3 Temperature resistance: 600 ℃.
4 Power deviation range: ±5%
Product Application
Applications of Industry Heater
1. Injection molding
2. Blow-molding
3. Plastic extrusion
4. Container, pipe, or tank heating
5. Pharmaceutical applications
6. Applications in the food industry
Our Company
LAIYUAN HEATER
Since its foundation,Yancheng Laiyuan Electric Equipment Co. Ltd, a company based on the actual needs of clients, has always been adhering to the purposes of quality-first,integrity-based and joint development. Laiyuan focuses on development,production,sales of customized products and serves the industry of electric heat and industrial automation instrumentation.The products are widely used in Plastic Machinery ,Vacuum Packaging, Petroleum Chemical Industry, Electric Power, Metallurgy, Medicine, Food, Industrial Furnaces, Industrial Automation and other industries.
Our Partners
Customers from all over the world,such as European countries, Middle East, USA, Sourth America, Asia,Africa etc.Since 2018, we have customers in more than 30 countries all over the world.we have obtained good recognition from our customers in the industry. With the support of highly-skilled engineers, we can provide professional technical support and after-sales service.
