Роутер с ЧПУ Jinan гравировка и резка алюминиевой формы мини-маршрутизатор для резьбы по металлу 3d фрезерный станок 600x600
- Категория: Metal Engraving Machinery >>>
- Поставщик: Acctek,Machinery,Co.,Ltd.(Shandong)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.39 $* | 0.41 $* |
| Aug-15-2025 | 0.45 $* | 0.39 $* |
| Jul-15-2025 | 0.99 $* | 0.91 $* |
| Jun-15-2025 | 0.53 $* | 0.33 $* |
| May-15-2025 | 0.87 $* | 0.22 $* |
| Apr-15-2025 | 0.50 $* | 0.35 $* |
| Mar-15-2025 | 0.33 $* | 0.83 $* |
| Feb-15-2025 | 0.52 $* | 0.11 $* |
| Jan-15-2025 | 0.53 $* | 0.69 $* |
Характеристики
Product Description
Parameter data of metal mold cnc router:
| Description | Parameter |
| X,Y Working Area | 600*600*200mm |
| Z Working Area | 200mm |
| Table Size | 600*600mm |
| Resolution | 0.01mm |
| Lathe Structure | Steel Structure, table moving |
| X,Y Structure | Y, X axis are TBI ball screw transmission,Taiwan 20mm square guide rails |
| Z Structure | Z axis is TBI ball screw transmission,Taiwan 20mm square guide rails |
| Spindle | 2.2kw |
| Spindle Speed | 0-24000r/min, variable speed |
| Working Voltage | AC230V/60Hz |
| Motor and driver | Stepper motor and drivers |
| Working Mode | Leadshine stepper |
| Command | G code (HPGL,U00,mmg,plt) |
| Compatible Software | Ucancam/Type3/Artcam/Artcut etc |
| Operating System | Mach3 |
| Diameter of Cutter | φ3.175-φ12.7 |
| Cooling Mode | water-cooling |
| Work Holding | T-slot table |
| Net Weight | 200KG |
Feature of metal mold cnc router:
1) The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.
2) Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3) Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving
4) Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.
5) Available for continuous work for a long time.

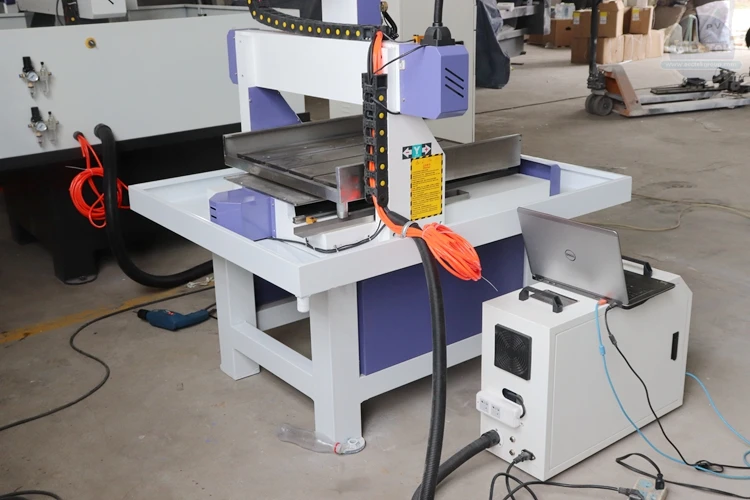

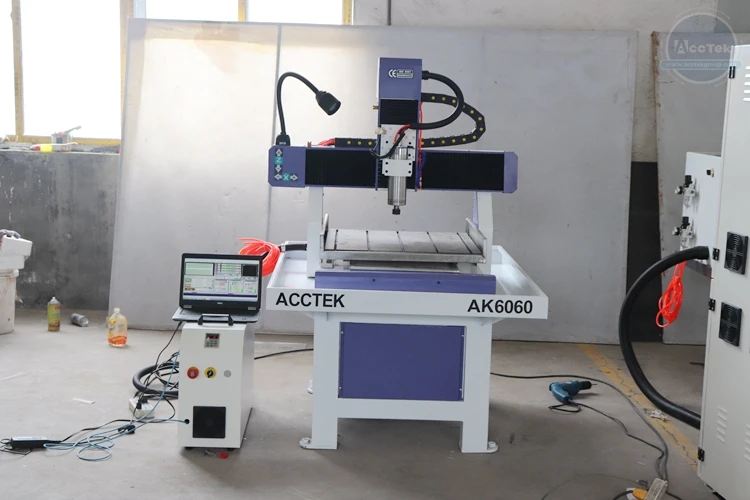

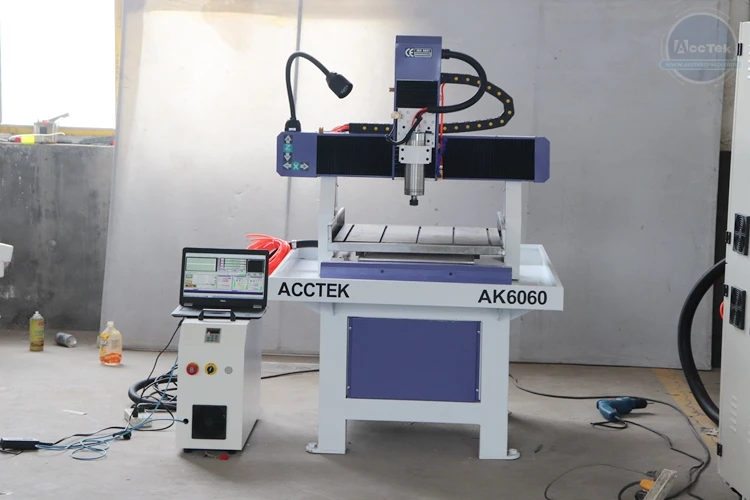

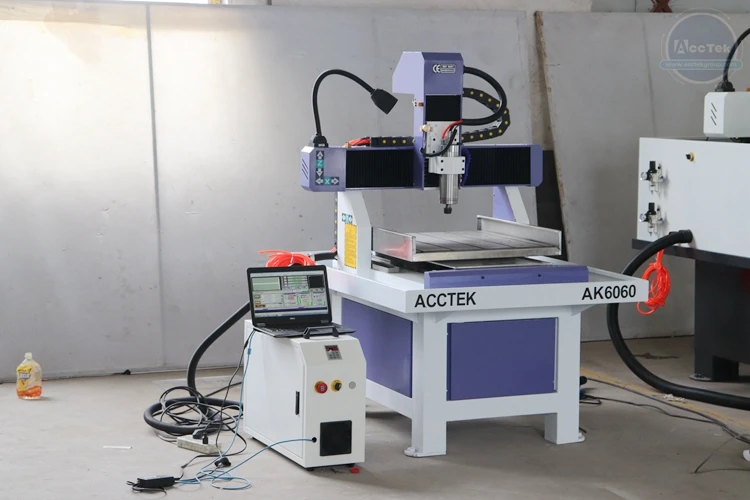

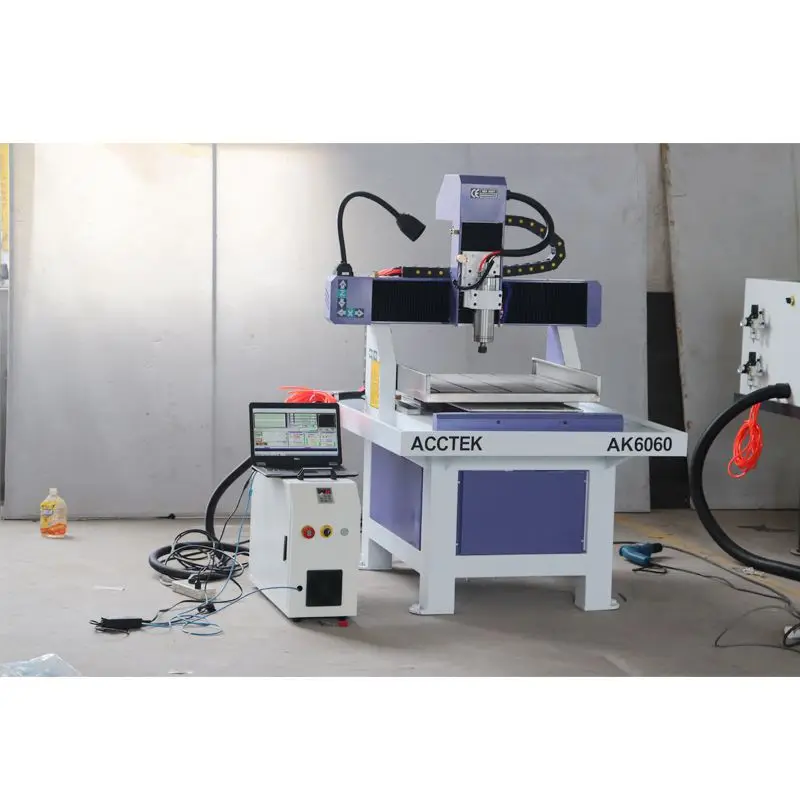

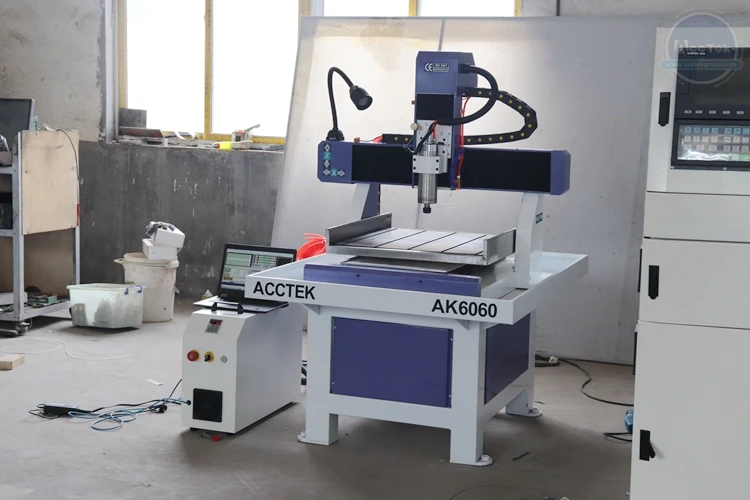

Machine parts show:
Machine sample show:
Our Services
1.Guarantee: 3 years guarantee of the whole machine+1.5 years warranty for motor and spindle
2.Software issue: We will supply technical support of machine lifetime free.
3.Hardware issue: Main parts(excluding the consumables) shall be replaced/
repaired free of charge if there is any problem during the warranty period.
4.Support online: our engineer give 1 hours to solve question online.
5.Training in AccTek factory: We are able to train your staff after placed order in our factory for free.
6.Oversea service: We are able to send technician to your workshop to do the installation and training.
You will need bear the related costs. (flight,visa,hotel,training costs, etc.)
