Высокое качество 6 каналов кодирования и декодирования мульти-камера с разрешением full HD прямые трансляции видео коммутатор
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Zoomking,Industry,Corporation,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 774.63 $* | 813.52 $* |
| Aug-19-2025 | 767.11 $* | 805.28 $* |
| Jul-19-2025 | 644.92 $* | 676.87 $* |
| Jun-19-2025 | 754.85 $* | 792.34 $* |
| May-19-2025 | 657.1 $* | 690.61 $* |
| Apr-19-2025 | 741.7 $* | 778.4 $* |
| Mar-19-2025 | 735.39 $* | 772.1 $* |
| Feb-19-2025 | 728.97 $* | 764.91 $* |
| Jan-19-2025 | 722.27 $* | 758.45 $* |
Характеристики
Top quality 6 channel encoding and decoding Multi-camera full HD Live Streaming Video Switcher mixer
Product Description
Important Features:
Technical Specification

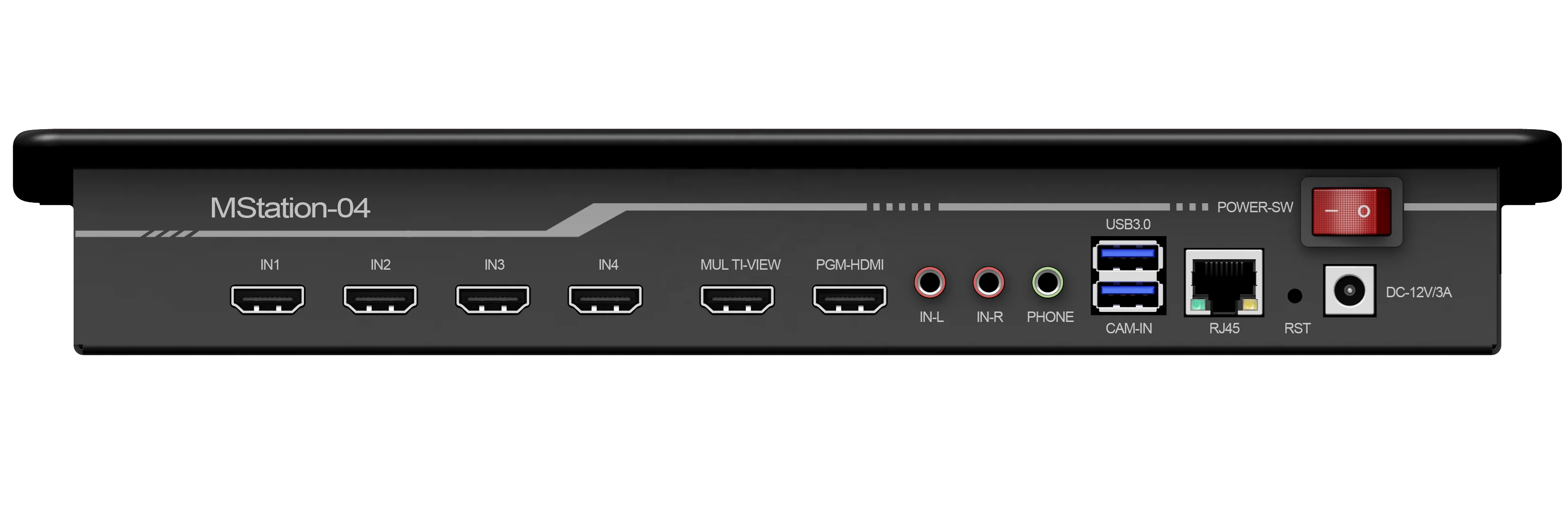

Interfaces | |
Video Source | 4xHDMI, 2X decoding stream video/USB media file |
Video Output | 1xHDMI PGM out, 1xHDMI Multiview out |
Audio Source | 1 pair 6.3mm audio |
Audio Output | 1 x 3.5mm audio |
USB 3.0 Port | Recording, broadcasting media file, work as webcam, connect 4G Wireless dongle |
RJ45 | 10/100/1000Mb/s, web control & live streaming & video decoding |
A/V Standard | |
Input Resolution | 576i50, 720P50, 720P60, 1080i50, 1080i59, 1080i60, 1080P25, 1080P30, 1080P50, 1080P60 |
Output Resolution | Program resolution: 1080i50, 1080i59, 1080i60, 1080P25, 1080P30, 1080P50, 1080P60 Multiview resolution: 1080P60 |
Video Format | 16:9 & 9:16 |
Audio Level | -40dB~0dB |
Sampling | 48kHz |
Audio Format | AAC |
A/V Switching | |
Video Switching | Cut Direct Switching & Take Transitional Switching |
Effects | Fade, Mix, Wipe, PIP, POP |
Transitional Rate | 2s,3s,4s,5s adjustable |
Audio Control | On/Off/Reset/Follow Video |
Video Decoding | |
Format | H.264 |
Resolution | 1920x1080 |
Protocol | HTTP-TS, RTS, HLS, FLV, RTMP |
Live Streaming | |
Format | H.264 |
Resolution | 1920×1080 |
Bit Rate | 500-40960kbps adjustable |
Protocol | RTMP, RTMPS |
Multi-stream | 4 platforms at the same time |
Video Recording | |
Channel | 1x Program Video |
Recording Duration | Depends on the capacity of USB disk and recording bitrate 10240 kbps (13.6 mins /GB) – default 40960kbps (3.4 mins/GB) – max |
Recording Bit Rate | 500-40960kbps adjustable |
Resolution | 1920×1080 |
Video Format | MP4 |
USB Media File | |
USB Disk Format | FAT32, NTSF, EXFAT |
Graphic Format | PNG, BMP, TGA, JPG (suggested file size<1MB) |
Video Format | MP4, MKV |
Power Requirement | |
Voltage | 12V |
Current | 3A max |
Consumption | 36W max |
Environment | |
Operating Temperature | -20℃~40℃ (-4°F – 104° F) |
Storage Temperature | -20℃~60℃ (-4°F – 140° F) |
Operating Humidity | 0% to 90% non-condensing |
Storage Humidity | 0% to 90% non-condensing |
Physical Specification | |
Product Dimension | 32x15x4.5cm | 12.6×5.9×1.78 inch |
Product Weight | 2.11kg | 4.65lbs |
What’s Included | |
Package Content | 1x HDMI Switcher 1x 12V 3A DC Power Adapter 1x Warranty Card 1x User Manual |
Company Information
Zoomking Industry Corporation Ltd
Web: www.yuanvideo.com
Factory :Room 801-810 ,Haotai Building ,Zoomking Industry
Park ,Xixiang ,Baoan ,Shenzhen,China
Contact : Liu Hui
Skype: liuhuimbs
wechat :406365845
Email :info @zoomkingvideo.com , zoomkingcml @163.com
