Характеристики
Products specification
Electric Motor
Three-phase asynchronous motor is by simultaneously access 380V three-phase AC power supply (phase difference of 120 degrees) a type of motor power, because the rotor of three-phase asynchronous motor and stator rotating magnetic field in the same direction, different speed into rotation, there is slip, so called three-phase asynchronous motor.

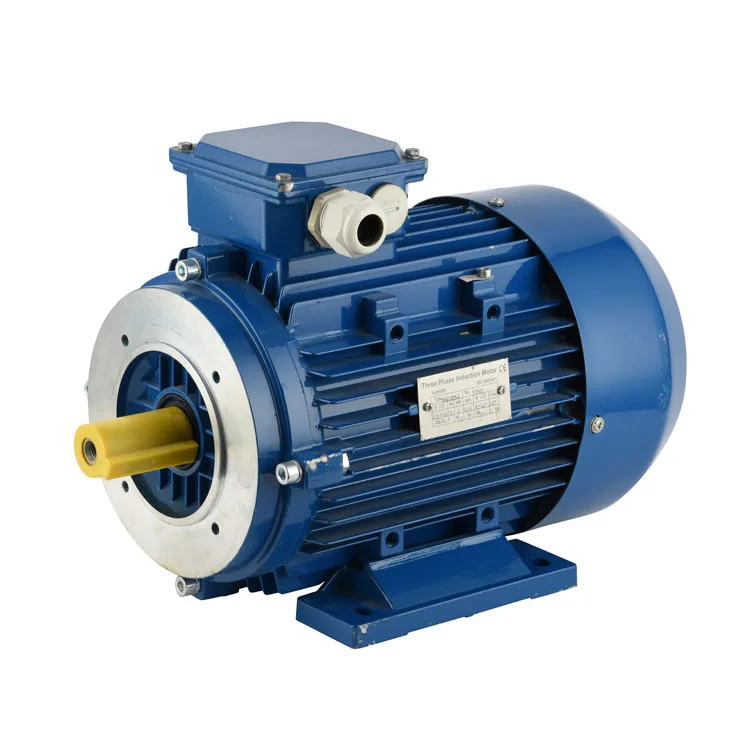

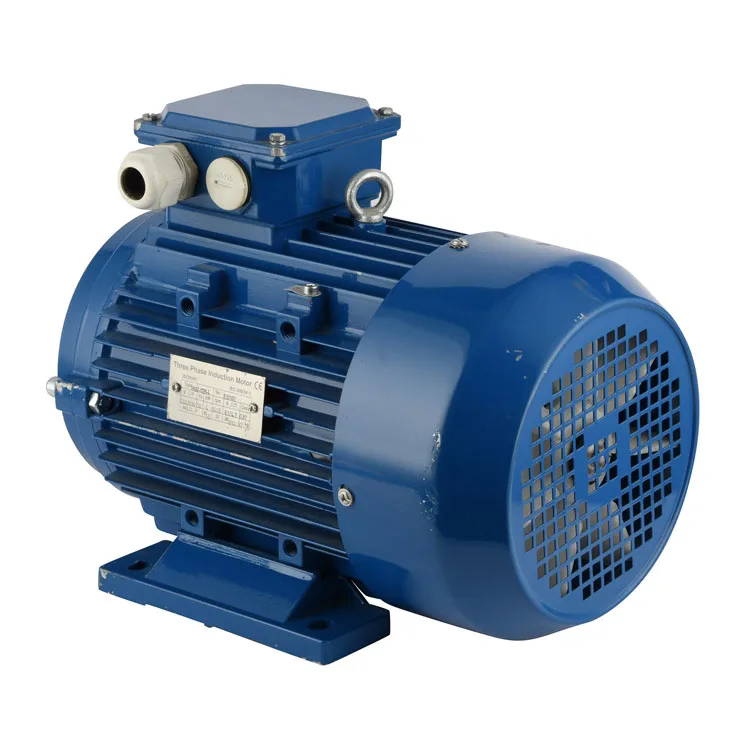

Y2 Series Three phase Asynchronous Motors (frame 80-355mm, power 0.8-315KW) are the renewal and upgrading products of Y series, are defined as totally enclosed fan cooling, squirrel cage type, and noted for its novel design, nice appearance, low noise, high
efficiency, large torque, excellent starting performance, compact structure, easy maintenance etc.
efficiency, large torque, excellent starting performance, compact structure, easy maintenance etc.
Product Details
Operating Conditions
Ambient temperature: -15C≤ θ ≤ 40C
Altitude: Altitude should be lower than 1000 meters above sea level.
Rated voltage: 380V Rated frequency: 50Hz
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Continuous(S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
Cooling method: IC0141.
Altitude: Altitude should be lower than 1000 meters above sea level.
Rated voltage: 380V Rated frequency: 50Hz
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Continuous(S1).
Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
Cooling method: IC0141.
Technical Data
B3
B5
B35
item | value |
Warranty | 3years |
Place of Origin | China |
Brand Name | Kilomega |
Model Number | Y2-132M-4 |
Type | Asynchronous Motor |
Frequency | 50/60Hz |
Phase | Three-phase |
Certification | CCC, ce, RoHS |
Protect Feature | Drip-proof |
AC Voltage | 208-230 / 240 V |
Efficiency | Ie 3 |
Frame | 63-355mm |
Output | 0.12-400kw |
Efficiency | Ie1,Ie2,Ie3,Ie4 |
Poles | 2,4,6,8,10 |
Protection Degree | IP44 IP54 IP55 |
Housing | Cast Iron,Aluminum Shell,Stainless Steel |
Mount | B3 B5 B14 B34 B35 |
Transport Package | Carton/Wooden Case/Plywood Case/Pallet |
HS Code | 8501400000 |
