Настольный мини-фрезерный станок с ЧПУ 6090 4040 6060 маленький фрезерный для деревянных работ МДФ мягкий металл алюминий медная резка
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jinan,Zhonggong,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2975.22 $* | 3124.99 $* |
| Aug-16-2025 | 2950.64 $* | 3098.98 $* |
| Jul-16-2025 | 2475.94 $* | 2599.42 $* |
| Jun-16-2025 | 2900.12 $* | 3045.17 $* |
| May-16-2025 | 2525.98 $* | 2651.82 $* |
| Apr-16-2025 | 2850.9 $* | 2993.21 $* |
| Mar-16-2025 | 2825.84 $* | 2966.81 $* |
| Feb-16-2025 | 2800.5 $* | 2940.54 $* |
| Jan-16-2025 | 2775.89 $* | 2914.75 $* |
Характеристики
mini desktop cnc 6090 4040 6060 router small cnc router for Wooden Works MDF soft metal aluminum cooper cutting engraving
Advantages
1. Adopt constant power water-cooled frequency spindle, high speed, low noise and long life.
2.It is very suitable for CNC hobby friends, small engraving shop and factories as well.
3. Popular NC studio control system is very easy for every buyer and beginner.
4. Even small, we still use 2.2kw spindle to give it enough power. Ball screw gives it good resolution and less noise.
5.Mist water cooling sprayer and flume will cool the cutter,which is necessary when you cut or engrave on Aluminum,copper or other soft metal.
2.It is very suitable for CNC hobby friends, small engraving shop and factories as well.
3. Popular NC studio control system is very easy for every buyer and beginner.
4. Even small, we still use 2.2kw spindle to give it enough power. Ball screw gives it good resolution and less noise.
5.Mist water cooling sprayer and flume will cool the cutter,which is necessary when you cut or engrave on Aluminum,copper or other soft metal.
Product details

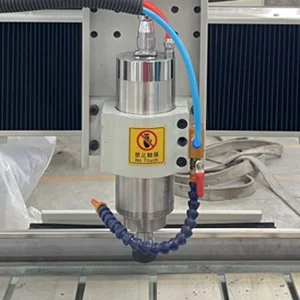

Water Cooling Spindle Cast Iron Body

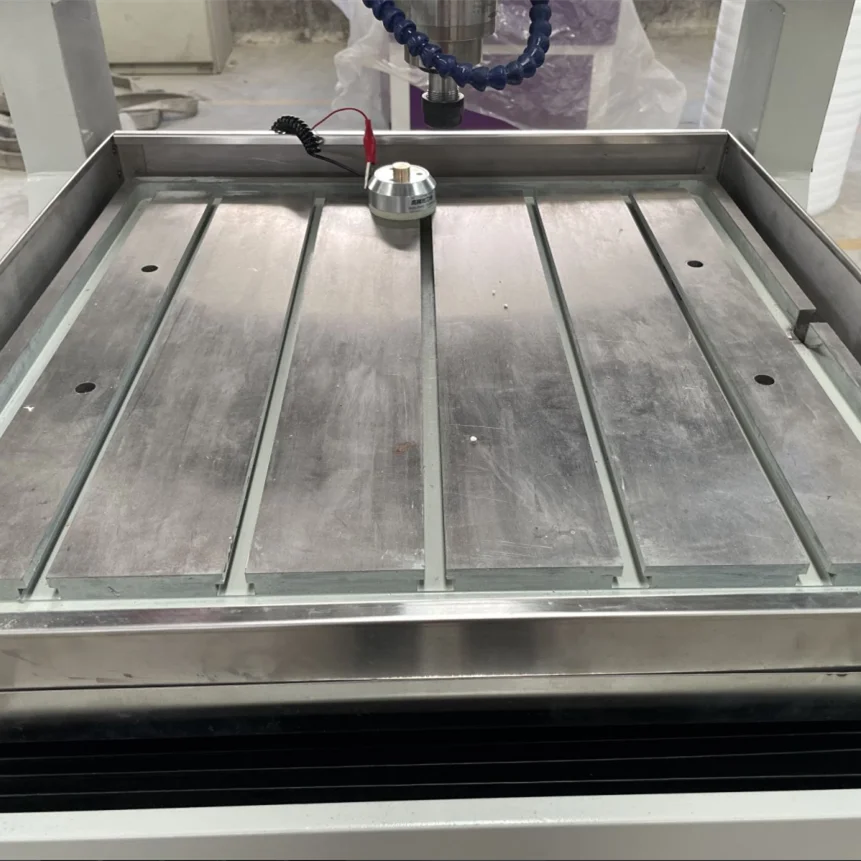

Cast iron T-slot Table Control Box

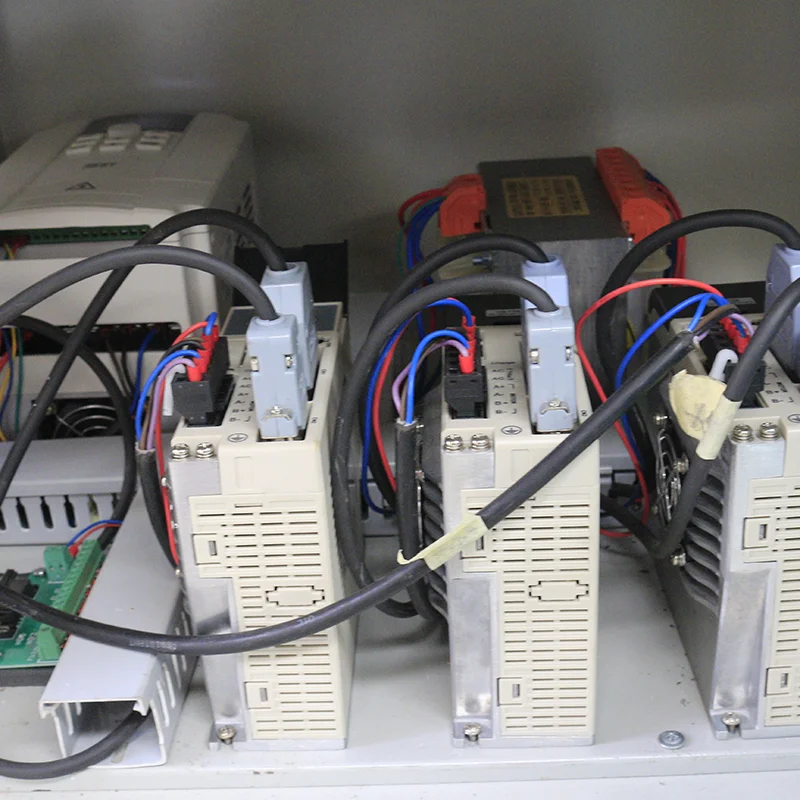

Stepper Motor Driver
DSP Control System Lubrication System
Tool Sensor Square Rail
Product Parameter
Item. | Parameter. |
The fuselage structure | Welding thickened square steel |
Track | Taiwan HIWIN H-Class Orbit |
Lead screw | TBI grinding screw |
X stroke | 600mm |
Y stroke | 600mm |
Z stroke | 130mm |
Rated Voltage | 220V |
Spindle power constant power | 2.2KW water-cooled spindle |
Spindle speed | 0-24000 rpm |
Processing speed | 0-5000mm / min |
Motion motor and driver | Stepper motor 86450A motor and Leadshine 860H drive |
Knife setting instrument | Automatic tool setting instrument |
Spindle motor | 2.2KW water cooling spindle |
Lubrication device | Manual oiling maintenance |
Inverter | Genshin/Anwar/mixed private server |
Tool setting instrument | Fixed tool setter |
Transmission Mode | XYZ screw drive |
Control system | Professional CNC system |
Movement mode | Platform movement |
1.Jade carving, artwork like jade pendant, jadeite, buddha statue etc
2.Soft metal engraving of mock up mould, shoes mould, red copper electrode and aluminum crafts
3. Advertising signs, nameplates, badges, stamper, hot stamping plate, indentation plate, signs, architectural models, instrument panel, carpentry products, industrial molds and other products processing and production
Packaging and Shipping
Inside Packing
Use professional Stretch Film to cover the whole lathe
Stretch film package with foam protection in each corner.
Outside Packing
Standard export wooden cases and pylwood cases
Save space as much as possible for container loading.
Transport
We support shipping, air, land and express
You can choose the most suitable way of transport
Use professional Stretch Film to cover the whole lathe
Stretch film package with foam protection in each corner.
Outside Packing
Standard export wooden cases and pylwood cases
Save space as much as possible for container loading.
Transport
We support shipping, air, land and express
You can choose the most suitable way of transport
Service
- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- 24 hours on line or phone or by email technical support.
- Longlife time freely provide technical support .
- One year , freely guarantee
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Warranty
(1). The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally.
(2). We also offer 24 hours heart to heart service on-line or mobile.
(3). Your technologists could attend the training in our factory and on-line which be free of chaege
(4).The warranty of CNC lathe is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
(5). We offer you best agent price and distributer price for our further cooperation .
(6). We can offer special custom service according to your request.
Product Certification

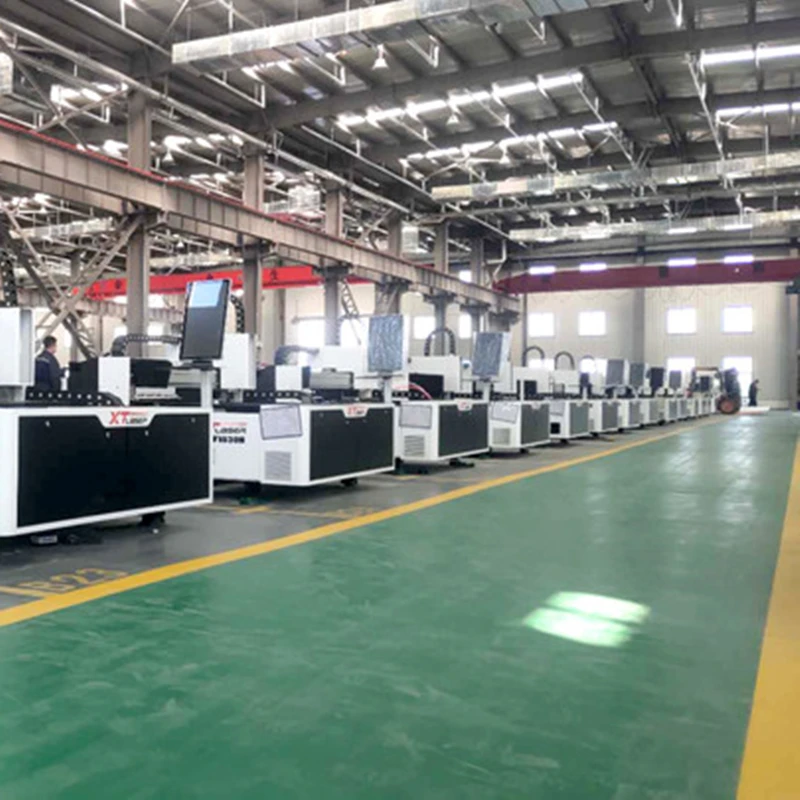

About US
Jinan ZCUT CNC Equipment Co., Ltd. was established in 2001, specializing in the production of woodworking engraving machine, Buddha engraving machine, jade engraving machine, three-dimensional engraving machine, plasma cutting machine, CNC machining lathe and other products.
Our products are widely used in woodworking engraving industry, jade processing industry, Buddha image carving industry, three-dimensional sculpture technology, acrylic plastic molding industry, etc. The current production of CNC equipment products has seven series of more than 30 models. The annual production capacity is 2,000 units.
Click here for More Information
FAQ
1.Q:This is the first time I buy the machine, is it easy to operate?
IMC:We can provide the operation manual or video for guiding. If it is hard for youlearning,we can also help you by "Team viewer"online, with telephone or Skype explain.
2.Q:Are you a trading company or a manufacturer?
IMC: We are factory.
3.Q:Can I visit your factory?
IMC:Yes! We greatly welcome customers to visit our factory!
4.Q:What is your MOQ?
IMC:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
