Products Description
Equipment Introduction

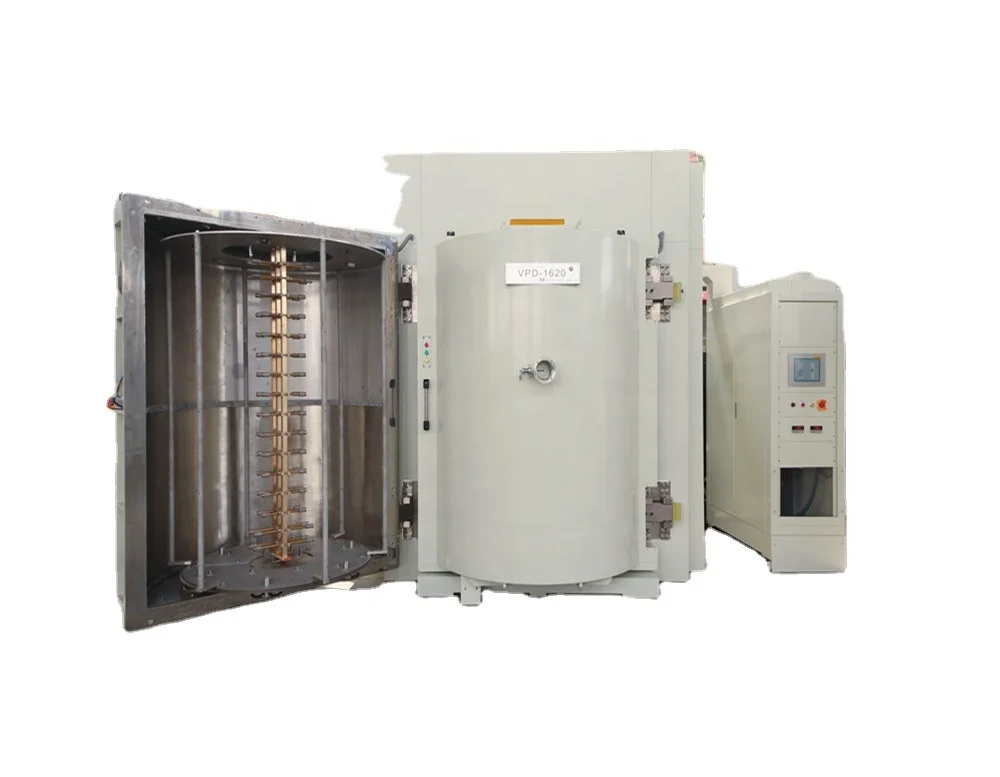

This equipment is a fully automatic heating wire evaporation coating equipment that performs metal coating on the surface of plastics, glass, etc., while directly coating the surface of the plated metal film with an oxide protective film(siox). In the vacuum chamber carry out the process of low vacuum exhaust automatically and continuously, Electric arc bombardment pretreatment(Product surface activity), high vacuum exhaust(X10-5pa), Aluminum evapotranspiration ( aluminum plating film ), Anti oxidation film coating(Aluminum film cover the monox sclerotic film prevent Aluminum film oxide fall off).

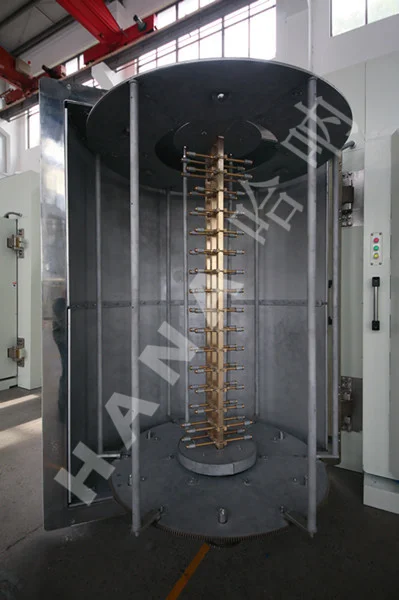

Vacuum chamber is vertical double door.
Advantages
1. Super high yield : fast production cycle time —10 minutes /chamber 30m2/h
2. No need to clean after coating : No need of cleaning process, can be delivered directly
3. Hydraulic angle, has good abrasion resistance: The hydraulic angle is greater than 100 degrees after 10000 times abrasion tests.
4. Fast film forming speed of SiOx layer: The patented chemical vapor deposition method can reach the film thickness in 3-5 minutes.
5. Equipment structure: Patented structure design, stable product quality, convenient operation and simple maintenance.
3. Hydraulic angle, has good abrasion resistance: The hydraulic angle is greater than 100 degrees after 10000 times abrasion tests.
4. Fast film forming speed of SiOx layer: The patented chemical vapor deposition method can reach the film thickness in 3-5 minutes.
5. Equipment structure: Patented structure design, stable product quality, convenient operation and simple maintenance.
Model | VPD 1616 S | VPD 1618 S | VPD 1420 S | ||
Dimension | 1600x700x1600 | 1600x700x1800 | 1400x620x2000 | ||
Material | SUS304 stainless steel or carbon steel | ||||
Vacuum system | Diffusion pump +Roots pump +Rotary pump(3.0*10-4Pa) | ||||
Working cycle | Public rotation Frequency control: 0-10 rotation per minute | ||||
Process power | MF power supply | ||||
Cooling system | CHILLER / POLY cold unit( reaching under 130°C) | ||||
Control system | PLC and one touch screen | ||||
Remark | All can be designed according to customer's requests. | ||||
Company Profile
Shanghai Hana Mechanical & Electrical Equipment Ltd. is a high-tech enterprise established in 2004 in Shanghai. The core competence of our company is to provide customized process technical solutions according to the process requirements of each industry and product, and give professional guidance and training, to meet and solve the various needs from the customer.
Our main products are Evaporation coating system, automotive lamp coating system，AF coating system，magnetron sputter coating system, AR coating system, in-line vacuum coating system, plasma coating system, EMI coating system, ion sputter car light coating system, phone lens coating system, phone camera coating system, battery vacuum dryer, vacuum exhaust machine and Vacuum accessories etc.
The products could be used for automotive lamp, automotive accessories, camera , phone glass, phone case, phone sell, phone semiconductor, touch screen, panel computer, battery, film, appliance （3C), etc.
Our main products are Evaporation coating system, automotive lamp coating system，AF coating system，magnetron sputter coating system, AR coating system, in-line vacuum coating system, plasma coating system, EMI coating system, ion sputter car light coating system, phone lens coating system, phone camera coating system, battery vacuum dryer, vacuum exhaust machine and Vacuum accessories etc.
The products could be used for automotive lamp, automotive accessories, camera , phone glass, phone case, phone sell, phone semiconductor, touch screen, panel computer, battery, film, appliance （3C), etc.
ABOUT HANA
Production Process
Customer Visit
Exhibition
FAQ
A: Yes, we are the manufacturer having 20 years experience of vacuum coating machine. Welcome to visit our factory.
Q: Is it hard to operate the machine?
A: Not at all. Our machine has two operate methods: the Manual and Auto.
Under the Auto process, machine will start automatically and complete the whole process by itself.
Q: When is the delivery time?
A: Delivery will occur 90 days from order date. Faster delivery time can be arranged if needed.
Q: Can we test the machine before shipment?
A: Yes, of course! You are warmly welcomed to our factory.
Q: Do you provide after-sales service?
A: After-sales problems shall be solved online within 24 hours.
Long-term product solution and remote technical support is provided.
Q: Do you provide the second-hand machine?
A: Yes, we also provide second-hand machine. You can provide your requirement.
