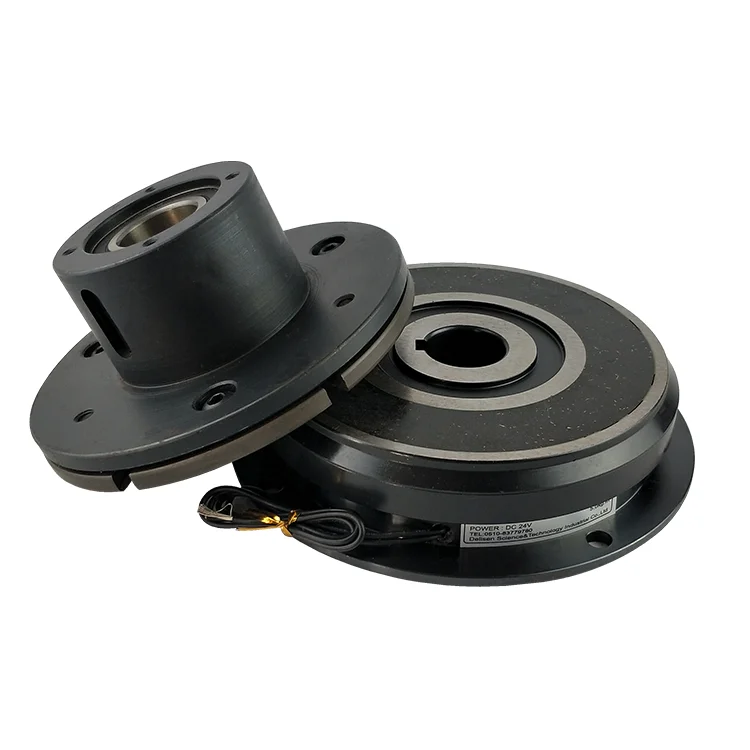

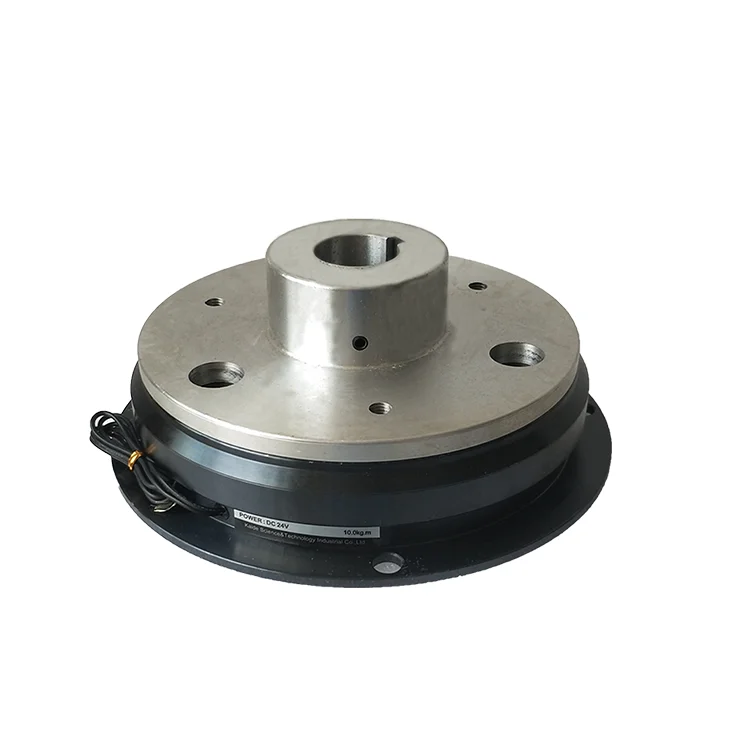

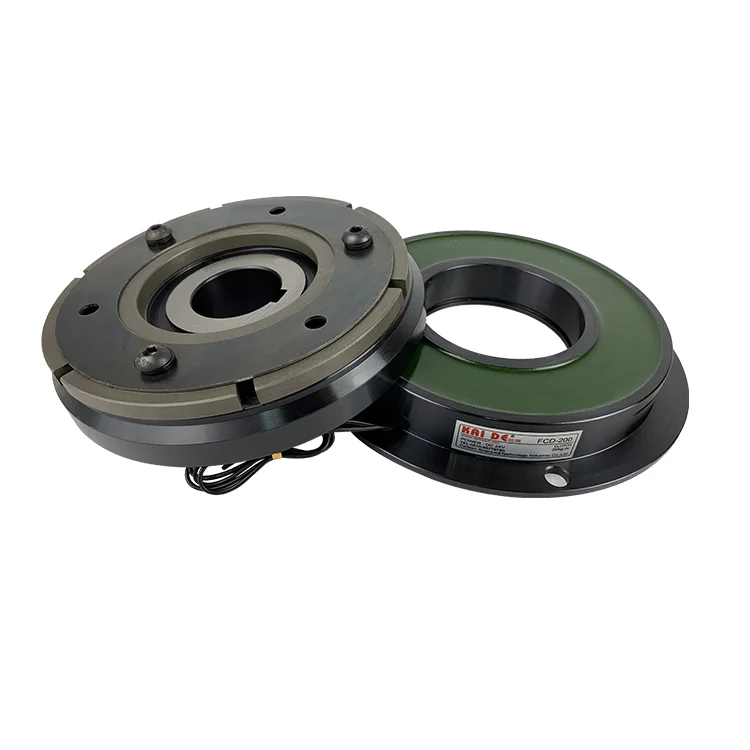

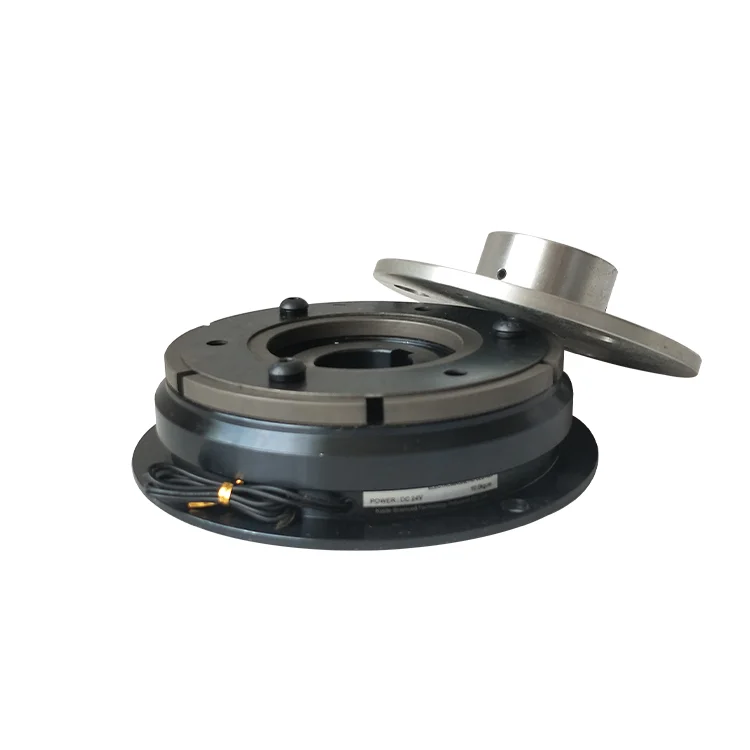

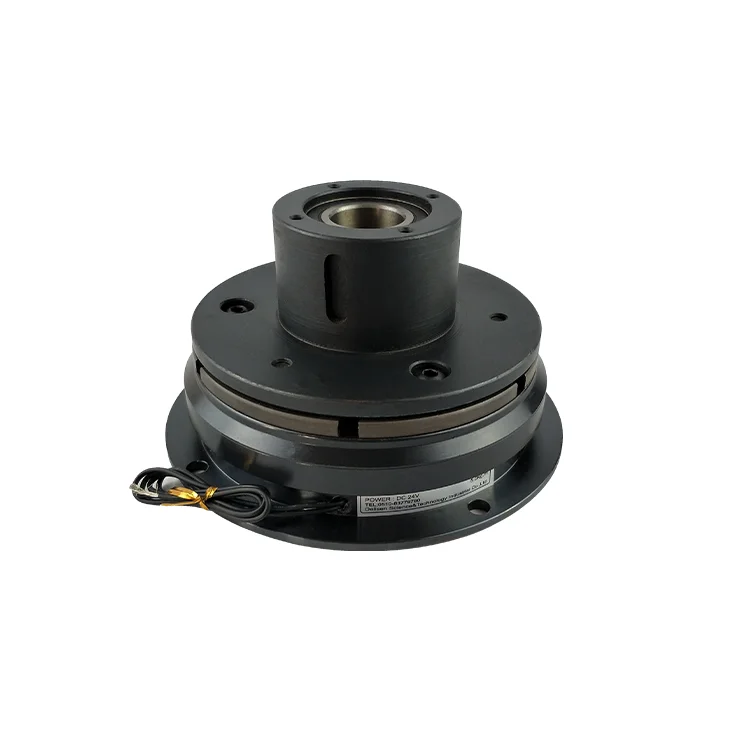

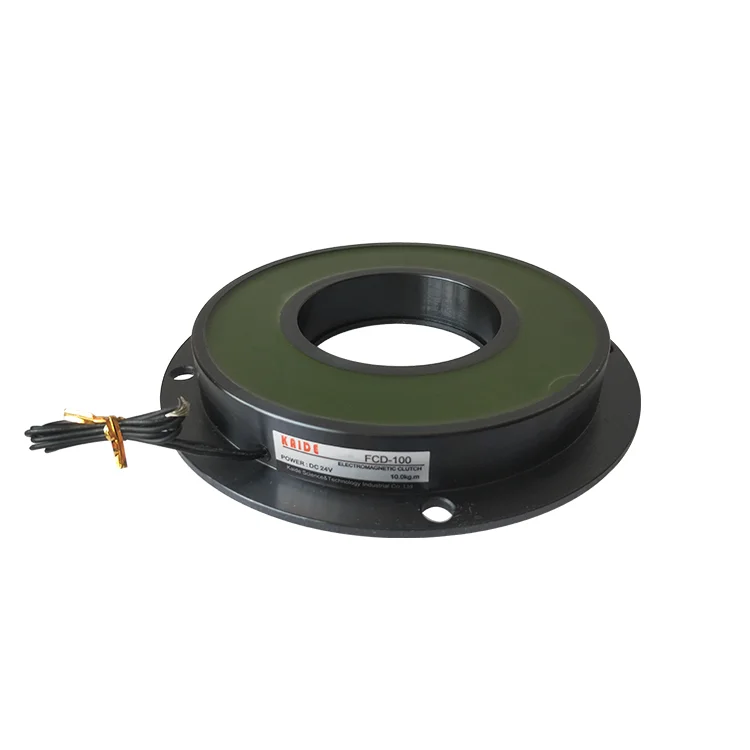

KAIDE заводская цена сухой одиночный шкив электромагнитного сцепления 24 В для текстильной
- Категория: Textile Machine Parts >>>
- Поставщик: Wuxi,Plisen,Drive,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 179.46 $* | 188.76 $* |
| Aug-15-2025 | 177.86 $* | 186.95 $* |
| Jul-15-2025 | 149.12 $* | 156.83 $* |
| Jun-15-2025 | 174.75 $* | 183.10 $* |
| May-15-2025 | 152.41 $* | 160.24 $* |
| Apr-15-2025 | 171.96 $* | 180.44 $* |
| Mar-15-2025 | 170.95 $* | 179.5 $* |
| Feb-15-2025 | 168.74 $* | 176.35 $* |
| Jan-15-2025 | 167.46 $* | 175.19 $* |
Характеристики
Parameters Rated voltage:DC24V
Model | FBD(-1)(-2)006 | FBD(-1)(-2)015 | FBD(-1)(-2)025 | FBD(-1)(-2)050 | FBD(-1)(-2)100 | FBD(-1)(-2)200 | FBD(-1)(-2)400 | ||||||||
Static friction torque[kgf-m] (N-m) | 0.6(6) | 1.5(15) | 2.5(25) | 5.0(50) | 10(100) | 20(200) | 40(400) | ||||||||
Kinetic friction torque[kgf-m] (N-m) | 0.5(5) | 1.0(10) | 2.0(20) | 4.0(40) | 8(80) | 16(160) | 32(320) | ||||||||
Powder [DC24V] (W) at20℃ | 11 | 15 | 20 | 25 | 35 | 45 | 60 | ||||||||
Weight (kg) | FBD | 0.28 | 0.5 | 0.91 | 1.68 | 3.15 | 5.9 | 10.5 | |||||||
FBD-1(-2) | 0.32 | 0.58 | 1.07 | 1.97 | 3.45 | 7.1 | 12.5 | ||||||||
Maximum speed (r/min) | 1800 | ||||||||||||||
Radial direction | A1 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |||||||
A2 | 46 | 60 | 76 | 95 | 120 | 158 | 210 | ||||||||
A3 | 34.5 | 41.5 | 51.5 | 61.5 | 79.5 | 99.5 | 124.5 | ||||||||
C1 | 80 | 100 | 125 | 150 | 190 | 230 | 290 | ||||||||
C2 | 72 | 90 | 112 | 137 | 175 | 215 | 270 | ||||||||
C3 | 35 | 42 | 52 | 62 | 80 | 100 | 125 | ||||||||
V1 | 3-3.1 | 3-4.1 | 3-5.1 | 3-6.4 | 3-8.1 | 3-10.2 | 3-12.2 | ||||||||
V2 | 3-6.3 | 3-8 | 3-10.5 | 3-12 | 3-15 | 3-18 | 4-22 | ||||||||
V3 | 3-6 | 3-7 | 3-9 | 3-10.5 | 3-14 | 3-17 | 4-19 | ||||||||
D | 12 / 15 | 15 / 20 | 20 / 25 | 25 / 30 | 30 / 40 | 40 / 50 | 50 / 60 | ||||||||
E | 26 | 31 | 41 | 49 | 65 | 83 | 105 | ||||||||
Y | 5 | 6 | 7 | 7 | 9.5 | 9.5 | 11.5 | ||||||||
Axis Direction | H | 18 | 20 | 22 | 24 | 26 | 30 | 35 | |||||||
J | 3.5 | 4.3 | 5 | 5.5 | 6 | 7 | 8 | ||||||||
K | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | ||||||||
L | 22 | 24.5 | 28 | 31 | 35 | 41.5 | 48 | ||||||||
L1 | 37 | 44.5 | 53 | 61 | 73 | 86.5 | 105 | ||||||||
L2 | 25.5 | 28.5 | 33 | 37 | 42 | 50.5 | 59 | ||||||||
M | 15 | 20 | 25 | 30 | 38 | 45 | 54 | ||||||||
P | 7.5 | 8 | 9 | 9 | 11.5 | 13 | 15.5 | ||||||||
T | 6 | 8 | 10 | 12 | 15 | 18 | 22 | ||||||||
X | 1.5 | 1.8 | 2.1 | 2.8 | 3.4 | 4.5 | 5.1 | ||||||||
Z | 6-60° | 8-45° | |||||||||||||
m | 2-M4 | 2-M5 | 2-M6 | 2-M8 | 2-M10 | ||||||||||
a | 0.2(±0.05) | 0.3(+0.05,-0.1) | 0.5(-0.2) | ||||||||||||
b | 4 / 5 | 5 / 5 | 5 / 7 | 7 / 7 | 7 / 10 | 10 / 12 | 12 / 15 | ||||||||
t | 1.8 / 2.3 | 2.3 / 2.3 | 2.3 / 3.3 | 3.3 / 3.3 | 3.3 / 3.8 | 3.8 / 3.8 | 3.8 / 5 | ||||||||
