Full automatic steel bar bending cnc rebar stirrup bender
- Категория: Other Bending Machines >>>
- Поставщик: Shandong,Aolai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 595.37 $* | 625.36 $* |
| Aug-17-2025 | 590.29 $* | 620.62 $* |
| Jul-17-2025 | 495.96 $* | 520.33 $* |
| Jun-17-2025 | 580.55 $* | 609.86 $* |
| May-17-2025 | 505.81 $* | 530.67 $* |
| Apr-17-2025 | 570.90 $* | 599.41 $* |
| Mar-17-2025 | 565.91 $* | 593.91 $* |
| Feb-17-2025 | 560.17 $* | 588.19 $* |
| Jan-17-2025 | 555.19 $* | 583.27 $* |
Характеристики

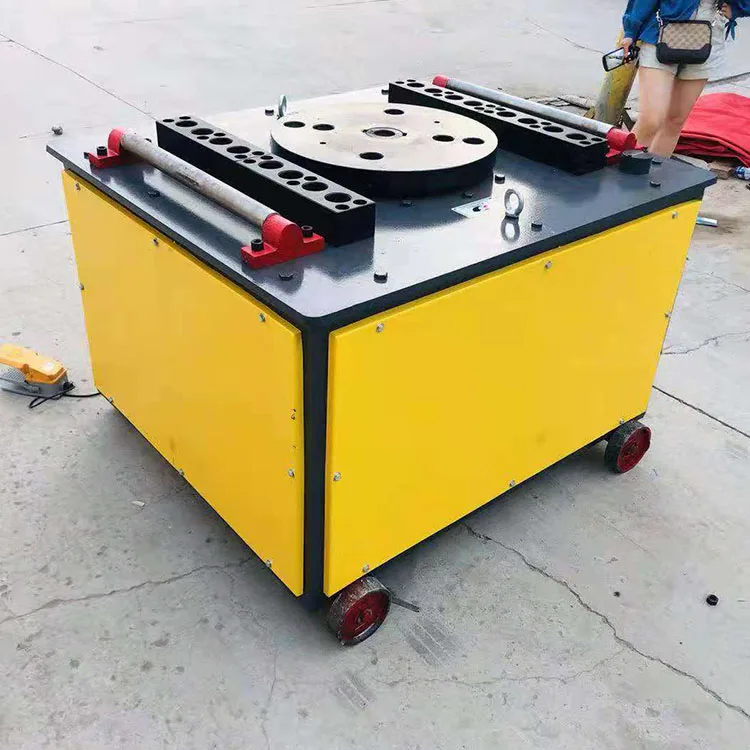

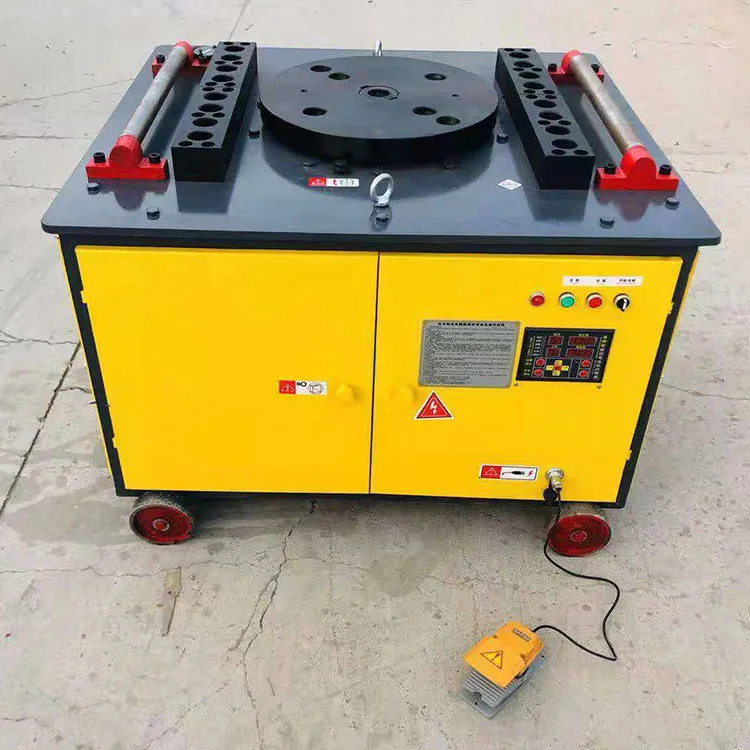

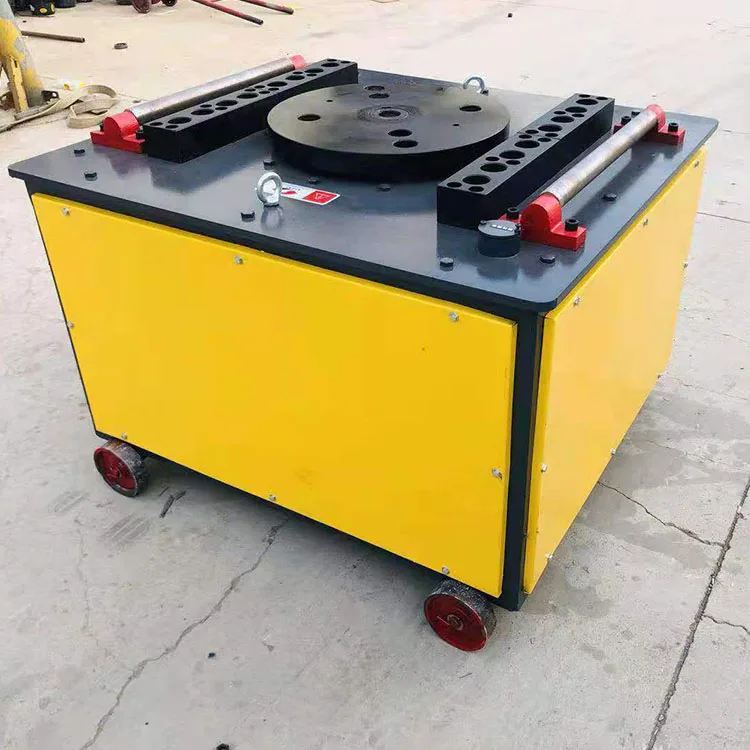

Full automatic steel bar bending cnc rebar stirrup bender machine
Rebar bending machine, one of the rebar processing machinery. The working mechanism is a horizontal working disc that rotates on a vertical axis. The steel bar is placed in the middle position. The supporting pin is fixed on the machine tool. The cm02 center pin and bending pin are installed on the working disc. When the disc rotates Then the steel bars are bent. In order to bend steel bars of various diameters, there are several holes on the working plate for inserting and pressing the bending pin, and the center pin of different diameters can also be replaced accordingly. The steel bar bending machine belongs to an improvement of the structure of the steel bar bending machine. The utility model includes a reducer, a small gear, and a curved disk surface, and is characterized in that in the structure: a double brake motor is directly connected with the reducer for one reduction; the small gear meshes with the large gear for two reductions; the large gear always drives the curved disk to rotate; A central shaft hole and a plurality of bending shaft holes are arranged on the curved disk surface; a plurality of positioning shaft holes are respectively arranged on the positioning square bars of the working table surface. Because the double-brake motor is directly connected with the reducer for one deceleration, the ratio of input and output revolutions is accurate, the bending speed is stable and accurate, and the change speed can be automatically controlled by electricity, and the brake can ensure the bending angle. Use the forward and reverse rotation of the motor to bend the steel bars in both directions. The central shaft can be replaced for easy maintenance. Intelligent control can be used.
Products Description
Full automatic steel bar bending cnc rebar stirrup bender machine
Operating Regulations of Rebar Bending Machine:1. Check whether the mechanical performance is good, the workbench and the bending machine table are kept level; and prepare various mandrel tool blocks.
2. Install the mandrel, forming shaft, iron stop shaft or variable stop according to the diameter of the processed steel bar and the requirements of the bending machine.
3. Check the mandrel, the stopper, and the turntable without damage or cracks. The protective cover should be fastened and reliable, and the operation can only be performed after the empty machine is running.
4. During operation, insert one end of the steel bar that needs to be bent into the gap provided by the turntable, and the other end of the steel bar bending machine is fixed against the body and pressed by hand. Check that the body is fixed and it is indeed installed on the side that blocks the steel bars. Can start.
5. It is strictly forbidden to replace the mandrel, change the angle, and adjust the speed during the operation, and do not add oil or oil.
6. When bending steel bars, it is strictly forbidden to process the steel bar diameter, the number of roots and the mechanical speed that exceed the mechanical regulations.
Seven. When bending high-hardness or low-alloy steel bars, the restricted diameter should be changed according to the mechanical nameplate, and the corresponding mandrel should be exchanged.
8. It is strictly forbidden to stand people within the working radius of the bending steel bar and on the side of the fuselage that is not fixed. The bent semi-finished products should be stacked neatly, and the hooks should not face upwards.
Nine. When the turntable changes direction, it must be done after stopping.
10. The work is completed, the site is cleaned, the machinery is maintained, and the lock box is powered off.
Product Specification
model | Bending ability | Motor Power | Overall quality | size |

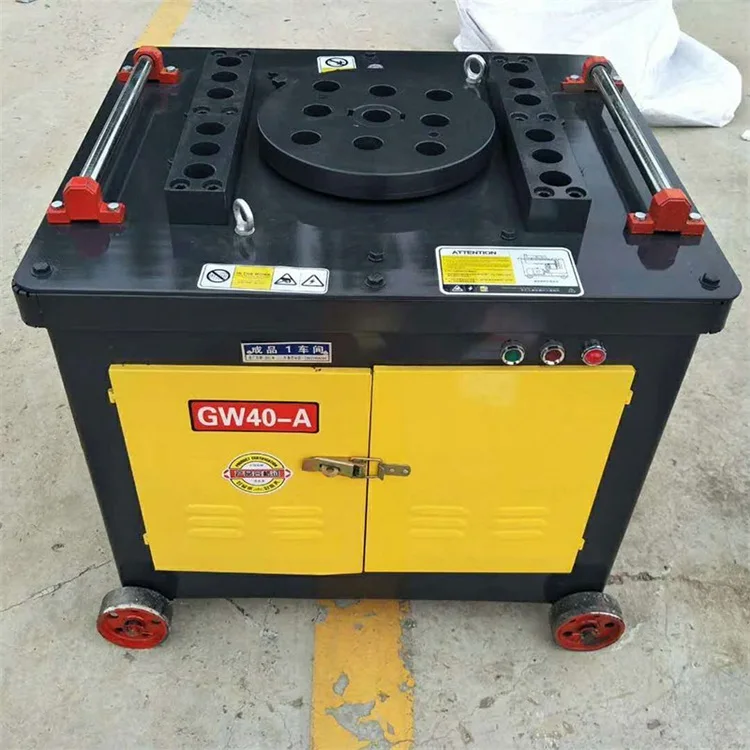

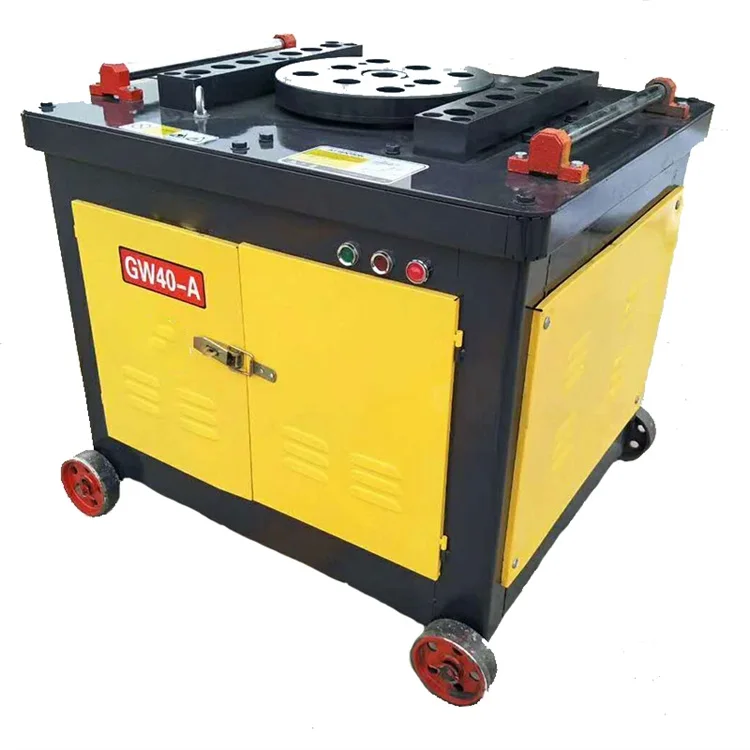

GW40 | 4-32MM | 3KW | 260KG | 870*800*800MM |
GW40CNC | 4-32MM | 3KW | 260KG | 870*800*800MM |
GW50 | 4-40MM | 4KW | 320KG | 980*800*850MM |
GW50CNC | 4-40MM | 4KW | 320KG | 980*800*850M |
GW42 | 4-36MM | 3KW | 300KG | 900*850*840MM |
GW50 | 4-40MM | 4KW | 350KG | 980*880*850MM |
GW60 | 4-55MM | 5.5KW | 480KG | 1050*950*880MM |
Product advantages of steel bar bending machine:
1. The box body is made of precision molds, and the box wall is thickened to improve the strength.
2. Standard heat treatment is adopted for gears, gear shafts and connecting rods.
3. Long service life, parts can run for a long time under load conditions.
4. The square steel and working disc are made of forged carbon steel, and all pile heads and pile head sleeves are made of alloy steel, with hardness heat treatment to ensure long-term reliable use.
5. Brake motor; adjustable square steel; pin-type positioning disc; the disc can automatically return to position, the angle adjustment is convenient, and the bending angle is accurate.
1. The box body is made of precision molds, and the box wall is thickened to improve the strength.
2. Standard heat treatment is adopted for gears, gear shafts and connecting rods.
3. Long service life, parts can run for a long time under load conditions.
4. The square steel and working disc are made of forged carbon steel, and all pile heads and pile head sleeves are made of alloy steel, with hardness heat treatment to ensure long-term reliable use.
5. Brake motor; adjustable square steel; pin-type positioning disc; the disc can automatically return to position, the angle adjustment is convenient, and the bending angle is accurate.
Our Company
Packaging And Shipping
Our Service
Before sale
1. Quick response
2. Professional technical consulting services
3. Provide a variety of related information about the product
2. Professional technical consulting services
3. Provide a variety of related information about the product
On sale
1. Delivery on schedule
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
2. Strict factory acceptance
3. Use negotiated or suitable packaging for transportation
After sale
1.24 hours technical support
2. Long warranty
3. Sufficient spare parts guarantee
2. Long warranty
3. Sufficient spare parts guarantee
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
6.What about the service?
1). Quick response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service follow up, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20
00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
