Литье под давлением для чехла мобильного телефона форма
- Категория: Moulds >>>
- Поставщик: Mr.,Mould,Products,Co.,Ltmited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1190.25 $* | 1250.11 $* |
| Aug-19-2025 | 1180.45 $* | 1239.23 $* |
| Jul-19-2025 | 990.30 $* | 1040.26 $* |
| Jun-19-2025 | 1160.65 $* | 1218.82 $* |
| May-19-2025 | 1010.53 $* | 1061.95 $* |
| Apr-19-2025 | 1140.61 $* | 1197.88 $* |
| Mar-19-2025 | 1130.96 $* | 1187.56 $* |
| Feb-19-2025 | 1120.29 $* | 1176.36 $* |
| Jan-19-2025 | 1110.83 $* | 1166.0 $* |
Характеристики

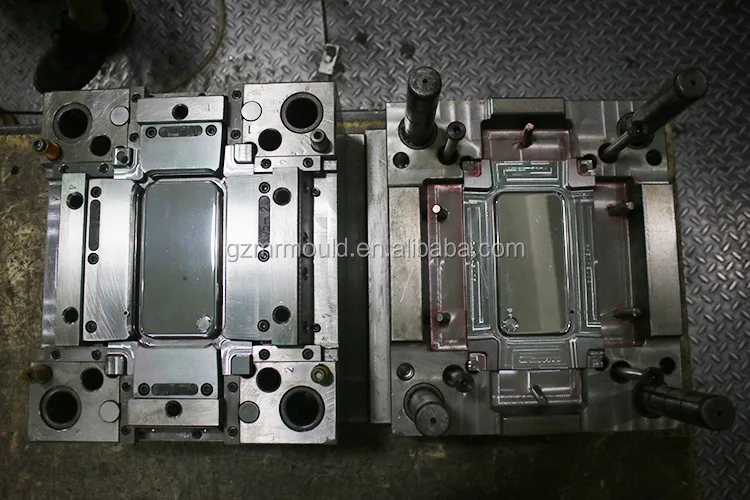

Phone case Injection Moulding Mobile cover mold for Iphone
1. Trading Step:

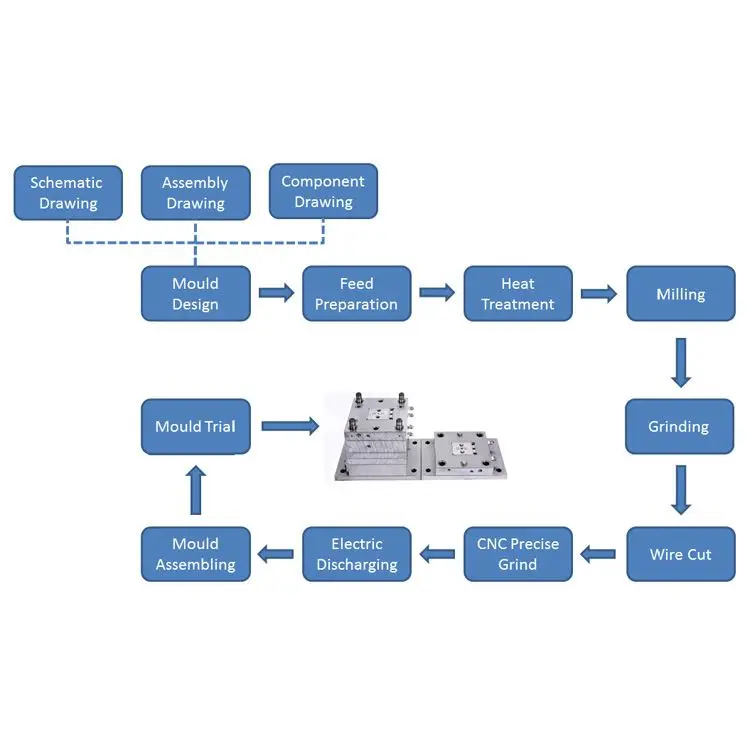

2.Moulding & Fabrication
The mould making center equiped with CNC machines for precise moulds.Equiped with advanced CAD/CAM development and design system,a high-level designing and manufacturing team.

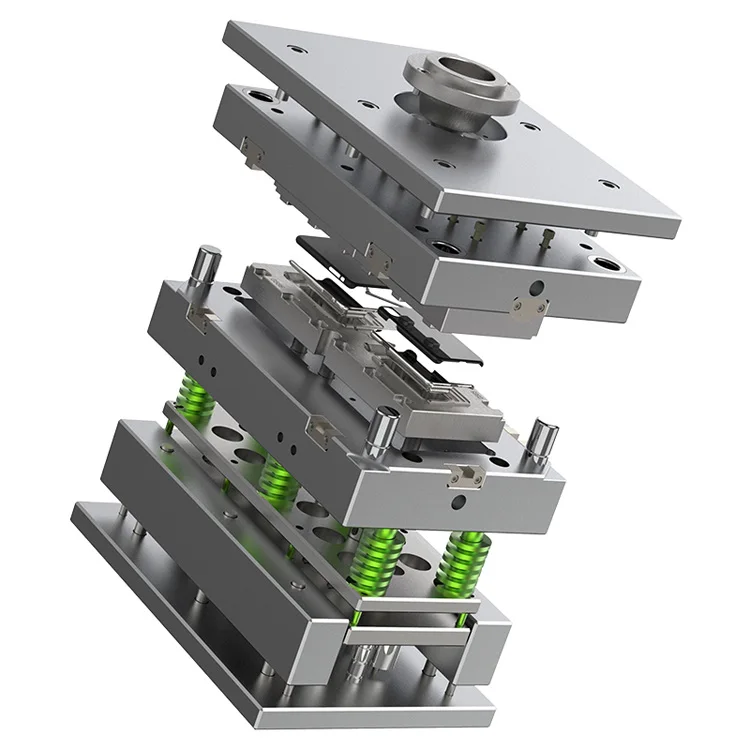

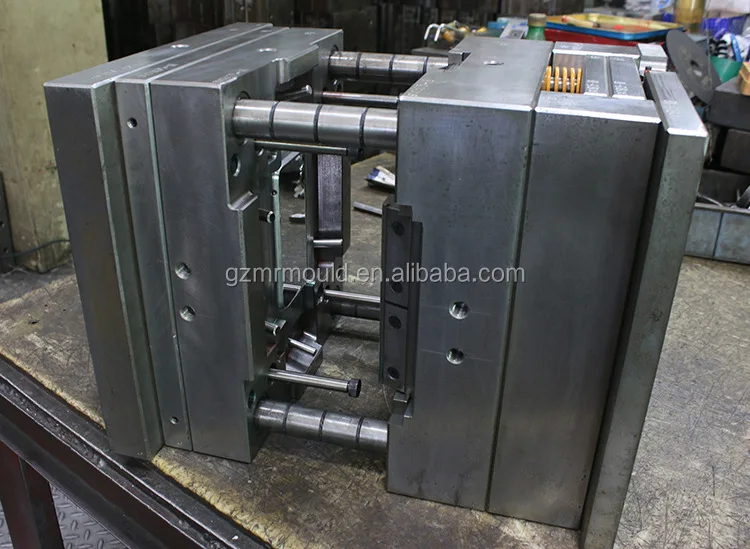

3.Mr.Mould General Mould For Reference
| In-house processing equipment available | NC milling machine |
| engraving machine | |
| EDM (Elctron Discharge Machining) | |
| wire cutting machine | |
| drilling machine | |
| grinding machine | |
| milling machine | |
| CNC processing center | |
| Solutions/services provided | mould design |
| mould fabrication | |
| and injection and blow moulding processing | |
| Selection of Materials | 718 |
| 718H | |
| P20 | |
| 2738 | |
| 2316 | |
| S136 | |
| Die carrier spec | 50S preharden > 30 HRC |
| Cooling system design | optimized recirculation cooling system, which improve productivity and reduce cost in process of production |
| Mid-stage treatment | hardening and tempering for improving hardness |
| Late-stage treatment | nitriding (hardness>45 HRC); vacuum hardening (hardness>50HRC) |
| Life span of mold | > 500,000 cycles (with regular service) |
| Packaging and handling | Once finished and passed inspection, moulds are properly packed with reinforced package for shipping, with rust prevention processed and mold lock installed |
| Warranty | all the moulds we manufactured are covered with one-year warranty after being delivered for service |
Advantages
1. Our R&D center contains 2 industrial designers, 4 structure designers, 2 electronic engineers,
18 professtional mold design engineers, 8 CNC programmers .
2. Our mold making center equiped with 8 sets high-precision CNC machines, 8 sets EDM machine
2 sets WEDM(SODICK), 1set mirror EDM, 15 sets coordinate milling machines.
3. Our plastic products processing center has 30 sets of sophisticated C injection molding machine
with a clamping force from 80 to 1080tons.
4. Advanced measurement equipments- spectrograph(BRUKER), 2D Measuring Projector, CMM,
Surface Roughness Tester, Intellectual Hardness Tester, etc.
5. More than 15-years experience.
6. ISO9001: certificated since 2008 year.

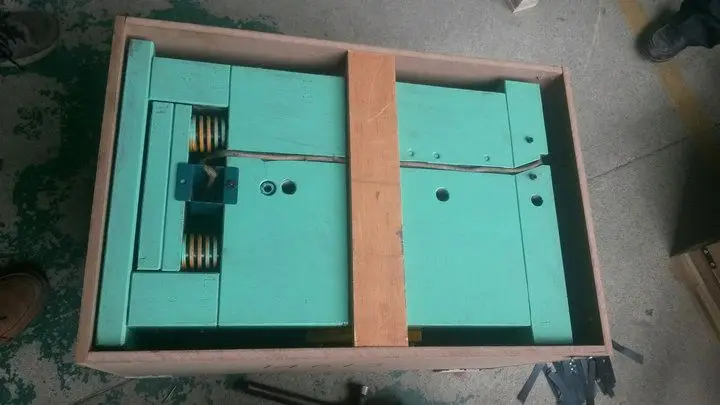

Packaging & Shipping
| Delivery time | 30 days after receipt the deposit |
| Packing | Outside package: Standard wooden cases; Inner package: Stretch waterproof film & Each Mold painted anti-rust oil.3. Spare parts together with the mold shipment. |
Company information
Contact Information
Contract Person | Harlow He |
| |
Skype | gzmrmould |
Tel: | +86 20 3112 5303 |
Mobile(Whatsapp/Wechat): | +86 13760789302 |
Website | http://www.gzmrmould.com |
