                                                  Hydraulic Auger

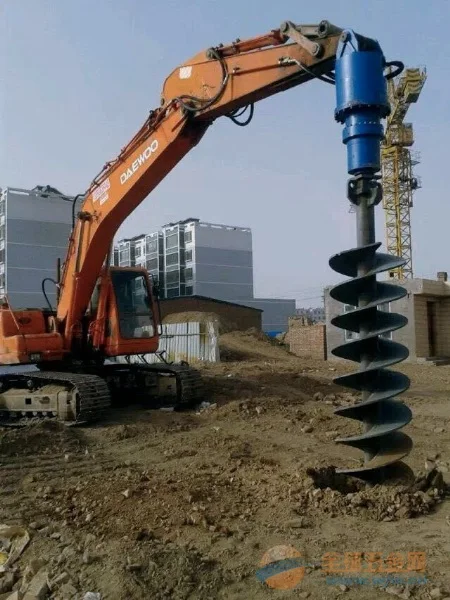

Excavator Operation Earth Drill is mainly composed with power head and auger. The power head

and auger are fixed together. Auger is composed of screw blade and bit on the end of the auger,

there is also teeth on the end of the auger. Simple construction, stronger drill ability, low production

cost, high flexibility .Our Excavator Operation Ground Drilling Equipment apply to pore forming

operation of tree planting, telecom, electric power, municipal garden, highway, railway etc.







Model	Unit	S02	S03	S04	S05	S06	S07	S08
Excavator Weight	Ton	1.2-2.5	1.5-3	2-3.5	2.5-4.5	4.5-6.0	6.0-8.0	7.0-10.0
Pressure	kg/cm2	310	310	260	260	310	310	310
Working Flow Rate	liter /min	25-50	25-50	30-60	35-65	40-70	40-70	50-90
Max Operating torque	Nm	1962	2470	2933	3800	5561	7915	9015
Output shaft	Mm	65	65	65	65	75	75	75
Unit weight	KG	54	54	71	71	71	90	92
Unit weight	Mm	595	595	700	700	700	700	700
Unit diameter	Mm	200	200	238	238	238	270	270
Standard Auger length	Mm	1.2	1.2	1.2	1.2	1.2	1.5	1.5
Auger diameter range	Mm	100-400	100-500	100-600	100-750	100-900	150-750	150-900

Product Inspection
1. Every Product will pass through ring upon ring of quality inspection before delivery to our

    customer.
2. We will do impact test for every product before delivery.





FAQ:



      1.What color can you produce ?
         Yellow.If you need special, please advise.

      2.How about the delivery time ?
         Within 3-5 working days after receiving T/T payment.

      3.What’s the MOQ and payment ?
          MOQ is 1 set.
          T/T, L/C, Escrow, west union is accepted. and other terms can also be negotiated.

       4.Can you produce according to customers’ design?
          Sure,we are professional manufacturer,OEM is available.

       5.Which country have you exported?
          America,Brazil,Mexico,Canada, Australia, Peru,Spain,Egypt,Pakistan, South Africa,etc.

       6.How to buy my wanted products quickly?
         Show me the model or the weight of your excavator, and we can give you best solution.
          If you want to know the ocean freight,please also suggest your nearest port.

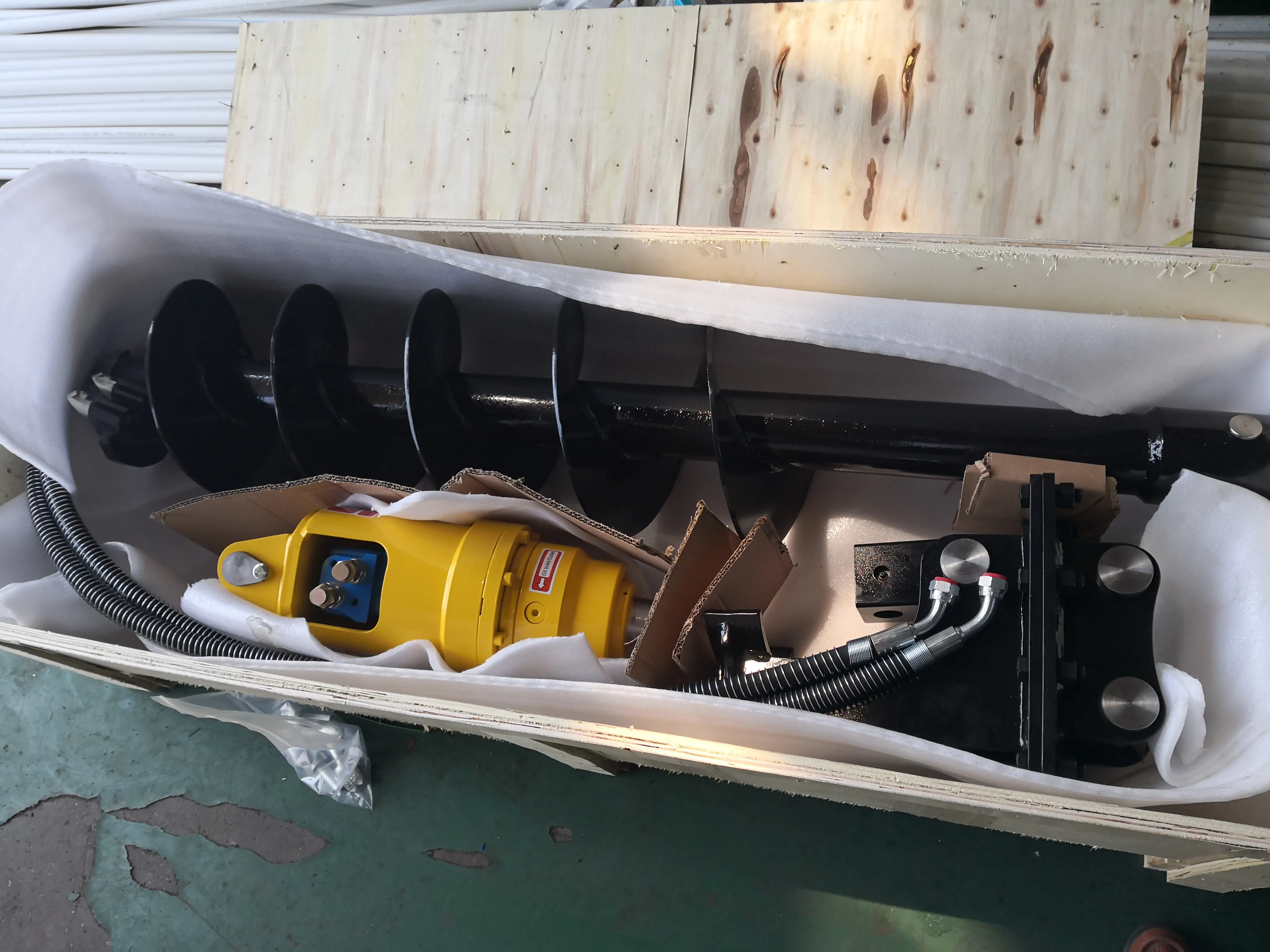

       7.How about the package?
         Standard wooden cases, or as customers' demands.

       8.How about your service?
          7Days *24Hours hot line and email service.
          Well-Retrained and experience staffs will answer all your questions within 12 hours.
