Сельскохозяйственный Дрон-распылитель для удобрений с большой нагрузкой 22
- Категория: Drone Sprayer >>>
- Поставщик: Guangdong,Isun,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 6064.89 $* | 6367.72 $* |
| Aug-15-2025 | 6013.64 $* | 6314.35 $* |
| Jul-15-2025 | 5045.6 $* | 5297.28 $* |
| Jun-15-2025 | 5911.3 $* | 6207.56 $* |
| May-15-2025 | 5147.33 $* | 5404.61 $* |
| Apr-15-2025 | 5809.76 $* | 6099.23 $* |
| Mar-15-2025 | 5758.64 $* | 6046.16 $* |
| Feb-15-2025 | 5708.3 $* | 5993.76 $* |
| Jan-15-2025 | 5657.64 $* | 5940.44 $* |
Характеристики

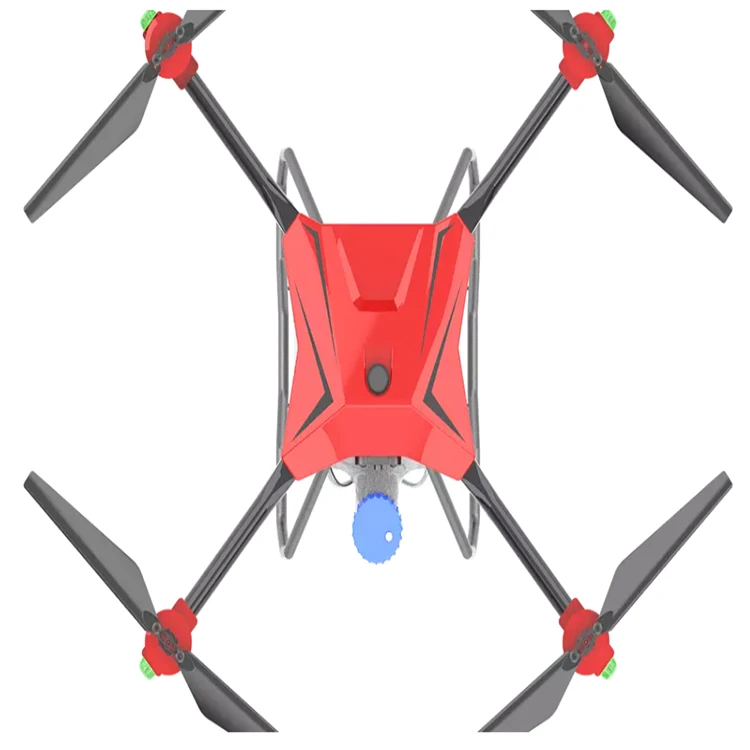

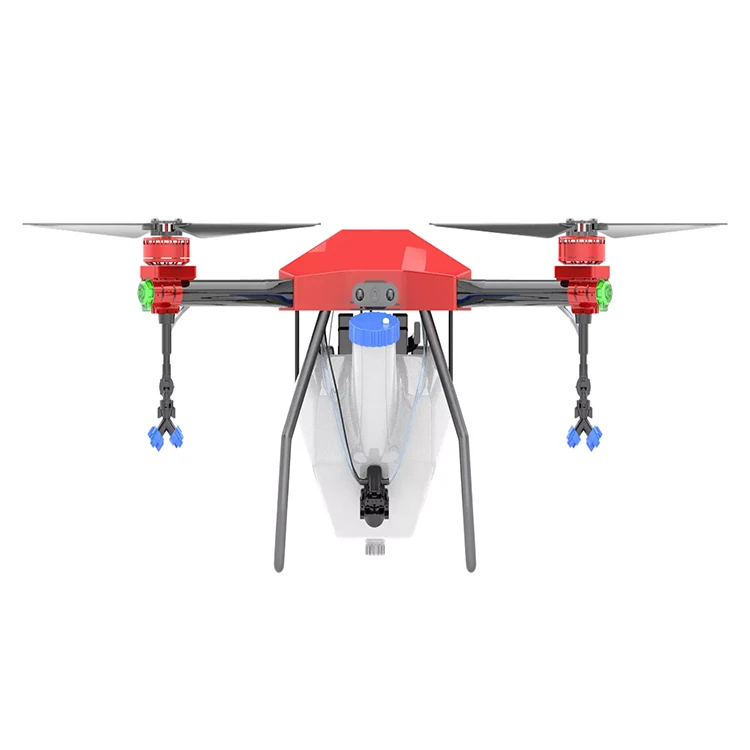

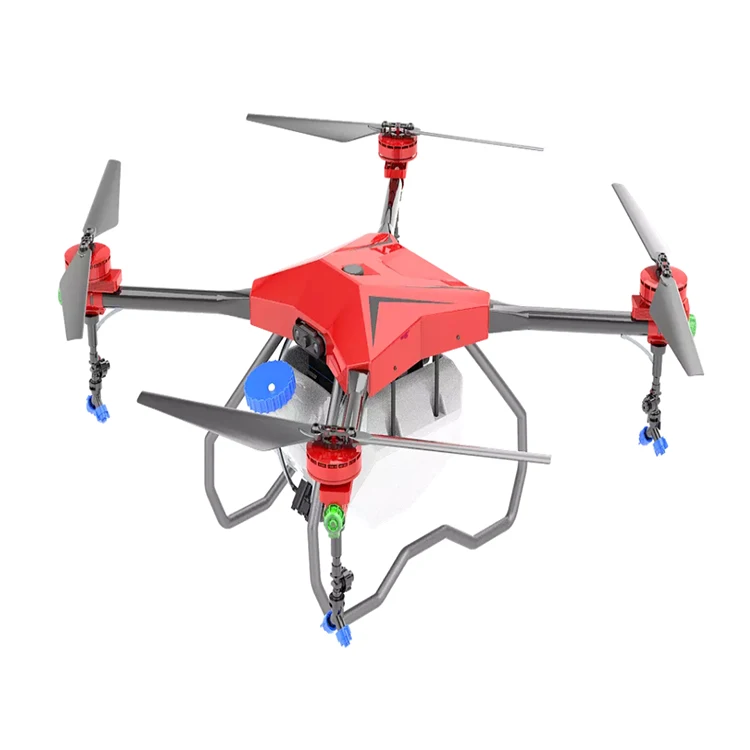

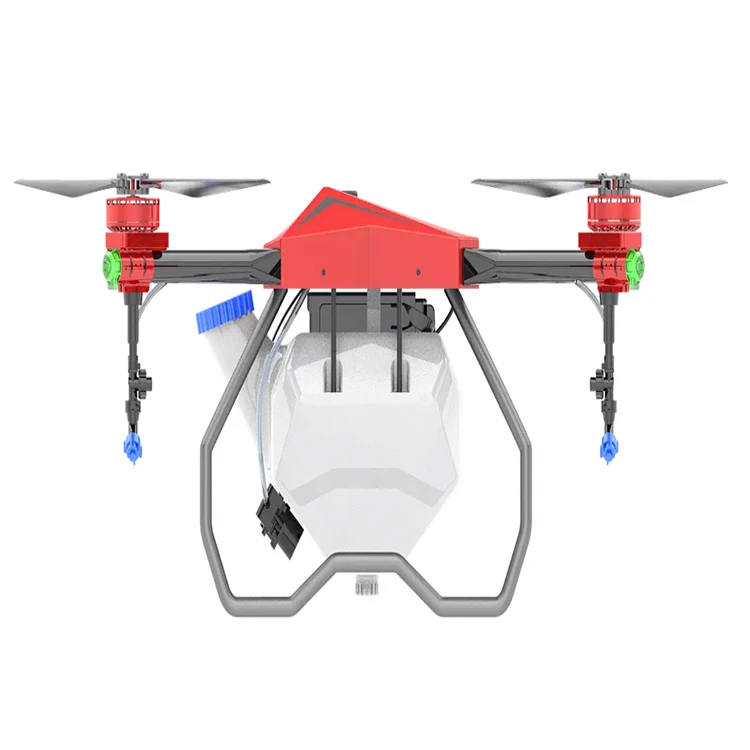

Heavy Payload Fertilizer 22L Agricultural Drone Sprayer
Product Description
Model | D22L-4 | |||||
Airframe Dimensions(including propellers) | 1990mm*1900mm*660mm | |||||
Transport Dimensions | 750mm*750mm*750mm | |||||
Max Takeoff Weight | 44kg | |||||
Max Capacity | 22L | |||||
Spray Width | 4-6m | |||||
Efficiency(ha/ flight mission) | 1.5 | |||||
Operating Efficiency(ha/hour) | 10 | |||||
Nozzle Type | Imported High Pressure Anti-floating Atomizing nozzle | |||||
Droplet Size | 200-500μm | |||||
Water-Resistant | √ | |||||
Flight Controller | Industrial Version GPS and Controller | |||||
Night Operation | √ | |||||
Night Operation | √ | |||||
Terrain Tracing Accuracy | ≤0.1m | |||||
Navigation Method | GPS | |||||
Breakpoint Resume | √ | |||||
Instant Flow-start /stop | √ | |||||
Automatic Liquid Refiller | √ | |||||
Battery Capacity | 14s, 20000mAh | |||||
Battery Lifespan | ≥500 Cycle | |||||
Battery Charger | √ | |||||
Integrated Intelligent Remote Controller | √ | |||||
FPV Camera | √ | |||||
Introduction
D22L-4 can spray orchards through intelligent control. The device can operate autonomously through flight control navigation, and the operator can grasp the current status and progress of spraying at any time through the display. D22L-4 accelerates the formation of an aerosol stream by airflow, which increases the penetration of medicine drops to a certain extent, saving labor costs and labor intensity while being more humane.
Features
1. D22L-4 is not restricted by terrain and height. It takes off from the field to implement crop operations.
2. Handheld ground station equipment can be used for operation. UNID D22L-4 uses long-distance remote control operation and flight control navigation autonomous operation function. Before spraying operations, map the route of the map and enter it into the internal control system of the ground station. With the spraying device, the spraying operation is completed autonomously.
3. While the aircraft is spraying, the progress of the spraying operation can be observed in real time through the display interface of the handheld ground station.
4. The higher and more uniform the coverage density of the spray solution on the unit area, the better the control effect.
5. The spray drop test of liquid medicine reflects an advantage of the loss of pesticides by spraying with drone. The UNID D22L-4 has 8 spiral wings, and the operating height is relatively low. When the liquid spray drops out from the sprayer, It is accelerated by the downward airflow of the 4 rotors to form an aerosol stream, which directly increases the penetration of the medical liquid mist droplets to the crops, reduces the degree of pesticide loss, and the chemical liquid deposition amount and medical liquid coverage are better than conventional Therefore, the control effect is better than traditional, and it can also prevent pesticides from causing pollution to the soil.
