Характеристики
Product Description
Introduction
Trommel screen has wide range of sizes and capacities,Mining Machinery Rrotating Vibrating Drum Sieve is a mechanical screening machine used to separate materials. Trommel screen consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover. When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Advantages and Features
1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site
2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
3. Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
5. Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6. Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.
Trommel screen has wide range of sizes and capacities,Mining Machinery Rrotating Vibrating Drum Sieve is a mechanical screening machine used to separate materials. Trommel screen consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover. When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Advantages and Features
1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site
2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
3. Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
5. Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6. Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.

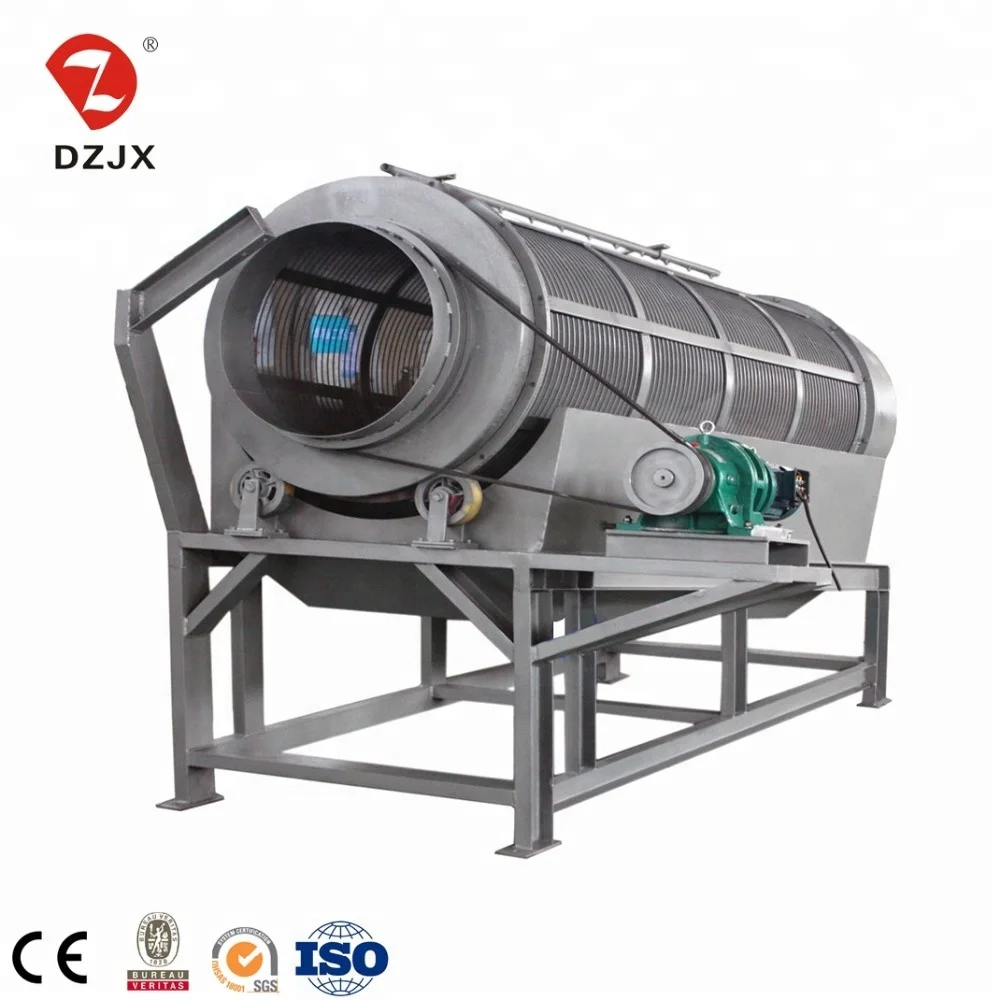

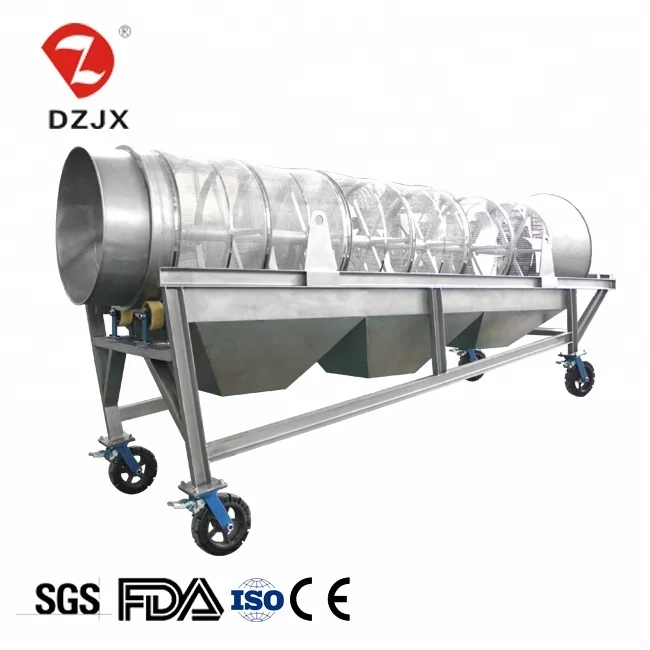

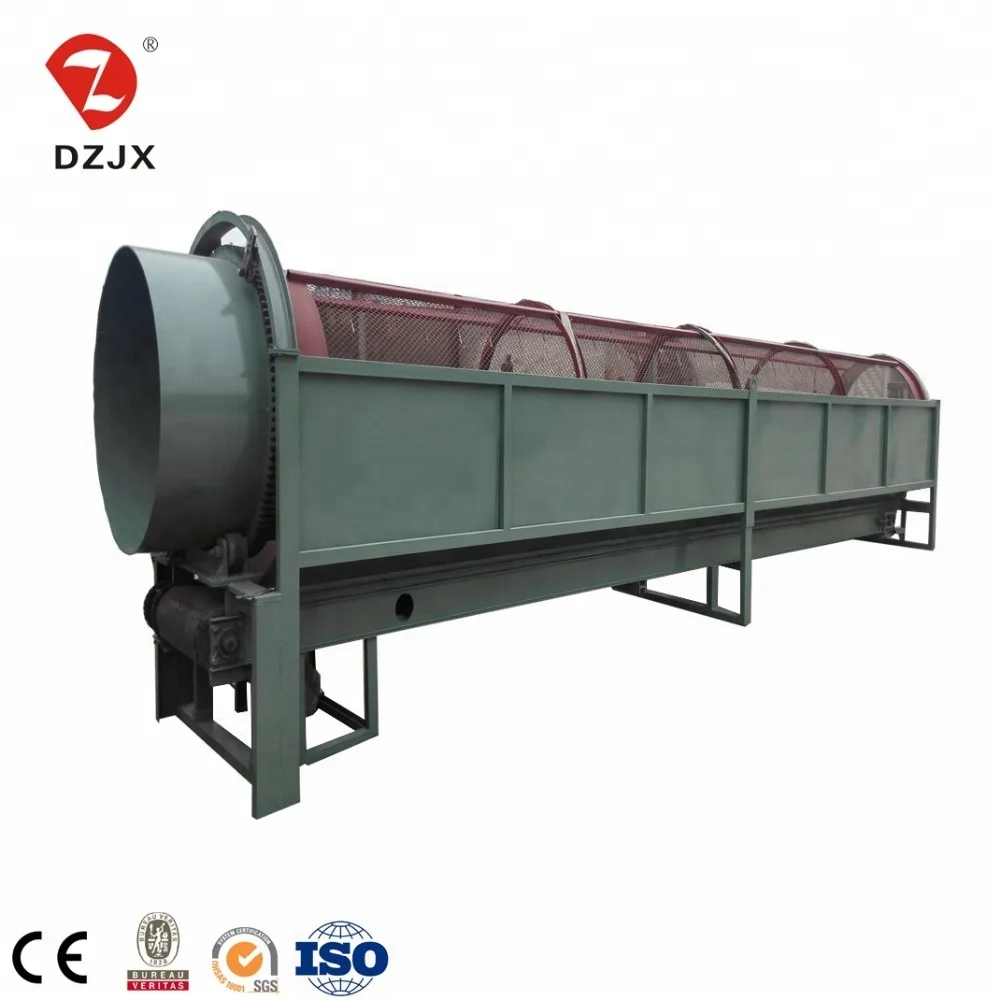

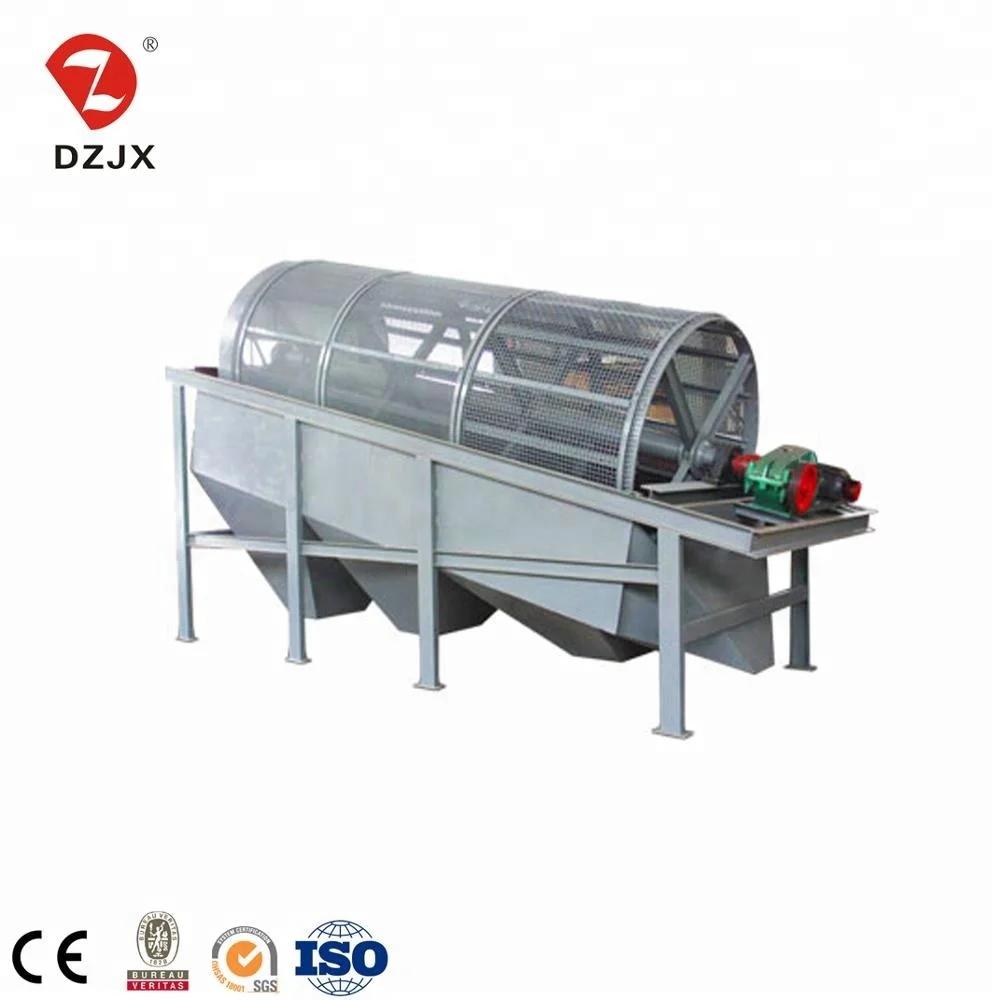

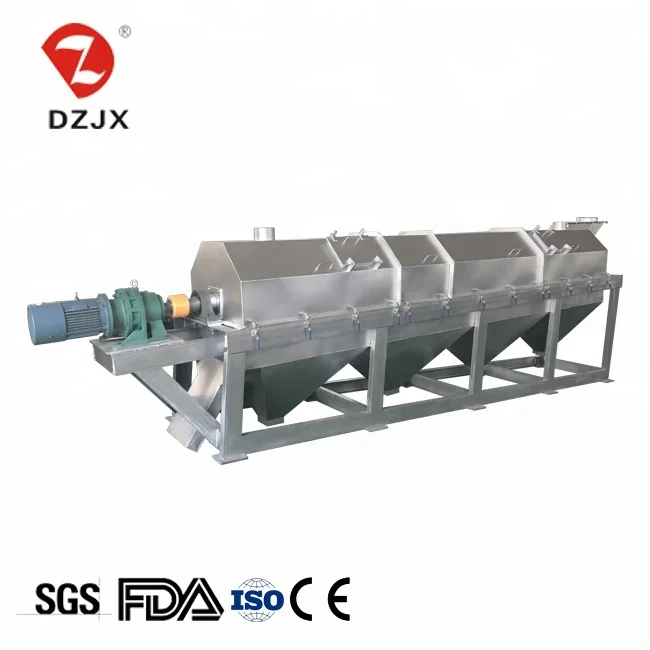

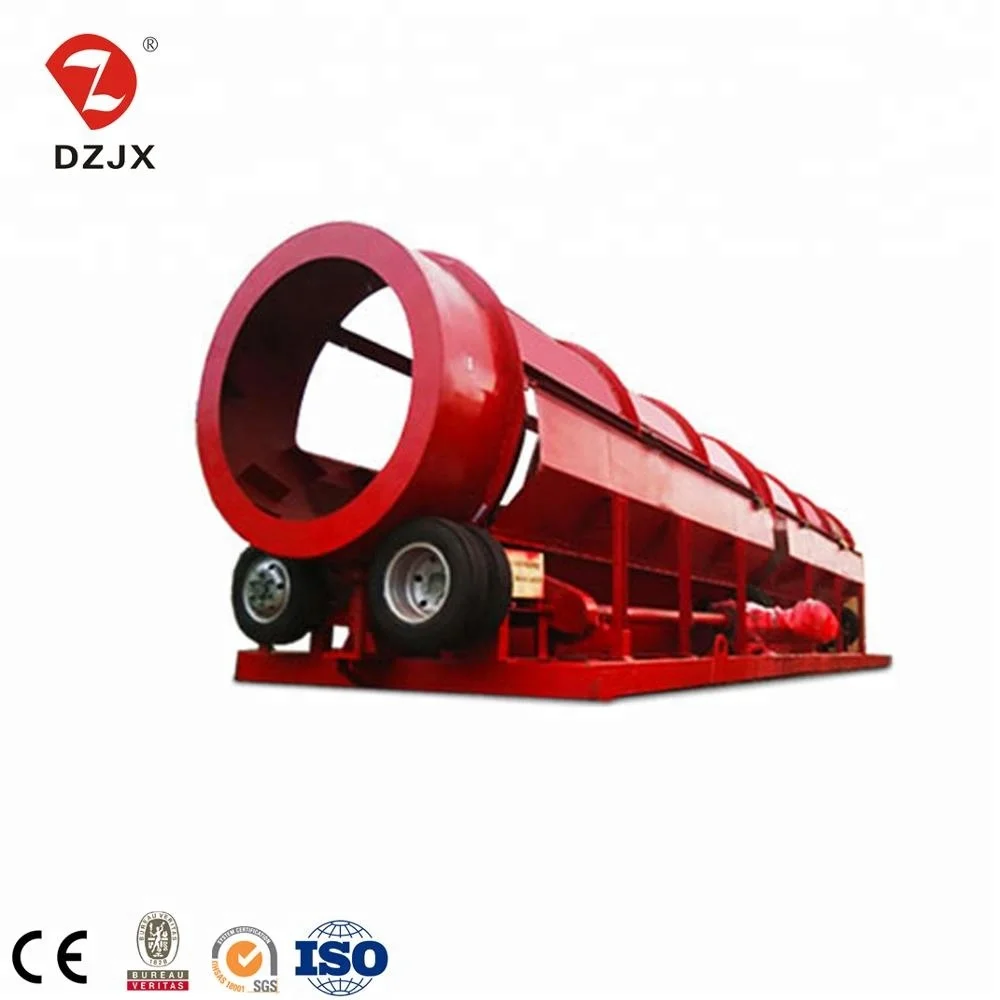

Products Show
Product details
Application range
Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
Technical Parameter
Model | Power(kw) | Drum diameter(mm) | Drum length(mm) | Screen size(mm) | Dimension(mm) |
GT1015 | 3 | 1000 | 1500 | Customization | 3000*1400*2145 |
GT1020 | 3 | 1000 | 2000 | 3460*1400*2145 | |
GT1225 | 4 | 1200 | 2500 | 4146*1600*2680 | |
GT1530 | 5.5 | 1500 | 3000 | 4460*1900*2820 | |
GT1545 | 7 | 1500 | 4500 | 5960*1900*3080 | |
GT1848 | 11 | 1800 | 4800 | 6500*2300*4000 | |
GT2055 | 15 | 2000 | 5500 | 7500*2500*4000 |
Packing & Delivery
ex port wooden case for trommel sieve
