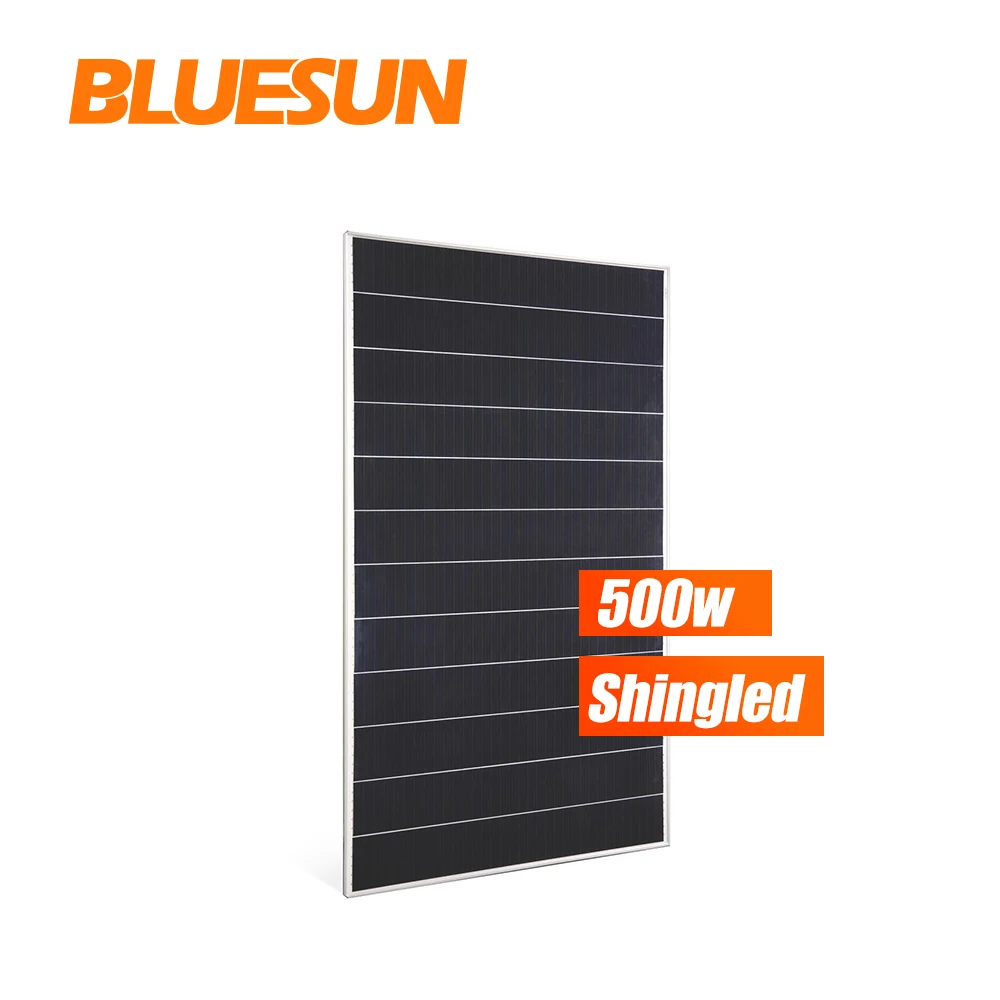

Монокристаллическая солнечная панель Bluesun Shingle 500 Вт 48 В
- Категория: Solar Cells >>>
- Поставщик: Bluesun,Solar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.3 $* | 0.75 $* |
| Aug-19-2025 | 0.97 $* | 0.12 $* |
| Jul-19-2025 | 0.68 $* | 0.67 $* |
| Jun-19-2025 | 0.38 $* | 0.19 $* |
| May-19-2025 | 0.66 $* | 0.20 $* |
| Apr-19-2025 | 0.10 $* | 0.29 $* |
| Mar-19-2025 | 0.97 $* | 0.65 $* |
| Feb-19-2025 | 0.48 $* | 0.96 $* |
| Jan-19-2025 | 0.62 $* | 0.60 $* |
Характеристики
Global Exhibitions
Our Company
Products Description
Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Electrical Characteristics | ||||||||||||
Model | BSM470PM5 -72SB | BSM475PM5 -72SB | BSM480PM5 -72SB | BSM485PM5 -72SB | BSM490PM5 -72SB | BSM500PM5 -72SB | ||||||
Max Power(Pmax) [W] | 470 | 475 | 480 | 485 | 490 | 500 | ||||||
Open Circuit Voltage(Voc) [V] | 46.4 | 46.5 | 46.6 | 46.6 | 46.7 | 46.8 | ||||||
Short Circuit Current(lsc) [A] | 13.04 | 13.10 | 13.16 | 13.22 | 13.28 | 13.40 | ||||||
Max Power Voltage(Vmp) [V] | 38.6 | 38.7 | 38.8 | 38.8 | 38.9 | 39.0 | ||||||
Max Power Current(lmp) [A] | 12.18 | 12.27 | 12.37 | 12.50 | 12.60 | 12.82 | ||||||
Module Efficiency [%] | 20.1 | 20.3 | 20.5 | 20.7 | 20.9 | 21.3 | ||||||
Power Tolerance | 0-5W | |||||||||||
Max System Voltage | 1000V/1500V/DC(IEC) | |||||||||||
Max Series Fuse Rating | 20A | |||||||||||
Operating Temperature | -40 °C to + 85 °C | |||||||||||
STC | Irradiance 1000W/m2, cell temperature 25 °C, AM1.5 | |||||||||||
Advantages Of Shingled Module
*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.
Packing
Model | BSMxxxPM5-60SB | BSMxxxPM5-72SB |
Pcs/Pallet | 31 | 31 |
Pcs/40'HQ | 806 | 682 |
Pcs/Flat Car | 1240 | 992 |
