Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
XPON ONT 1GE + 1FE Wifi CATV Fiber Epon Gpon
- Категория: Telecommunications >>>
- Поставщик: Shenzhen,Serat,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.65 $* | 0.61 $* |
| Aug-16-2025 | 0.70 $* | 0.14 $* |
| Jul-16-2025 | 0.67 $* | 0.5 $* |
| Jun-16-2025 | 0.84 $* | 0.47 $* |
| May-16-2025 | 0.98 $* | 0.60 $* |
| Apr-16-2025 | 0.90 $* | 0.41 $* |
| Mar-16-2025 | 0.54 $* | 0.15 $* |
| Feb-16-2025 | 0.18 $* | 0.36 $* |
| Jan-16-2025 | 0.87 $* | 0.4 $* |
Характеристики
Products Exhibition
Feature
●Supports Dual Mode (can access GPON/EPON OLT).
●Supports GPON G.984/G.988 standards.
●Support CATV interface for Video Service and remote control by Major OLT.
●Support 802.11n WIFI (2x2 MIMO) function.
●Support NAT, Firewall function.
●Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
●Supports GPON G.984/G.988 standards.
●Support CATV interface for Video Service and remote control by Major OLT.
●Support 802.11n WIFI (2x2 MIMO) function.
●Support NAT, Firewall function.
●Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
●Support port mode of VLAN configuration.
●Support LAN IP and DHCP Server configuration.
●Support TR069 Remote Configuration and maintenance.
●Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
●Support IPv4/IPv6 dual stack.
●Support IGMP transparent/snooping/proxy.
●In compliant with IEEE802.3ah standard.
●Compatible with popular OLT (HW, ZTE, FiberHome...).
●Support LAN IP and DHCP Server configuration.
●Support TR069 Remote Configuration and maintenance.
●Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
●Support IPv4/IPv6 dual stack.
●Support IGMP transparent/snooping/proxy.
●In compliant with IEEE802.3ah standard.
●Compatible with popular OLT (HW, ZTE, FiberHome...).
Specification
Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.4kg |
Notice
Packaging, LOGO, Antenna, Software, Can be customized, Please contact us for more details.
Application
1.Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home).
2.Typical Service：Broadband Internet access, IPTV, VOD, CATV and Video Surveillance.
Company Profile

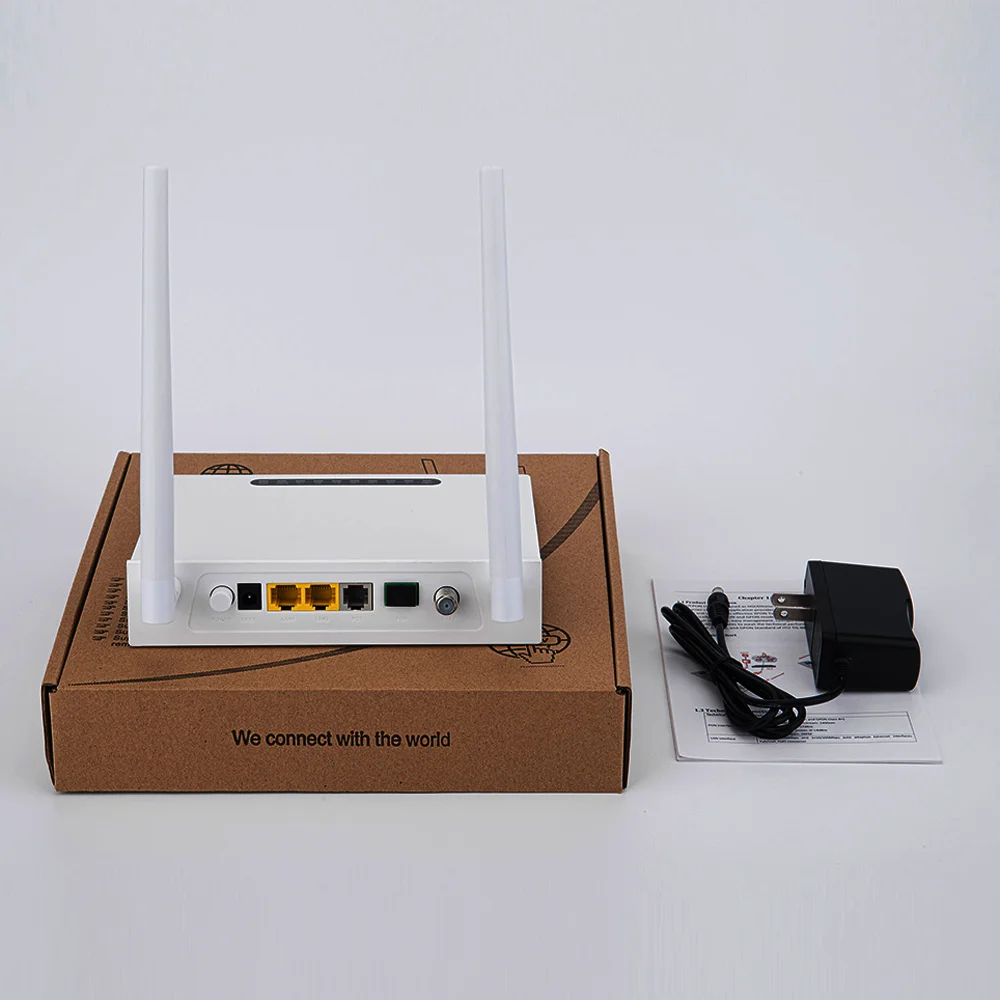

Packing and Shipping
Contents | Quantity |
ONU | 1pcs |
Power Adapter | 1pcs |
User Manual | 1pcs |
FAQ
Q: Can we get a lower price? Any Discount?
A: Yes, price is not a problem,everything could be negotiated based on the quantity.
Q: What is your MOQ?
A: No MOQ for any sample test.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q: How about the Warranty?
A:Most products come with a 24-month warranty. Human causes and other brands are not included.
A: Yes, price is not a problem,everything could be negotiated based on the quantity.
Q: OEM,ODM Service is available?
A: Support.
A: Support.
Q: What is your MOQ?
A: No MOQ for any sample test.
Q: For Trade Terms, such as payment ?
●Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union .
●Price Terms: EXW Shenzhen .
●Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent .
Q: How about the Warranty?
A:Most products come with a 24-month warranty. Human causes and other brands are not included.
