Композитные роликовые подшипники 4 061 для вилочного погрузчика

Описание и отзывы

Трекер стоимости

Характеристики

Product Type :



Combined Roller Bearings - Standard Type



Structure :

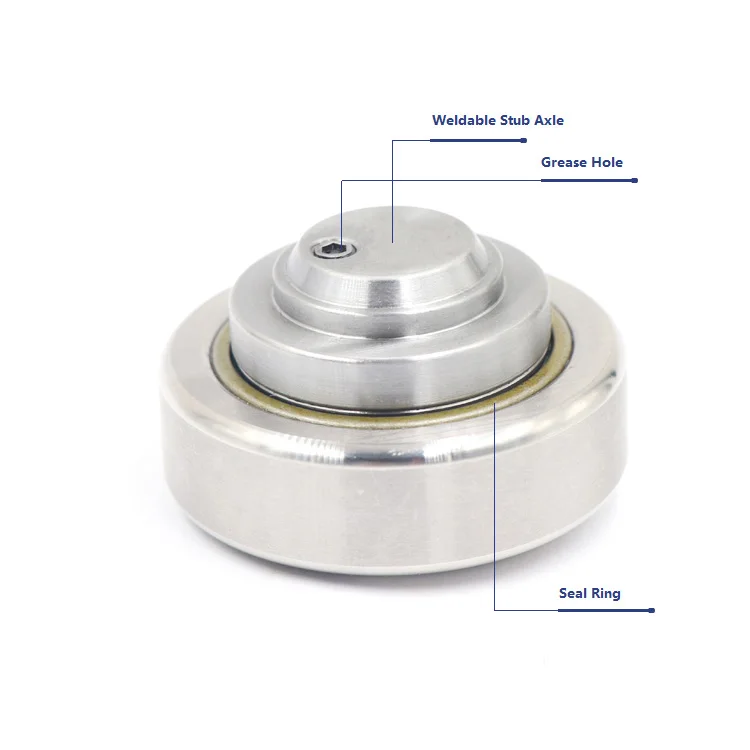

        Standard Type Combined Roller bearing mainly consists of a hub, a radial bearing and an axial roller .





Outer ring and axial little roll are manufactured in case-hardening steel type 20CrMnTi. This kind of steel guarantees a very good resistance to stress, and assures a very good resistance against crashes. The surface hardness can reach 60-2 HRC for both of them. Inner ring and pin are manufactured in core-hardened 100 Cr6 steel. The total-hardening steel guarantees high resistance to wear and stress . Seal system prevents outer agents, such as dust, wet and mill scale, to enter the inner part of the bearing, and at the same time it prevents the leakage of lubrication grease.  The lateral thrust cover is made in case-hardening steel as well. The central pivot is made in low carbon C20/C45 steel, which guarantees high resistance and is highly suitable for welding.



product features :





Images :





Size :



	Model :	4.061
	D :	107.7 mm
	d :	60 mm
	T :	71 mm
	H :	69 mm
	h :	55 mm
	S :	34 mm
	B :	31 mm
	r :	5 mm
	Weight :	2.82 kg



Series products :



STANDARD COMBINED BEARINGS : 4.053  4.054  4.055  4.056  4.057  4.058  4.059  4.060  4.061  4.062  4.063



ECCENTRIC ADJUSTABLE BEARINGS : 4.454 4.455 4.456 4.457 4.458 4.459 4.460 4.461 4.462 4.463



SHIM ADJUSTABLE BEARINGS : 4.072  4.073  4.074  4.075  4.076  4.077  4.078  4.079  4.080



Chart :





Q1: Are you trading company or manufacturer?
A1: We are manufacturer.

Q2: Do you provide free samples?
A2: Yes, We provide samples.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
