Модуль камеры CMOS IMX415 с автофокусом датчиком 4K USB для компьютера настольного ПК
- Категория: Video Cameras >>>
- Поставщик: Shenzhen,Ailipu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 114.40 $* | 120.26 $* |
| Aug-18-2025 | 113.81 $* | 119.31 $* |
| Jul-18-2025 | 95.97 $* | 100.65 $* |
| Jun-18-2025 | 111.97 $* | 117.27 $* |
| May-18-2025 | 97.55 $* | 102.84 $* |
| Apr-18-2025 | 109.18 $* | 114.20 $* |
| Mar-18-2025 | 108.18 $* | 113.64 $* |
| Feb-18-2025 | 108.20 $* | 113.96 $* |
| Jan-18-2025 | 107.19 $* | 112.7 $* |
Характеристики

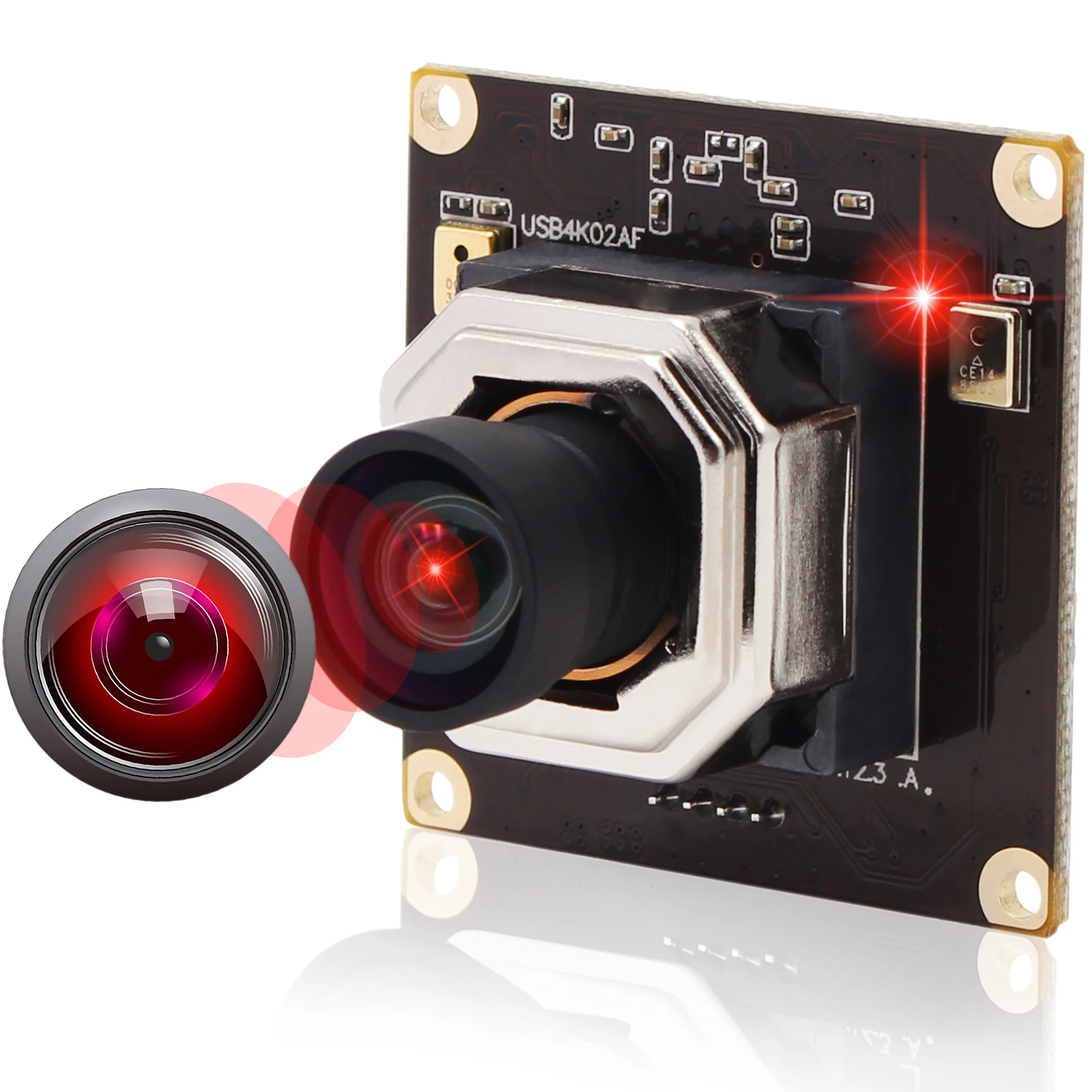

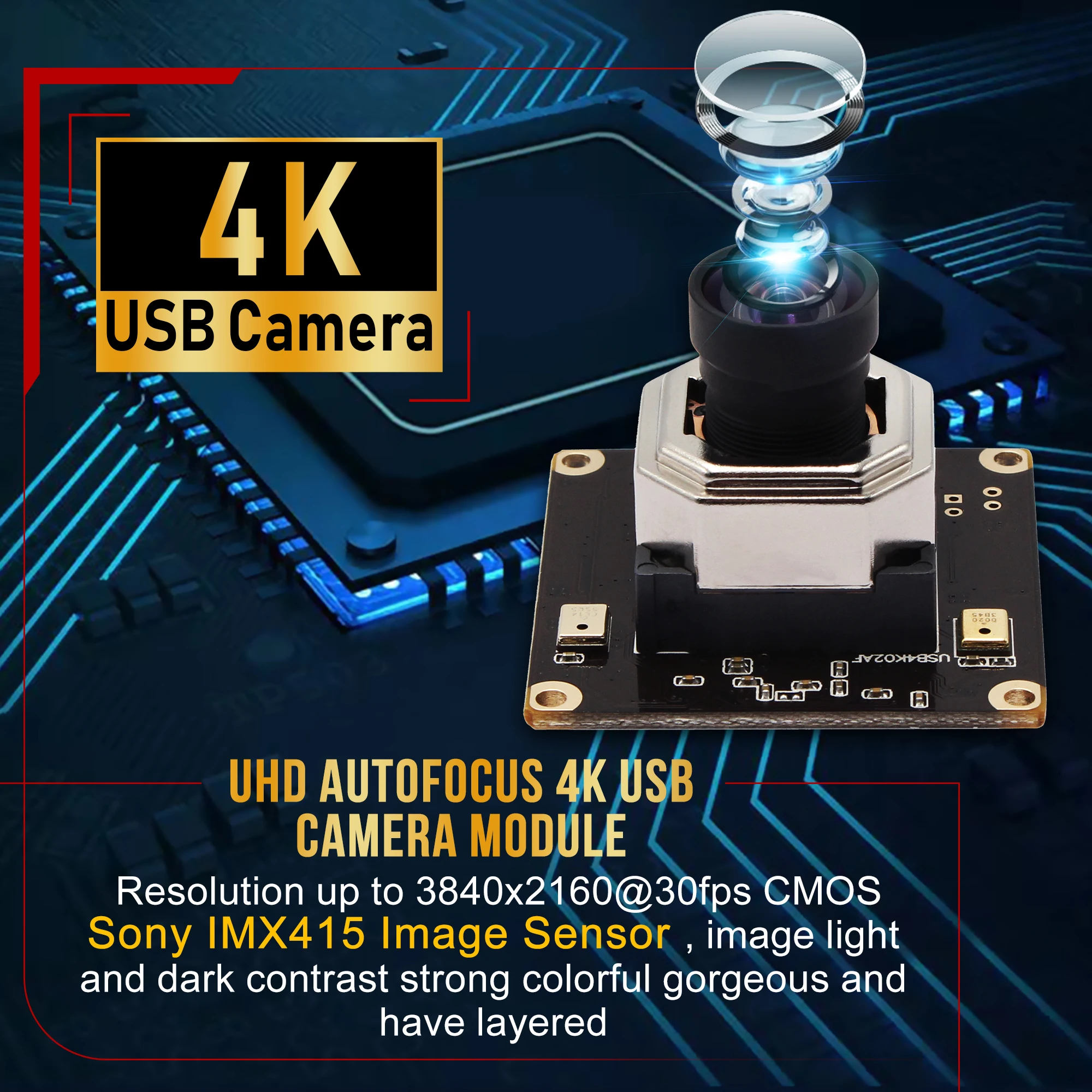

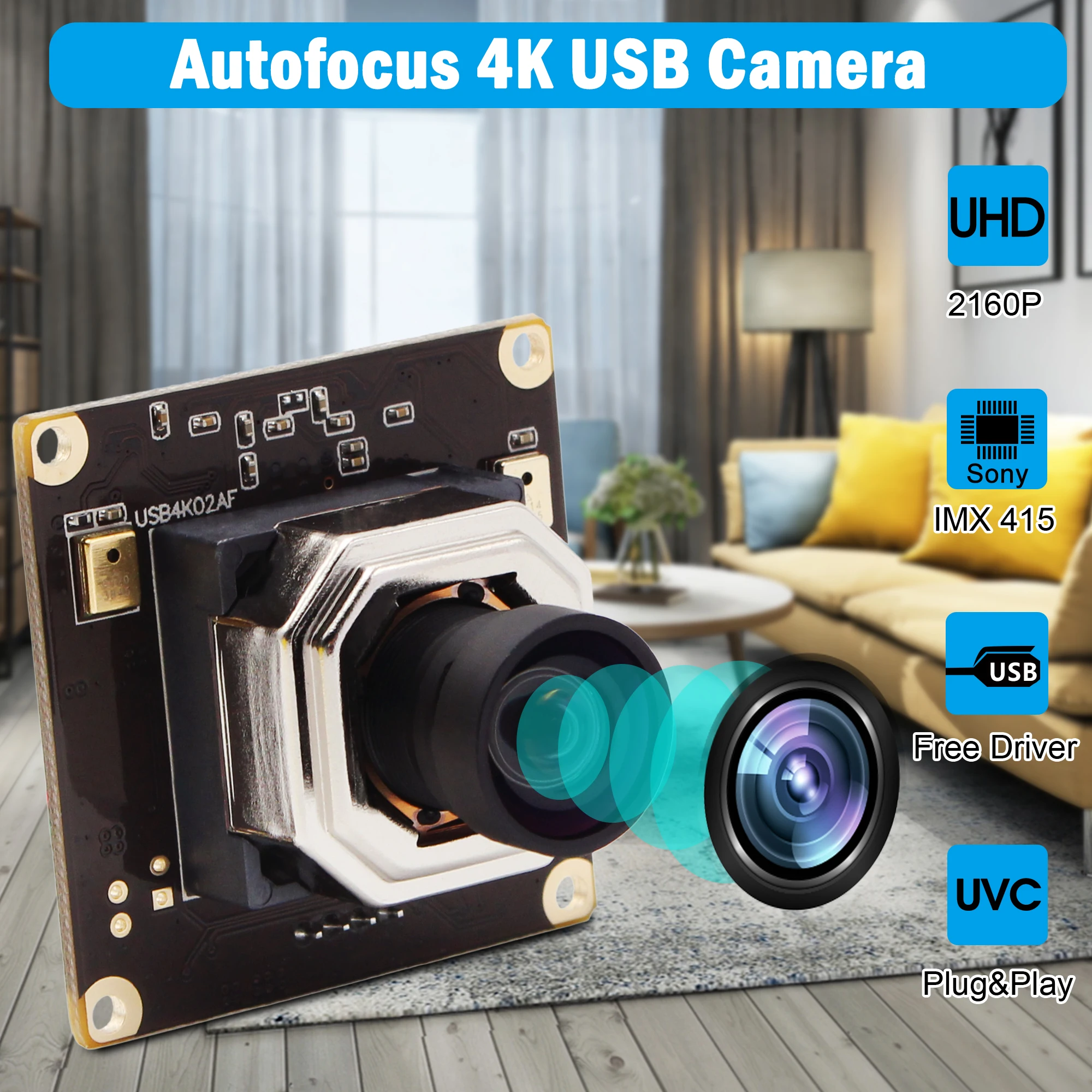

No Distortion Autofocus 4K USB Camera Module CMOS IMX415 Sensor Mini PC Webcam For Computer PC Desktop Laptop
Key Features
1) 4K High resolution , Max resolution 3840x2160
2)Auoto focus, with motor
3) Advanced Sony (1/2.8'' ) IMX415 image sensor
4) High quality 2.8/3.6/6/8/12mm lens, no distortion lens optional
5) Support OS: Win XP\\Win7\\Win8\\Android\\Linux , support raspberry pi\\Mac
5) Compression : MJPEG&YUY2
3) Advanced Sony (1/2.8'' ) IMX415 image sensor
4) High quality 2.8/3.6/6/8/12mm lens, no distortion lens optional
5) Support OS: Win XP\\Win7\\Win8\\Android\\Linux , support raspberry pi\\Mac
5) Compression : MJPEG&YUY2
Specification
Image Sensor | SONY IMX415 (1/2.8”) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Pixel Size | 1.45µmx1.45µm |
Compression format | MJPEG / YUY2(YUYV) |
Center definition | 1000LW/PH (Center) |
S/N Ratio | 30 dB |
Sensitivity | 0.65V/lux-sec@550nm |
Minimum illumination | 0.2 lux |
Shutter Type | Electronic rolling shutter / Frame exposure |

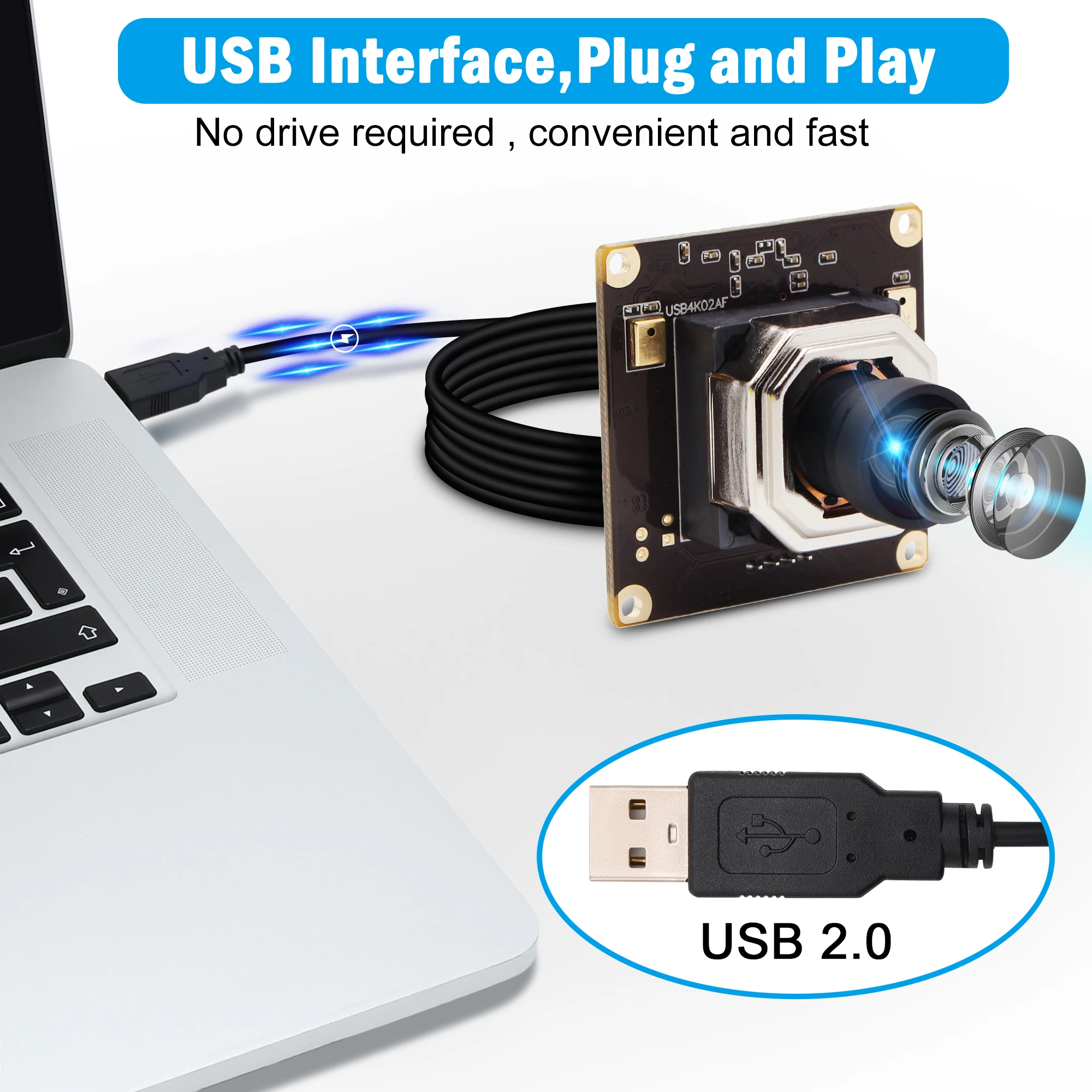

Connecting Port type | USB2.0 High Speed |
USB Cable | 1 m (2/3/5m optional) |
AEC | Support |
AEB | Support |
AGC | Support |
Auto Focus | Support |
Lens Size | 1/2.5 |
FOV | 94.5 Degree |
IR filter | 650±10nm |
Power supply& connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC 5V |
Power Current | 200mA |

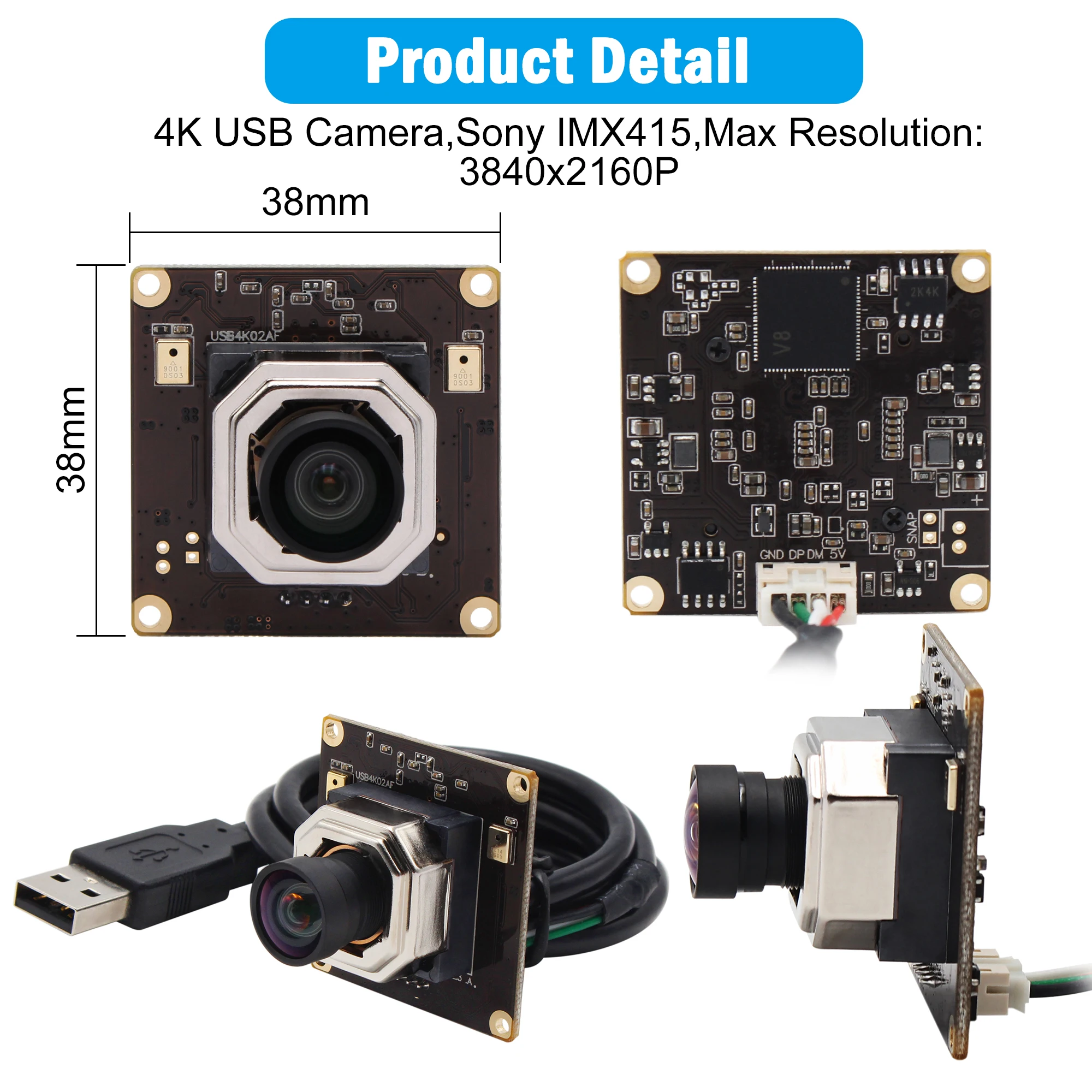

Board Size | 38mm × 38mm |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure |

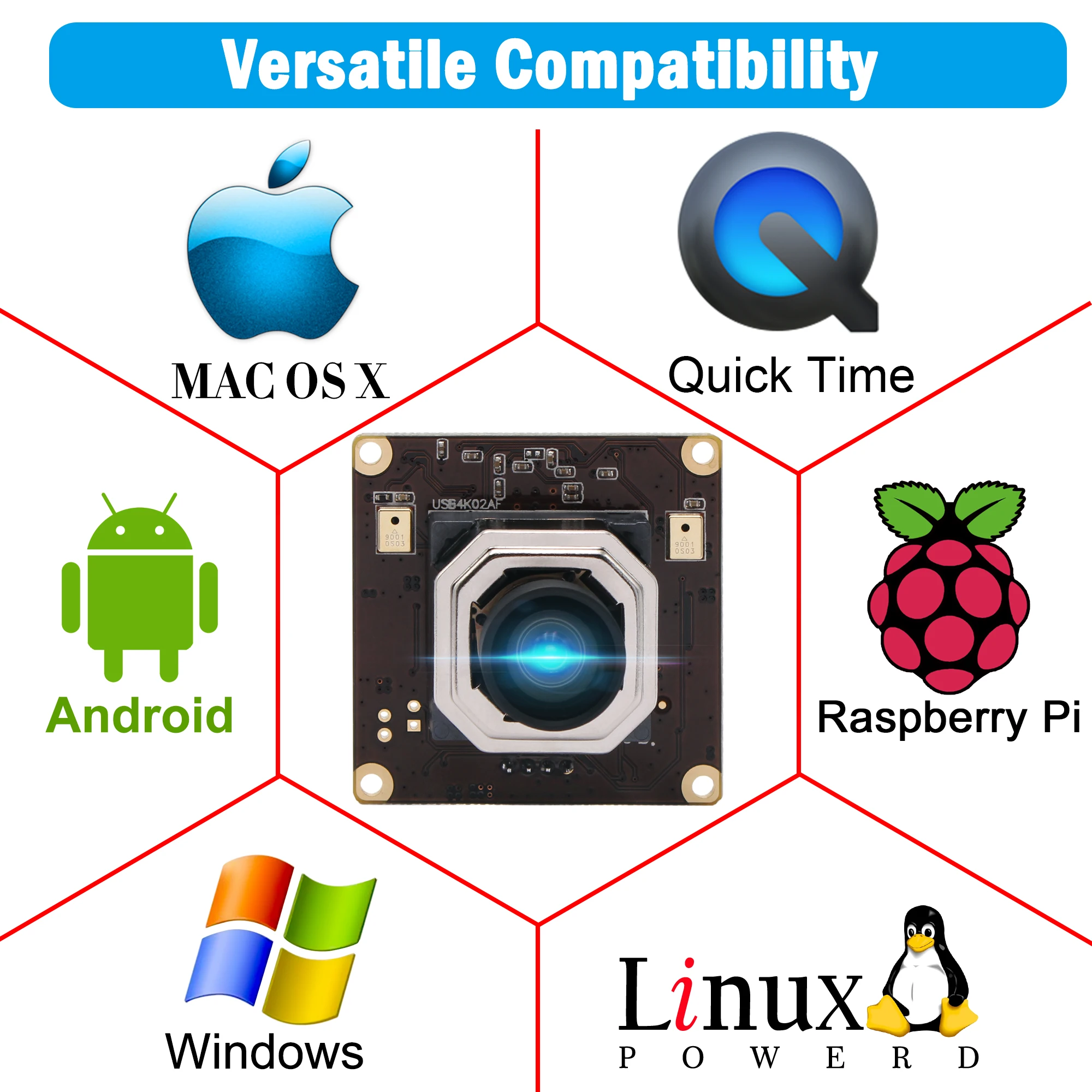

Operating System support | Win XP/Vista/Win7/Win8 /Win10/ Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC" |
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Product Description
Packing & Delivery
Box for camera module without case
Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
Box for camera with case
Camera with case, 1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm
Each product will be wrapped by bubble bag and put into a small inner carton, and then loaded into a master carton.
Payment and Delivery terms:
T/T: 100% payment before shipping; Western Union, Paypal, all available.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
Our Company
Shenzhen Ailipu Technology Co.,Ltd start in 2005,already 16 years history, is a professional manufacturer of USB Camera. Ailipu has its own brand ELP, which already well know in video camera system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
Exhibition
Certifications
Sample Room & Production Process
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
