Product Description

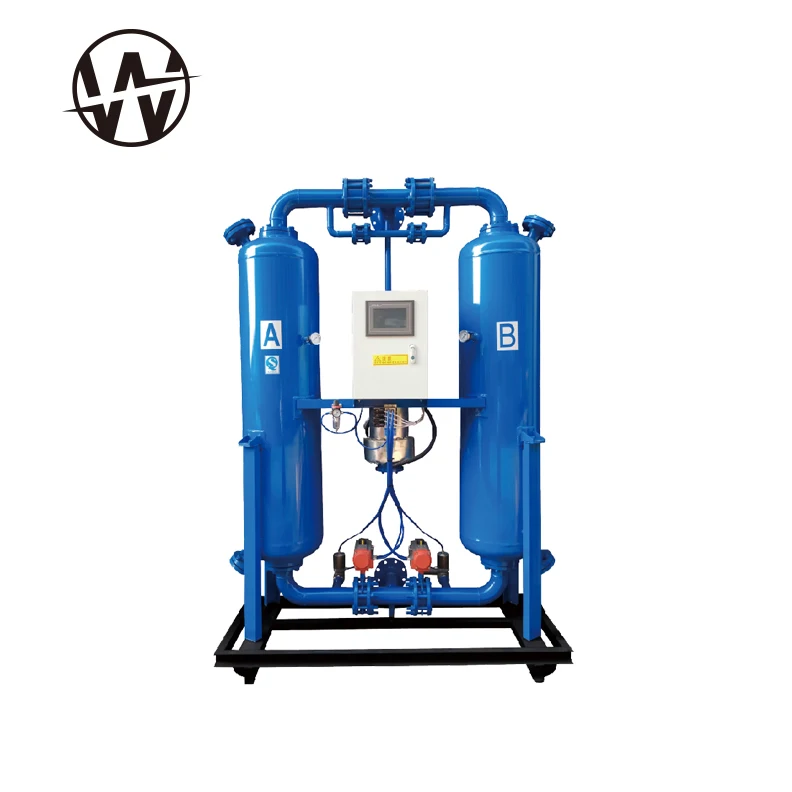

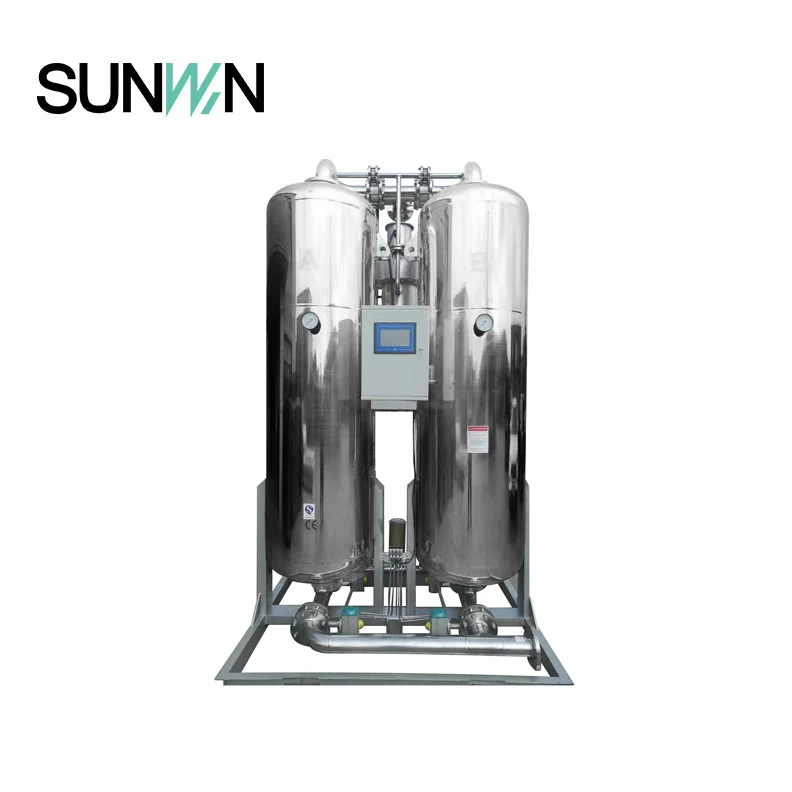

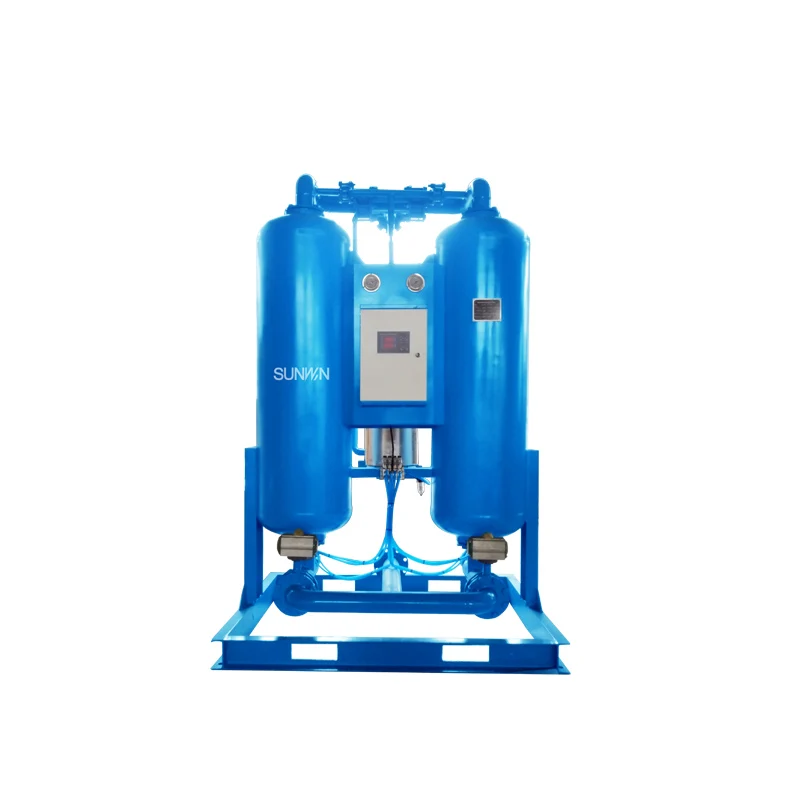

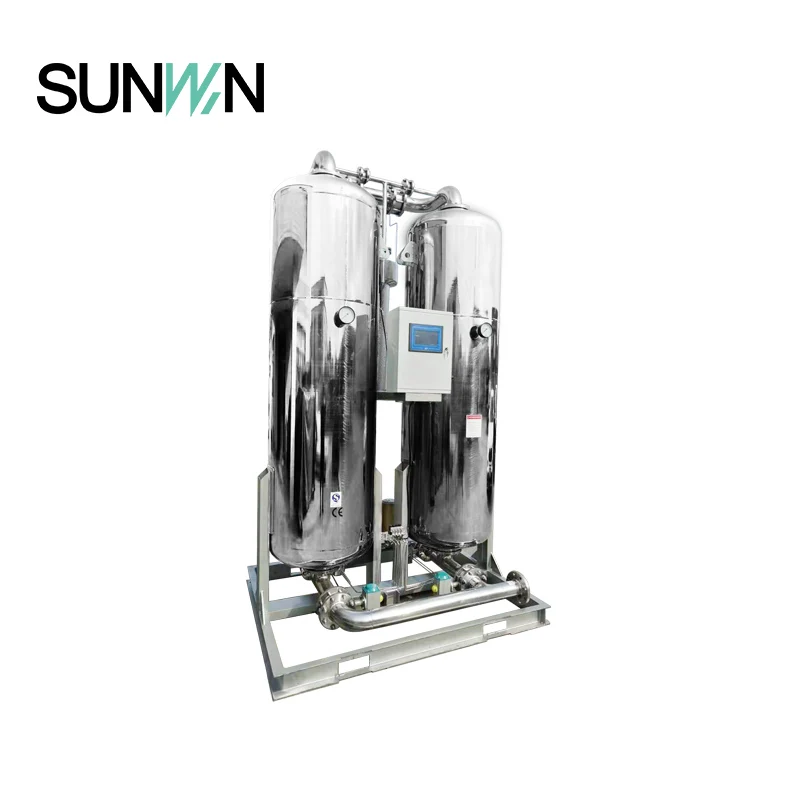

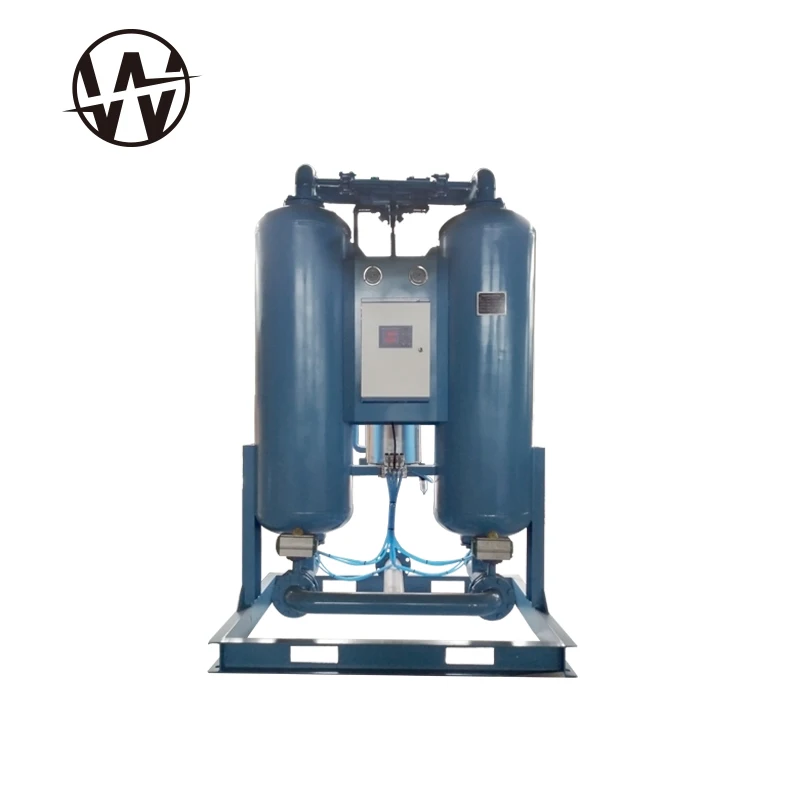

Best quality Heated Type Desiccant Air Dryer for Air Compressor Treatment System
Externally Heated purge desiccant air dryer integrating advantages of heat-exists purge and heatless purge, externally heating the purge type air,reduce it's consumption. It efficiently avoids the disadvantages of short switching time and consuming most of the purge air of the desiccant air dryer and wasting electricity of heat-exists air dryer. This product has got rationally switch time, Little purge air consumption, also being the most economical Desiccant Dryer.
• Pressure Dew Point(PDP): -40~-70℃
• Capacity :1.2~200m3/min(42~7142cfm)
• Working pressure : 0.6~1.0Mpa
• Inlet temperature : 0~45℃
• Purge air: ≤4~6%
• Inlet oil contain: ≤0.01ppm
• Working periods: T=60~180Minutes
• Power Supply :380v/50Hz
\t\t\t\t\t\t\t\t\tParameters list \t\t\t\t\t\t\t
Model | Capacity Nm3/min | Air Connections | Power Supply V/Hz | Heater Power KW | Dimensions (mm) L *W *H\t | Weight |
SW-1MXF | 1.2 | ZG1 | 220/1/50 | 1.2 | 669*570*1343 | 145 |
SW-3MXF | 3.8 | ZG1 | 220/1/50 | 2.0 | 930*570*1459 | 245 |
SW-6MXF | 6.5 | ZG1.5 | 220/1/50 | 3.0 | 971*750*1899 | 405 |
SW-8MXF | 8.5 | ZG2 | 220/1/50 | 3.5 | 1140*850*1931 | 440 |
SW-15MXF | 18 | DN65 | 220/1/50 | 5.1 | 1398*1152*2207 | 680 |
SW-20MXF | 23 | DN80 | 220/1/50 | 5.4 | 1398*1152*2253 | 780 |
SW-25MXF | 28 | DN80 | 380/3/50 | 7.0 | 1446*1200*2525 | 880 |
SW-60MXF | 65 | DN125 | 380/3/50 | 15.0 | 1952*1460*2456 | 1700 |
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
We are a manufacturing and trading combo specialize in compressed air drying and purification equipment for more than 15 years at this field. We have a professional technical team, which can provide professional and reasonable suggestions and technical support according to various customer needs, production needs and site conditions.
Our products are sold to more than 40 countries, including the United States, Germany, Australia, Japan and South Korea.We have full experience in exporting our machines to Southeast Asian market.Our products have passed the latest CE and ISO certificates.
Our Service
Pre-Sales Service
* We have separate testing room;
* To maintain pressure in the production process for 48 hours for testing;
* We will turn on the machine for test before theshipment;
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
