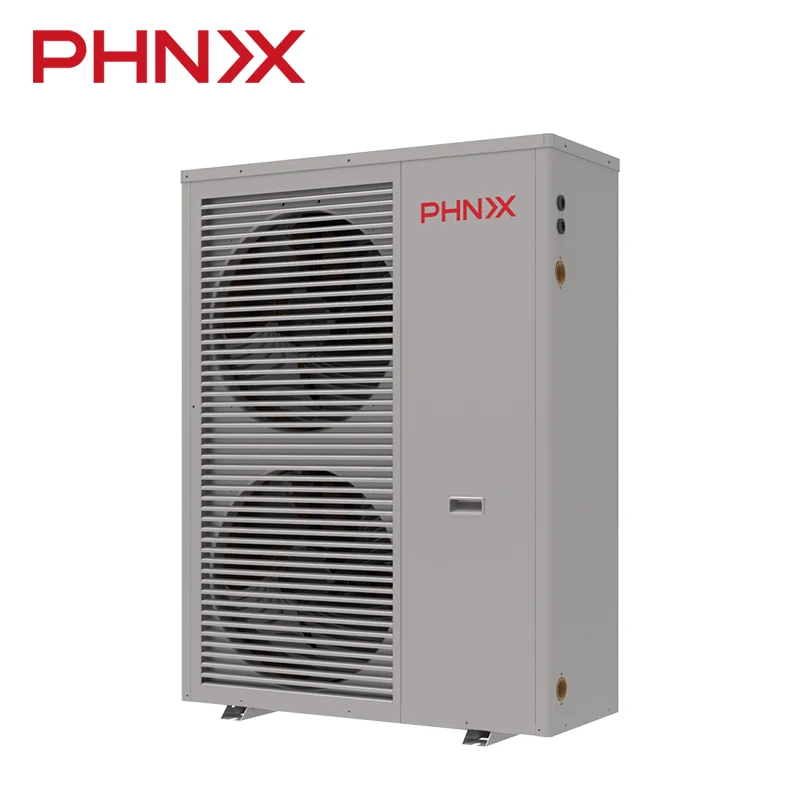

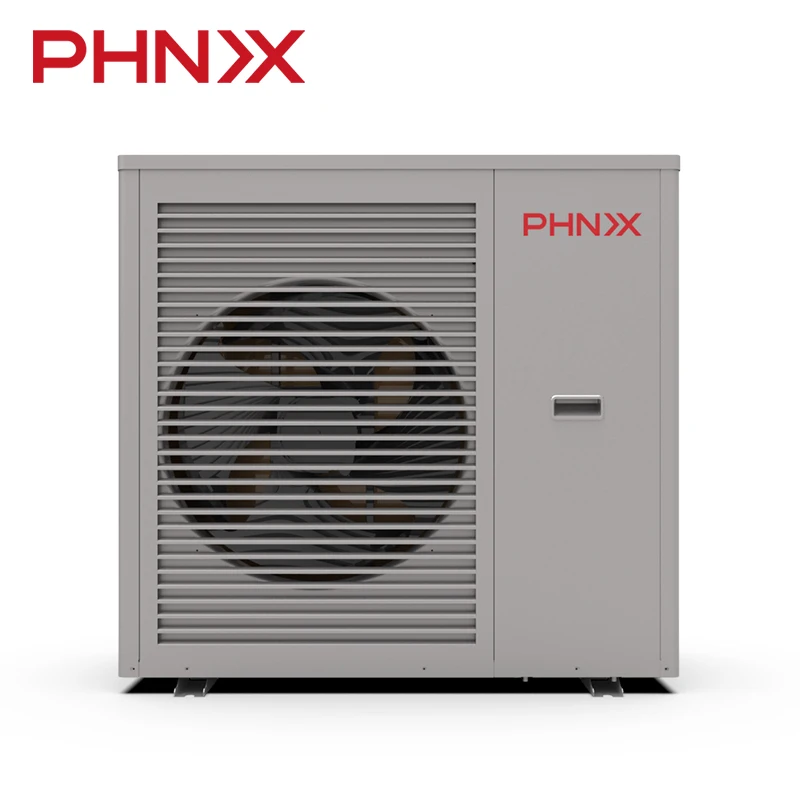

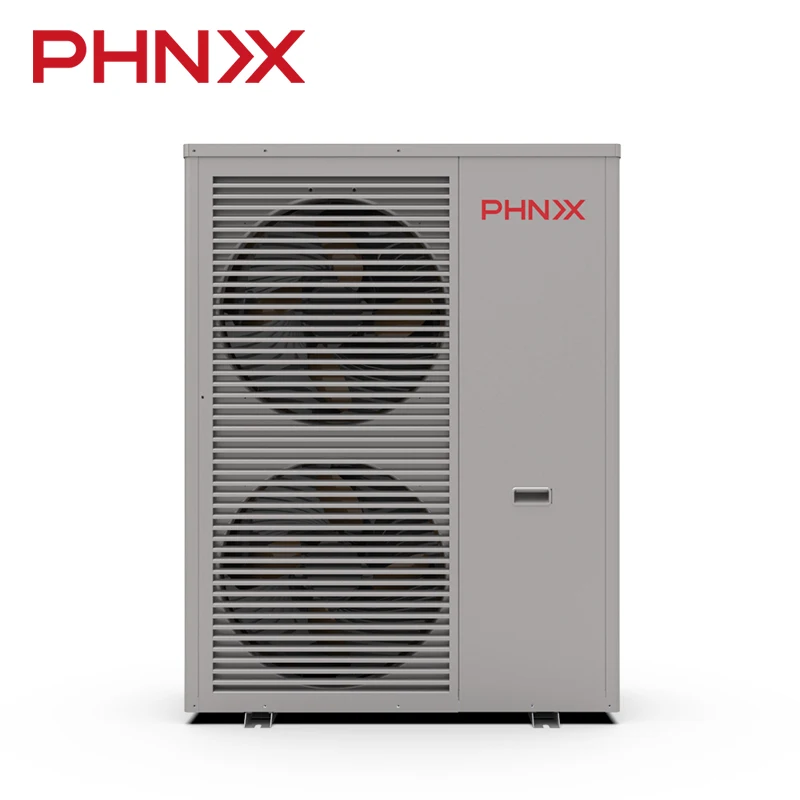

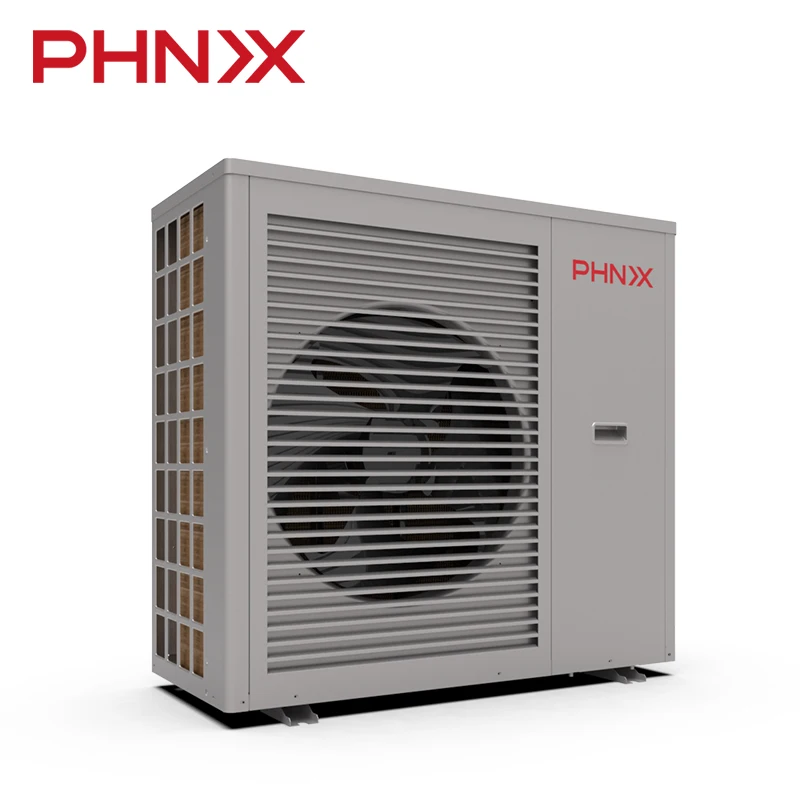

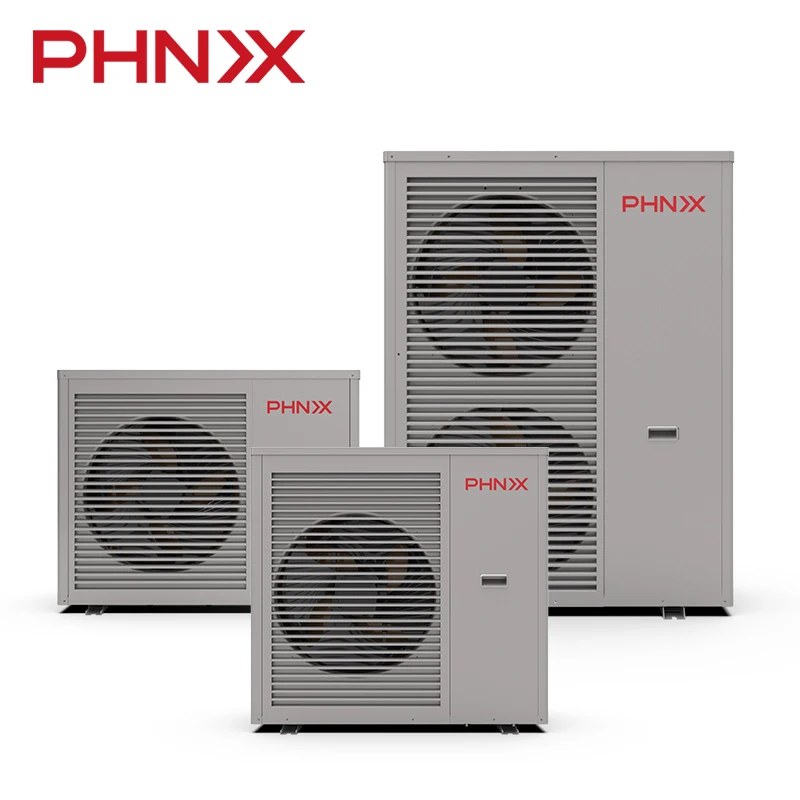

PHNIX Monoblock R32 Evi 20 кВт воздушно-водяной тепловой насос 10 инвертор Китай Bomba de


Поделиться:


Цена:2 450,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 2916.27 $* 3062.62 $*
Aug-15-2025 2891.24 $* 3036.29 $*
Jul-15-2025 2426.72 $* 2547.43 $*
Jun-15-2025 2842.0 $* 2984.14 $*
May-15-2025 2475.28 $* 2599.59 $*
Apr-15-2025 2793.78 $* 2933.10 $*
Mar-15-2025 2769.13 $* 2907.90 $*
Feb-15-2025 2744.88 $* 2881.48 $*
Jan-15-2025 2720.58 $* 2856.46 $*

Характеристики


PHNIX Monoblock R32 Evi 20kw Air to Water Heat Pump 10kW Inverter China Bomba de Calor






Product Parameter









Air to Water Heat Pumps















































































































































































































































































ModelP6P10AP10TP17AP17TP24T
Performance Condition: Outdoor air 7℃/6℃ Inlet /Outlet water 30℃/35℃
Heating CapacitykW 2.3~8.34.7~12.54.7~12.57.0~20.57.0~20.510.5~26.5
Heating Power InputkW 0.6~1.81.1~3.41.1~3.41.5~6.01.5~6.02.5~6.5
Performance Condition: Outdoor air 35℃/24℃ Inlet /Outlet water 12℃/7℃
Cooling CapacitykW 2.0~6.13.2~11.33.2~11.35.5~15.55.5~15.58.5~19.5
Cooling Power InputkW 0.7~2.21.3~4.61.3~4.61.5~6.01.5~6.03.0~7.5
Performance Condition: Outdoor air 20℃/15℃ Inlet /Outlet water 15℃/55℃
Hot Water CapacitykW 3.0~9.85.8~16.25.8~16.29.4~24.39.4~24.311.5~27.5
Hot Water Power InputkW 0.6~2.41.2~4.21.2~4.22.1~6.42.1~6.42.7~7.2
Rated Voltage/ Frequency 230V~/50Hz380V/3N~/50Hz
Max. Power InputkW 2.94.64.67.21212.5
Max. Current InputA1321.57.633.22.920.3
Water Flow Ratem3/h11.71.72.9R32/2.0kg4.2
Refrigerant/ Proper InputkgR32/1.3kgR32/1.7kgR32/1.6kgR32/2.0kg1.35R32/3.4kg
GWPTon0.881.151.081.3544~582.27
Sound Pressure Noise(1m)dB(A)37~5442~5542~5544~58Panasonic45~60
Compressor BrandPanasonicPanasonicPanasonicPanasonicGRUNDFOSPanasonic
Circulation PumpBrandGRUNDFOSGRUNDFOSGRUNDFOSGRUNDFOS-25~43GRUNDFOS
Operating Ambient Temperature-25~43-25~43-25~43-25~43-25~43-25~43
Fan Quantity 1112DC2
Fan Motor Type DCDCDCDC30~80DC
Fan Motor Power Input(Min~Max)W30~7530~9330~7330~80300~80060~150
Fan Speed 300~850300~1050300~800300~8001.25300~800
Water Connection (inch)inch1111 1/465   1 1/4
Water Pressure Drop (max) kPa2835356512.568
Circulation Pump Headm5.55.55.512.512.521
Unit Dimension(L/W/H)mm1002×490×805953×460×915997×437×13151178×450×1605
Shipping Dimension(L/W/H)mm1060×500×8251040×490×9201070×435×1340 1210×490×1650
The data above is only for reference. For model specifications, please refer to the nameplate on the unit.






Product Detail


Bomba de Calor








Sample Projects


 Bomba de Calor


Bomba de Calor





Certificate





Bomba de Calor





Packaging & Shipping


Bomba de Calor





About PHNIX





Founded in 2002, PHNIX is one of the largest manufacturers of Swimming Pool Heat PumpsHouse Heating Heat Pumps and Heat Pump Water Heaters in China. With more 487 patents, 355 licensed patents and 10 copyrights, PHNIX has built up a complete heat pump industrial chain.





PHNIX attaches great importance to high-end overseas markets, exporting more than 50 percent of its products to EuropeNorth AmericaMiddle EastAustralia, and other developed regions.





PHNIX Factory has an area of more than 35000 square meters. Over 30 percent of automatic production devices are put into use in manufacturing process, involving Copper Pipe Cutter, Pipe Bender Robot, Automated Vacuum Circulatory System, Robotic Palletization and Packaging and AGV and so on.





PHNIX values product quality control, which account for about 8% of the company's sales revenue. PHNIX has 13 laboratories, whose test types include UV, RoHS, heat exchanger efficiency, constant temperature, humidity, pressure and so on. PHNIX’s integrated performance laboratory can meet product testing standard EN14511 and EN14825 of the European and American areas.


About PHNIX2.png








FAQ





Q: How many years have your company been in heat pump industry?


A: We are the NO.1 heat pump exporter in China.


We PHNIX has full experience in the field of heat pumps for more than 18 years. PHNIX has kept growing rapidly during these years since it was established. In 2016, our turn over reached an amount of 101 million US dollars and in the same year PHNIX was loaded on the China’s New OTC market.





Q: Do you accept OEM & ODM?


A: Yes. We can produce PHNIX standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.





Q: How about the channel management?


A: First, in order to lead global positive market competition, PHNIX will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer PHNIX’s own brand products and services to dealers.





Q: What support do you offer to clients?


A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.





Q: How long can I get the salesman's contact after sending the inquiry?


A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 36 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
