Product Description

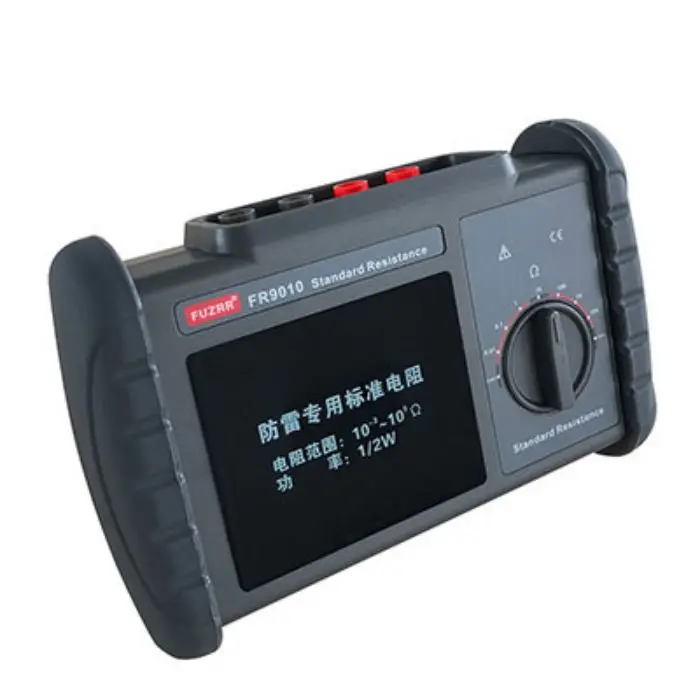

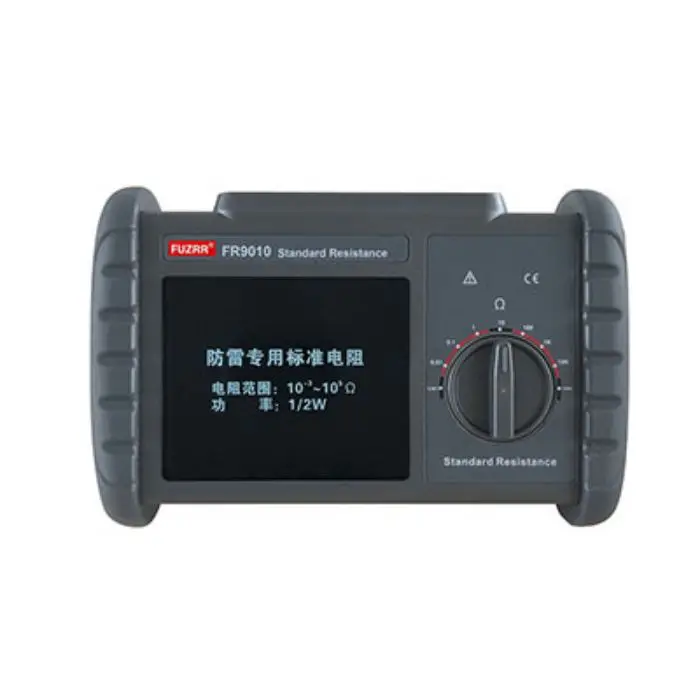

FR9010 standard resistor consists of 9 1/2W high-precision military-grade wirewound resistor series to form a four-wire standard resistor. Direct shifting does not need to change the line. It is convenient to carry and replace the traditional BZ3 and other single resistors to carry the problem of inconvenient switching of different resistors. The highest accuracy is 0.05%. It is a standard resistor specially customized by us. Its resistance value includes 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω, 1KΩ, 10KΩ, 100KΩ.Fully meet the range of 10-3~105 as stipulated in Order 31 of the 《Lightning Protection Device Inspection Qualification Management Measures》. It is mainly used for the calibration of grounding resistance tester, equipotential tester and other instruments.


Main Feature

Resistance：1mΩ，10mΩ，100mΩ，1Ω，10Ω，100Ω，1KΩ，10KΩ，100KΩ
Military grade wirewound resistor
Direct shifting does not require line change
Easy to carry
The highest precision is 0.05%
Fully meet Order 31 of the "Lightning Protection Device Inspection Qualification Management Measures"


Technical Data


Function
Used for the calibration of instruments such as grounding resistance tester and equipotential tester
Range
1mΩ，10mΩ，100mΩ，1Ω，10Ω，100Ω，1KΩ，10KΩ，100KΩ
Accuracy
0.05%
Wiring method
Four-wire method
capacity factor
1/2W
Coefficient
±25ppm
Size
L/W/T：187*119*48mm
Test line length
Red 0.5m，black 0.5m each 2PCS
Weight
550g
Working temperature and humidity
-10℃～40℃；below 70%rh
Storage temperature and humidity
-20℃～60℃；below 80%rh
Insulation resistance
More than 10MΩ(Between circuit and case500V)
Pressure resistance
AC 3700V/rms(Between circuit and case)
Suitable for Safety Regulations
IEC61010-1, CAT III 600V, Pollution Degree 2, JJG724-1991 "Direct Current Digital Ohmmeter Verification Procedure", JJG166-1993
"Direct Current Resistor Verification Regulation"

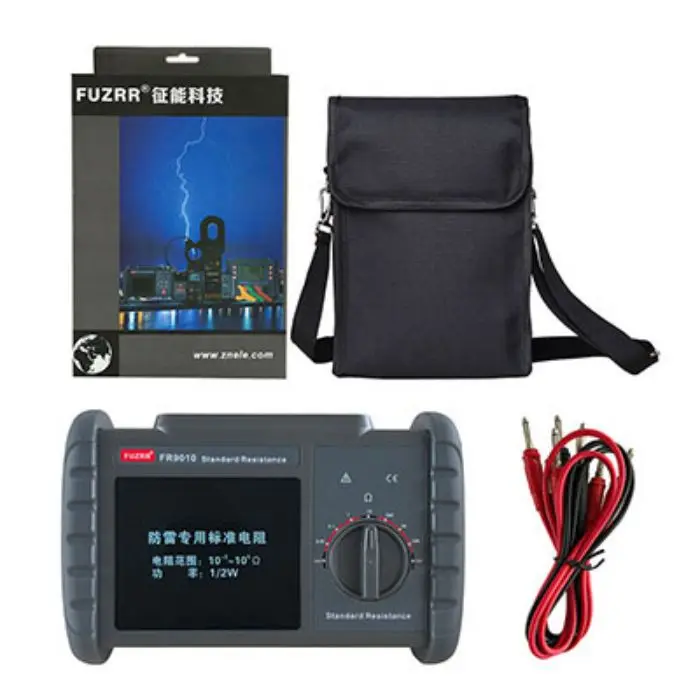

Standard Delivery


Instrument bag
1PC
Standard resistor
1PC
Test line
4PCS（red, black each 2PCS）
Manual, certificate
1SET
