220 В Вибрационный двигатель для машины
US $22.00-$45.00
Электрическая зубная щетка и инструмент для глаз с мотором вибрации 612 1 5 в 15500
- Категория: Vibration Motor >>>
- Поставщик: Yichang,Wingfong,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.13 $* | 0.78 $* |
| Aug-19-2025 | 0.59 $* | 0.73 $* |
| Jul-19-2025 | 0.37 $* | 0.67 $* |
| Jun-19-2025 | 0.16 $* | 0.36 $* |
| May-19-2025 | 0.94 $* | 0.70 $* |
| Apr-19-2025 | 0.80 $* | 0.40 $* |
| Mar-19-2025 | 0.4 $* | 0.83 $* |
| Feb-19-2025 | 0.12 $* | 0.14 $* |
| Jan-19-2025 | 0.86 $* | 0.3 $* |
Характеристики
Product Overview

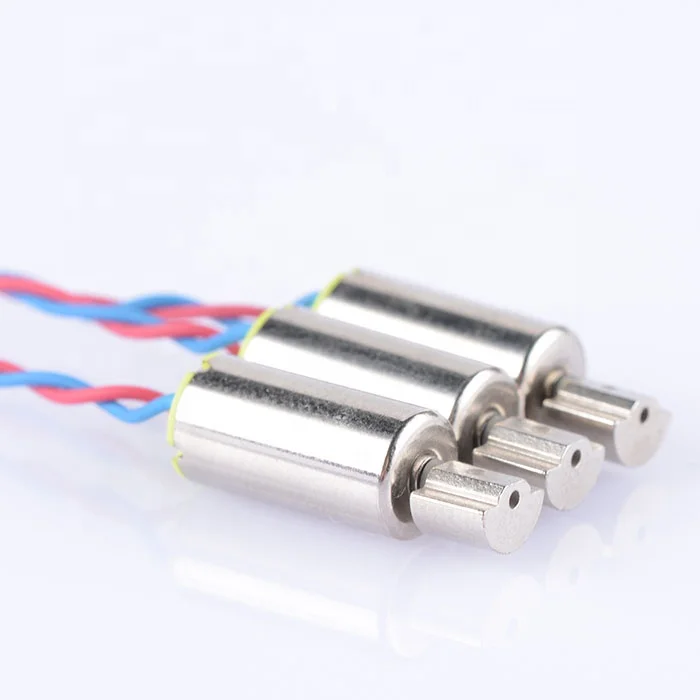

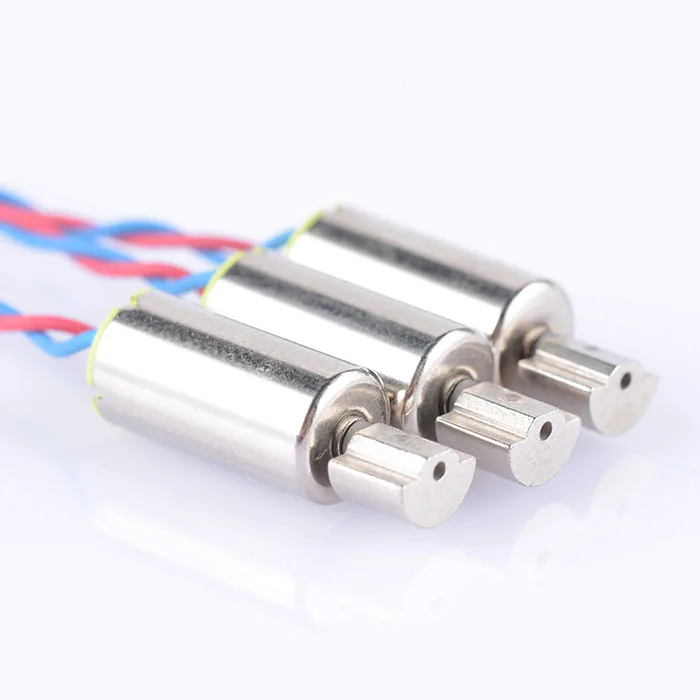

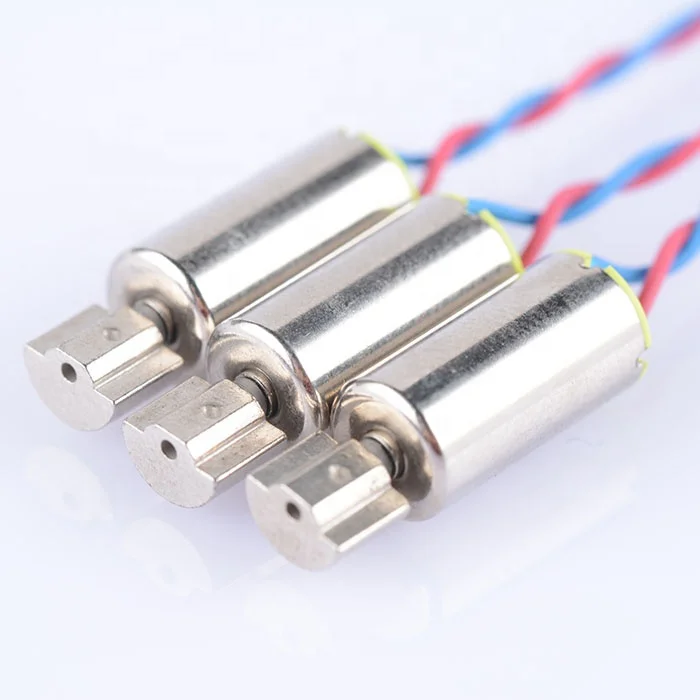

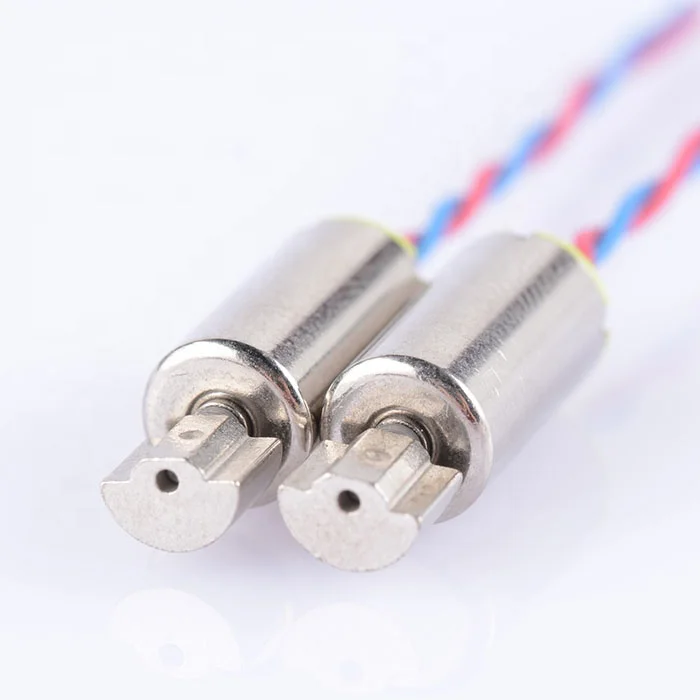

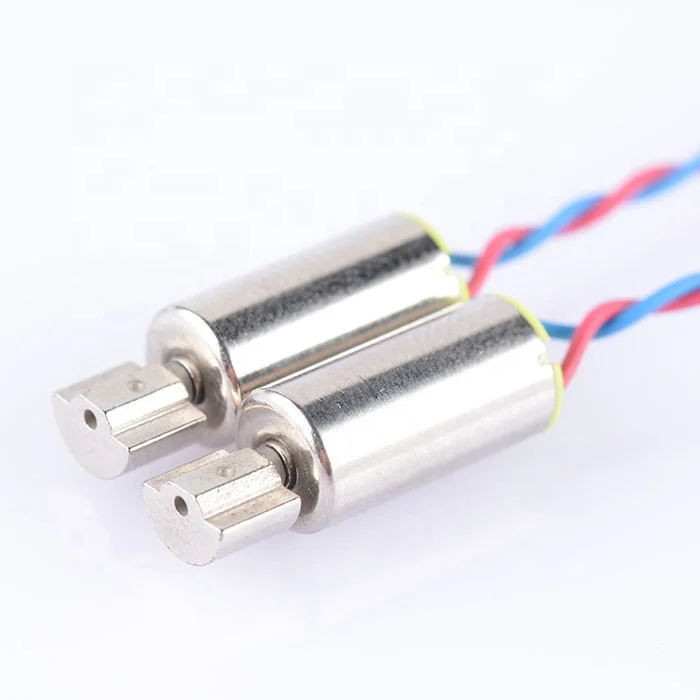

612 Vibration motor 1.5v 15500rpm coreless dc motor Electric Toothbrush and Eye Beauty Instrument on sale
Following customization are available：
1.Rotation direction (CW/CCW);
2.Counter-Weight size(R2.9*L4.2);
3.Lead wire length(2-40.0±2.0);
4.Lead wire material(UL3302-30#PE);
5.Rated Speed、Current、Torque and so on.
№ | Item | Specifications | Remark | ||
1 | Rated Voltage | 1.5V DC | |||
2 | Operating Voltage | 1.0~3.0V DC | |||
3 | Rotation Direction | CW | |||
4 | Operating Conditions | -10℃～60℃≤60%RH | |||
5 | No Load Current | 100 mA Max | Motor operates on no load | ||
6 | No Load speed | 23000 ± 12% Rpm/min | |||
7 | Rated Current | 200 mA Max | Motor operates on rated load | ||
8 | Rated Speed | 15500 ± 2000 Rpm/min | |||
9 | Rated Load | Counter-Weight | |||
10 | Counter- Weight Details | Material | Tungsten Alloy | ||
Size | R2.5*L4.0 mm | ||||
Mass | 0.62 g | ||||
Centroid Radius | 0.753 mm | ||||
Company Profile
Yichang Wingfong Industry & Trade Co.,Ltd.
electric products.
These motors are widely used in various electric tools, massagers, adult and robotic products.The company getsrapid development
and be familiar with the market needs.
Our mission is to provide high quality products and efficient services.
Certifications
Product Uses
Shipping & Packing
Recommend Products
FAQ
Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor can be customized. Such as rotation direction, working voltage, lead wire length, lead wire material, rated speed, torque etc, and motor's shaft dimension can be modified too.
Q: How should I choose a suitable model when I'm not sure about the exact parameters?
A: We can make some suggestions as long as you provide your requirements. Like the usage, working condition, excepted service life etc.
Q:Is it possible for you to develop new motors?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples. Sample producing time depends on different types, normally within 25 days.
