Высокоточный станок охлаждающая труба обрабатывающий центр с ЧПУ водораспылительная
- Категория: Cooling Pipe >>>
- Поставщик: Shenzhen,Denver,Servo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.81 $* | 0.44 $* |
| Aug-20-2025 | 0.21 $* | 0.39 $* |
| Jul-20-2025 | 0.94 $* | 0.42 $* |
| Jun-20-2025 | 0.44 $* | 0.33 $* |
| May-20-2025 | 0.49 $* | 0.2 $* |
| Apr-20-2025 | 0.59 $* | 0.95 $* |
| Mar-20-2025 | 0.20 $* | 0.94 $* |
| Feb-20-2025 | 0.8 $* | 0.95 $* |
| Jan-20-2025 | 0.72 $* | 0.5 $* |
Характеристики
Products Description
Machine tool cooling water pipe
Various nozzle specifications are available
2 points / 3 points / 4 points All available
The seal is watertight
Flat mouth round mouth optional
Why buy this product
I'll give you the reason to buy this product
High and low temperature resistance
360 ° universal rotation
Complete models
Good sealing
Meeting diverse needs
Numerical control machine
The cooling pipe shall be used for spraying water, oil and coolant on the machine tool, or for blowing to cool the spark machine.
Workpiece cutter
It is suitable for lathes, milling machines, drilling machines, electric pulse and other jet fuel injection equipment. It can give better lubrication and cooling effect of lotion to workpieces and cutting tools.
Hydraulic machinery
It can be used as a curved pipe for water supply / oil blowing in metal machining.
NC engraving
It is used to spray water to cool the cutting tools during jade and stone carving to ensure the service life of the spindle.
Complete model of cooling water pipe
2-point double head single pipe
2-point universal joint - flat head - single pipe - 30cm
2-point universal joint - round head - single pipe - 30cm
2 points suit-Double head - 38.5cm - Interface 8mm
2 points suit-flat head - 30cm - Interface 8mm
2-point set-Round head - 30cm - Interface 8mm
2-point set-Double head -38.5cm-interface 10mm
2-point set-Flat head - 30cm - Interface 10mm
2 points suit-Round head - 30cm - Interface 10mm
2 points suit-Double head - 38.5cm - Interface 12mm
2 points suit-Flat head - 30cm - Interface 12mm
2 points suit-Round head - 30cm - Interface 12mm
3-point universal joint - double head - single pipe - 40cm
3 point universal joint - flat head - single pipe - 40cm
3-point universal joint round head - single pipe 40cm
3 points suit-Double head - 40cm - Interface 8mm
3-point suit-Flat head - 40cm - Interface 8mm
3 point suit-Round head - 40cm - Interface 8mm
4 point universal joint - double head single pipe - 40cm
4-point universal joint - flat head single pipe - 40cm
4 point universal joint-Round head single pipe - 40cm
4 points suit-Double head - 40cm - Interface 8mm
4 point set-Flat head - 40cm - Interface 8mm
4 point set-Round head - 40cm Interface 8mm
Thread outer diameter (mm)
2 points: outer diameter of thread 12.7
3 points: outer diameter of thread 15.8
4 points: outer diameter of thread 19.8.
Outer diameter of nozzle (mm)
2 points: outer diameter of round nozzle 6.3
3 points: outer diameter of round nozzle 7.7
4 points: outer diameter of round nozzle 10.6
Outer diameter of flat nozzle (mm)
2 points: outer diameter of flat nozzle 17.6
3 points: outer diameter of flat nozzle 24.2
4 points: outer diameter of flat nozzle 30.5

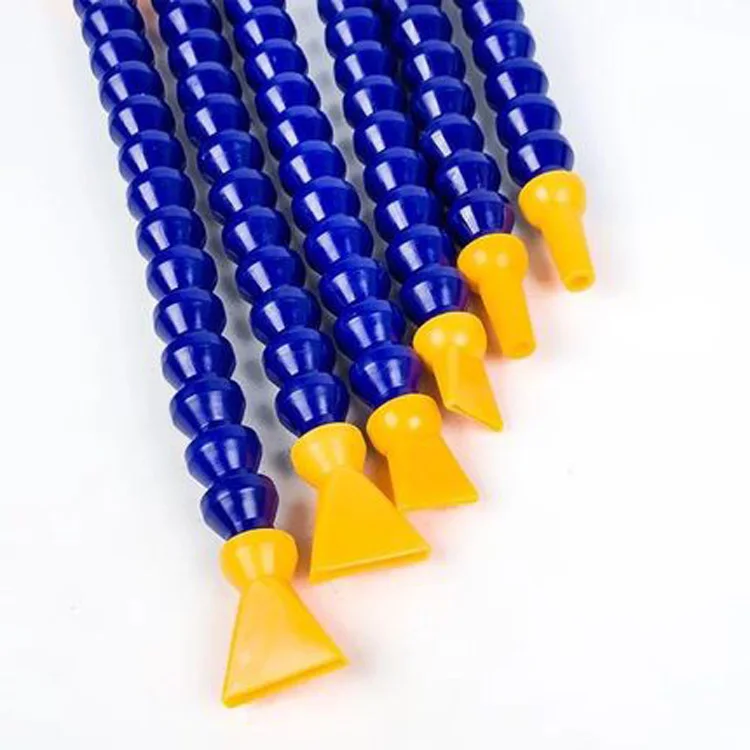

Thin round mouth
4 points
Outer diameter about 20mm
Thick round mouth
3 points
The outer diameter is about 16mm
Flat mouth
2 points
The outer diameter is about 12.5mm

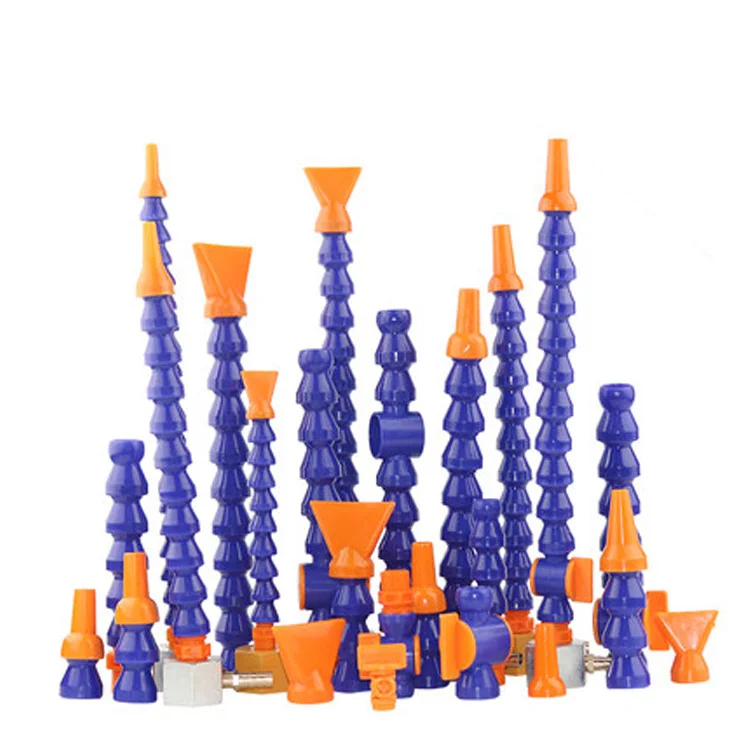

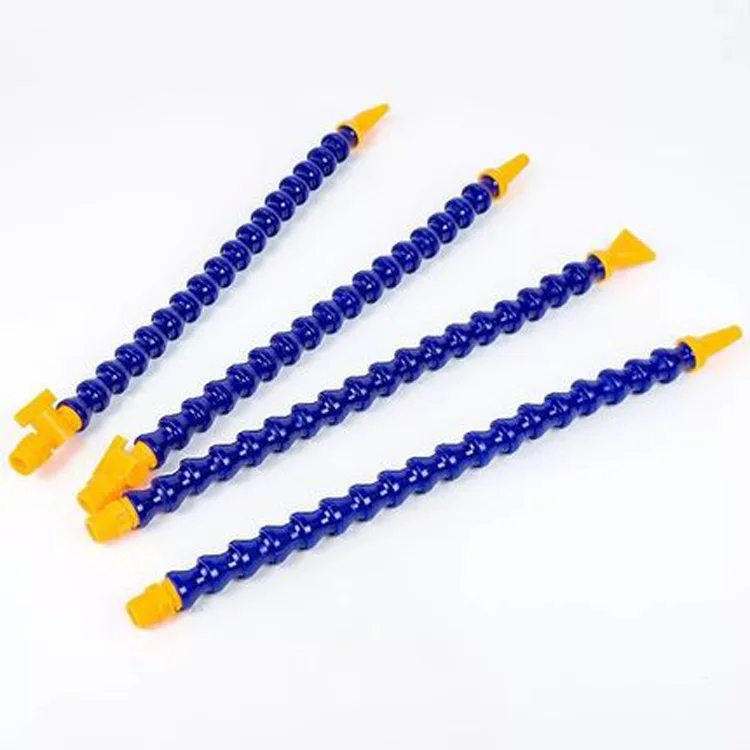

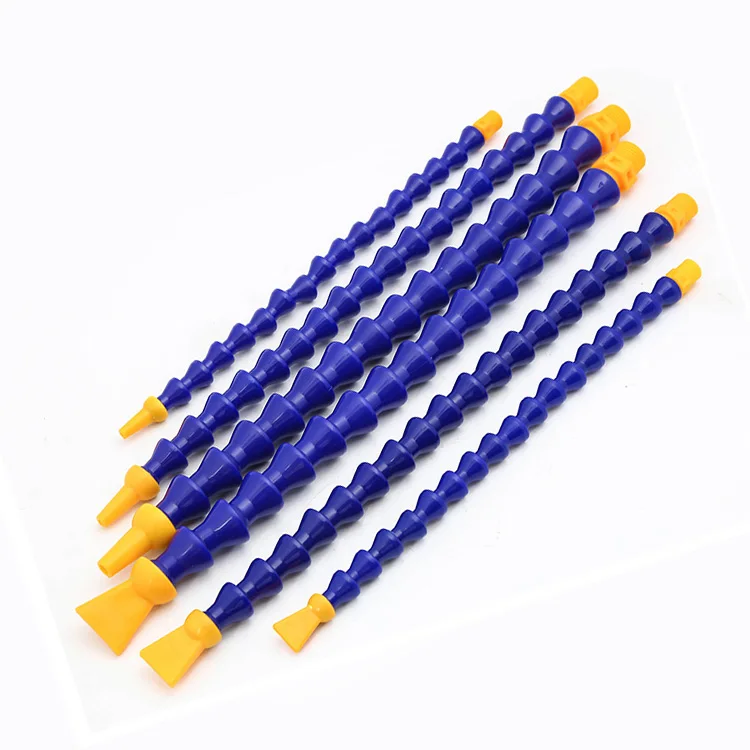

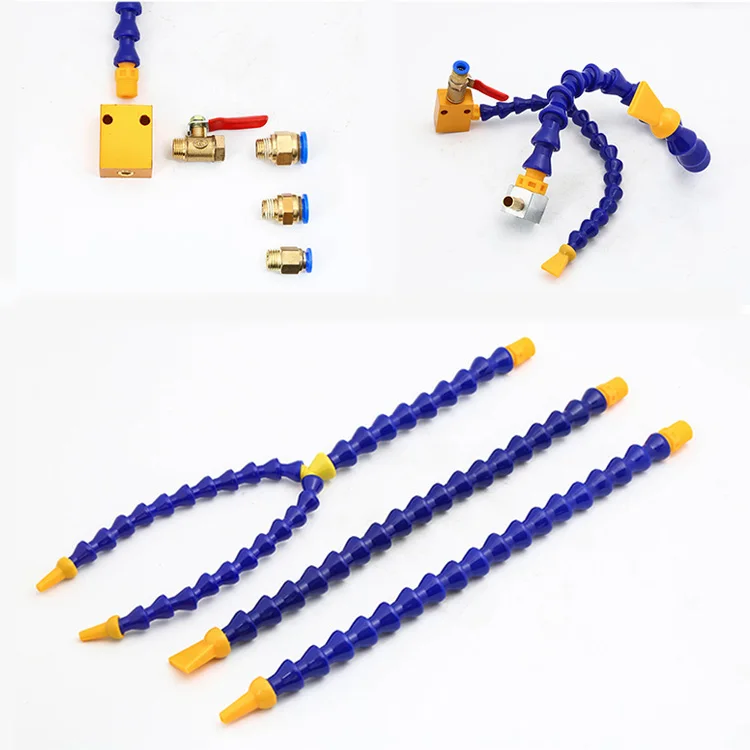

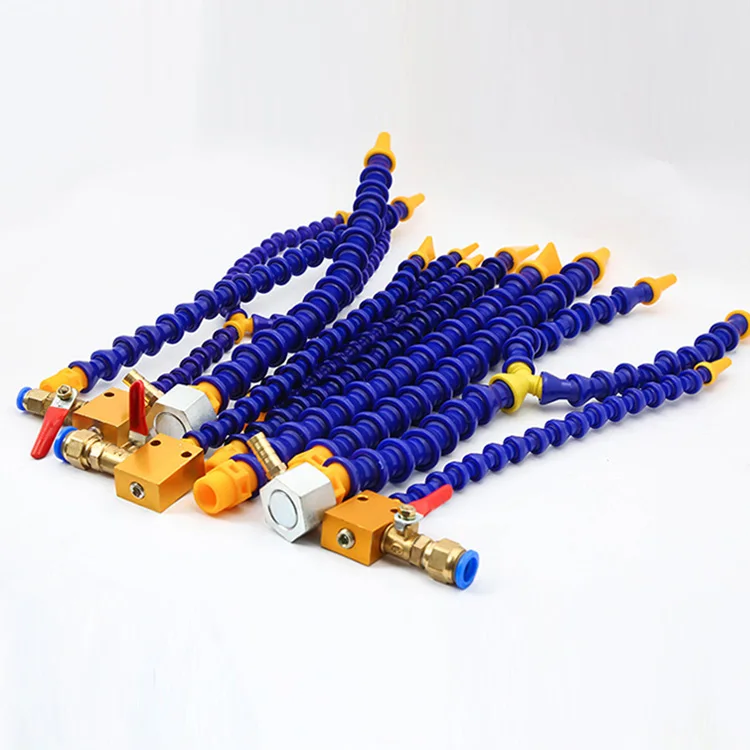

Product Photograph
Product warehouse
