Product Description


ES9020 intelligent lightning protection component tester, also known as lightning protection component tester, SPD field tester, used for arrester, lightning protector, surge protector, varistor, cermet discharge tube, direct space detonator and other performance test instrument. The instrument adopts the offline function of the charging function to overcome the shortcomings of inconvenient on-site operation of traditional products to be plugged in. The voltage output 2000V is more widely used, uses high-voltage short-circuit protection, automatic discharge function, and the meter is reliable, safe and durable. At the same time with insulation resistance test function, the use of luxury large-screen display, data storage, data review, compliance judgment, automatic shutdown, USB data upload and other functions. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
ES9020 also has a shockproof, dustproof, moisture-proof structure to adapt to harsh working environments. It is a commonly used and indispensable instrument for meteorological lightning protection, electricity, post and telecommunications, communications, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. . It is suitable for measuring performance parameters of various arresters and surge protectors.
The ES9020 smart lightning protection component tester consists of medium and large-scale integrated circuits. The output power of the meter is large, the initial operating voltage measurement range is 0-2000V, the leakage current measurement range is 0.1~199.9uA, the insulation resistance is 0-1000MΩ, the repeatability is good, and one-key measurement is convenient and quick.


Main Feature

Function：\tVaristor (MOV) initial voltage leakage current test, discharge tube (GDT) discharge voltage test, insulation resistance test
Measure voltage：\t0~2000V
Measure leakage current：\t0.1uA～199.9uA
Insulation resistance：\t0～1000MΩ
Ohters：\tLarge color screen design
\tData upload with USB
\tLarge capacity rechargeable battery，no need to plug in


Technical Data


Function
Varistor (MOV) initial voltage leakage current test, discharge tube (GDT) discharge voltage test, insulation resistance test
Base condition
23℃±5℃，below 75%rh
Voltage measurement(V)
0~2000V Accuracy±2%rdg±3dgt
Leakage current measurement(uA)
0.1uA～199.9uA Accuracy±3%rdg±5dgt
DC voltage resolution
1V
Leakage current resolution
0.1uA
Insulation resistance
0～1000MΩ
Test settling time
≤3s
Discharge rate of discharge tube
(100±8) V/s
Power
7.2V Large capacity rechargeable battery
Backlight
Yes, suitable for use in dim places
USB data transmission
Have
Display mode
5-inch color TFT LCD
LCD display size
108mm×65mm
Instrument size
240mm (L)×188mm (W)×85mm (H)
Test line
Test line red 1m, black 1m
Data storage
500groups
Data review
Data review function：“MR”symbol display
Overflow display
Over-range overflow function: "OL" symbol display
Judging function
Measurement exceeds the setting range
Power consumption
Standby:150mA Max
Measure：880mA Max
Weight
1230g(including)
Battery voltage
Insufficient battery voltage, low battery symbol “ ”display
Automatic shut-down
Instrument will automatic shut-down after 15 minutes no operation
Insulation resistance
≥50MΩ (1000V)
Pressure resistance
AC3kV/50Hz 1min
Working temperature and humidity
－10℃～+50℃＜85%RH
Working temperature and humidity
－15℃～+55℃＜90%RH
Suitable for Safety Regulations
IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54)、pollution grate 2、CAT Ⅲ 300V

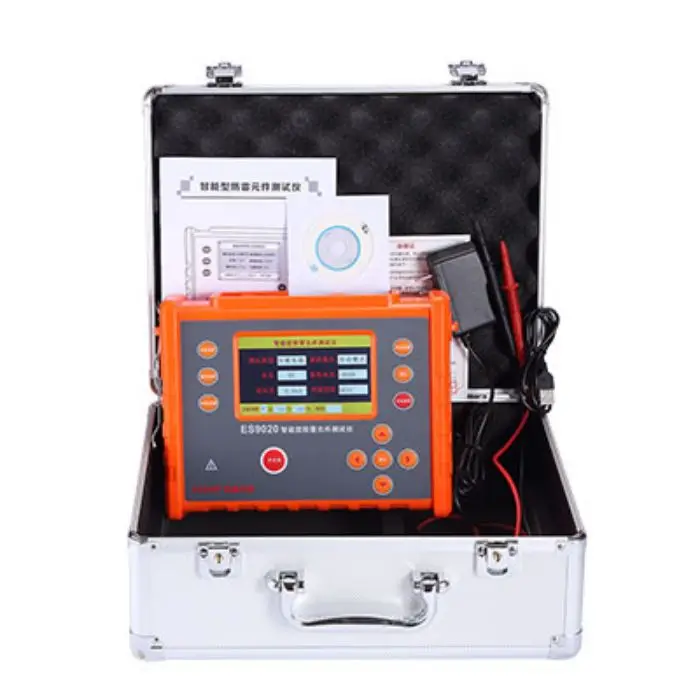

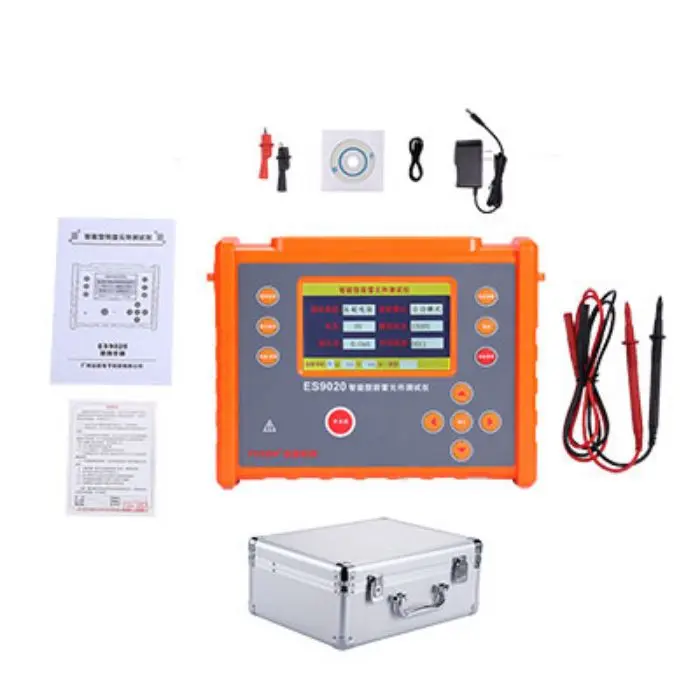

Standard Delivery


Instrument
1PC
High voltage test line
2PCS（red, black each 1)
Battery
1.2V Rechargeable Battery 6 section
charger
1PC
USB data line
1PC
CD
1PC
Manual, certificate
1SET
Instrument box
1PC
