Оптовая продажа с завода сетевой временной сервер для GPS Beidou серверное оборудование синхронизации
- Категория: Servers >>>
- Поставщик: Shanghai,Kuanyu,Industrial,Network,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 381.38 $* | 400.80 $* |
| Aug-19-2025 | 378.84 $* | 397.42 $* |
| Jul-19-2025 | 317.38 $* | 333.83 $* |
| Jun-19-2025 | 371.11 $* | 390.86 $* |
| May-19-2025 | 323.41 $* | 339.19 $* |
| Apr-19-2025 | 365.77 $* | 383.85 $* |
| Mar-19-2025 | 362.50 $* | 380.33 $* |
| Feb-19-2025 | 358.83 $* | 376.26 $* |
| Jan-19-2025 | 355.66 $* | 373.31 $* |
Характеристики
Product Description

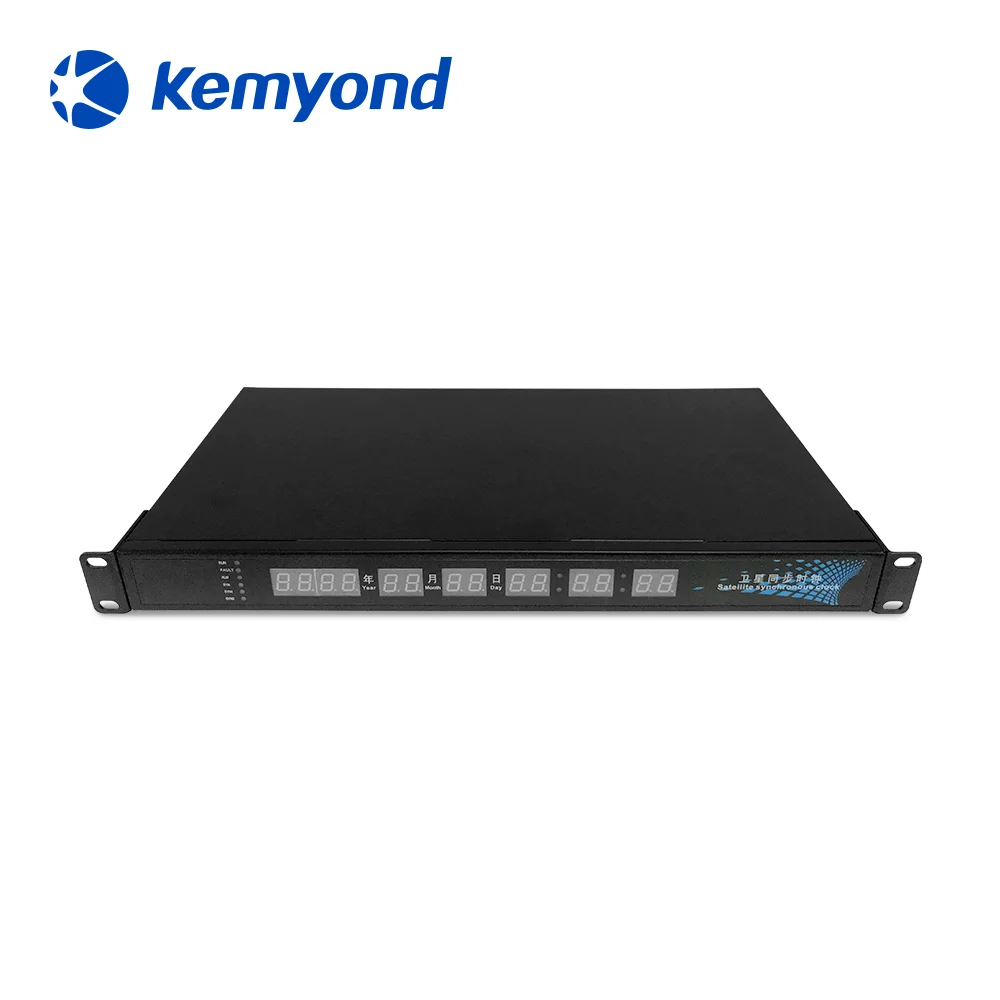

ATS1200 is a high-precision, high-reliability time synchronization device that can receive satellite time signal(GPS,Beidou
satellite navigation system), external IRG-B code signal, and use FPGA to complete multi-source judgment and "time tame
algorithm".Both the master clock and the extended clock support the interchangeable structure's internal punctuality modules, with punctuality accuracy of 5×10-8 (default 3 s/min, 4.32ms/day, optional thermostatic crystal <1 μs/H), and both the host and expansion clocks automatically adapt to punctuality modules of different accuracy and stability levels.
satellite navigation system), external IRG-B code signal, and use FPGA to complete multi-source judgment and "time tame
algorithm".Both the master clock and the extended clock support the interchangeable structure's internal punctuality modules, with punctuality accuracy of 5×10-8 (default 3 s/min, 4.32ms/day, optional thermostatic crystal <1 μs/H), and both the host and expansion clocks automatically adapt to punctuality modules of different accuracy and stability levels.
Key Feature:
— Support multi-clock source selection criteria
— With leap seconds and leap days processing function, executed and output correctly when the leap second warning signal given bythe superior time source
—Built-in high-precision thermostatic crystals serve as the internal frequency standard, with punctuality accuracy of 1μs/h
— With local log save function, no loss after power failure, save more than 200 records
— High-precision circuit design, accurate signal on-time edge rising time ≤100ns
— Both NTP client and server are supported
— Support multi-clock source selection criteria
— With leap seconds and leap days processing function, executed and output correctly when the leap second warning signal given bythe superior time source
—Built-in high-precision thermostatic crystals serve as the internal frequency standard, with punctuality accuracy of 1μs/h
— With local log save function, no loss after power failure, save more than 200 records
— High-precision circuit design, accurate signal on-time edge rising time ≤100ns
— Both NTP client and server are supported
Specification
Interface Configuration | |||

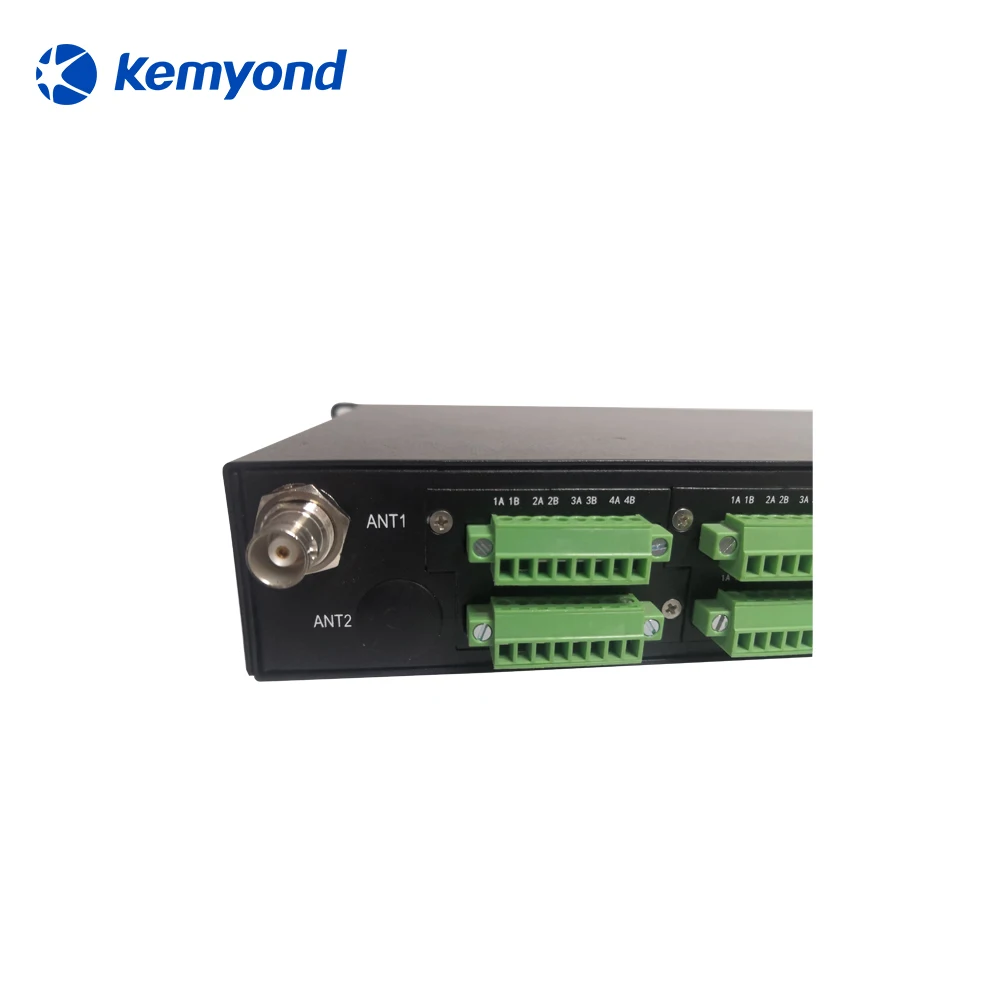

Input | 1 GPS lane, 1 Beidou lane, 2 IRIG-B (optical fiber) lanes or 2 IRIG-B code lanes (RS485) | ||

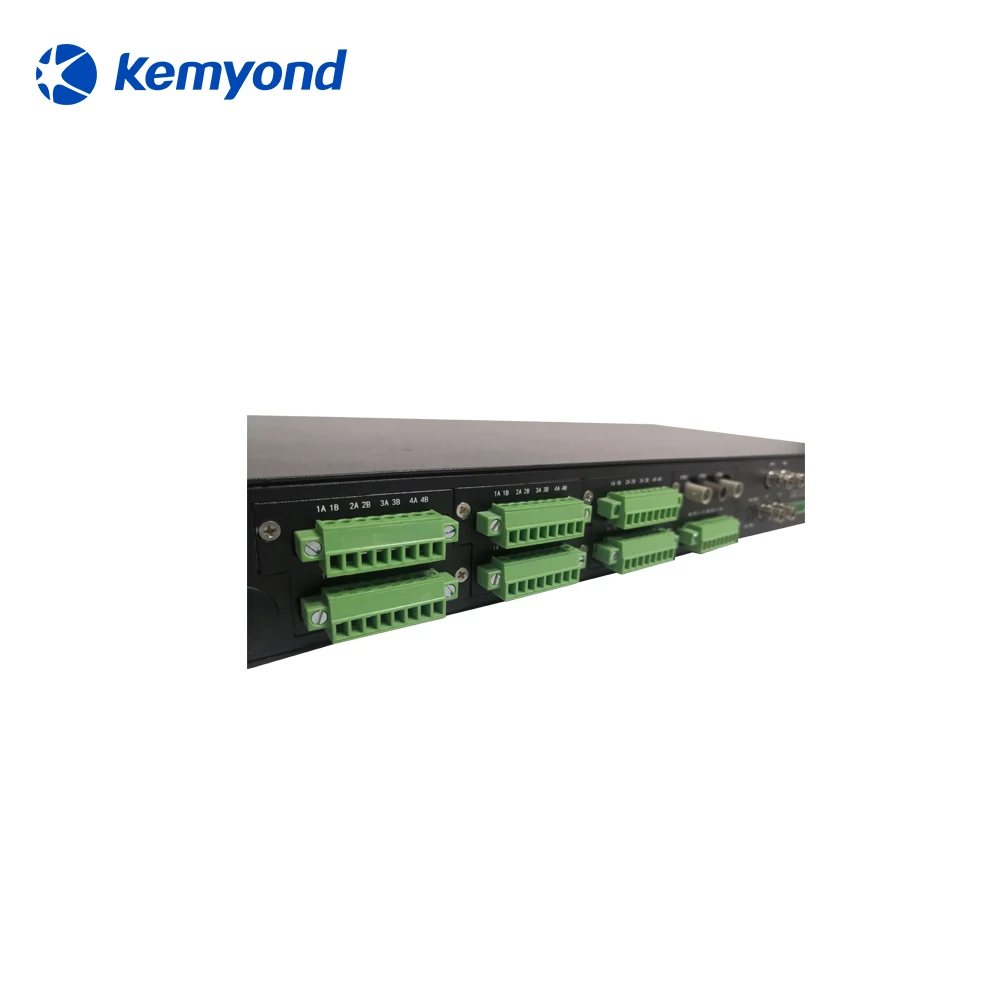

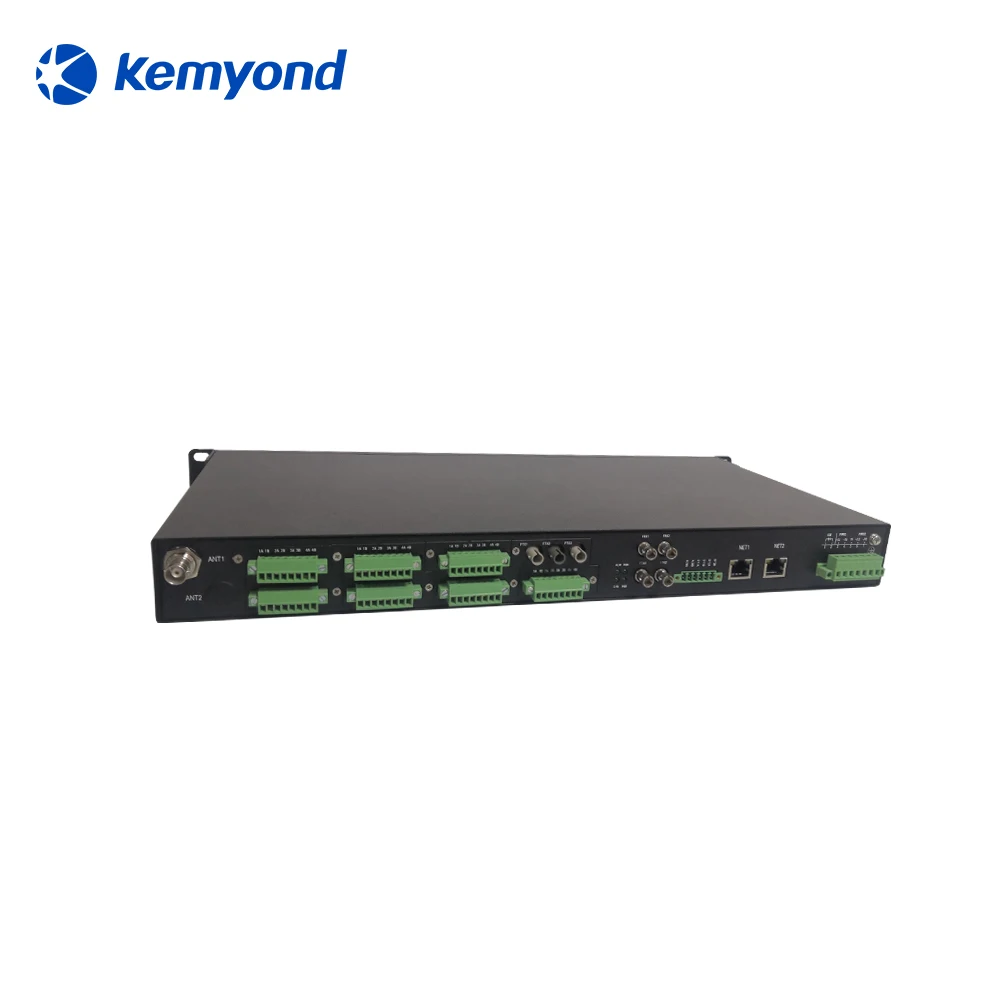

Output | 2 RJ45 (NTP/SNTP) lanes TTL: Up to 32 lanes RS485: Up to 32 lanes RS232: Up to 32 lanes Optical fiber interface: up to 26 lanes Remarks: The above output interfaces can be selected according to the needs of the signal, such as 1PPS, 1PPM, 1PPH, IRIG-B code, serial port message, DCF77 and other signals | ||
Technial Specification | |||
Item | Technical Parameter | ||
GPS Receiver | Sensitivity | Cold Start: -148 dBm Hot Start : -156 dBm Recapture: -160 dBm Tracking : -162 dBm | |
Positioning Precision | 2.5 m | ||
First positioning time | 32 s | ||
Cold Start TTFF | ≤35 s | ||
Hot Start TTFF | ≤1 s | ||
Recapture TTFF | ≤1 s | ||
Timing accuracy | ＜±30 ns | ||
Beidou Satellite Receiver | Sensitivity | Cold Start: -148 dBm Hot Start : -156 dBm Recapture: -160 dBm Tracking : -162 dBm | |
Positioning Precision | 2.5 m | ||
First positioning time | 32 s | ||
Cold Start TTFF | ≤35 s | ||
Hot Start TTFF | ≤1 s | ||
Recapture TTFF | ≤1 s | ||
Timing accuracy | ＜±30 ns | ||
Interface | Flexible configuration according to actual application | ||
Network | Interface specification | 10Base-T/100Base-TX adaptive,MDI/MDI-X automatic polarity reversal, IEEE802.3 | |
Protocol | ARP,ICMP,UDP,NTP,SNTP,PTP,IP,Telnet | ||
UDP Receiving Host | 16 groups, support broadcast and multicast, meet the timing needs of unlimited hosts | ||
Serial Message | Serial Parameters | Baud rate: 600bps~115200bps | |
Message Format | 1. Serial port standard time message format 2. Serial port time message format with frequency description 3. GPZDA | ||
Optical Fiber | Time accuracy:±1ms Signal: FTX. Single mode, multi-mode optional | ||
RS232 | Time accuracy:±1ms Signal:TX ,GND | ||
RS485 | Time accuracy:±1ms Signal: TA, TB, each lane can drive up to 128 loads | ||
TTL | Time accuracy:±1ms Signal:TX ,GND | ||
OC Gate Output | Time accuracy:±1ms Signal: C,E. External voltage VCE: max. 300vdc. Allowable current ICE: max. 200mA. | ||
Company Introduction
Established in 2010, Kemyond is professional for network communication,security,5G and industrial infrastructure information solution. We concentrate on R&D in industrial internet field. Our company regards“Broad Interconnection,Domain Enjoy The Future”as our tenet. “Providing the technology with safe and good experience” is our persistent pursuit.
We have more than 40% R&D technology workers with complete technology creation and fast-iterating ability , so far already obtained almost 100 patents .Now our main products include industrial switch,BDS/GPS time server,5G router/CPE,network security monitoring device, industrial general computing platform.network management/security monitoring planet,serial port service/OFT and so on.All of Kemyond products are certified RoHS,FCC and CE standards,and widely apply to electricity,transportation, petrochemical industry,metallurgy and new energy fields.
We have more than 40% R&D technology workers with complete technology creation and fast-iterating ability , so far already obtained almost 100 patents .Now our main products include industrial switch,BDS/GPS time server,5G router/CPE,network security monitoring device, industrial general computing platform.network management/security monitoring planet,serial port service/OFT and so on.All of Kemyond products are certified RoHS,FCC and CE standards,and widely apply to electricity,transportation, petrochemical industry,metallurgy and new energy fields.
If you have any questions, you are welcome to consult.
1.Do you provide OEM/ODM?
-yes,we can produce and design based on customers’ requirements.we accept OEM/ODM.
2. Can I buy samples placing orders?
-Yes.we sell 1 pc for our customer sample test.
3.What is your lead time ?
-Usually 10-15 working days.
4.What is your payment term?
-T/T,Western Union,Money Gram,and Paypal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
