Многоразовый оригинальный антистатический ремешок регулируемый Антистатический браслет на
- Категория: Other Safety Products >>>
- Поставщик: Shanghai,Leenol,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.72 $* | 0.89 $* |
| Aug-19-2025 | 0.30 $* | 0.52 $* |
| Jul-19-2025 | 0.13 $* | 0.40 $* |
| Jun-19-2025 | 0.27 $* | 0.65 $* |
| May-19-2025 | 0.68 $* | 0.74 $* |
| Apr-19-2025 | 0.32 $* | 0.88 $* |
| Mar-19-2025 | 0.65 $* | 0.82 $* |
| Feb-19-2025 | 0.75 $* | 0.79 $* |
| Jan-19-2025 | 0.92 $* | 0.98 $* |
Характеристики
Product Description
ESD wired wrist strap is the most basic of anti-static equipment, is also the most widely used in the production line is necessary article, not only on the construction and operation is very convenient, the price is also the most economical and practical, its reason is through the wrist strap and ground wire, to human body electrostatic discharge to the earth, so use wristbands necessary really contact with the skin, also need direct grounding earth wire, and ensure the grounding line unimpeded to maximum effect.
Features:
1.Used to prevent electrostatic discharge (ESD) by safely grounding a person working with electronic equipments or at an
electronic assembly facility.
2.They are usually used in conjunction with an ESD mat on the workbench, or a special static-dissipating plastic laminate on the workbench surface.
electronic assembly facility.
2.They are usually used in conjunction with an ESD mat on the workbench, or a special static-dissipating plastic laminate on the workbench surface.
Application:
Product line, CMOS chip, microprocessor, semiconductor, dish drivers, LCD screen product, circuit product line, precision
instrument, optics part and so on.
instrument, optics part and so on.
Properties of ESD bracelet :
Wristband
1. Fabric: elastic band with Stainless steel fiber mixed
2. Back plate: Stainless steel
3. Contact: 360 degrees around wrist
4. Adjustment: simply adjust, adjustable to fit any wrist size
5. Snap size: 10mm
6. Resistance: 100~200 ohm
7. Outer surface: insulative
8. Color: light blue, black, brown
Coil cord
1. 1 MΩ safety resistor in the snap
2. Excellent strain relief connection
3. PU cord and 7-stand tinsel wire
4. Cord outer diameter:2.2mm
5. Snap release: 5pounds
6. Color: light blue,black, brown
1. Fabric: elastic band with Stainless steel fiber mixed
2. Back plate: Stainless steel
3. Contact: 360 degrees around wrist
4. Adjustment: simply adjust, adjustable to fit any wrist size
5. Snap size: 10mm
6. Resistance: 100~200 ohm
7. Outer surface: insulative
8. Color: light blue, black, brown
Coil cord
1. 1 MΩ safety resistor in the snap
2. Excellent strain relief connection
3. PU cord and 7-stand tinsel wire
4. Cord outer diameter:2.2mm
5. Snap release: 5pounds
6. Color: light blue,black, brown
Specification
Product Name: | ESD Wired Wrist Strap |
Model: | LN-1591102 |
Colour: | Blue |
Wristband impedance: | 1MΩ±10% |
Material: | Fabric polyester wrist band |
Button size: | Φ4mm, Φ7mm, Φ10mm |
Length of Coil Cord： | 1.8m ( 2.4m / 3.0m other lengths custom) |
OEM Service： | Available |
Product Details

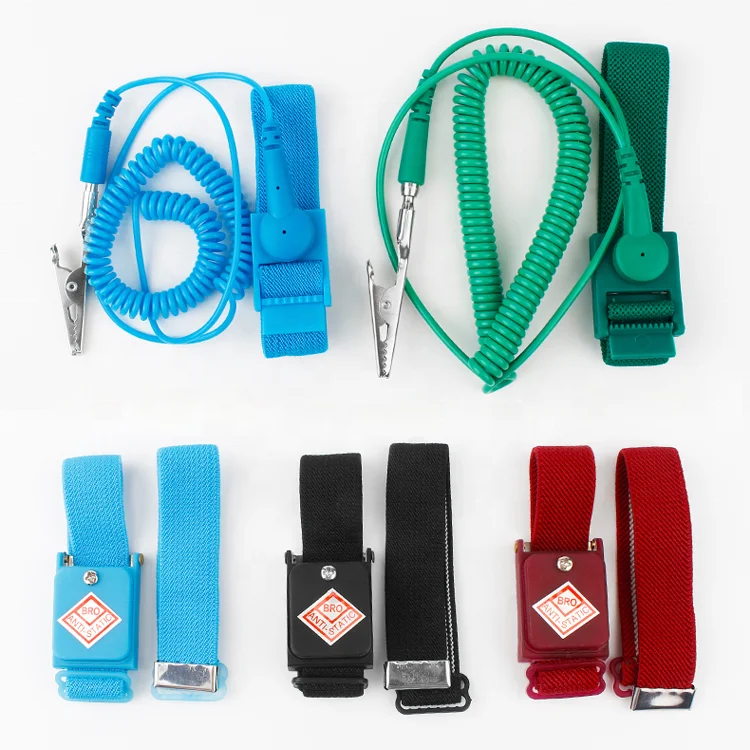

Optional Style
FAQ
1. Does customized length available?
Yes, can make with different length according to customer's requirements.
2. Can you make samples for us to check? And how long did you make the samples?
Yes, samples can provide; For normal type, it take 3-5 days around;For customized type, it takes 7-10 days around
Yes, can make with different length according to customer's requirements.
2. Can you make samples for us to check? And how long did you make the samples?
Yes, samples can provide; For normal type, it take 3-5 days around;For customized type, it takes 7-10 days around
3. What's the resistance? Can be customized?
Normally 1M ohms, also can customized with 0.5M ohms, 2M ohms, etc.
Normally 1M ohms, also can customized with 0.5M ohms, 2M ohms, etc.
4. Are you a manufacturer?
A:Yes, We have been in designing and providing good ESD solution for customers.
A:Yes, We have been in designing and providing good ESD solution for customers.
5. How long is your production time?
A:For small qty, normal 3-5 days around; For large qty, normally 7-15 days around.
A:For small qty, normal 3-5 days around; For large qty, normally 7-15 days around.
