Product Description

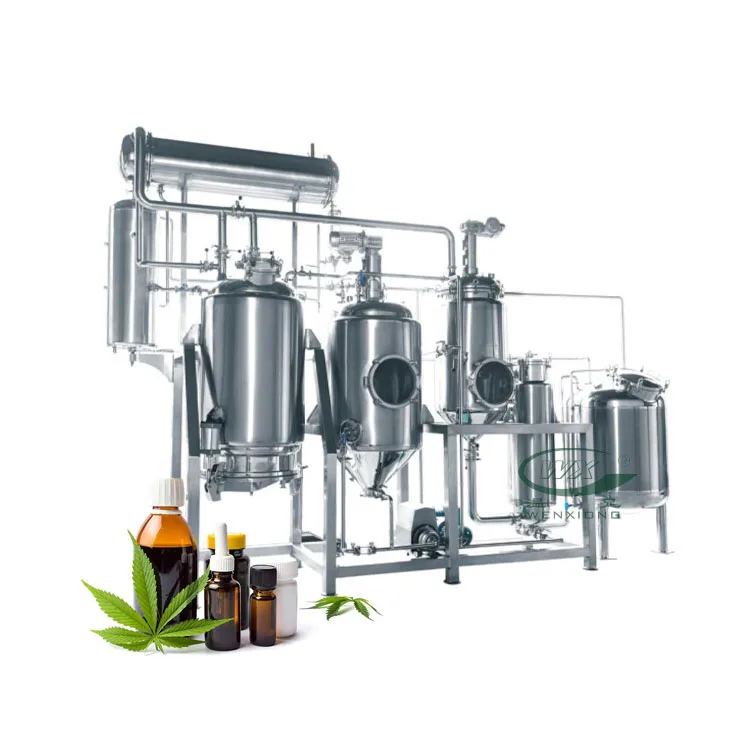

line for the production of extracts powder extraction machine
Equipment Features:
Normal taper type extracting tank(traditonal type)
It takes smaller space,so it is widely used in extracting workshops. Bottom heating is provided on the residue discharging door,which makes the extraction of medicine materials more complete. extraction processing line
Equipment characteristics:
This equipment is applicable for the multiple technology of normal pressure ,micro pressure,water frying ,warm soaking ,thermal reflux,compulsory circulation,filtration,redolent oil extraction and organically solvent recycling in traditional Chinese medicine,food and chemical industry. It is equipped with CIP cleaning device in the tank.the co2 work as extractor supercritical medium
Material:

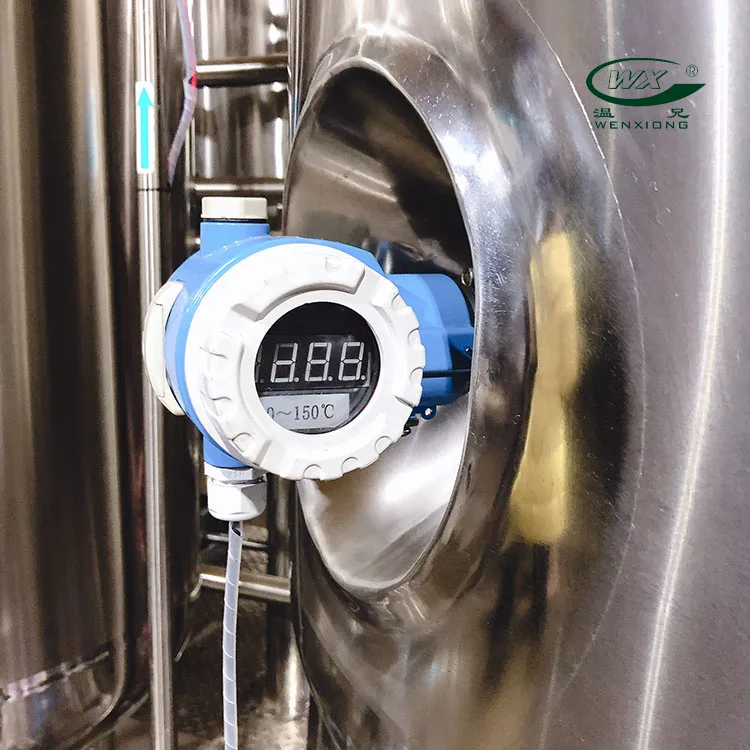

The tank adopt high quality SUS304 material. It can control and display the temperature and monitor on line.
Technical parameter:
Specification \\ model | TQB-1 | TQB-2 | TQB-3 | TQB-6 | TQB-8 | TQB-10 |
| Entire volumeL | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Design pressure in tank | 0.09MPa | 0.09MPa | 0.09MPa | 0.09MPa | 0.09MPa | 0.09MPa |
| Design pressure in jacket | 0.3MPa | 0.3MPa | 0.3MPa | 0.3MPa | 0.3MPa | 0.3MPa |
| Diameter of material inlet(mm) | 400 | 400 | 400 | 500 | 500 | 500 |
| Heats area(m2) | 3 | 4.7 | 6 | 8 | 11 | 12 |
| Condensation area(m2) | 5 | 6 | 8 | 10 | 12 | 15 |
| Cooling area(m2) | 1 | 1 | 1 | 2 | 2 | 3 |
| Filters the area(m2) | 0.5 | 0.5 | 0.8 | 1.2 | 1.2 | 1.2 |
| Stream consumption(t/h) | 285 | 346 | 570 | 718 | 903 | 1140 |
| Water consumption(t/h) | 3 | 4 | 5 | 7 | 8 | 10 |
| Stream inlet(m/m) | 40 | 40 | 40 | 50 | 60 | 60 |
| Water inlet and outlet(m/m) | 40 | 50 | 60 | 60 | 70 | 70 |
| Diameter of slagging door | 800 | 800 | 1000 | 1200 | 1200 | 1200 |
