Характеристики
Product Description

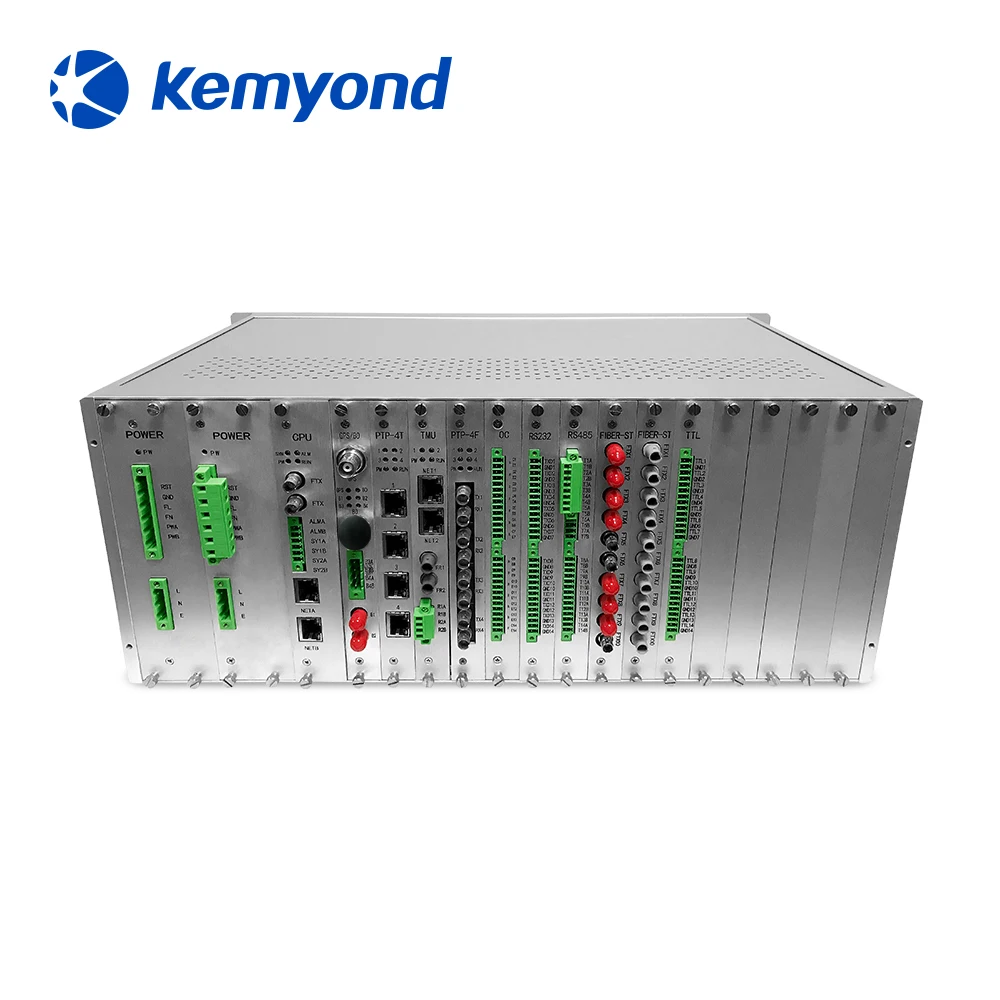

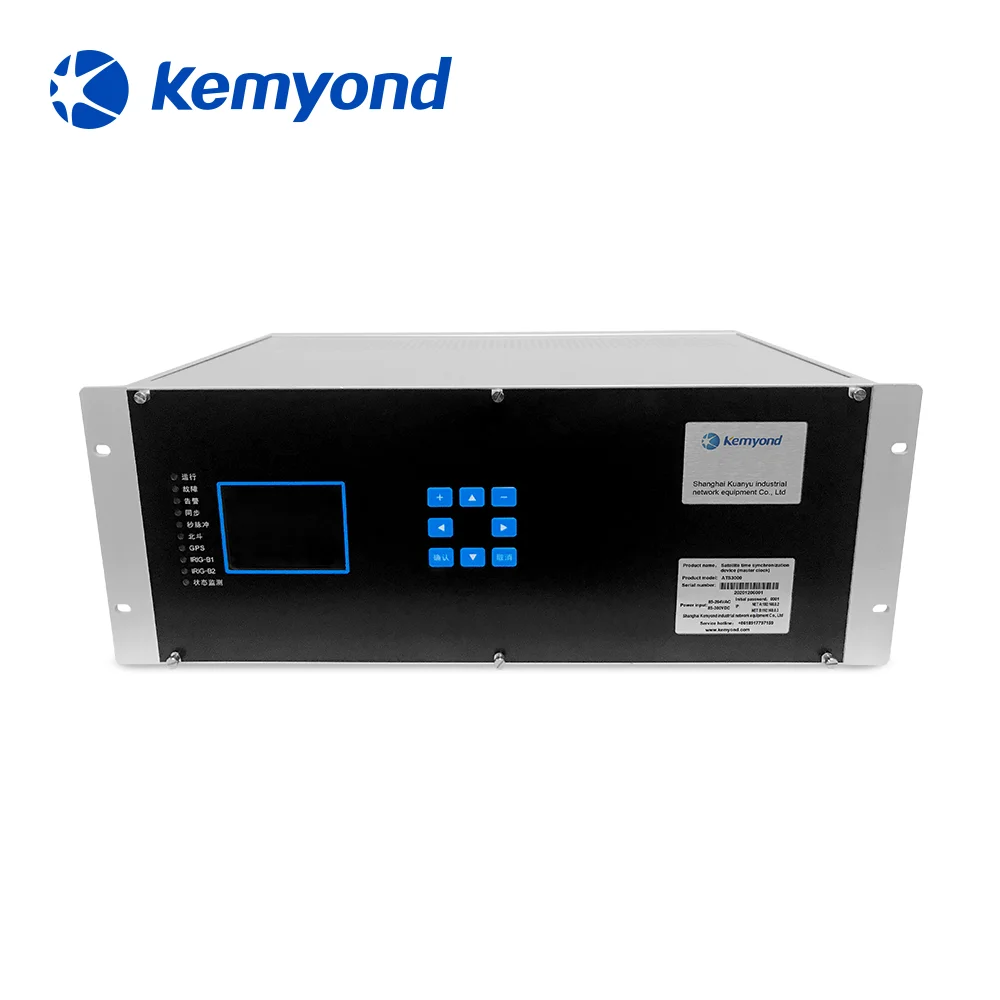

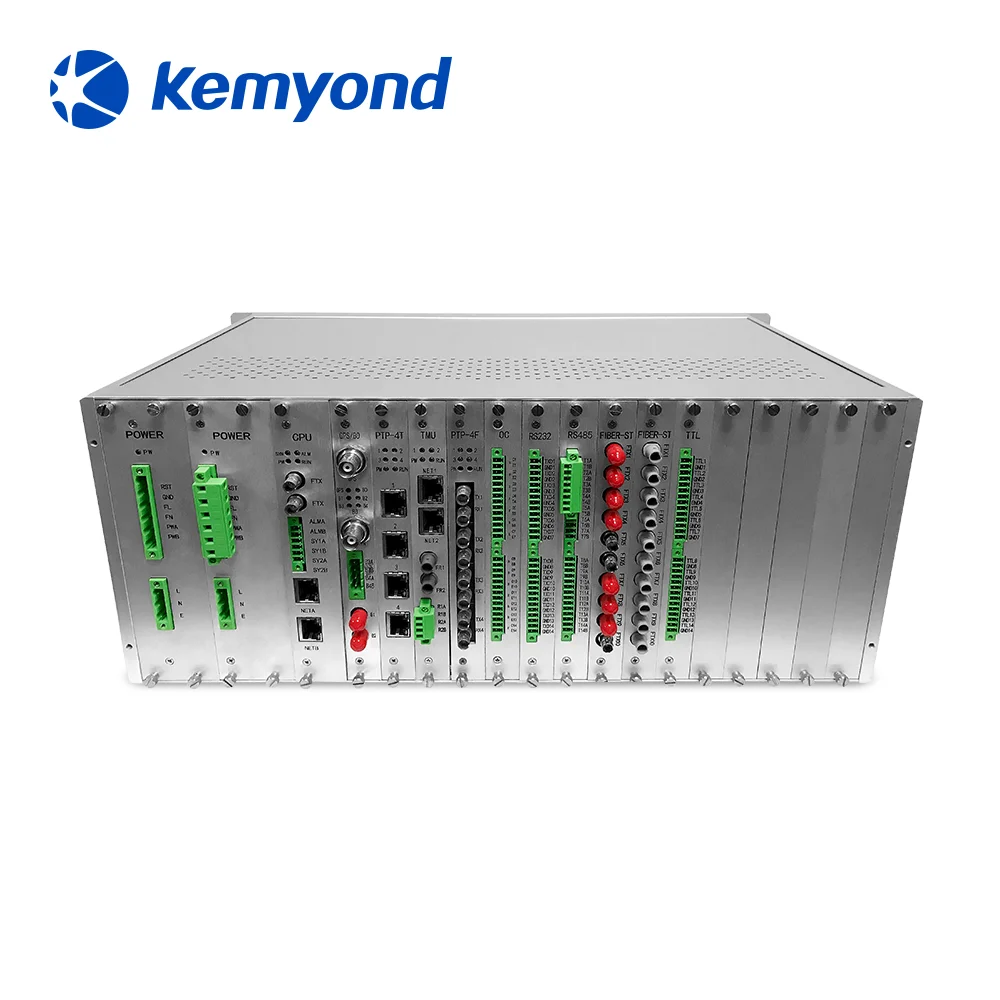

ATS3000 is a high-precision, high-reliability time synchronization device that can receive satellite time signal(GPS,Beidou
satellite navigation system), external IRG-B code signal, and use FPGA to complete multi-source judgment and "time tame
algorithm".Both the master clock and the extended clock support the interchangeable structure's internal punctuality modules, p
unctuality accuracy can be selected between 5× 10-8 selected (constant temperature crystal: 1 μs/H) to 2×10-11 (rubidium atomic
frequency standard:1.2 ns/min, 1.728 μs/day) according to the user's needs, both the host and extended clocks can automatically
adapt to different degrees of accuracy.
satellite navigation system), external IRG-B code signal, and use FPGA to complete multi-source judgment and "time tame
algorithm".Both the master clock and the extended clock support the interchangeable structure's internal punctuality modules, p
unctuality accuracy can be selected between 5× 10-8 selected (constant temperature crystal: 1 μs/H) to 2×10-11 (rubidium atomic
frequency standard:1.2 ns/min, 1.728 μs/day) according to the user's needs, both the host and extended clocks can automatically
adapt to different degrees of accuracy.
Key Feature:
— Support multi-clock source selection criteria
—With leap seconds and leap days processing function, executed and output correctly when the leap second warning signal given by the superior time source
— Built-in high-precision thermostatic crystal or zirconium clock as the internal frequency standard, punctuality accuracy of 1μs/h or 1.728 μs/day
— With local log save function, no loss after power failure, save more than 200 records
— High-precision circuit design, accurate signal on-time edge rising time ≤100ns
— Both NTP client and server are supported
— Support multi-clock source selection criteria
—With leap seconds and leap days processing function, executed and output correctly when the leap second warning signal given by the superior time source
— Built-in high-precision thermostatic crystal or zirconium clock as the internal frequency standard, punctuality accuracy of 1μs/h or 1.728 μs/day
— With local log save function, no loss after power failure, save more than 200 records
— High-precision circuit design, accurate signal on-time edge rising time ≤100ns
— Both NTP client and server are supported
Specification
Interface | |||
Input | 1 GPS lane, 1 Beidou lane, 1 PTPv2.0 lane, 2 IRIG-B (Optical Fiber) lanes, 2 IRIG-B code (RS485) lanes | ||
Output | NTP/SNTP: 58 lanes TTL: Up to 196 lanes RS485: Up to 196 lanes RS232: Up to 196 lanes Optical fiber interface: up to 142 lanes Remarks: The above output interfaces can be selected according to the needs of the signal, such as 1PPS, 1PPM, 1PPH, IRIG-B code, serial port message, DCF77 and other signals | ||
Technial Specification | |||
Item | Technical Parameter | ||
GPS Receiver | Sensitivity | Cold start: -148dBm Hot start : -156dBm Recapture: -160dBm Tracking : -162dBm | |
Positioning Precision | 2.5 m | ||
First positioning time | 32 s | ||
Cold Start TTFF | ≤35 s | ||
Hot Start TTFF | ≤1 s | ||
Recapture TTFF | ≤1 s | ||
Timing accuracy | ＜±30ns | ||
Beidou Satellite Receiver | Sensitivity | Cold Start: -148dBm Hot Start : -156dBm Recapture: -160dBm Tracking : -162dBm | |
Positioning Precision | 2.5 m | ||
First positioning time | 32 s | ||
Cold Start TTFF | ≤35 s | ||
Hot Start TTFF | ≤1 s | ||
Recapture TTFF | ≤1 s | ||
