Автоматическая быстрая вращающаяся дверь воздушный Душ поставка грузов заводская цена быстрый
- Категория: Air Shower >>>
- Поставщик: Dongguan,Yaning,Purification,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1904.83 $* | 1999.26 $* |
| Aug-18-2025 | 1888.34 $* | 1982.27 $* |
| Jul-18-2025 | 1584.47 $* | 1663.11 $* |
| Jun-18-2025 | 1856.35 $* | 1949.25 $* |
| May-18-2025 | 1616.45 $* | 1697.28 $* |
| Apr-18-2025 | 1824.23 $* | 1915.41 $* |
| Mar-18-2025 | 1808.49 $* | 1898.1 $* |
| Feb-18-2025 | 1792.26 $* | 1882.82 $* |
| Jan-18-2025 | 1776.35 $* | 1865.10 $* |
Характеристики
Products Description

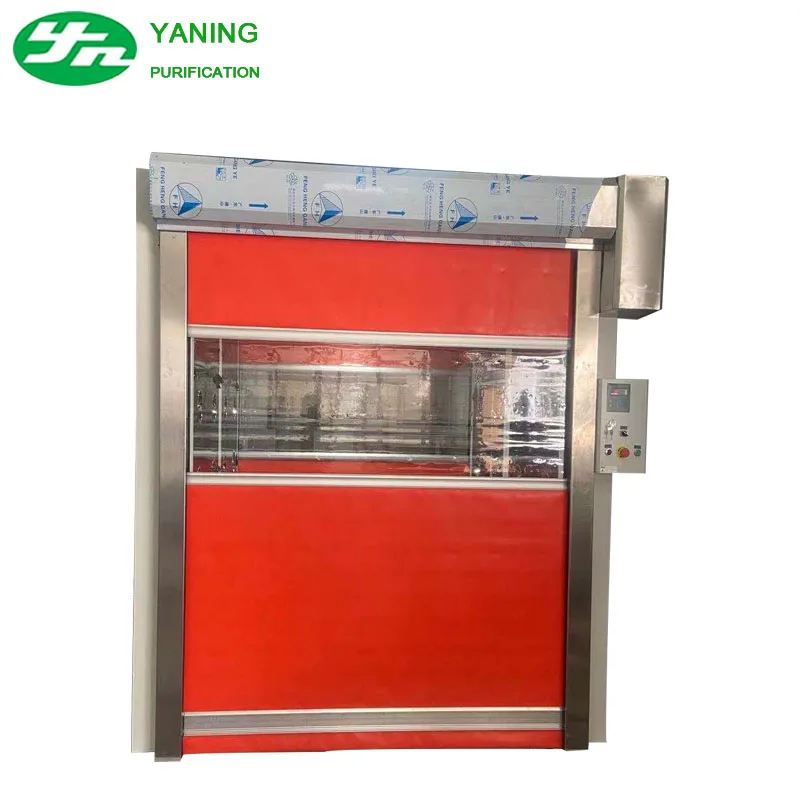

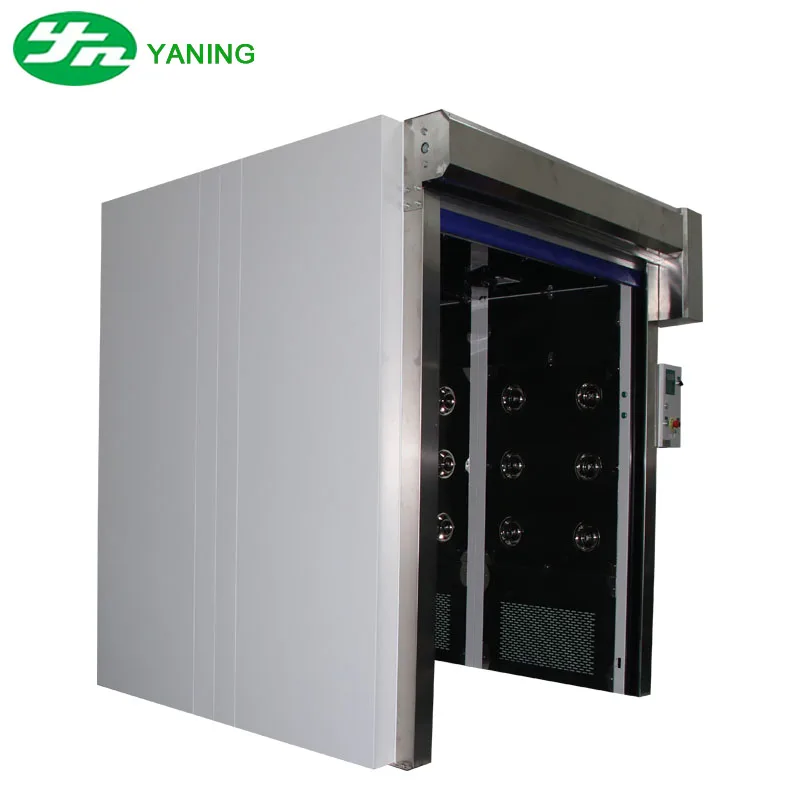

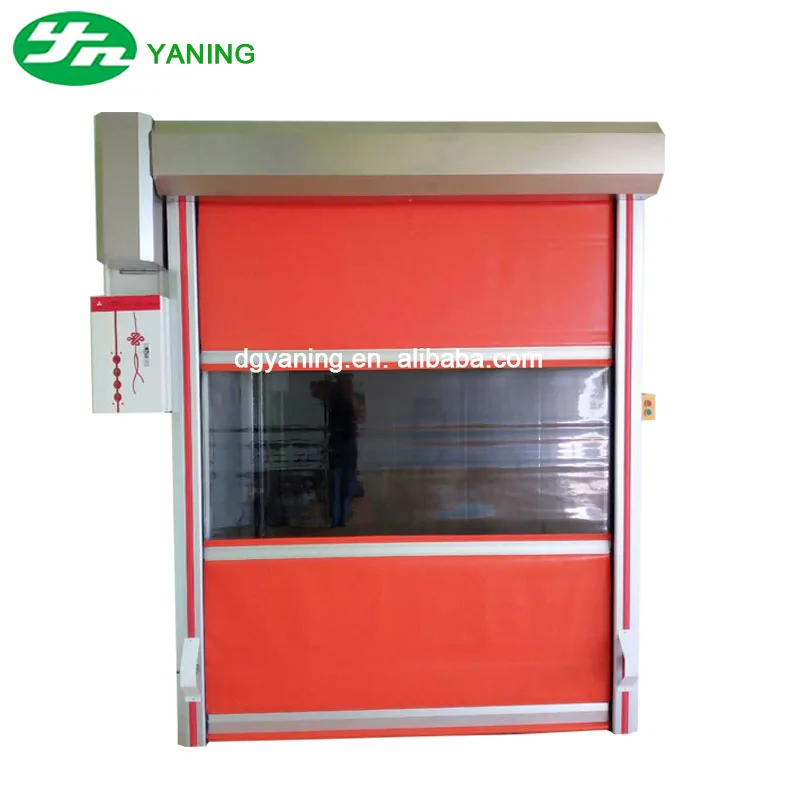

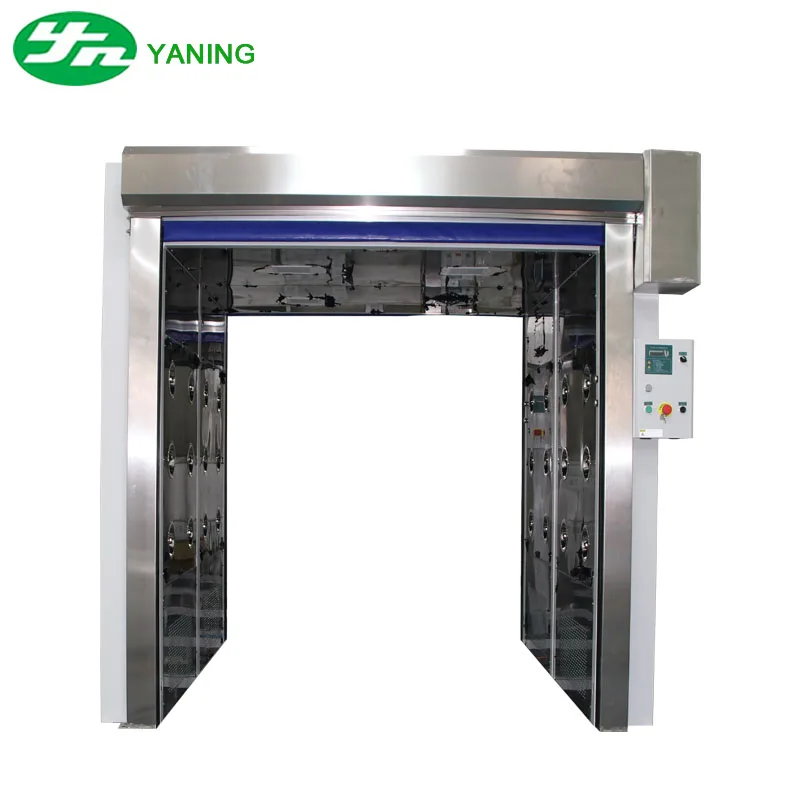

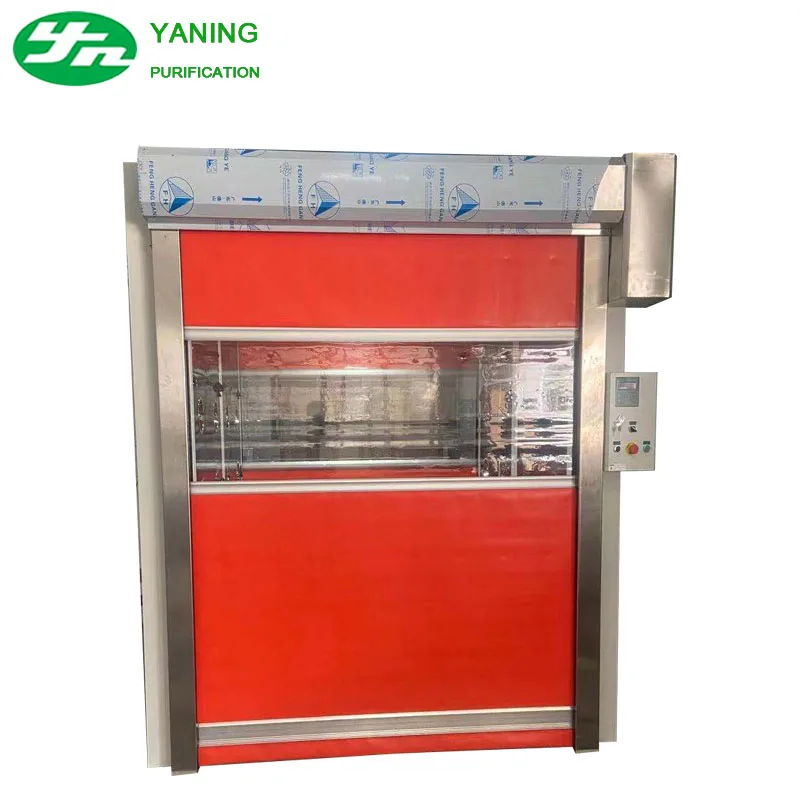

Automatic fast roll door air shower
Air shower, air purification equipment being abing able to clean the surface os human body and articles, preventing the unclean air invade into it.to meet the cleanliness requirement of clean room with the help of air condition system.
Cabinet maderial:cold-rooled steel with multi-layer picking electrostatic painted or stainless steel
With G4 and H13 HEPA filter two level filtration to ensure the purfication class
High quality infrared sensor automatically showering,imported electronic interlock device
With corresponding number of multi-angle adjustable stainless steel nozzles,double side blowing design ,can flow results
Liqui-crystal display, air shower time 0-99S adjustable and display the time of air showering
Adopts big air volume with low noise external rotor fan ,surface air velocity greater than 25m/s,in line with national standards Air showering factory test according to U.S.Federal Standard 209Eone by one to ensure product quality.
Cabinet maderial:cold-rooled steel with multi-layer picking electrostatic painted or stainless steel
With G4 and H13 HEPA filter two level filtration to ensure the purfication class
High quality infrared sensor automatically showering,imported electronic interlock device
With corresponding number of multi-angle adjustable stainless steel nozzles,double side blowing design ,can flow results
Liqui-crystal display, air shower time 0-99S adjustable and display the time of air showering
Adopts big air volume with low noise external rotor fan ,surface air velocity greater than 25m/s,in line with national standards Air showering factory test according to U.S.Federal Standard 209Eone by one to ensure product quality.
Removes surface-deposited particles from personnel prior to entering the cleanroom
• Self-contained, turnkey chambers are preassembled at the factory and shipped in two sections (top and bottom) for fast
installation
• HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on
garments
• Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
• Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
• Shower time and door interlock duration can be programmed using the touchscreen control panel
• Air nozzles can be adjusted to redirect streams of air
• Energy-efficient LED lighting includes motion-activation
• Self-contained, turnkey chambers are preassembled at the factory and shipped in two sections (top and bottom) for fast
installation
• HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on
garments
• Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
• Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
• Shower time and door interlock duration can be programmed using the touchscreen control panel
• Air nozzles can be adjusted to redirect streams of air
• Energy-efficient LED lighting includes motion-activation
• Material: Powder-Coated Steel, Stainless Steel
• Width: 52", 58", 64", 70", 90"
• Depth: 44", 56", 60", 72", 84", 96", 120", 144", 180", 240"
• Height: 120"
• Number of Blowers: 1 Blower, 2 Blowers, 3 Blowers, 4 Blowers
• Approx. Occupancy: 1, 2, 3 - 6, 3, 4, 5, 7
• Width: 52", 58", 64", 70", 90"
• Depth: 44", 56", 60", 72", 84", 96", 120", 144", 180", 240"
• Height: 120"
• Number of Blowers: 1 Blower, 2 Blowers, 3 Blowers, 4 Blowers
• Approx. Occupancy: 1, 2, 3 - 6, 3, 4, 5, 7
Model | YN-AS1290A | YN-AS1290B | YN-AS1290C | Air Shower Tunnel | ||
External Dimension | 1290×1000×2050 | 1290×1000×2050 | 1290×2000×2050 | 1590×5000×2050 | ||
Internal Work Zone | 790×860×1910 | 790×860×1910 | 790×1860×1910 | 790×4860×1910 | ||
Suitable Number | 1-2 person | 1-2person | 2-4person | Tunnel type | ||
Noise Level(dB) | <62 | <62 | <62 | <62 | ||
Stainless Steel Nozzle | 6PCS | 12PCS | 24PCS | 72PCS | ||
Wind Speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥25m/s | ||
Prefilter | Size | 775×380×17×1pc | 775×380×17×2pcs | 775×380×17×4pcs | 775×380×17×8pcs | |
Efficiency | G4 | G4 | G4 | G4 | ||
HEPA Filter | Size | 610×610×120×1pc | 610×610×120×2pcs | 610×610×120×4pcs | 610×610×120×8pcs | |
Efficiency | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | ||
Fluorescent Lamp | 20W×1 | 20W×1 | 20W×2 | 40W×4 | ||
Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | ||
Total Power | 780W | 780W | 780W | 780W | ||
Product packaging
Packaging
Stretch film strapped whole cabinet,
Foam inside protected,
Plywood case solid fixed
Foam inside protected,
Plywood case solid fixed
shipping
Samples be shipped by DHL/FedEx/USP and so on
Mass production be shippinh by Air or Sea
Mass production be shippinh by Air or Sea
Company Profile
Factory View
Dongguan Yaning purifucation Technology Co.,Ltd.islocated in Dongguan city Changan ,is a set design development, production,sales, construction professional installation services in one purifier manufacyurers,the company is committed to the purificationindustry for more than ten years,the South China purification technology industry’s most Powerful enterprises.the main products used in health care,electronices technology ,bio-medicine ,food,precision instruments aerospace,automoble manufacturing and many another areas.
products:
1.FFU ,air shower room ,cargo air shower ,HEPA filter ,horizontal clean bench ,pass box ,clean booth medical bench and so on
2.primer,middle and HEPA filter ,sub-high efficiency filter
3. undertake 100-300 thousand class level clean room design and construction of the project commission inspection and maintenance.
products:
1.FFU ,air shower room ,cargo air shower ,HEPA filter ,horizontal clean bench ,pass box ,clean booth medical bench and so on
2.primer,middle and HEPA filter ,sub-high efficiency filter
3. undertake 100-300 thousand class level clean room design and construction of the project commission inspection and maintenance.
Reception
Office
Production Process
Certifications
Exhibition
FAQ
Q1: What kind of pass box you make?
A: We can make pass box by customer order.
Q2: Are you really manufacturer or trading company?
A: We are indeed filter manufacturer over 10 years experiences and work with many brands for dozen years.
Q3: What price term do you accept?
A: Normally quote FOB price or CIF, others as per to customer required.
Q4: What Payment term you are running?
A: We currently do 40% deposit and 60% pay before shipping.
A: We can make pass box by customer order.
Q2: Are you really manufacturer or trading company?
A: We are indeed filter manufacturer over 10 years experiences and work with many brands for dozen years.
Q3: What price term do you accept?
A: Normally quote FOB price or CIF, others as per to customer required.
Q4: What Payment term you are running?
A: We currently do 40% deposit and 60% pay before shipping.
